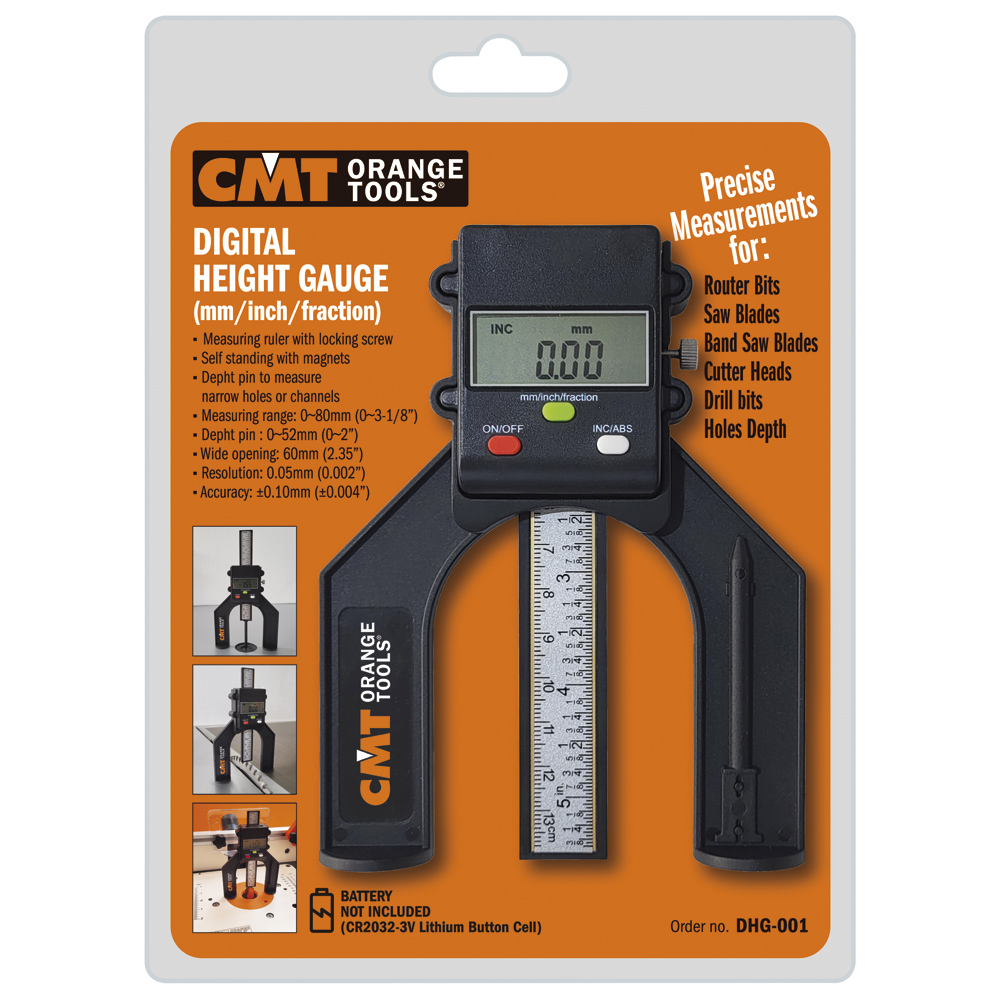

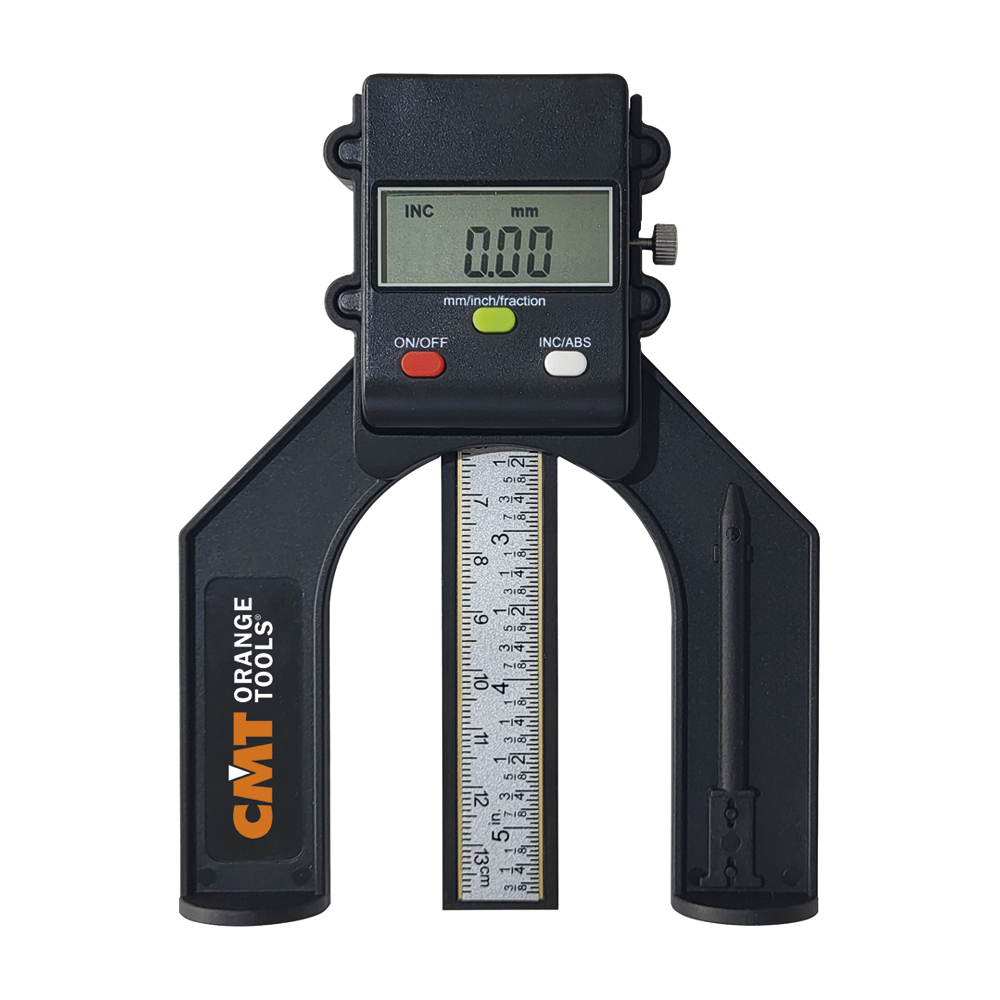

Digital Height Gauge
Digital Height Gauge
Digital Height Gauge
Digital Height Gauge
Digital Height Gauge
Digital Height Gauge
Digital Height Gauge
Digital Height Gauge

Digital Height Gauge

DHG-001

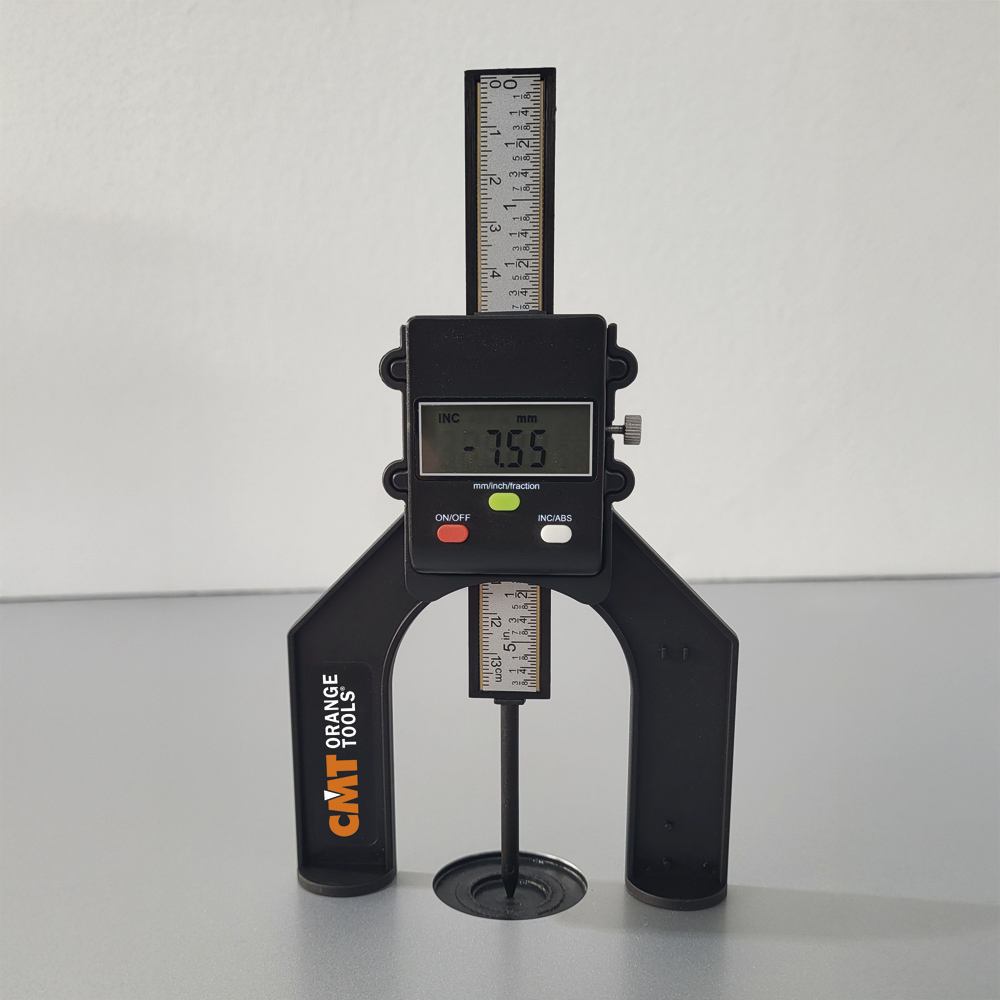

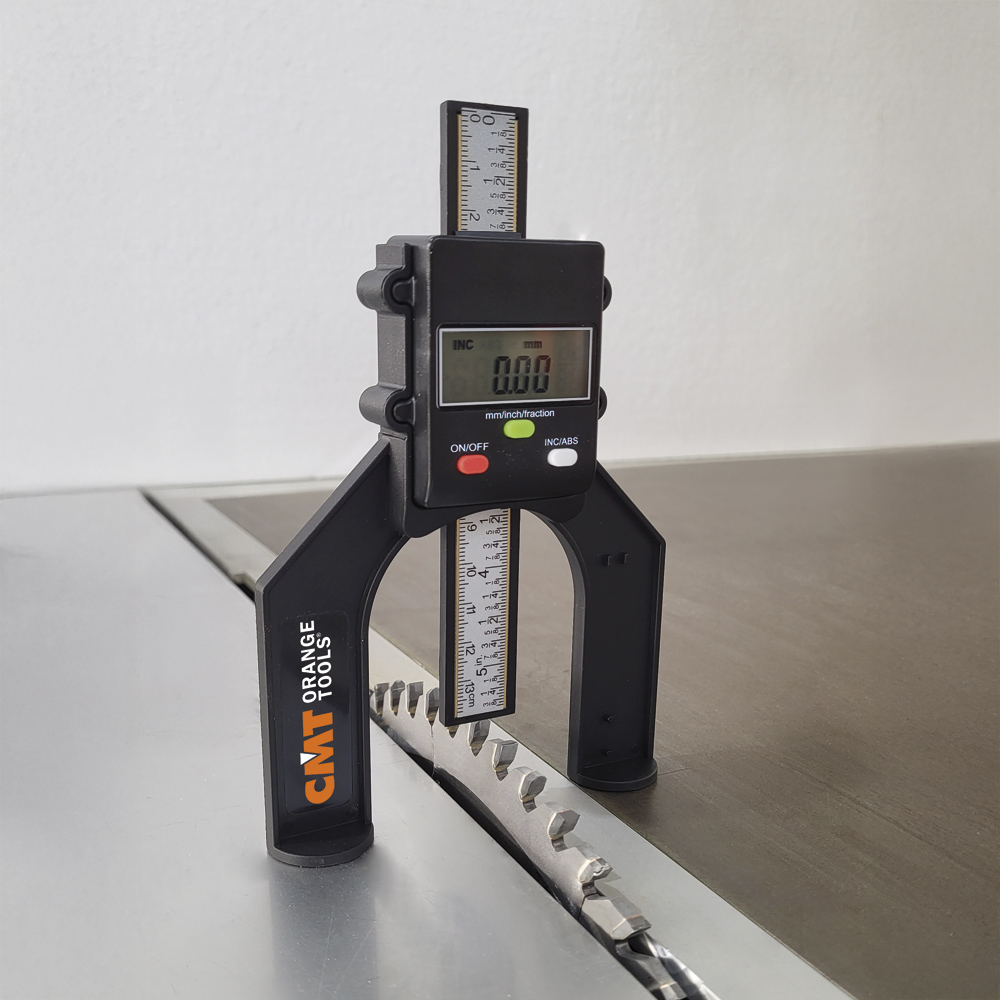

  • Precise measurements for router bits, saw blades, band saw blades, cutter heads, drill bits, holes depth.
  • Measuring ruler with Metric/Imperial scale and locking screw.
  • Horizontal & vertical measuring.
  • Digital easy-to-read display.

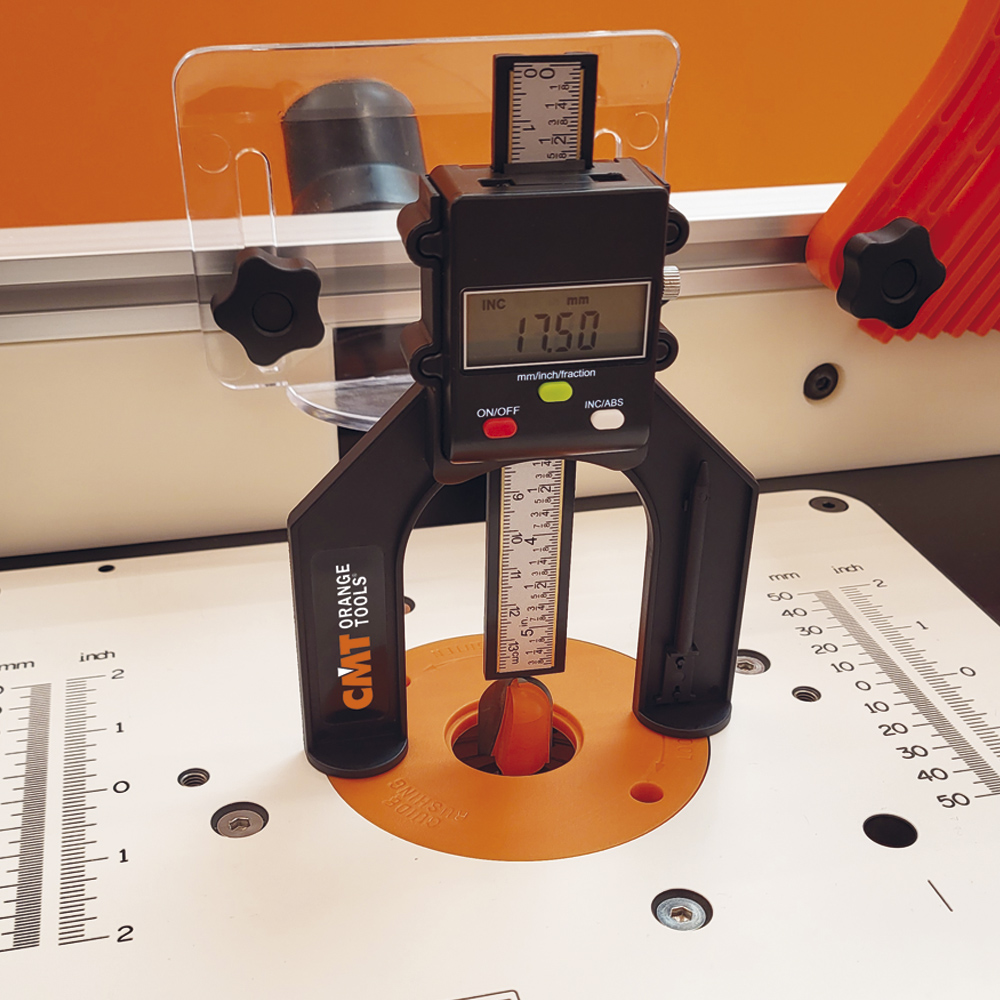

  • Self-standing with magnets, for setting cutting depth on router tables and low profiles for backfence adjustment.

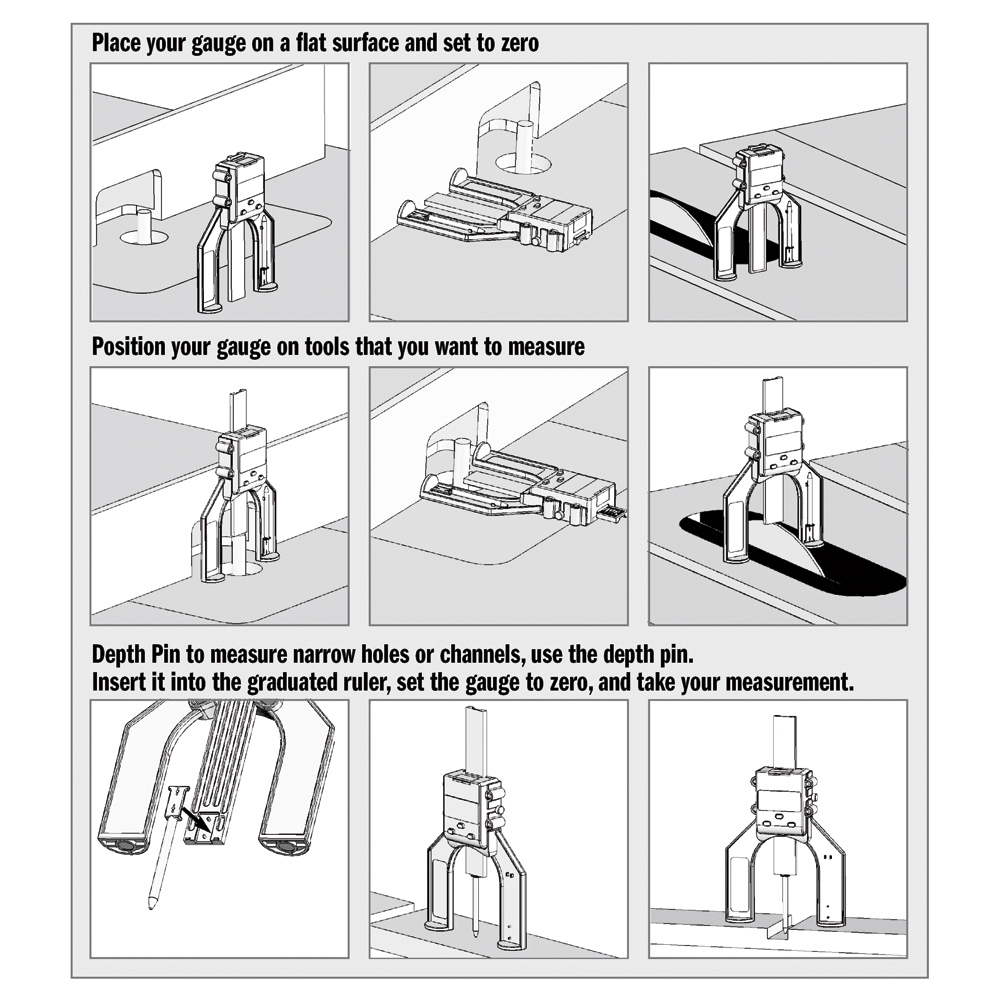

  • Instruction manual.


Technical Details:
  • Measuring range:       Scale: 0~80mm (0~3-1/8”);
  • Needle:                       0~50mm (0~2”)
  • Wide opening:            60mm (2-23/64”)
  • Resolution:                 0.05mm (0.002”)
  • Accuracy:                    ±0.1mm (±0.004”)
  • Battery:                       Included
  • Battery Type:               CR2032-3V; Lithium Button Cell



Variations
Filter
Item Code Description
DHG-001
DHG-001 Digital height gauge
