Digital angle finder
Digital angle finder
Digital angle finder
Digital angle finder

Digital angle finder

DAF-001

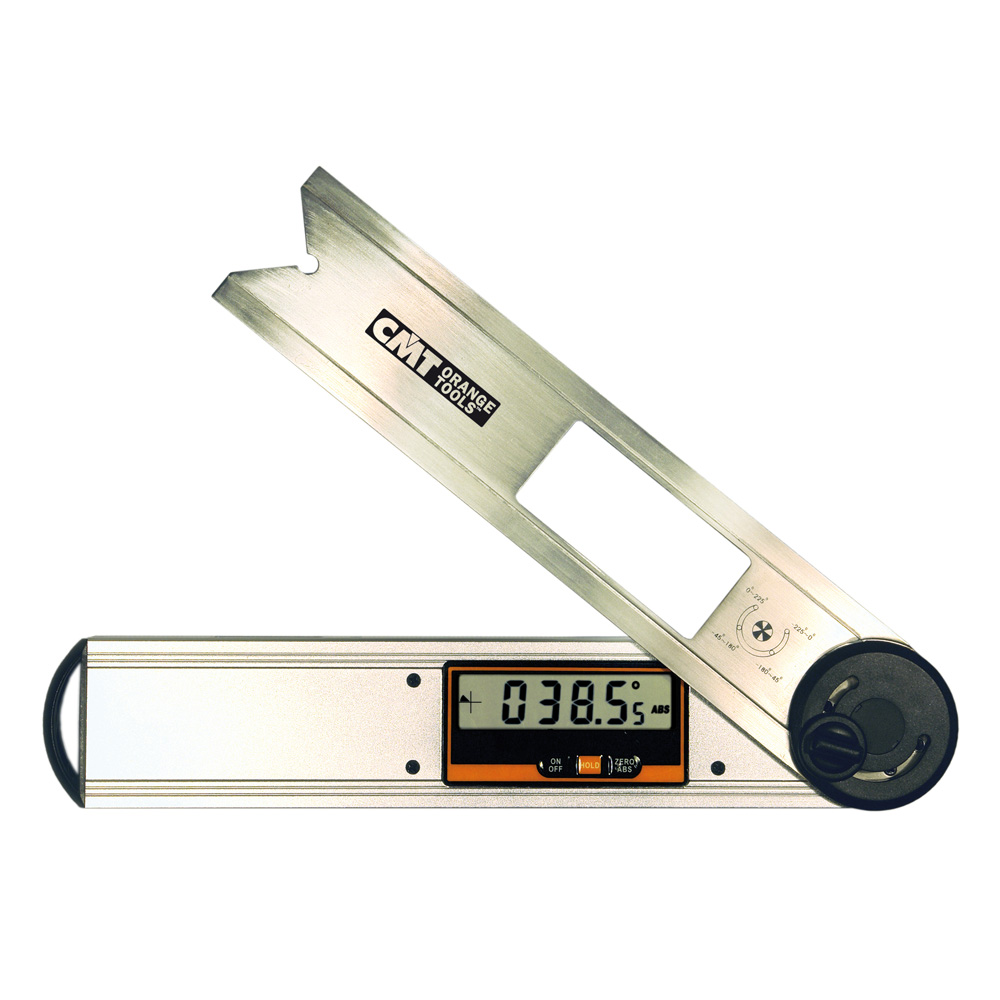

This digital angle finder is a multi-functional tool for many measuring applications.

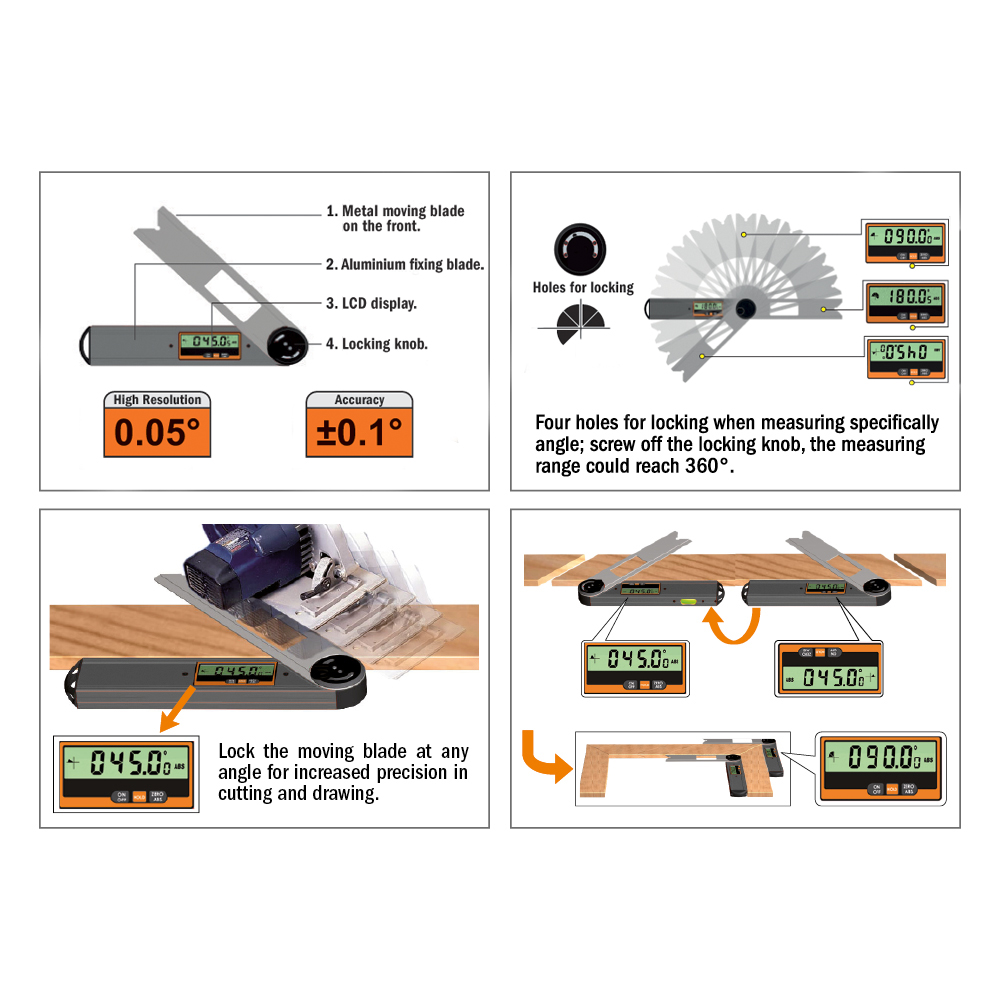

Easy to operate, the base unit carries the electronics featuring clear detailed LCD display, a pair of levelling vials and a pivoting measuring arm.
When the arm is extended, the angle created with the base is indicated clearly on digital read-out to the nearest 0.05°.

The measuring range is 0 - 360°.
The vials allow both vertical and horizontal variations to be accurately measured.


Other features include a lock function to prevent the last measurement being lost, a low battery indicator and automatic shut off function.
Robust yet lightweight, this tool is very versatile.

  • Easy and simple to use.
  • Calculates angles in seconds.
  • Large detailed LCD display.
  • Robust, lightweight aluminium construction.
  • Instruction manual.

Technical Details:
  • Range:                     0-360°
  • Resolution:               0.05°
  • Battery:                     Included
  • Battery Type:            CR2032-3V; Lithium Button Cell
  • Dimensions:             260 x 50 x 25mm (10-1/4” x 2” x 1”)

Watch the DAF-001 V-LOG video
Variations
Filter
Item Code Description
DAF-001
DAF-001 Digital angle finder
