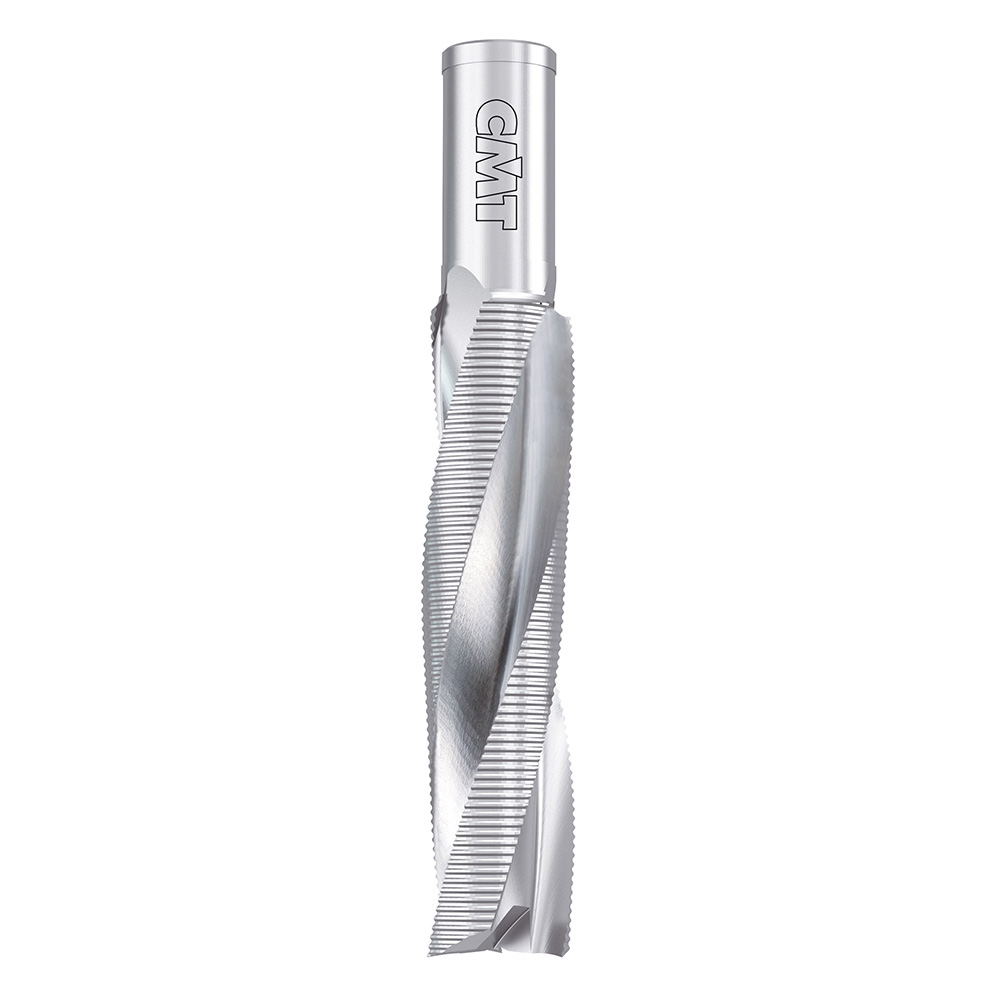

Upcut spiral bits with chipbreaker for glue-laminated wooden beams
195.3-4-5
TECHNICAL FEATURES:
• High speed cobalt steel.
• 3 upcut spiral cutting edges with chipbreaker (Z3R).
• Upward chip ejection.
• Resharpenable (max. 6000~10000 times).
• Maximum feed speed 2m/minute.
Item number Y195.300.51 is available on request.
On request we also manufacture bits without chipbreaker, with left-hand rotation and also in custom dimentions.
Details
Used for cutting, copying, and routing on glue-laminated wooden beams. For use on Hundegger machines.
Variations
Filter

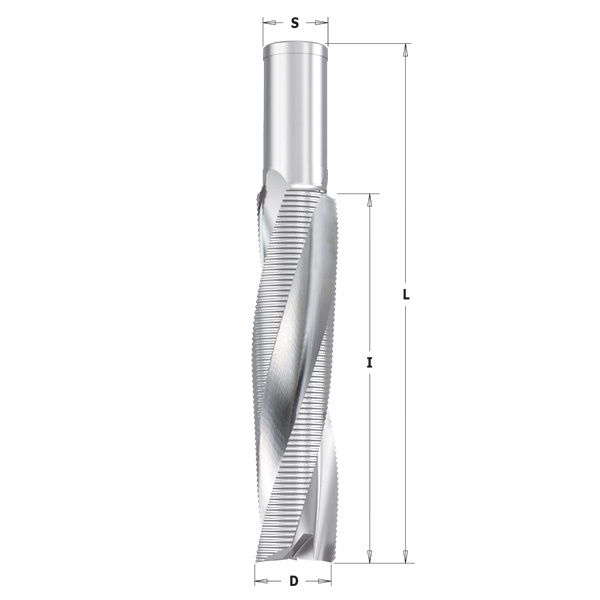

| Item Code | D | I | L | S | Z | MAT | RH-LH |
|---|---|---|---|---|---|---|---|
|
Y195.300.51
|
30 | 170 | 235 | 30 | 3R | HSS | RH |
|
Y195.301.51
|
30 | 170 | 235 | 30 | 3R | HSS | RH |
|
Y195.301.51S
|
30 | 170 | 235 | 30 | 3R | HSS | RH |
|
Y195.401.51
|
30 | 170 | 235 | 30 | 3R | HSS | RH |
|
Y195.401.51S
|
30 | 170 | 235 | 30 | 3R | HSS | RH |
|
Y195.501.51
|
30 | 170 | 235 | 30 | 3R | HSS | RH |
|
Y195.501.51S
|
30 | 170 | 235 | 30 | 3R | HSS | RH |
|
195.400.51
|
40 | 165 | 235 | 30 | 3R | HSS | RH |
|
195.500.51
|
50 | 215 | 295 | 30 | 3R | HSS | RH |
