663

TECHNICAL FEATURES:
  • Super strength steel.
  • 3 cutting edges (Z3).
  • 4 cutting edges (Z4).

Application

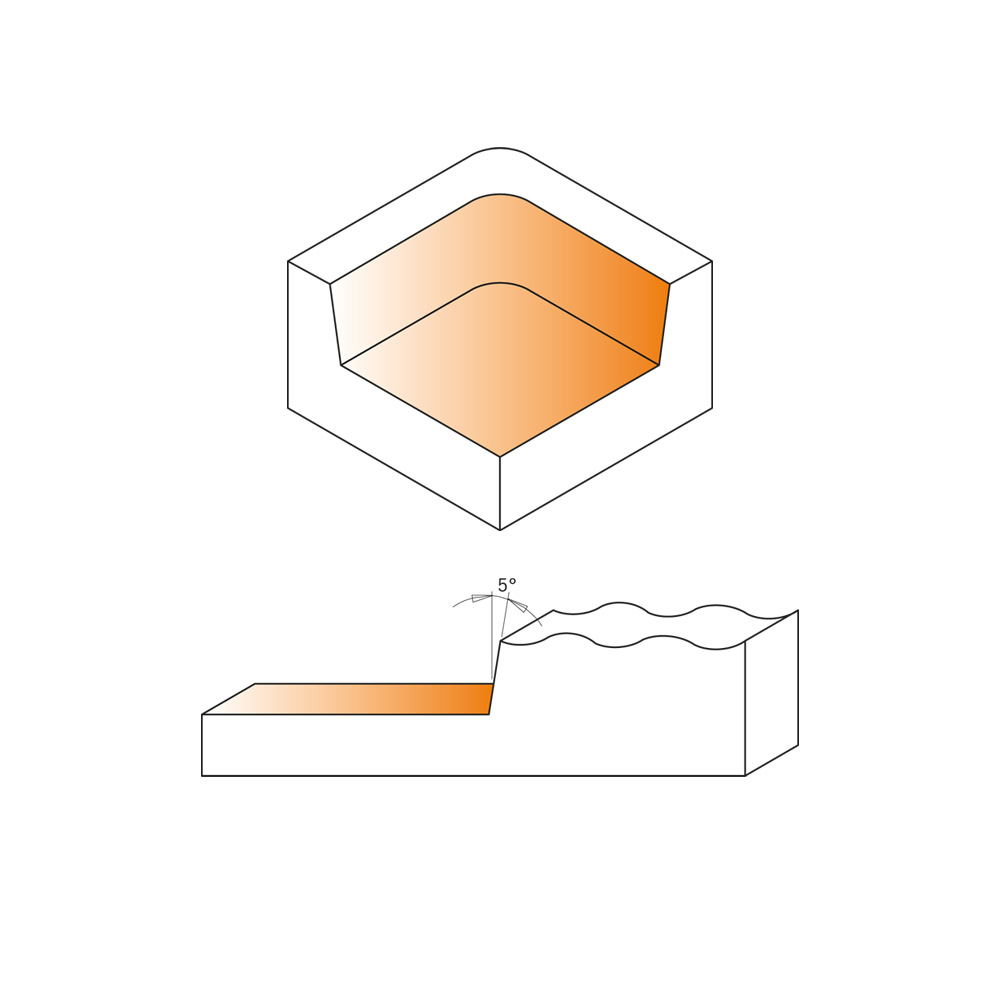

The new router bit for CNC routers is ideal for fast removal of material over a large surface area leaving an improved finish at the bottom of the cut.
Used on soft and hardwood, particle board and MDF.
The cutter uses 4-sided inserts in super micrograin carbide.

A cost effective solution compared to brazed router bits and solid carbide spiral bits.

Safety Tips:
The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.





Variations
Filter
Item Code D I L Z S MAT RH-LH 790.120.03 HWM Indexable knife Torx screw VITE TBTI TORX T15 M4x6x8.2 D9 Torx Key Torx screw Nut

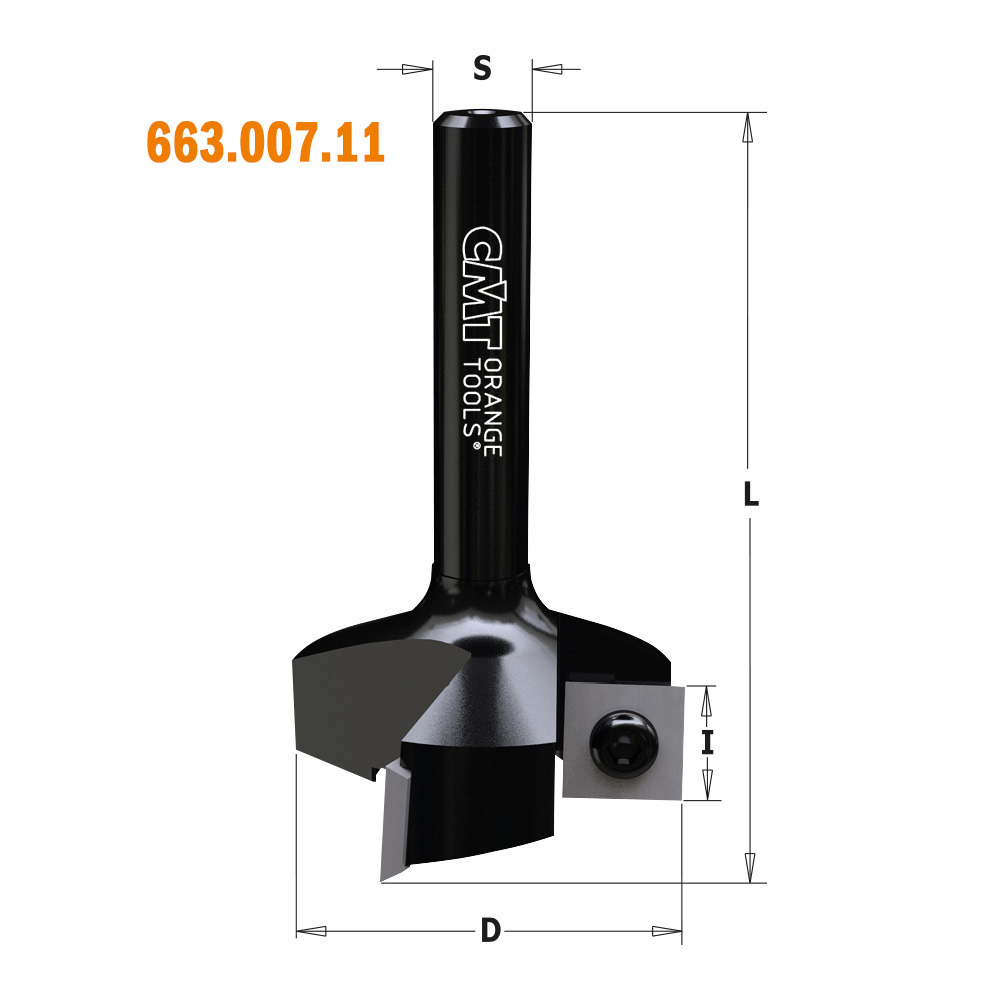

663.007.11
34,9 10 60 3 8 RH 790.105.03 990.078.00 991.061.00 990.036.00 990.020.00

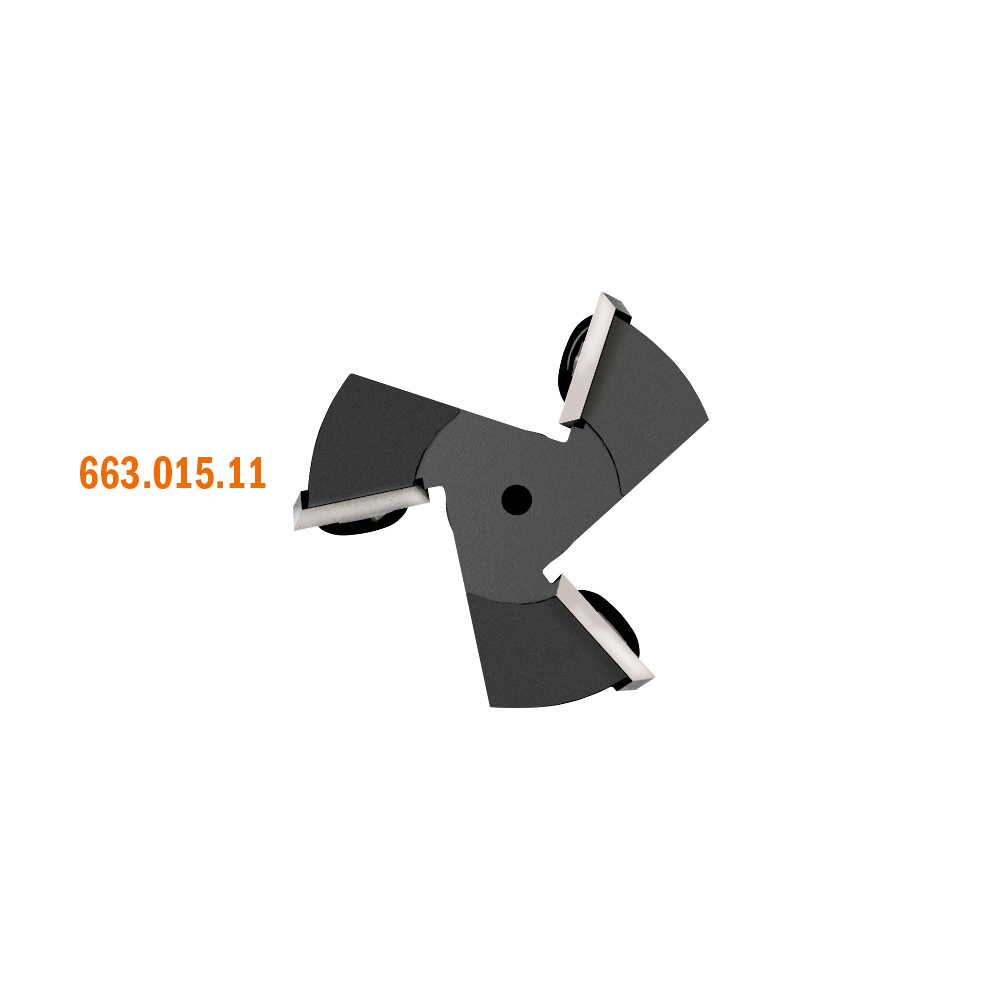

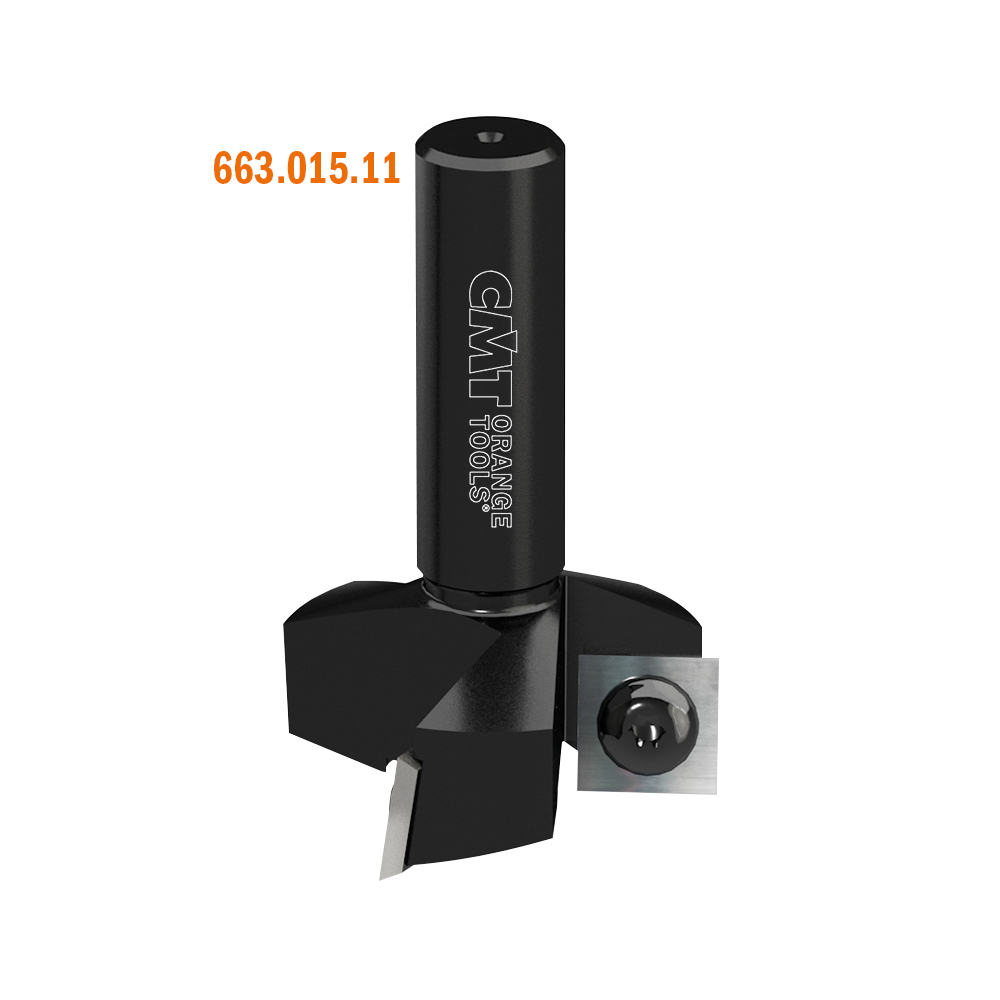

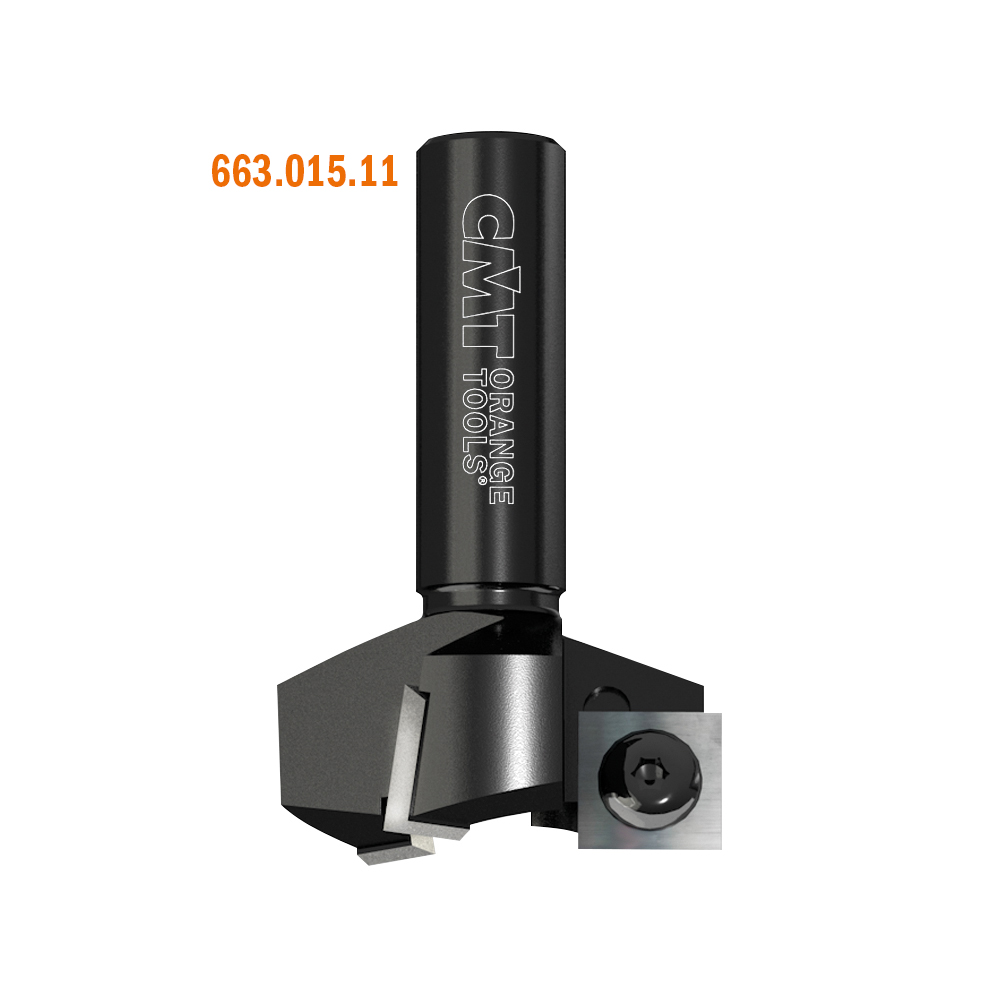

663.015.11
38,1 12 60 3 12,7 RH 790.120.03 990.075.00 991.061.00

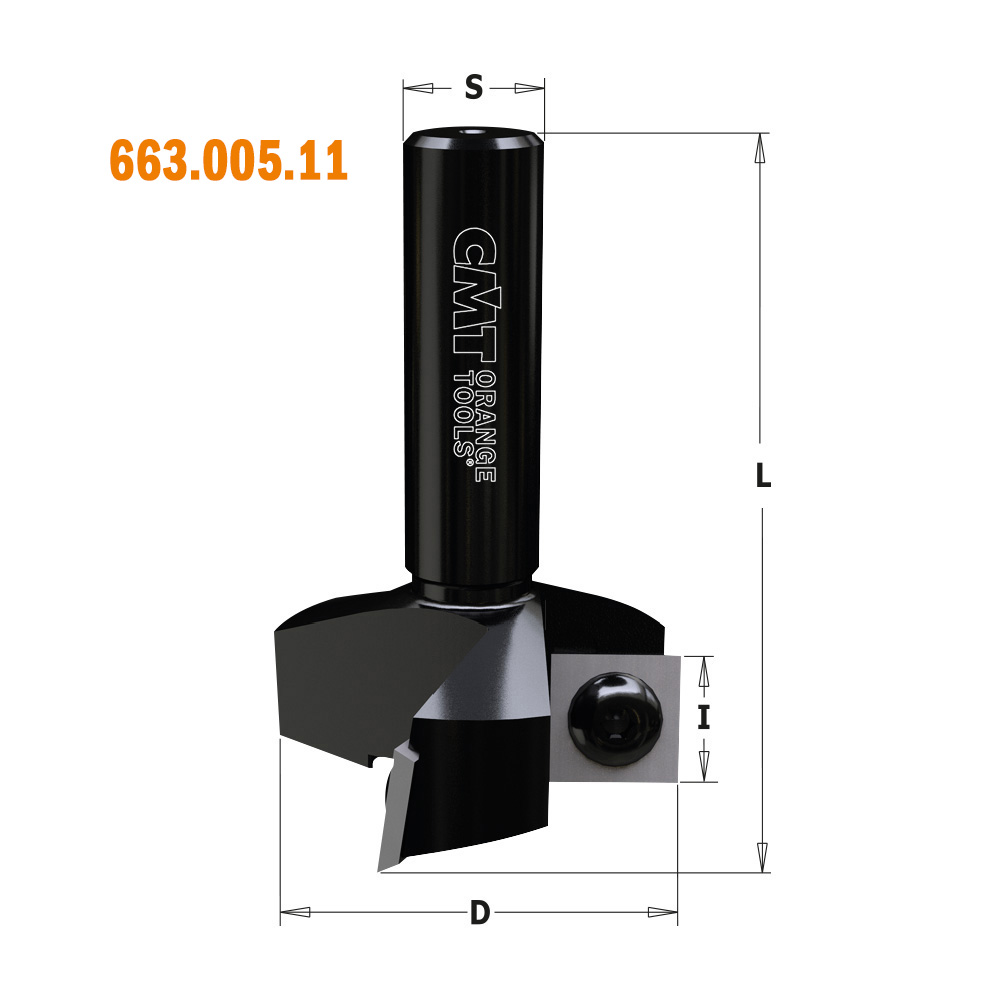

663.005.11
38,1 12 60 3 12 RH 790.120.03 990.075.00 991.061.00 990.036.00 990.020.00

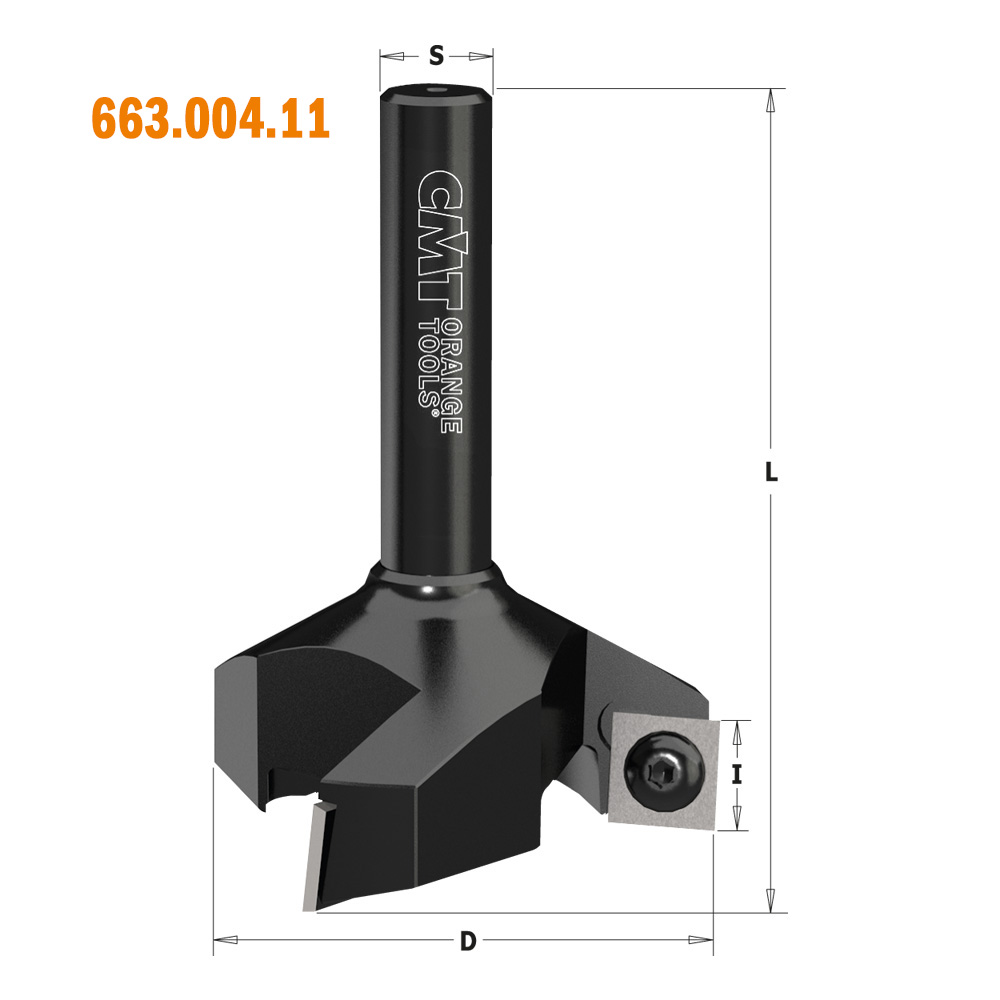

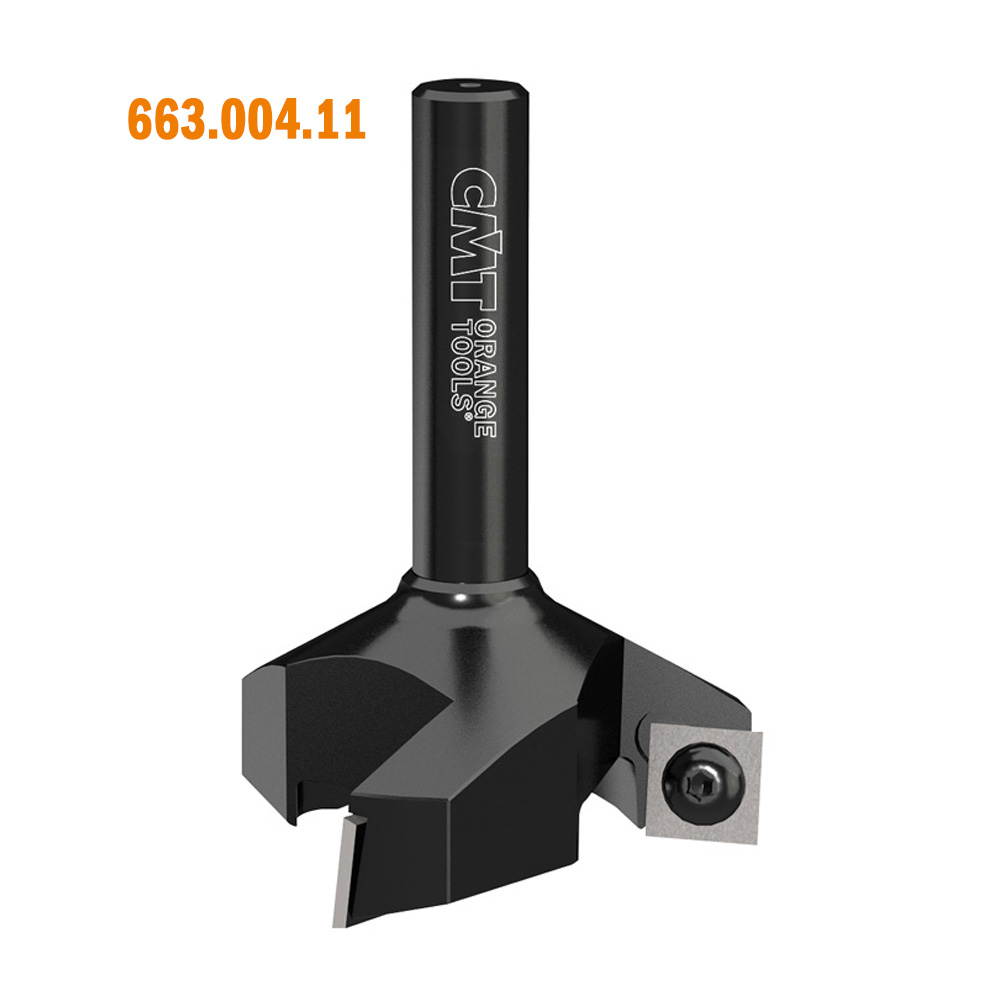

663.004.11
60 12 80 3 12 RH 790.120.03 990.075.00 991.061.00 990.036.00 990.020.00

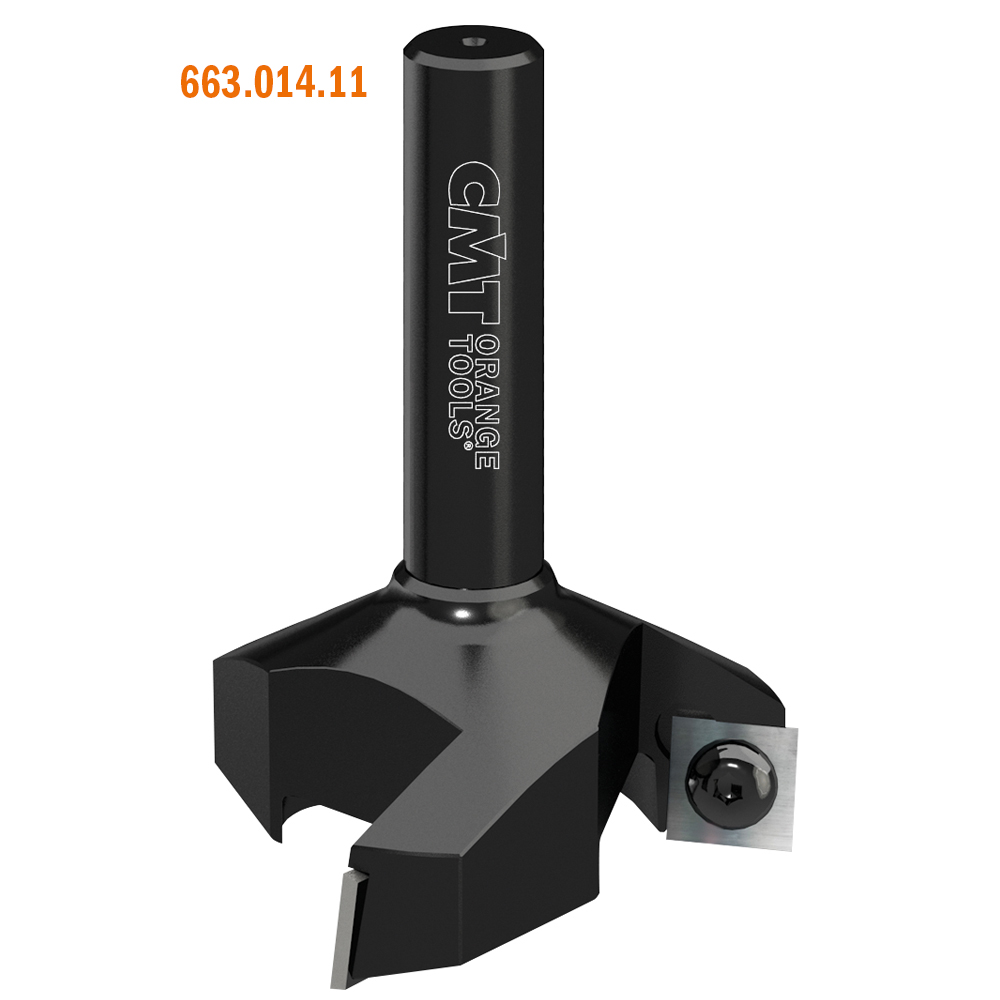

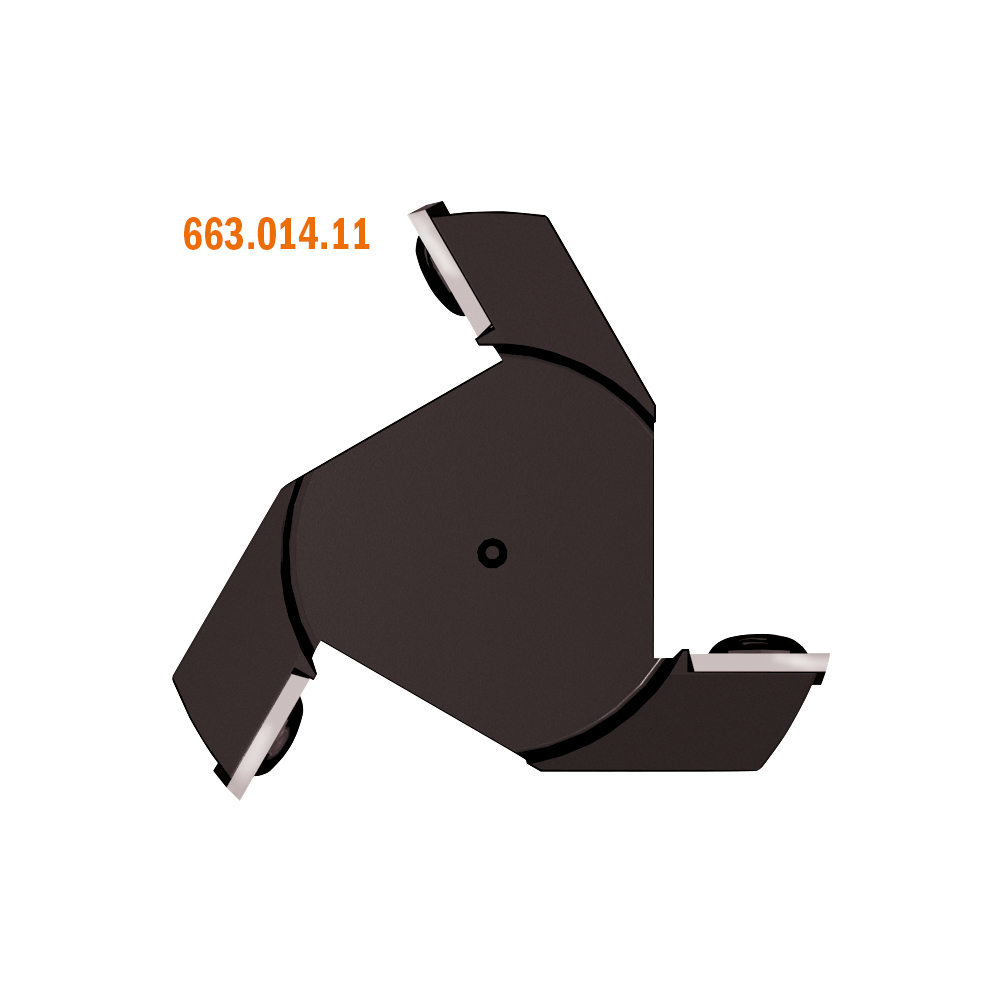

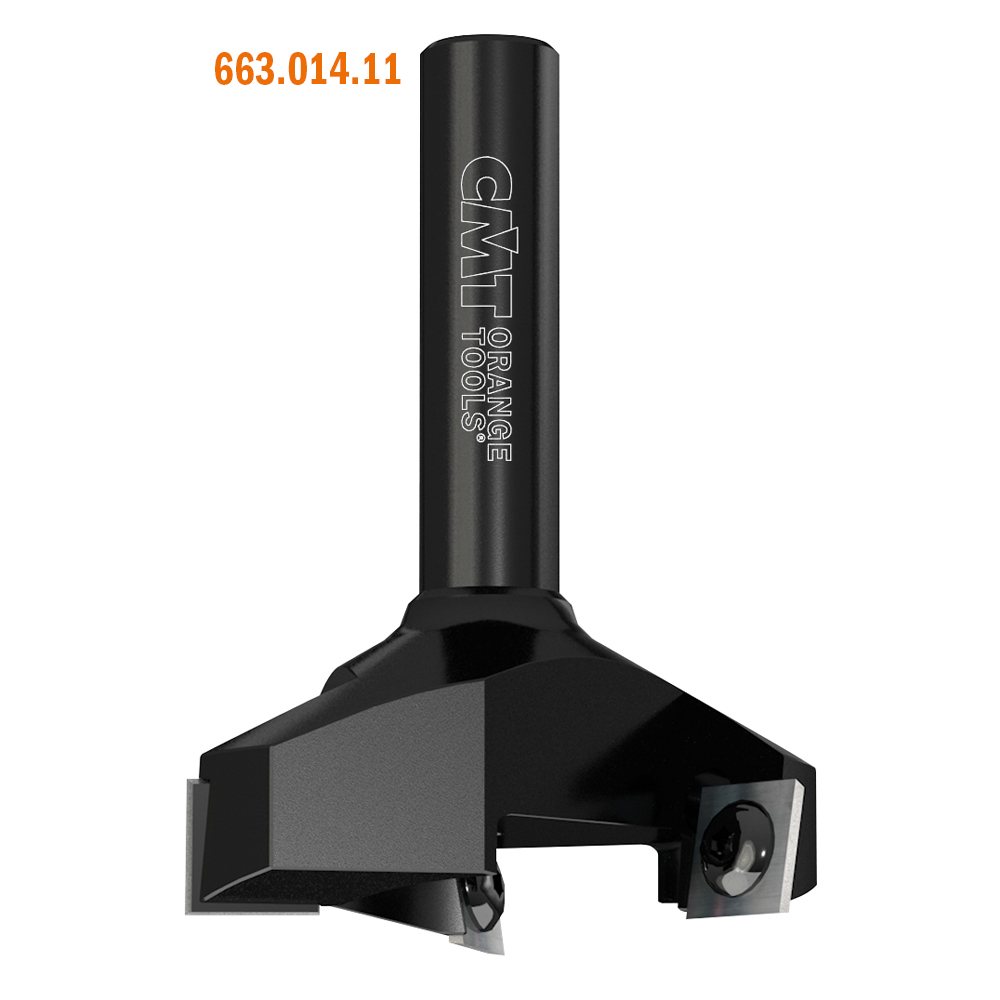

663.014.11
60 12 80 3 12,7 RH 790.120.03 990.075.00 991.061.00

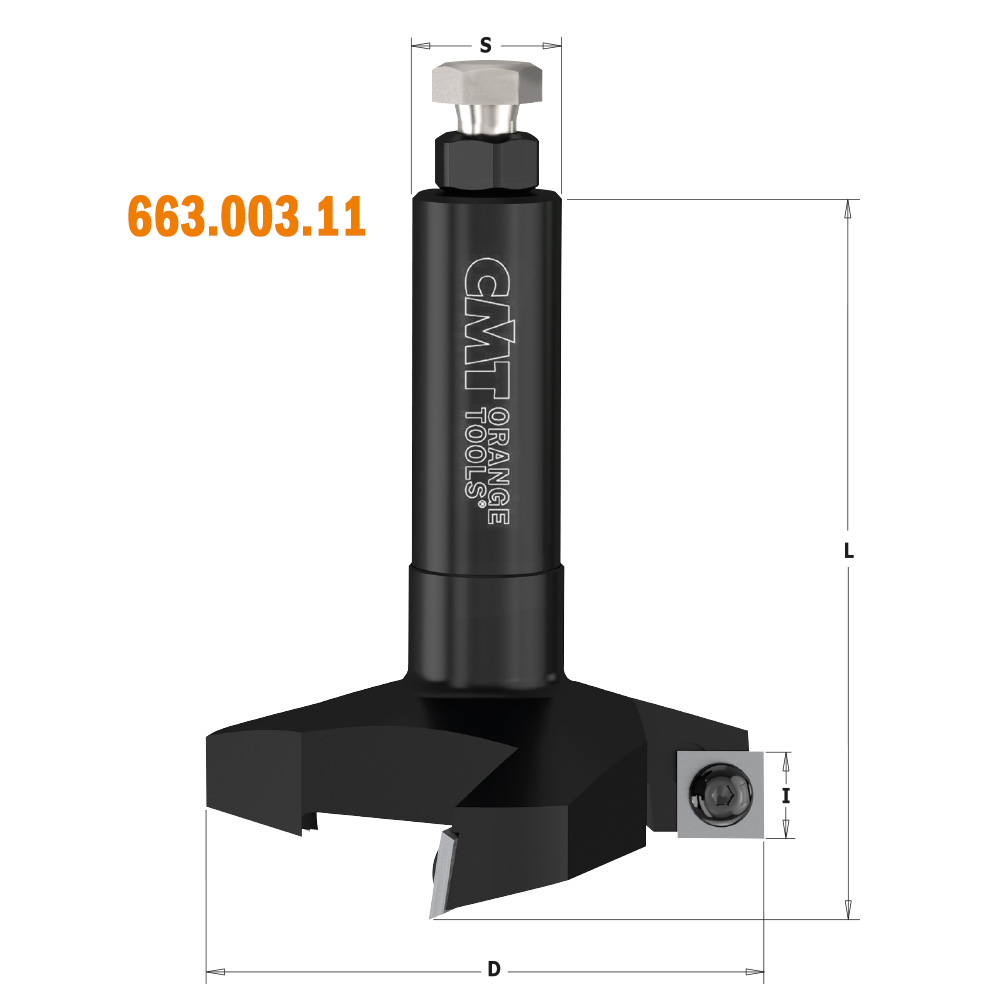

663.003.11
80 12 90 3 20 RH 790.120.03 990.075.00 991.061.00 990.036.00 990.020.00

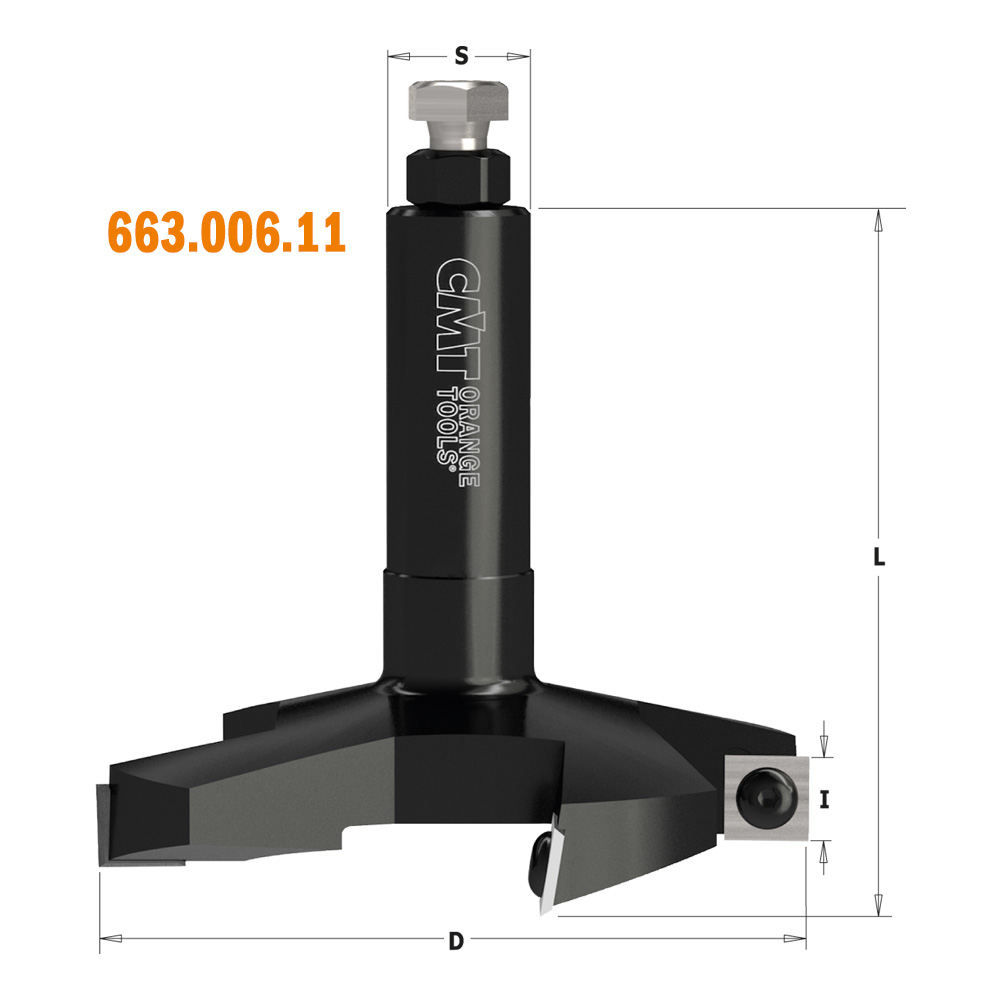

663.006.11
100 12 90 4 20 RH 790.120.03 990.075.00 991.061.00 990.036.00 990.020.00
