TECHNICAL DETAILS:
  • Super-strength steel.
  • 3 cutting edge (Z3).
  • 4 cutting edges (Z4).
Application

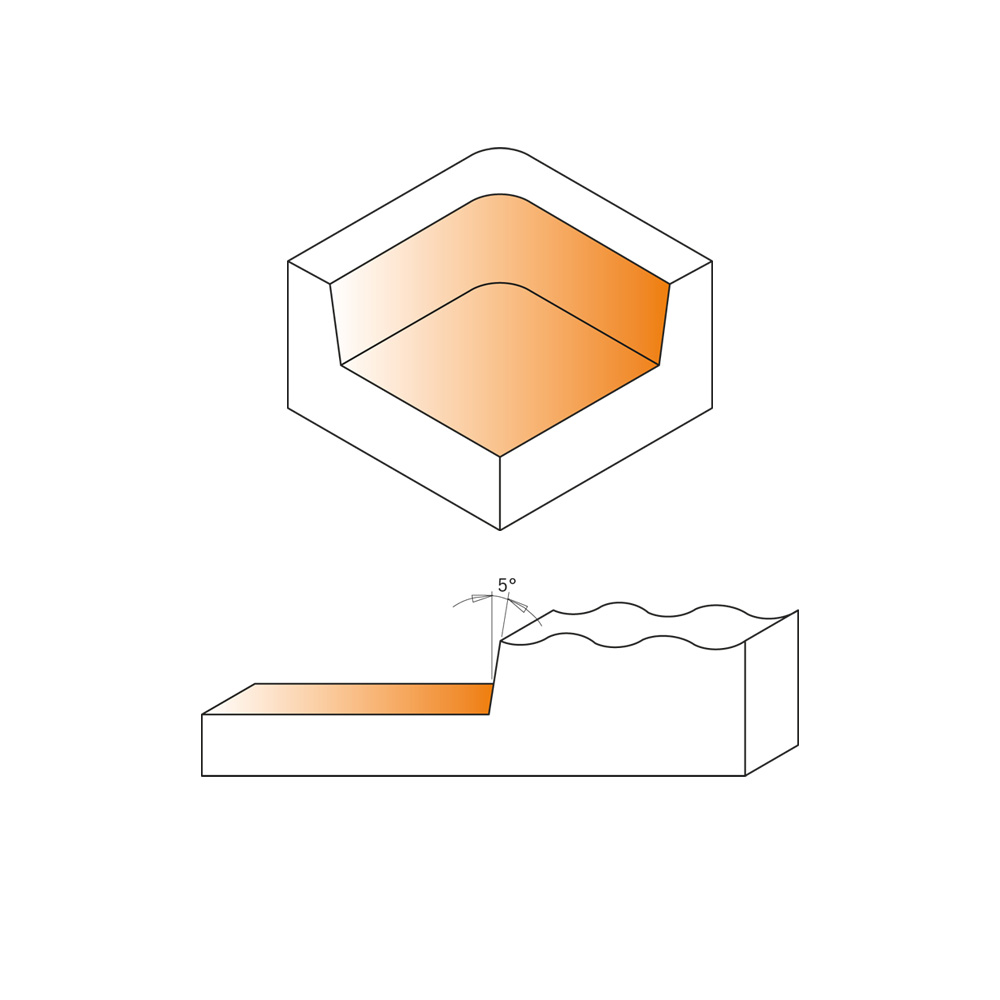

The new router bit for CNC routers is ideal for fast removal of material
over a large surface area leaving an improved finish at the bottom of the cut.
Used on soft and hardwood, particle board and MDF.

The cutter uses 4-sided inserts in super micrograin carbide.

A cost effective solution compared to brazed router bits and solid carbide spiral bits.



Variations
Filter

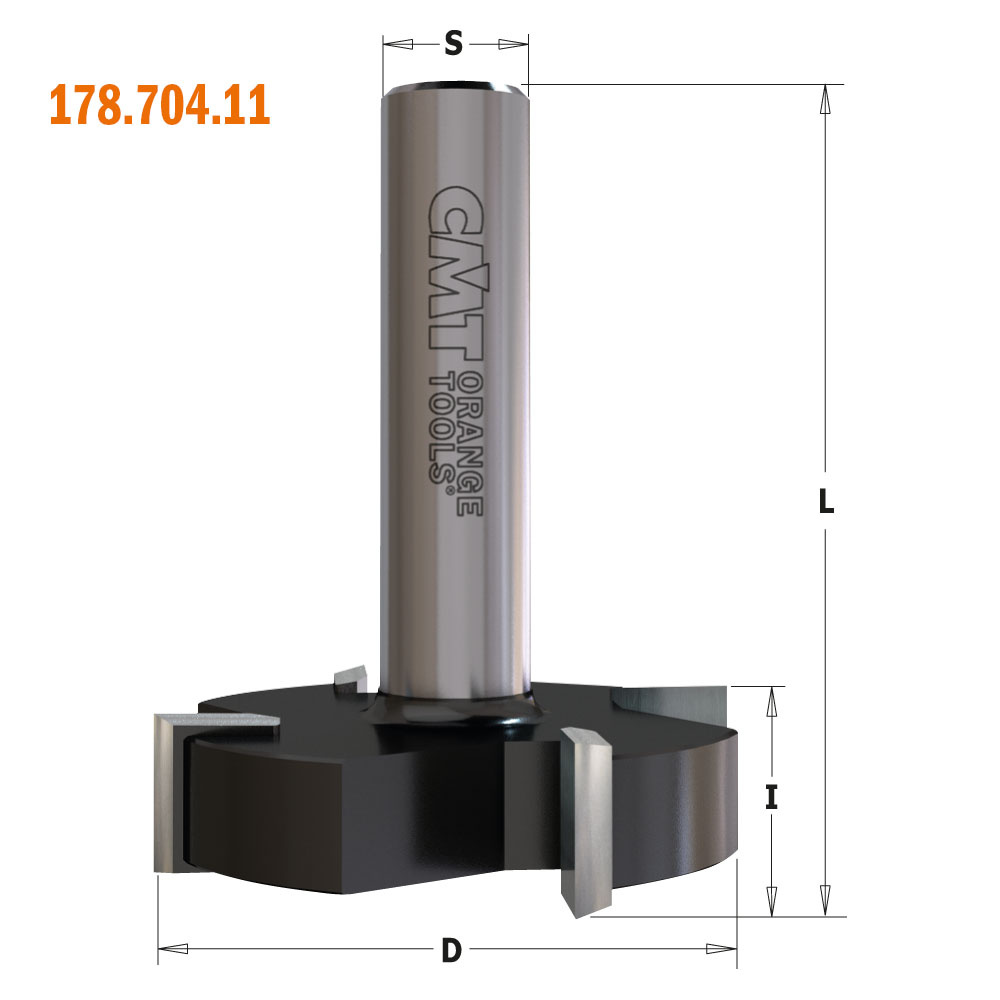

Item Code D I L A S Z MAT RH-LH

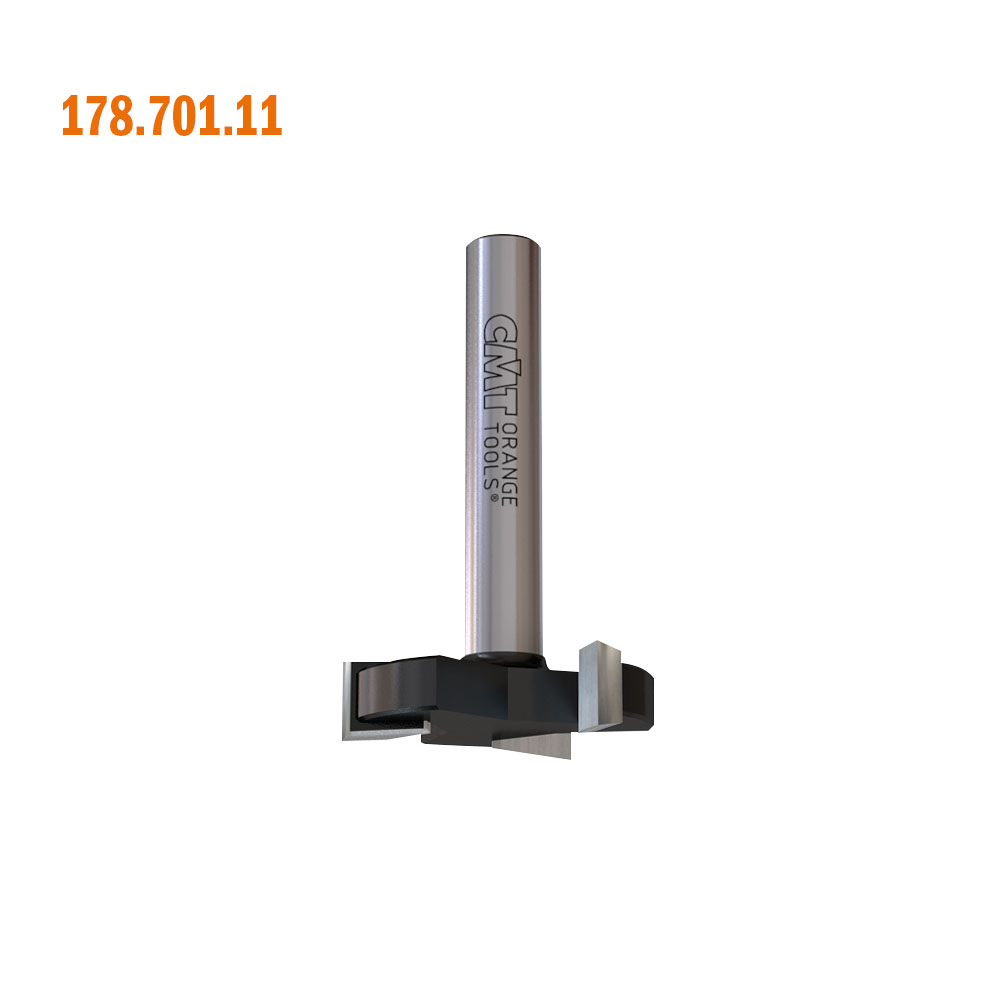

178.701.11
25,4 6,35 41 6,35 3 HW RH

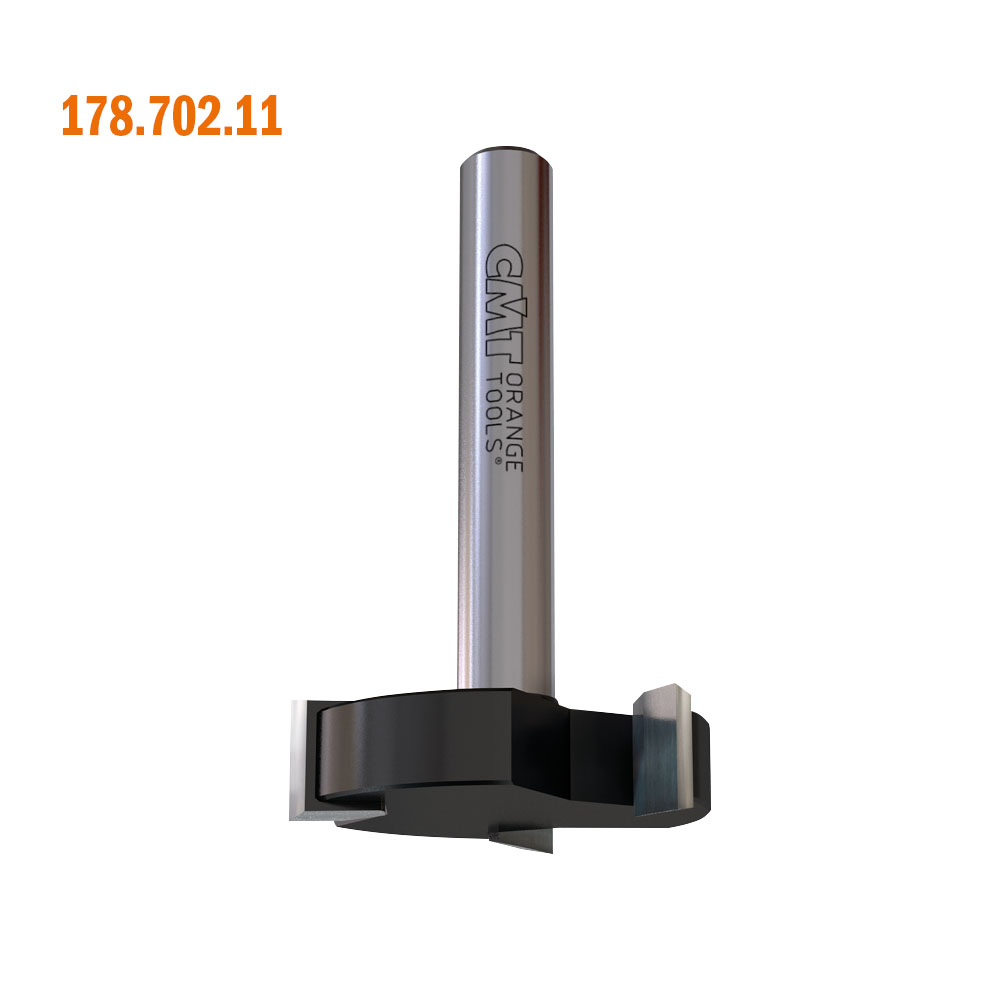

178.702.11
34,9 9,5 57 8 3 HW RH

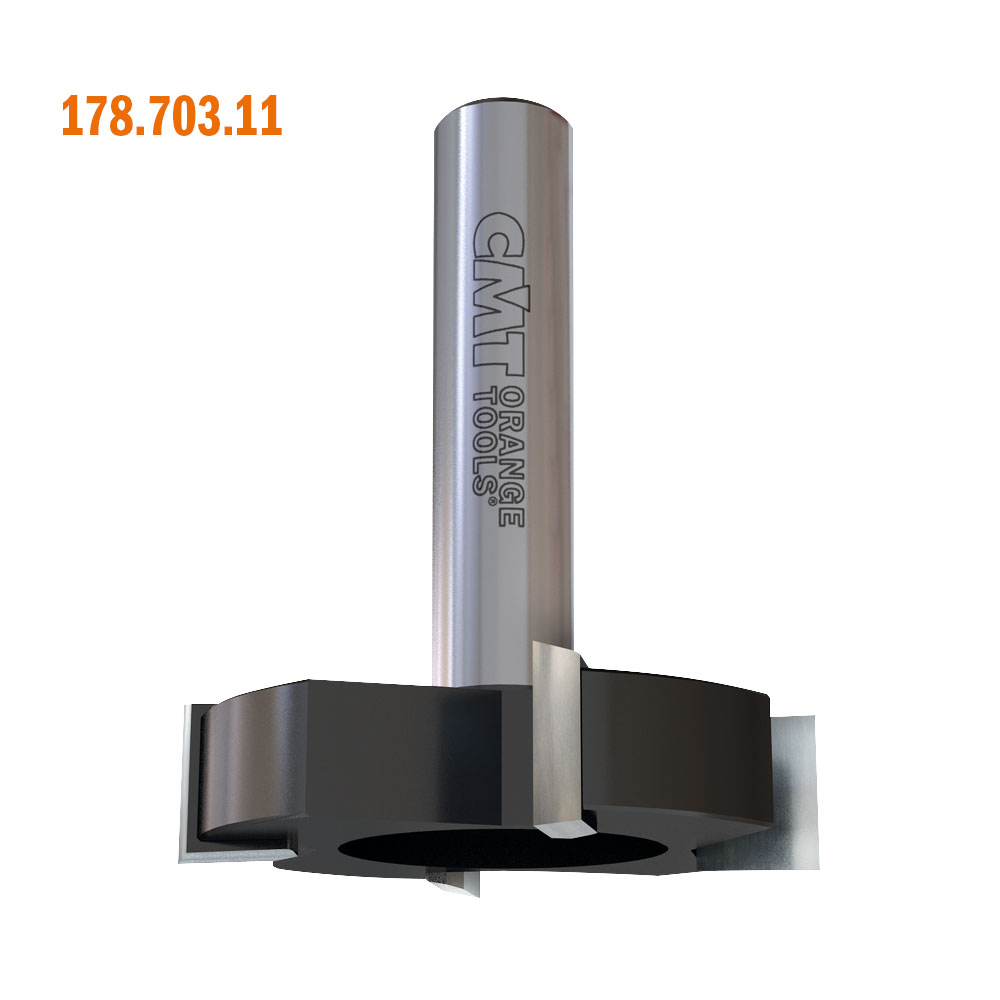

178.703.11
50,8 12,7 63,5 12 4 HW RH

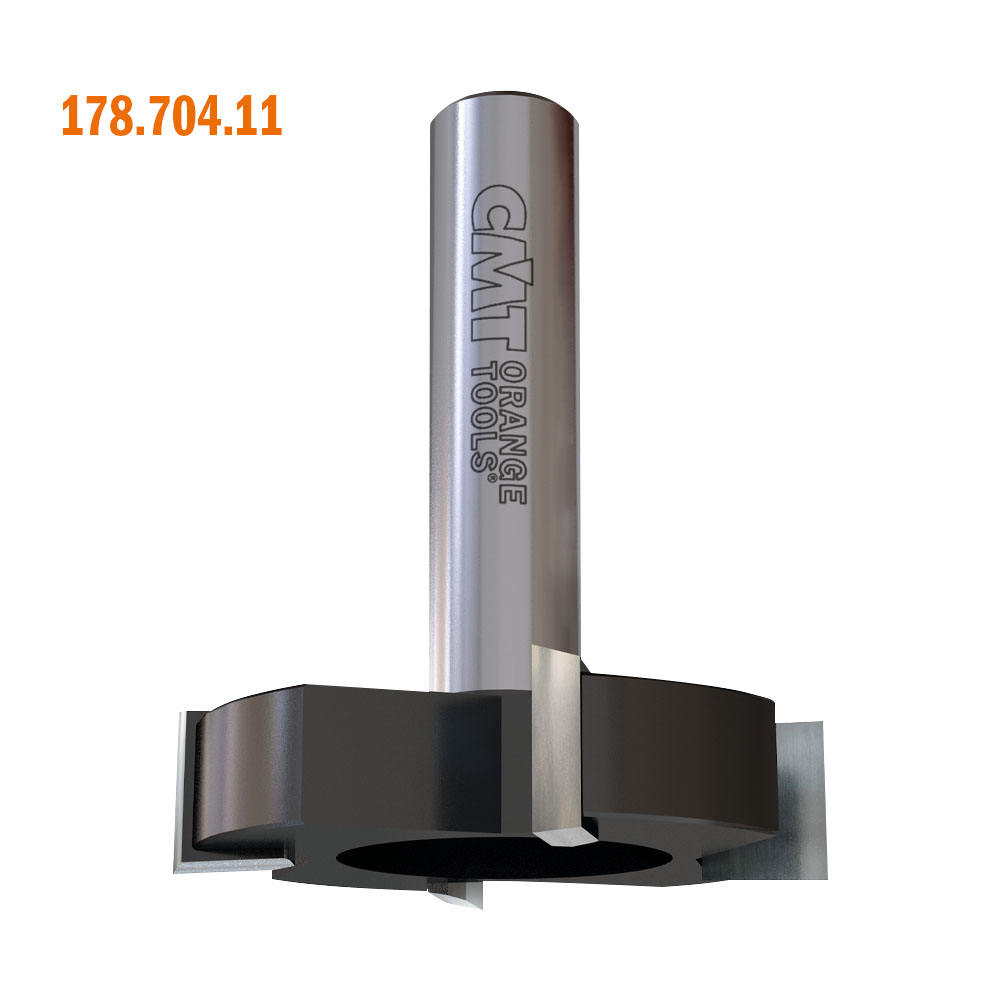

178.704.11
50,8 12,7 63,5 12,7 4 HW RH
