190

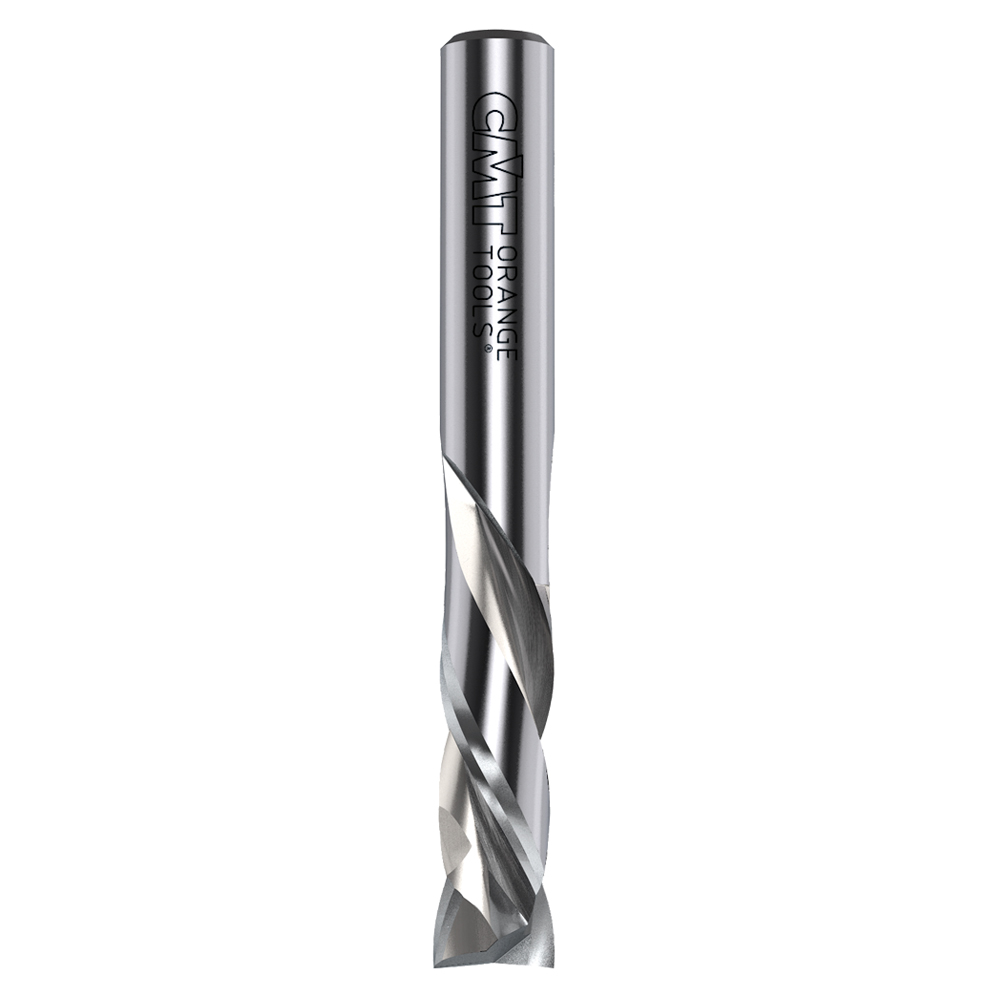

Sharp technology with a new twist
A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer.

Increased feed rate and improved cutting quality for enhanced productivity with CMT!

TECHNICAL FEATURES:
• Premium quality HWM.
•
2+2 spiral cutting edges (Z2+2).
• Provide an excellent finish on both the upper and the lower side of the workpiece.

Details
Used for cutting, copying, panel sizing and any routing applications on solid wood, wood composites, plastic materials and laminates. Use a high feed speed on well-clamped workpieces. Can be used on machining centres, point to point machines, CNC routers and hand-held routers equipped with chucks or adaptors.
Variations
Filter
Item Code Description D I I1 L S Z MAT
190.040.11
190.040.11 Solid Carbide Upcut & Downcut Spiral Bits Z1+1 4 15 7 50 4 1 + 1 HWM
190.050.11
190.050.11 Solid Carbide Upcut & Downcut Spiral Bits Z1+1 5 22 8 60 5 1 + 1 HWM
190.060.11
190.060.11 Solid Carbide Upcut & Downcut Spiral Bits Z1+1 6 22 8 60 6 1 + 1 HWM
190.008.11
190.008.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 6,35 22,2 6,35 63,5 6,35 2 + 2 HWM
190.080.11
190.080.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 8 32 7 80 8 2 + 2 HWM
190.513.11
190.513.11 Mortise Compression Upcut & Downcut Z2+2 9,5 22,2 4,8 76,2 9,52 2 + 2 HWM
190.504.11
190.504.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 9,5 28,6 7 76,2 9,52 2 + 2 HWM
190.813.11
190.813.11 Mortise Compression Upcut & Downcut Z3+3 9,5 25,4 5,2 76,2 9,52 3 + 3 HWM
190.100.11
190.100.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 10 32 7 80 10 2 + 2 HWM
190.101.11
190.101.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 10 42 7 90 10 2 + 2 HWM
190.120.11
190.120.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 12 42 7 90 12 2 + 2 HWM
190.121.11
190.121.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 12 52 7 100 12 2 + 2 HWM
190.320.11
190.320.11 Mortise Compression Upcut & Downcut Z2+2 12 25 5,2 83 12 3 + 3 HWM
190.515.11
190.515.11 Mortise Compression Upcut & Downcut Z2+2 12,7 22,2 5,2 76,2 12,7 2 + 2 HWM
190.517.11
190.517.11 Mortise Compression Upcut & Downcut Z2+2 12,7 34,9 5,2 88,9 12,7 2 + 2 HWM
190.505.11
190.505.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 12,7 25,4 12 76,2 12,7 2 + 2 HWM
190.506.11
190.506.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 12,7 28,6 12 76,2 12,7 2 + 2 HWM
190.507.11
190.507.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 12,7 34,9 12 88,9 12,7 2 + 2 HWM
190.508.11
190.508.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 12,7 41,3 12 101,6 12,7 2 + 2 HWM
190.815.11
190.815.11 Mortise Compression Upcut & Downcut Z3+3 12,7 28,5 6,3 76,2 12,7 3 + 3 HWM
190.160.11
190.160.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 16 55 24 110 16 2 + 2 HWM
190.180.11
190.180.11 Solid Carbide Upcut & Downcut Spiral Bits Z2+2 18 55 30 110 18 2 + 2 HWM
