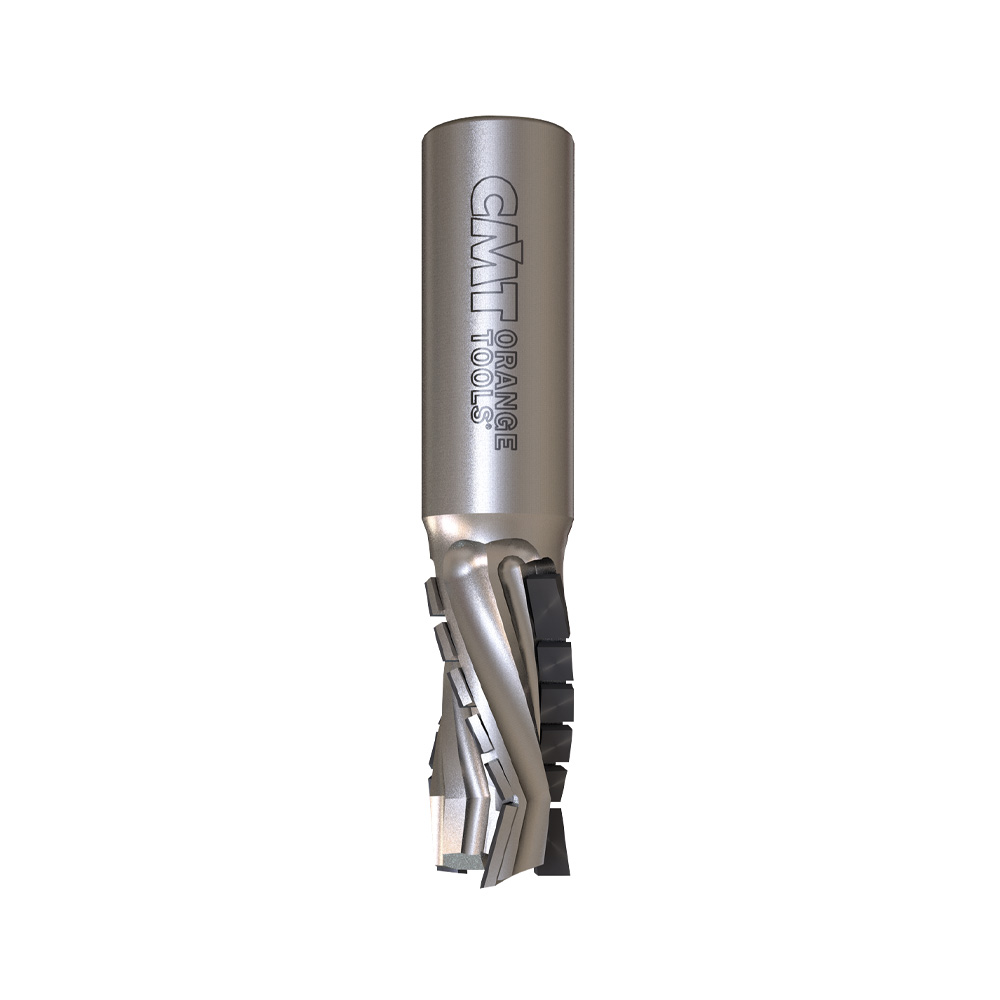

Diamond spiral router cutters with shear angle
Diamond spiral router cutters with shear angle
Diamond spiral router cutters with shear angle
Diamond spiral router cutters with shear angle
Diamond spiral router cutters with shear angle
Diamond spiral router cutters with shear angle
Diamond spiral router cutters with shear angle
Diamond spiral router cutters with shear angle
Diamond spiral router cutters with shear angle
Diamond spiral router cutters with shear angle

Diamond spiral router cutters with shear angle

143

TECHNICAL DETAILS:
Super strength steel.
DP cutting edge.
HW plunging tip for diagonal plunge-cutting (Z-axis tool entrance).
Resharpenable cutter (max 6 times).

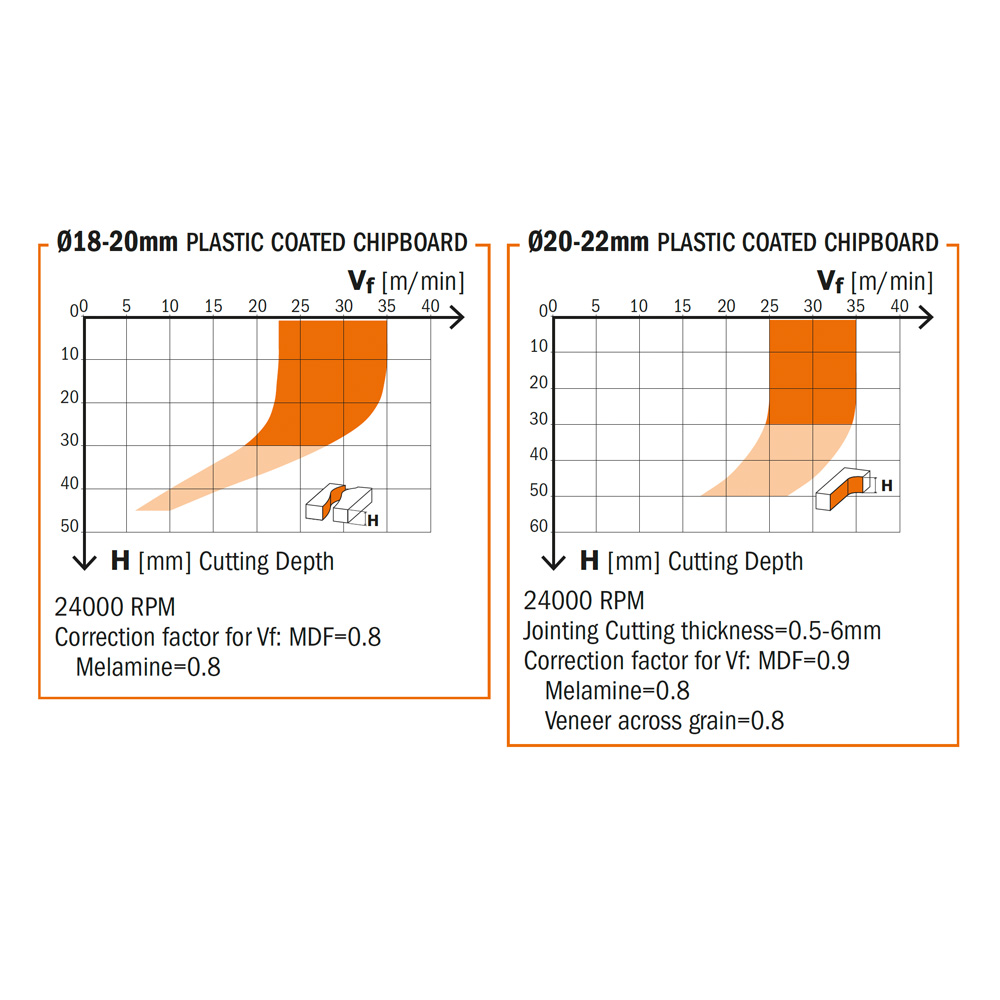

Max feed speed 25 m/min.

Item numbers 143.221.61, 143.223.61, 143.225.61, 143.227.61 and 143.228.61 are available on request.
Details
To be used on all CNC routers for jointing, rabbeting, grooving, copying and dividing cuts of raw material, melamine and laminates, MDF, HPL and veneered panels. High performance on pre-and finish-routing.
Variations
Filter

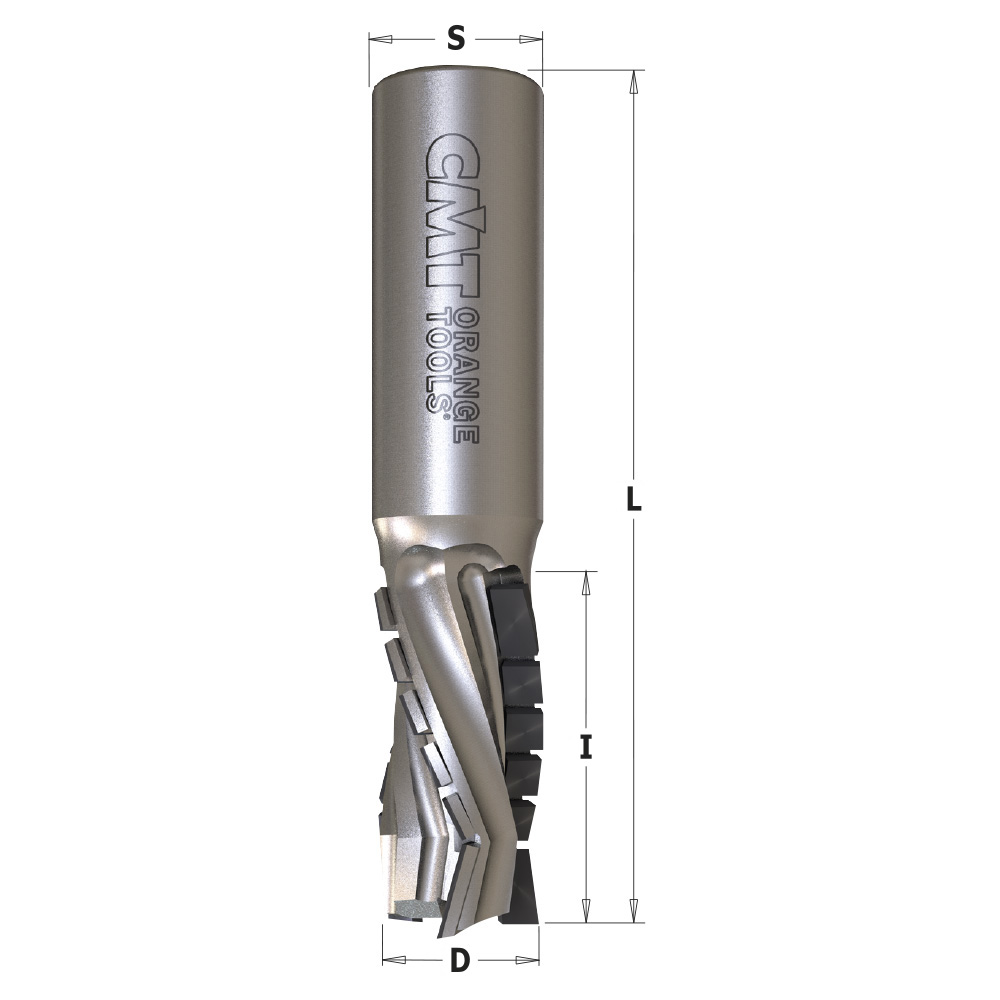

Item Code Description D I L S Z RH-LH
143.180.61
143.180.61 3 cutting edges (10DP+1HW) 18 25 82 20x50 3 RH
143.181.61
143.181.61 3 cutting edges (13DP+1HW) 18 30 87 20x50 3 RH
143.182.61
143.182.61 3 cutting edges (15DP+1HW) 18 35 92 20x50 3 RH
143.200.61
143.200.61 3 cutting edges (10DP+1HW) 20 25 82 20x50 3 RH
143.201.61
143.201.61 3 cutting edges (13DP+1HW) 20 30 85 20x50 3 RH
143.202.61
143.202.61 3 cutting edges (15DP+1HW) 20 35 92,5 20x50 3 RH
143.203.61
143.203.61 3 cutting edges (18DP+1HW) 20 40 97 20x50 3 RH
143.204.61
143.204.61 3 cutting edges (21DP+1HW) 20 45 102 20x50 3 RH
143.205.61
143.205.61 3 cutting edges (24DP+1HW) 20 50 106,5 20x50 3 RH
143.206.61
143.206.61 3 cutting edges (27DP+1HW) 20 55 111 20x50 3 RH
143.207.61
143.207.61 3 cutting edges (30DP+1HW) 20 60 116,5 20x50 3 RH
143.208.61
143.208.61 3 cutting edges (31DP+1HW) 20 65 121,5 20x50 3 RH
143.220.61
143.220.61 3 cutting edges (13DP+1HW) 22 30 92 25x50 3 RH
143.221.61
143.221.61 3 cutting edges (15DP+1HW) 22 35 97 25x50 3 RH
143.222.61
143.222.61 3 cutting edges (18DP+1HW) 22 40 102 25x50 3 RH
143.223.61
143.223.61 3 cutting edges (21DP+1HW) 22 45 107 25x50 3 RH
143.224.61
143.224.61 3 cutting edges (24DP+1HW) 22 50 112 25x50 3 RH
143.225.61
143.225.61 3 cutting edges (27DP+1HW) 22 55 117 25x50 3 RH
143.226.61
143.226.61 3 cutting edges (30DP+1HW) 22 60 122 25x50 3 RH
143.227.61
143.227.61 3 cutting edges (31DP+1HW) 22 65 127 25x50 3 RH
143.228.61
143.228.61 3 cutting edges (36DP+1HW) 22 70 132 25x50 3 RH
