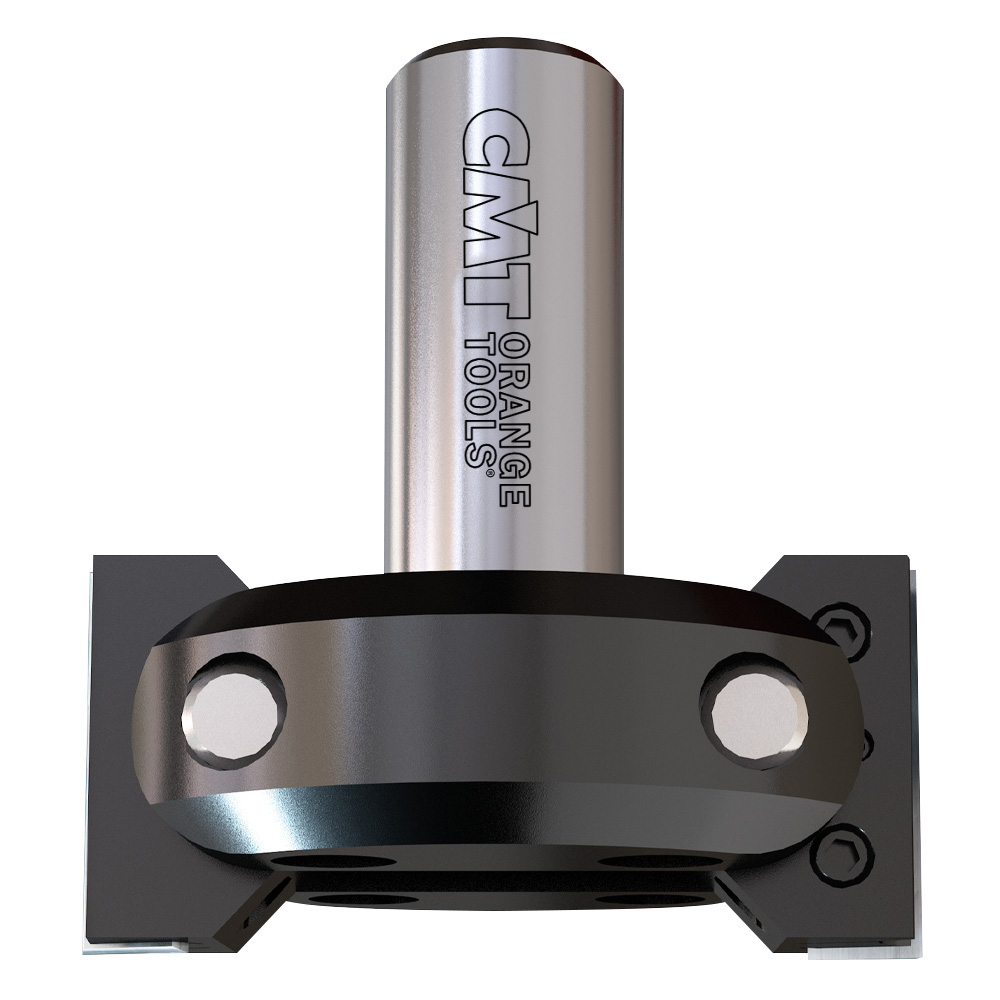

Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter

Adjustable chamfering CNC cutter

663.201.11

Technical details:
  • Tool body in steel;
  • 2 reversible HWM knives 39,5x12x1,5mm [Z2];
  • Peripheral cutting on both sides;

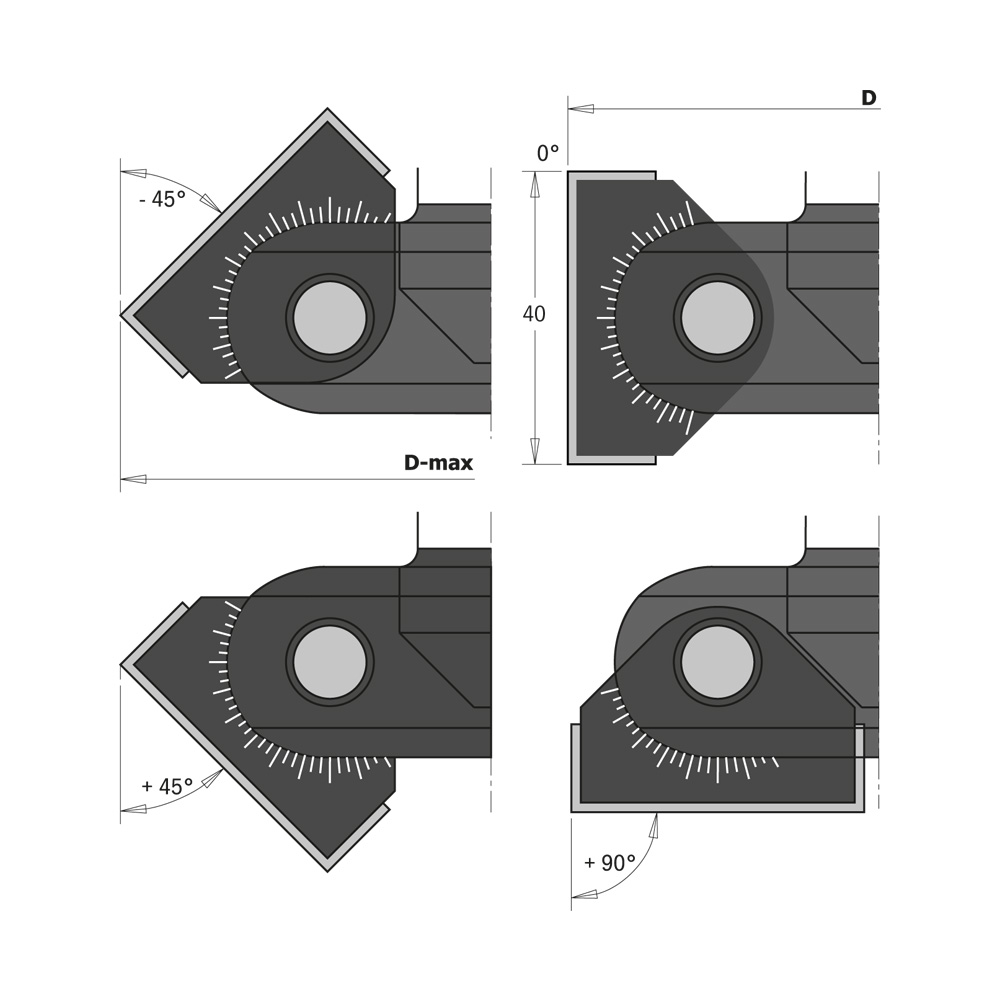

  • Adjustable swivelling blade (Rotates at 7,5° intervals; Precision = 7,5°);
  • Swivelling range 0-45° towards top, and 0-90° towards bottom.

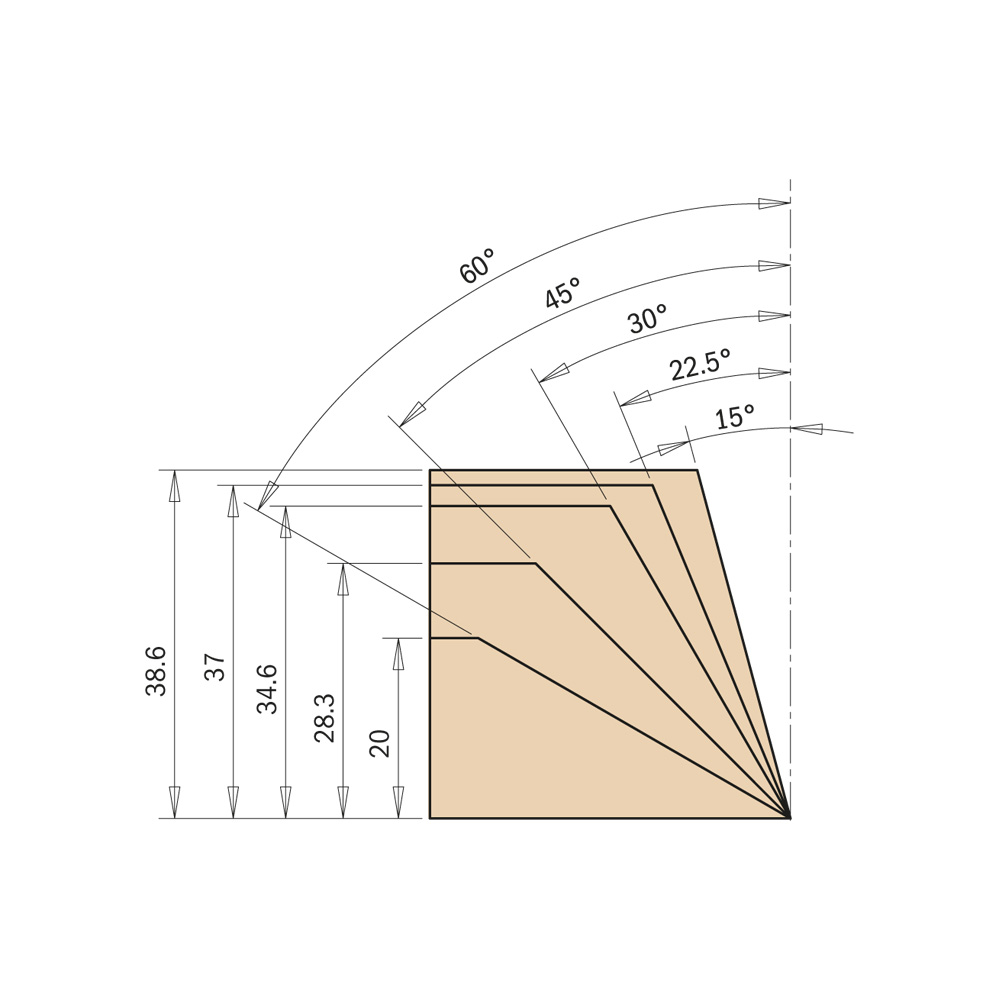

Inclination:
Min. Max
-45° +90°






Application
For jointing, rebating and chamfering of solid wood and wooden boards.
Suitable for CNC router machines and stationary router machine with manual or mechanical feed.

Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.




Variations
Filter
Item Code D I A L S Z MAT RH-LH Allen key 3mm Indexable knife 790.395.12 Wedge 693.999.02 Wedge 663.999.01 STEI screw with pin TCEI screw 990.099.00 Nut 990.023.00 Hex key 991.081.00
663.201.11
85 39,5 0°-45° - 0°+90° 92 20 2 HW RH 991.067.00 790.395.12 663.999.02 663.999.01 990.087.00 990.099.00 990.023.00 991.081.00
