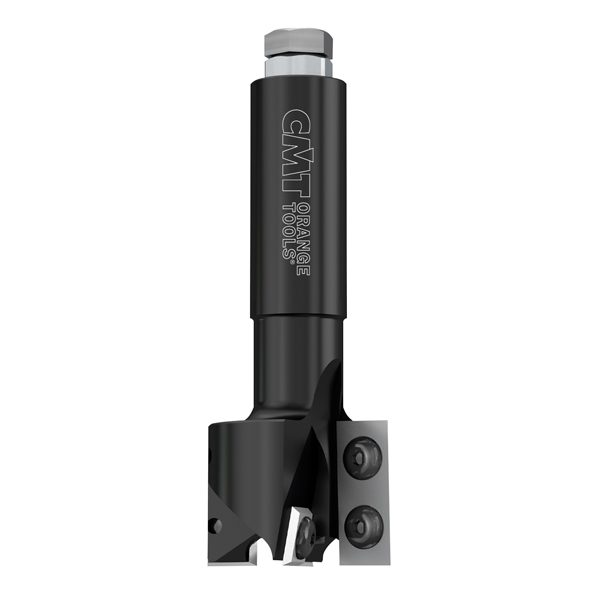

Xtreme Plunge CNC Cutters with inster knives
653.001
The new 653.001 CNC cutter by CMT Orange Tools® is designed with 2 plunging knives and two-sided knives fixed by special Torx® screws. It is ideal for direct plunge into the material and fast removal over a large surface area leaving an improved finish at the bottom of the cut.
Technical features:
- Super strength steel.
- 2 cutting edges [Z2+2].
Safety Tips:
The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.
Details
Use on soft and hardwood, particle board, melamine and MDF.
For use on CNC machining centres only.
Variations
Filter

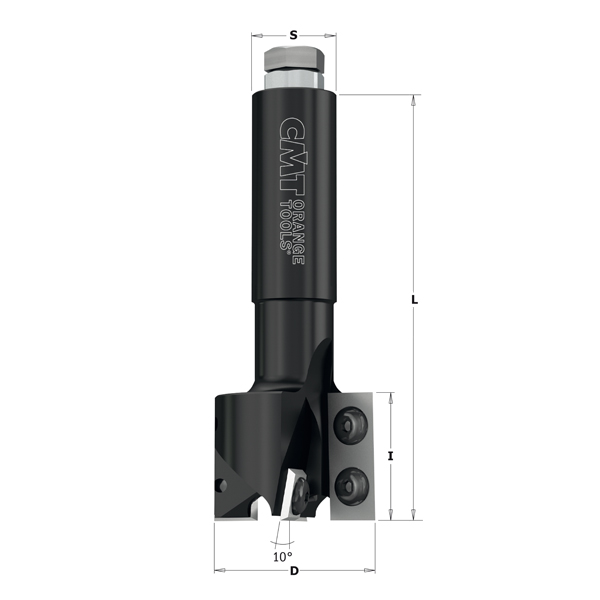

| Item Code | D | I | L | S | Z | MAT | RH-LH |
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
653.001.11
|
40 | 30 | 100 | 20 | 2 + 2 | HW | RH | 790.120.00 | 790.295.12 | 990.075.00 | 990.020.00 | 990.036.00 |
