660

Rabbeting bits with two replaceable knives fixed by special Torx screws. The knives are sharpened on all 4 sides and increase efficiency when working with board materials.

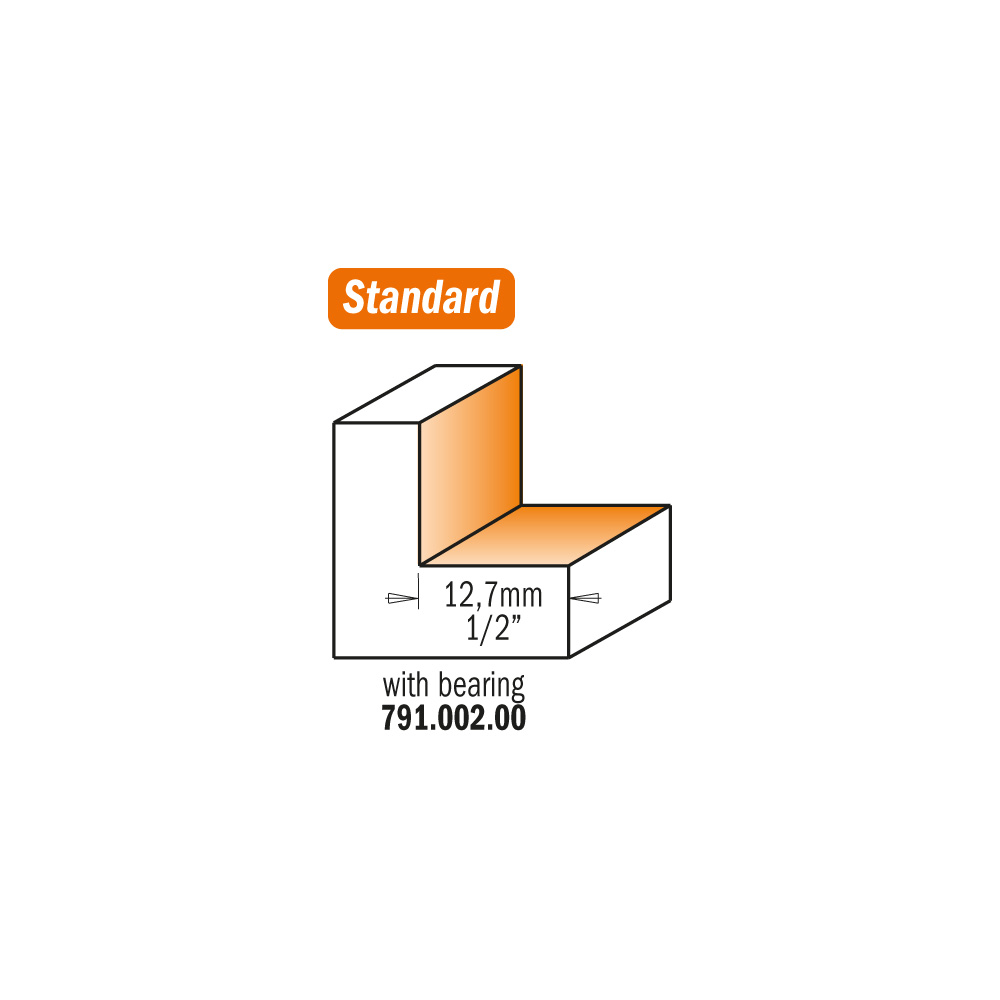

Rabbeting bits are equipped with ball bearing guides for rabbeting width H= 12,7mm.

For chipboards, hardwood or MDF; for use on portable routers.




Details

Safety Tips:

The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.

Variations
Filter

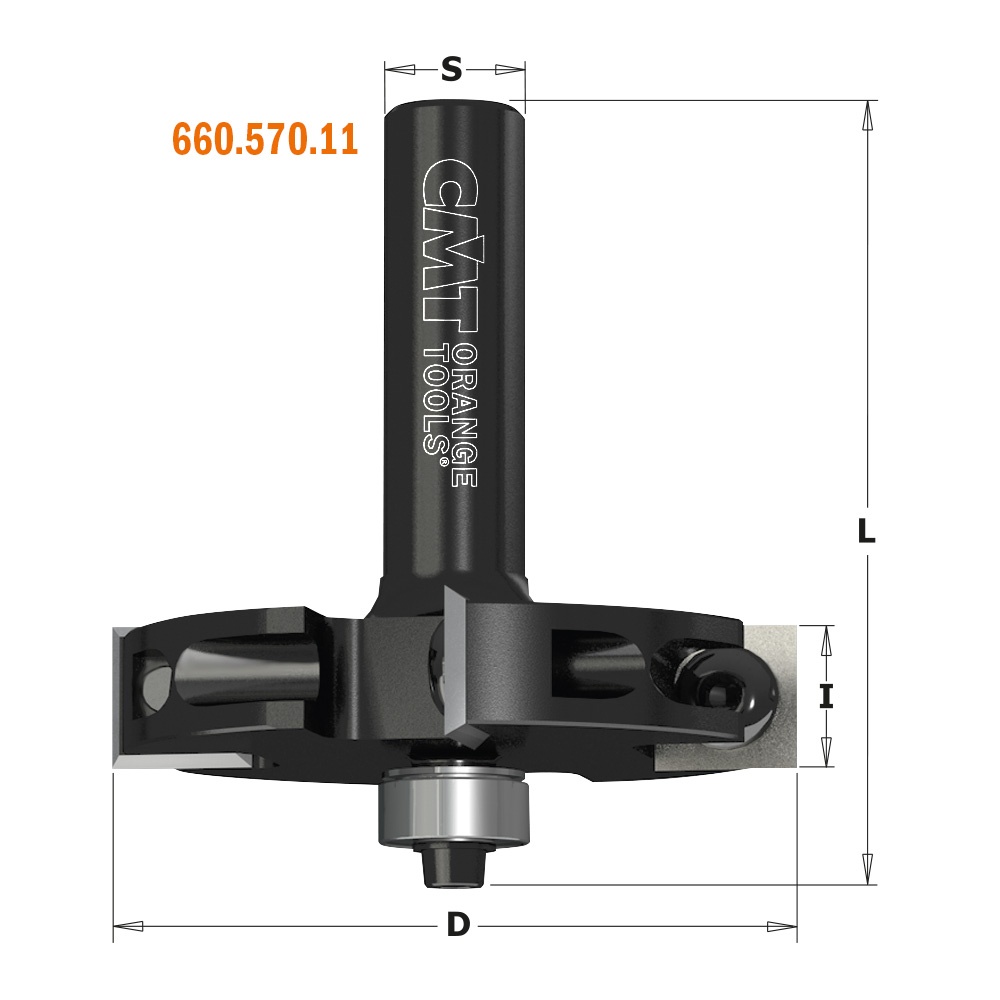

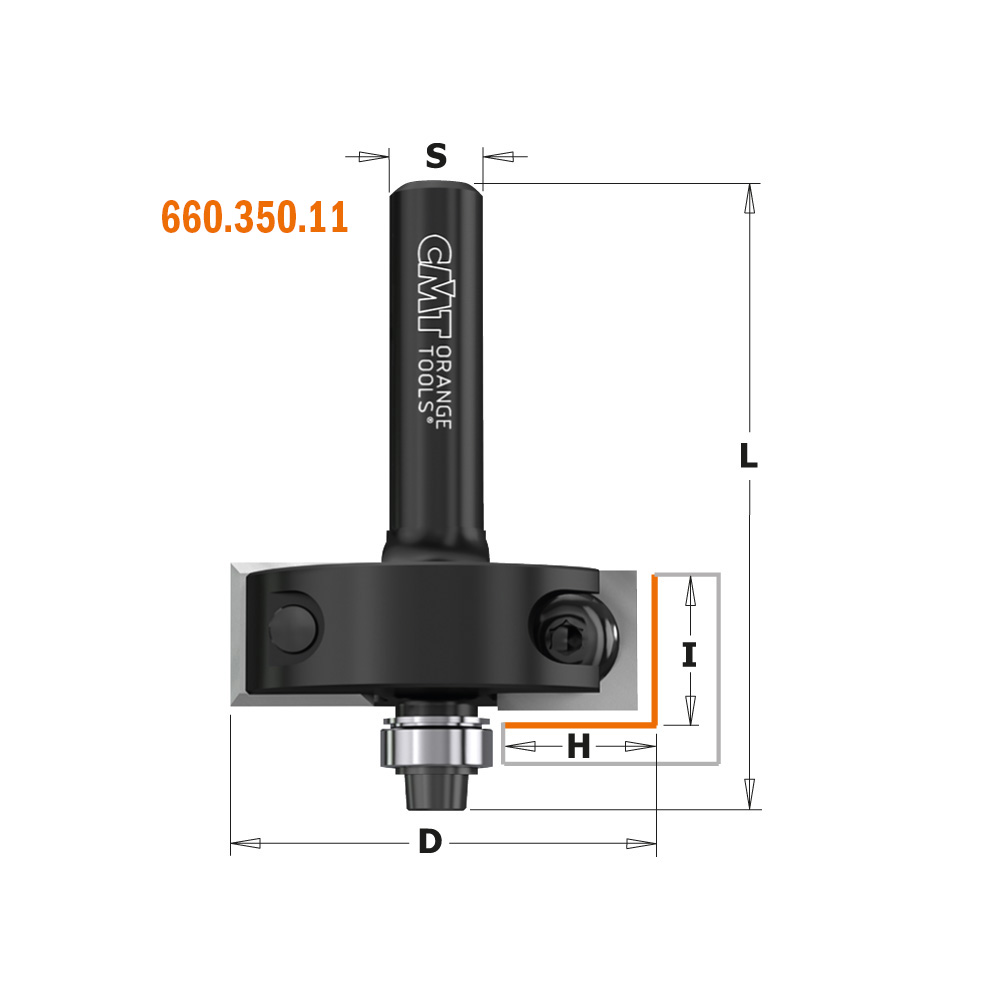

Item Code H D I L S Z MAT RH-LH Indexable knife Shield for bearing Screw Screw 990.057.00 VITE TBTI TORX T15 M4x6x8.2 D9 Torx Key Bearing

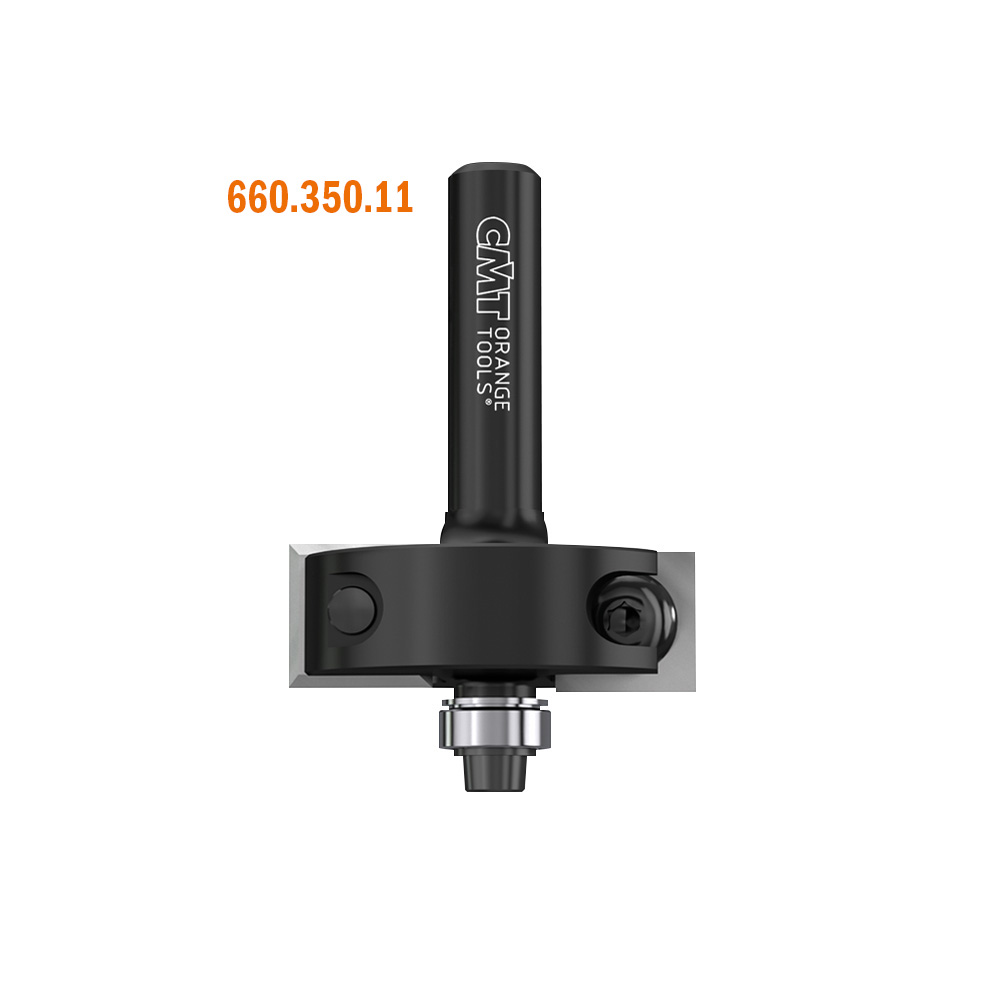

660.350.11
660.350.11 12,7 34,9 12 53 8 2 HW RH 790.120.00 990.422.00 990.058.00 990.057.00 990.075.00 991.061.00 791.002.00
660.351.11
660.351.11 12,7 34,9 12 53 6,35 2 HW RH 790.120.00 990.422.00 990.058.00 990.057.00 990.075.00 991.061.00 791.002.00
660.851.11
660.851.11 12,7 34,9 12 63 12,7 2 HW RH 790.120.00 990.422.00 990.058.00 990.057.00 990.075.00 991.061.00 791.002.00

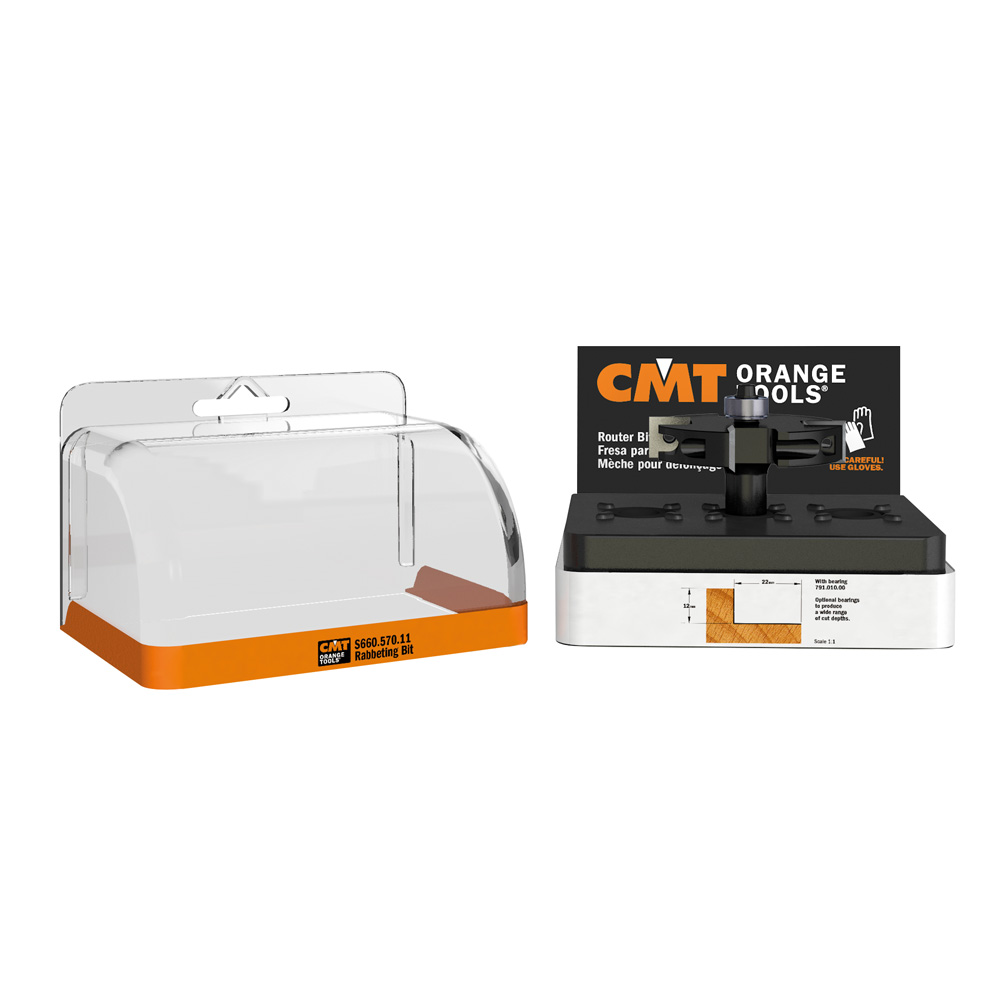

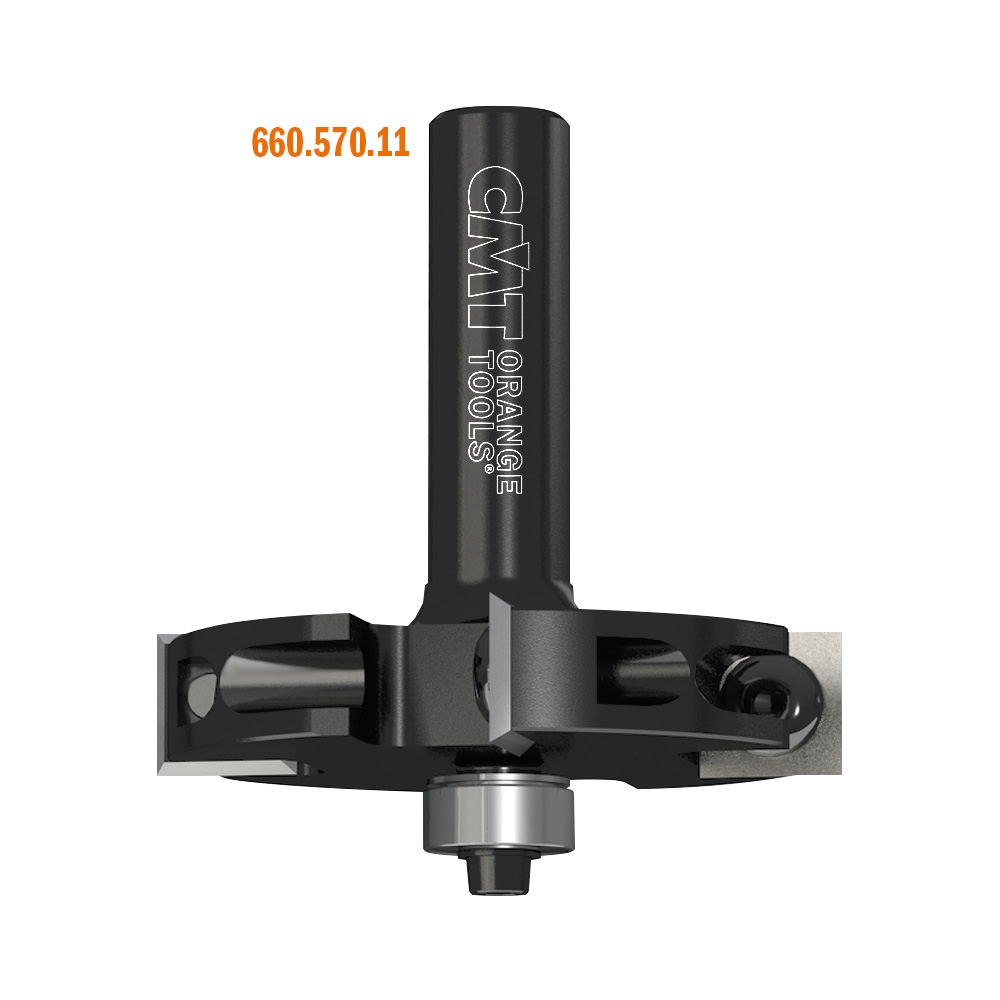

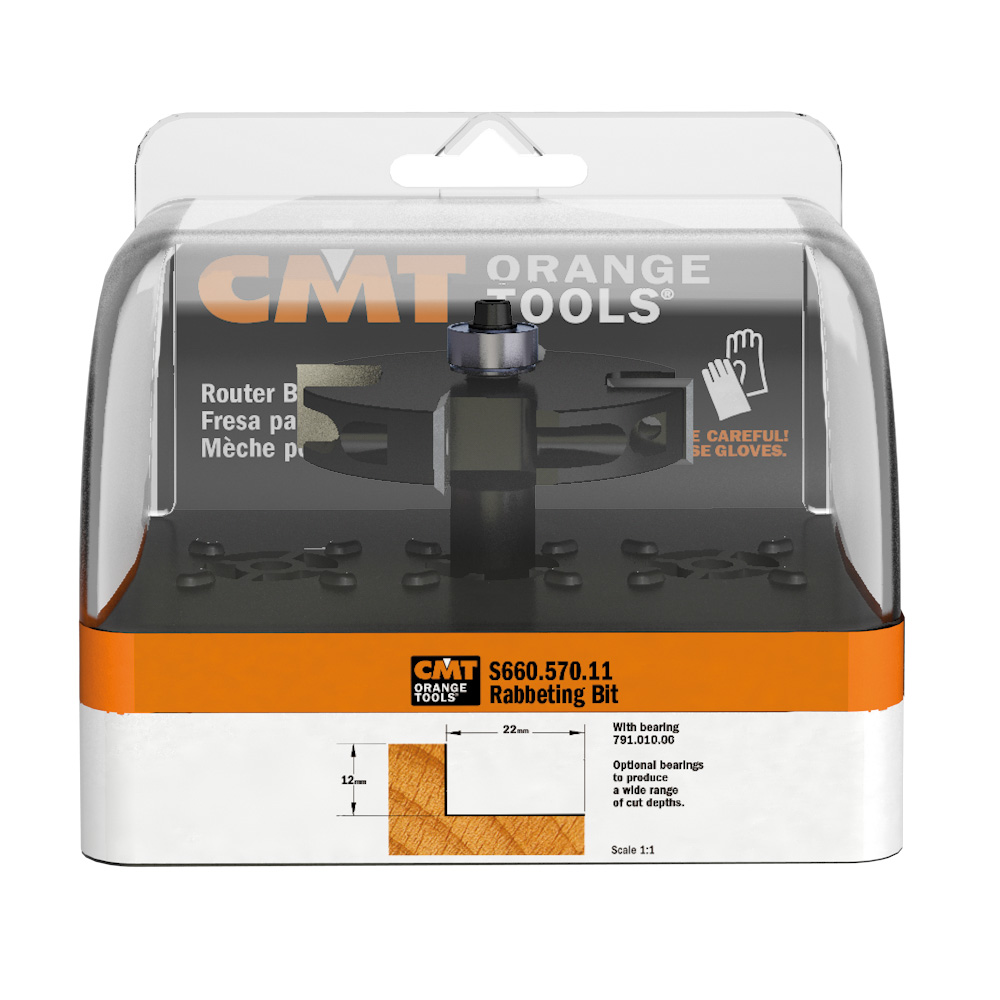

660.570.11
660.570.11 22 57 12 66 12 4 HW RH 790.120.00 990.075.00 991.061.00
