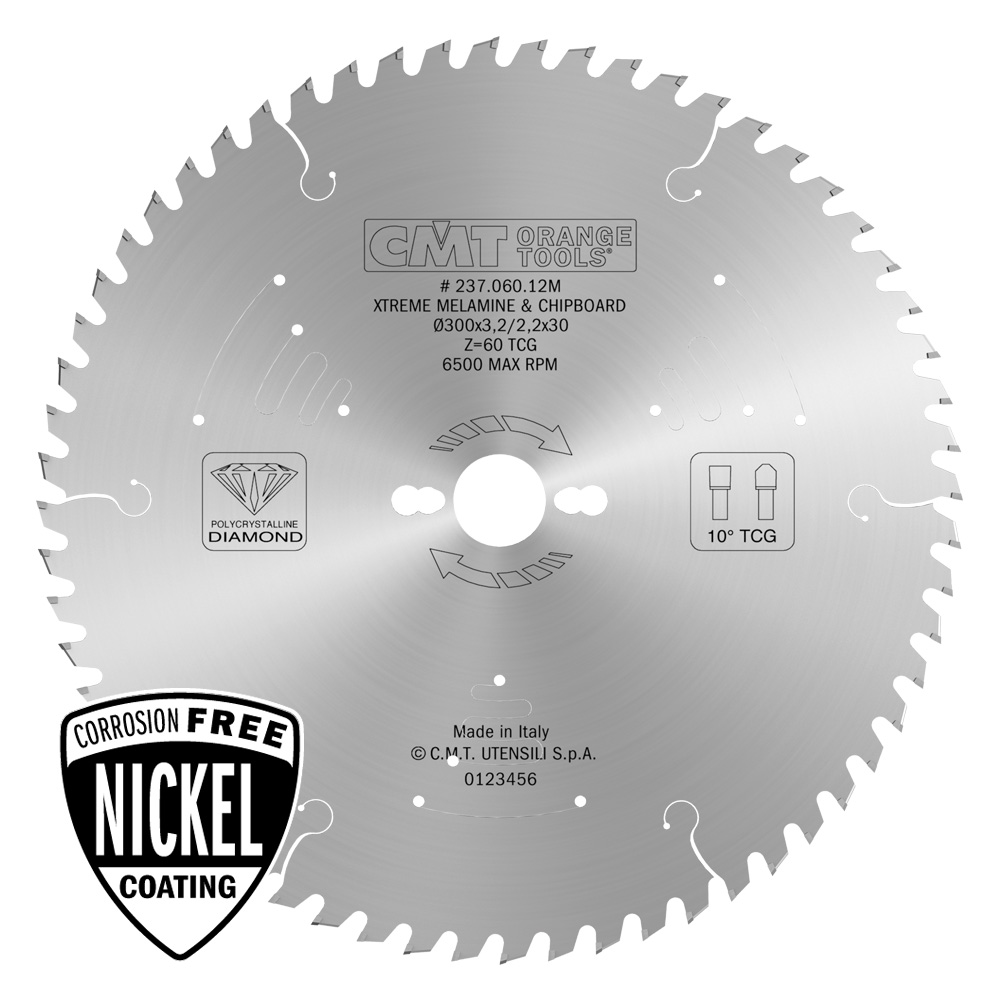

XTreme diamond laminated and chipboard circular saw blades
237
TECHNICAL DETAILS OF CARBIDE TEETH:
| Teeth height mm | 8 |
| ISO Grade | 2 µm |
| Hardness (HV) | 10.000 |
| Resharpanable | 6 times |
Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.
High-quality nickel-plated saw blades with anti-friction and anti-corrosion properties.
Application
Application: for sizing cuts, perfect finishing (using scoring blade) and increased tool life up to 50 times longer than HW blades thanks to a special polycrystalline diamond formula. The best quality/price ratio!
Machines: table saws, horizontal and vertical sizing machines.
Material: one-sided or double-sided plastic-laminated panels, MDF and HDF.
Variations
Filter

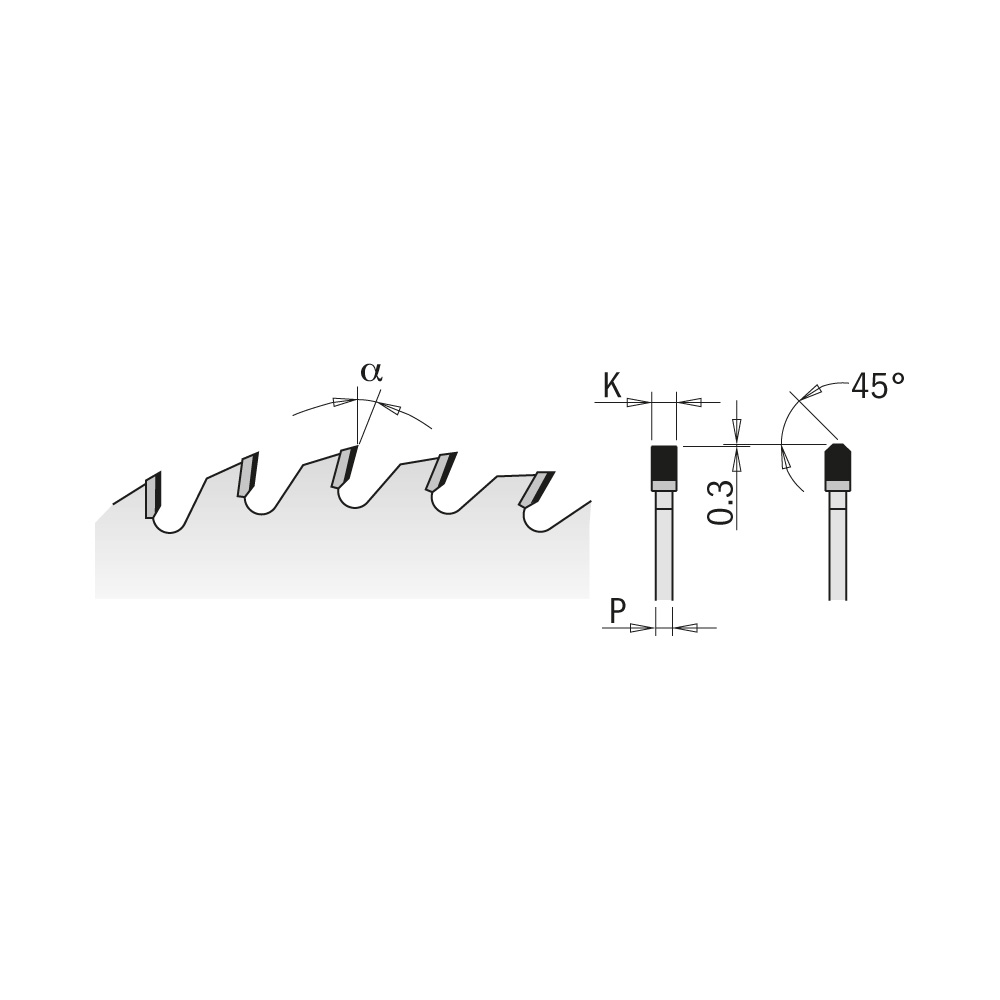

| Item Code | D | B | FT | Z | K | P | α | β |
|---|---|---|---|---|---|---|---|---|
|
237.048.10M
|
250 | 30 | COMBI3 | 48 | 3,2 | 2,2 | 10° | 45° TCG |
|
237.060.12M
|
300 | 30 | COMBI3 | 60 | 3,2 | 2,2 | 10° | 45° TCG |
|
237.096.12M
|
300 | 30 | COMBI3 | 96 | 3,2 | 2,2 | 15° | 45° TCG |
|
237.072.14M
|
350 | 30 | COMBI3 | 72 | 3,5 | 2,4 | 15° | 45° TCG |
