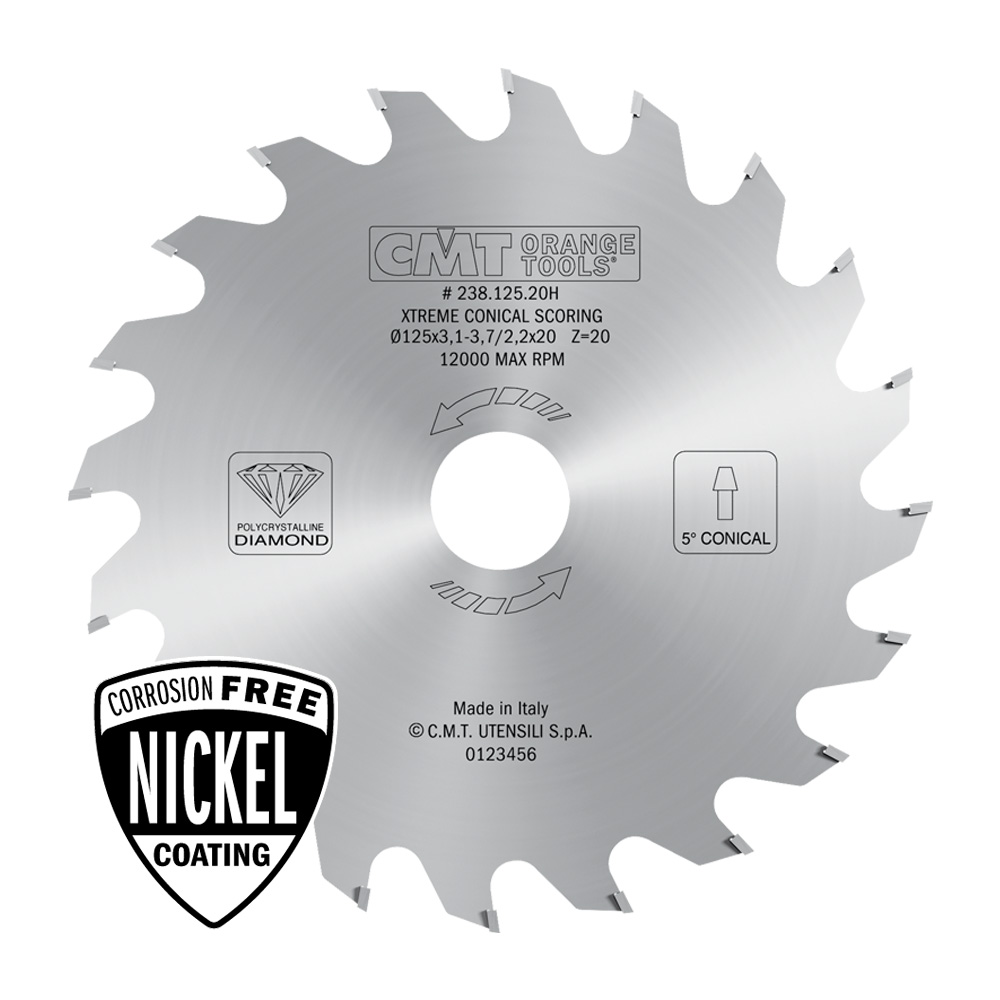

XTreme diamond conical scoring blades - LONG LIFE
XTreme diamond conical scoring blades - LONG LIFE
XTreme diamond conical scoring blades - LONG LIFE
XTreme diamond conical scoring blades - LONG LIFE
XTreme diamond conical scoring blades - LONG LIFE
XTreme diamond conical scoring blades - LONG LIFE

XTreme diamond conical scoring blades - LONG LIFE

238



LASER-CUT PREMIUM QUALITY STEEL PLATE BODY
Made with 46-48 HRC premium quality harmonic steel from Germany

and laser-cut to perfection providing tighter tolerances translating to longer life and accurate cutting ability.



LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it.
This feature improves cut quality and extends blade life.
In full compliance with National Noise Emission Standards and Regulations.



TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut

and perfect concentricity during rotation. For improved performance,
tensioning is fine-tuned according to machine/application.

TRI-METAL BRAZING
Silver-Copper-Silver Tri-Metal Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials.

INDUSTRIAL CHROME CARBIDE
Cutting teeth are made from a specially formulated chrome carbide
which stays sharper longer by reducing cutting edge abrasion,
improving cut quality and tool life.

PRECISION MIRROR FINISH SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating
perfect edge angles that provide extra-clean cutting performance
and extended life. Featuring less than 0.25 µm Rmax in edge roughness.



HARD LAQUERING
Protects against corrosion and rust.

CMT XTREME BALANCING*
This system allows for extremely accurate dynamic balancing of the blade,
several orders of magnitude above and beyond that
which is currently available in the marketplace.
*TRADEMARK & INT. PAT. PEND.

High-quality nickel-plated saw blades with anti-friction and anti-corrosion properties.

Variations
Filter

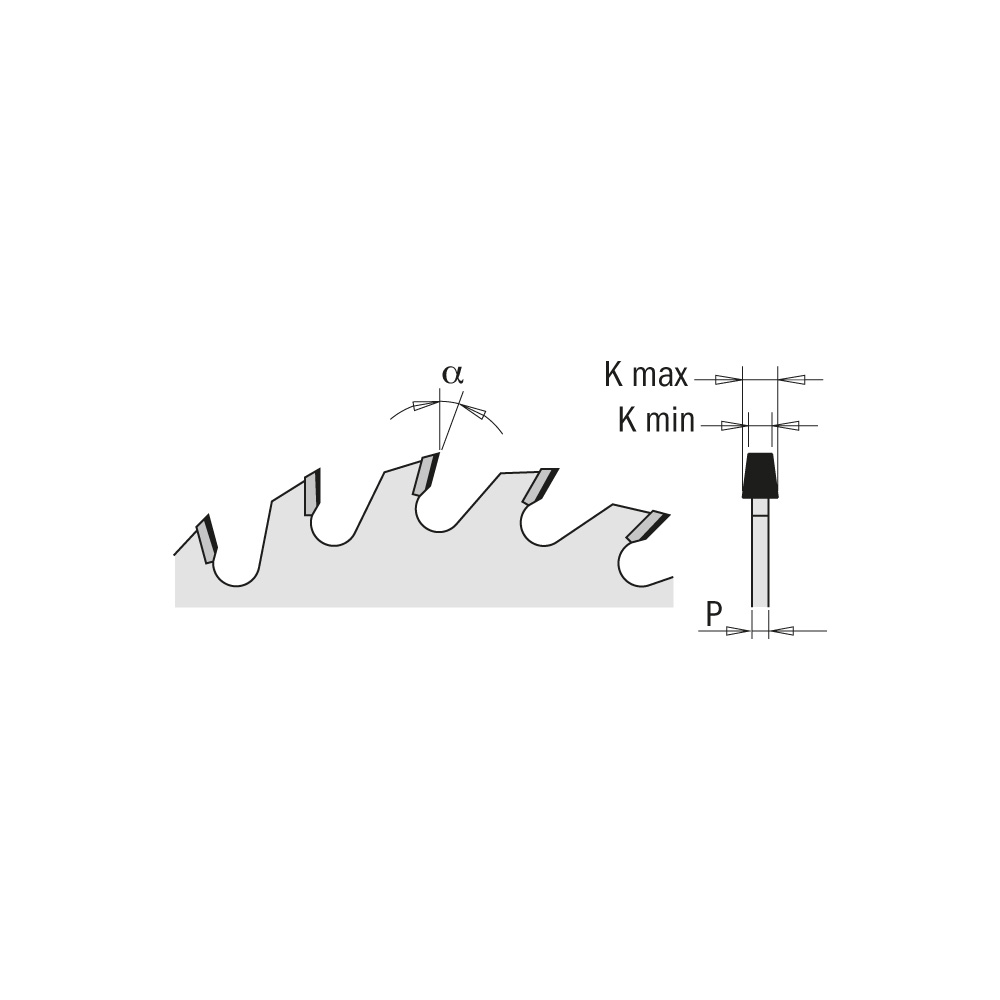

Item Code D B Z K P α β
238.120.20H
238.120.20H 120 20 20 3.1 - 3.7 2.2 5 CO+FLAT
238.125.20H
238.125.20H 125 20 20 3.1 - 3.7 2.2 5 CO+FLAT
238.160.36O
238.160.36O 160 55 36 4.3 - 5.2 3.2 8 CO + FTG
238.180.36M
238.180.36M 180 30 36 4.3 - 5.2 3.2 8 CO + FTG
238.180.36Q
238.180.36Q 180 45 36 4.7 - 5.6 3.5 8 CO + FTG
238.180.36Q2
238.180.36Q2 180 45 36 4.3 - 5.2 3.2 8 CO + FTG
238.200.36H
238.200.36H 200 20 36 4.3 - 5.2 3.2 8 CO + FTG
238.200.36J
238.200.36J 200 65 36 4.3 - 5.2 3.2 8 CO + FTG
238.200.36Q
238.200.36Q 200 45 36 4.7 - 5.6 3.5 8 CO + FTG
238.200.36Q2
238.200.36Q2 200 45 36 4.3 - 5.2 3.2 8 CO + FTG
238.200.36W
238.200.36W 200 80 36 4.3 - 5.2 3.2 8 CO + FTG
238.300.48J
238.300.48J 300 65 48 4.3 - 5.2 3.2 8 CO + FTG
