Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade
Ripping Saw Blade

Ripping Saw Blade

285-293



LASER-CUT PREMIUM QUALITY STEEL PLATE BODY
Made with 46-48 HRC premium quality harmonic steel from Germany and laser-cut to perfection providing tighter tolerances translating to longer life and accurate cutting ability.



LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it.
This feature improves cut quality and extends blade life.
In full compliance with National Noise Emission Standards and Regulations.



TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application.

TRI-METAL BRAZING
Silver-Copper-Silver Tri-Metal Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials.

INDUSTRIAL CHROME CARBIDE
Cutting teeth are made from a specially formulated chrome carbide which stays sharper longer by reducing cutting edge abrasion, improving cut quality and tool life.

PRECISION MIRROR FINISH SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.25 µm Rmax in edge roughness.



HARD LAQUERING
Protects against corrosion and rust.

CMT XTREME BALANCING*
This system allows for extremely accurate dynamic balancing of the blade, several orders of magnitude above and beyond that which is currently available in the marketplace.
*TRADEMARK & INT. PAT. PEND.


Variations
Filter

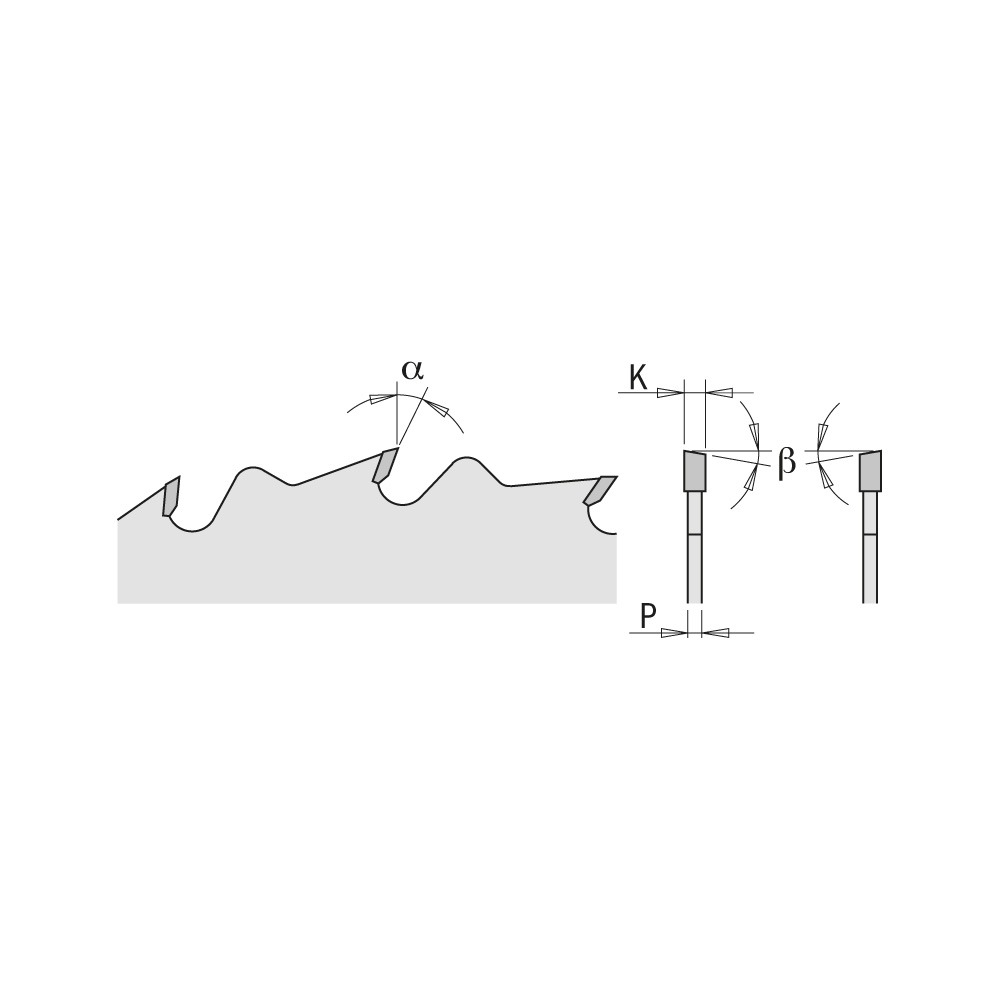

Item Code D B FT Z K P α β

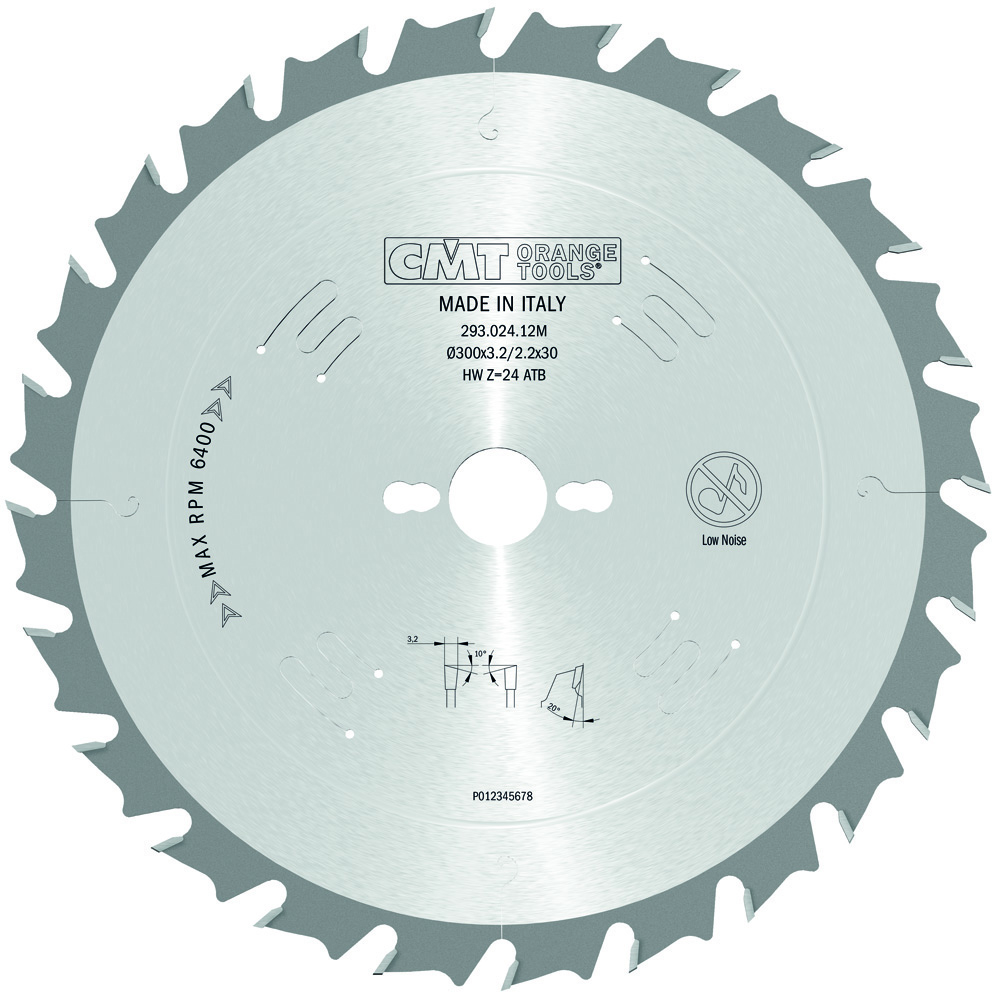

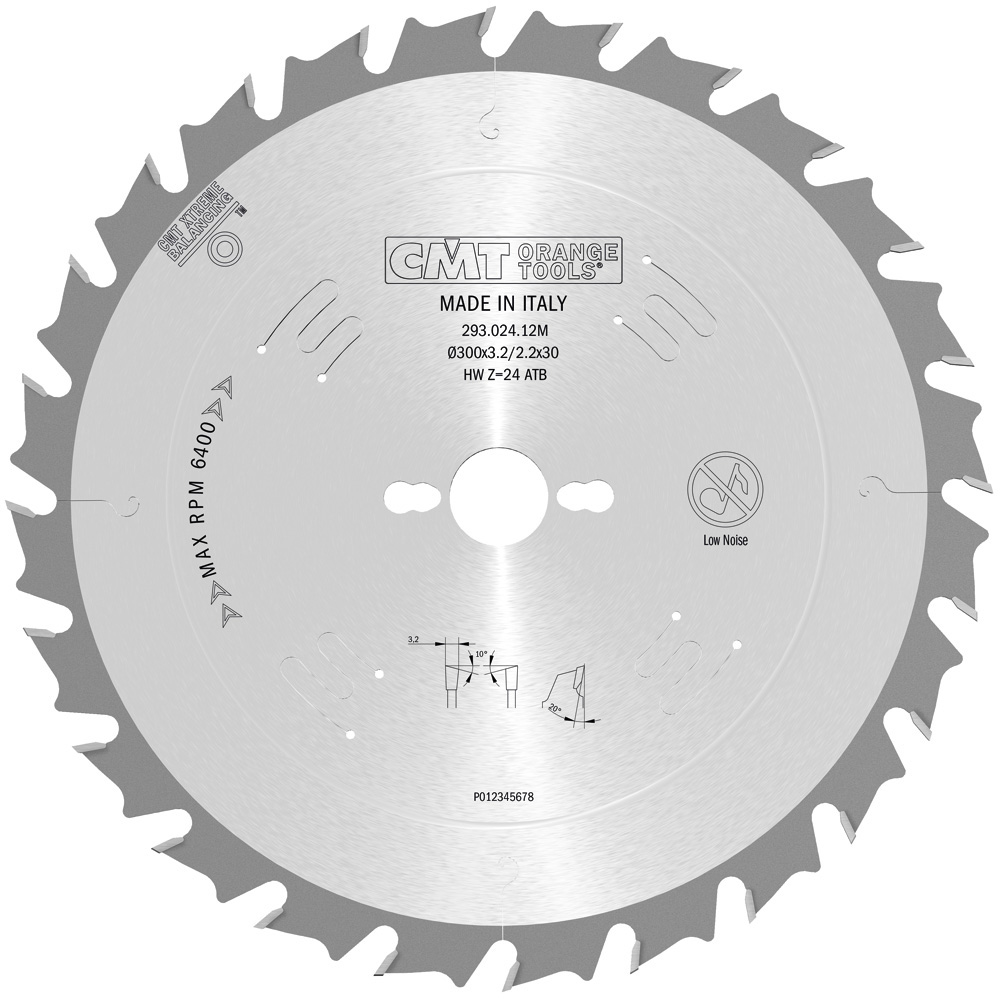

293.024.12M
293.024.12M 300 30 COMBI3 24 3.2 2.2 20 ATB 10

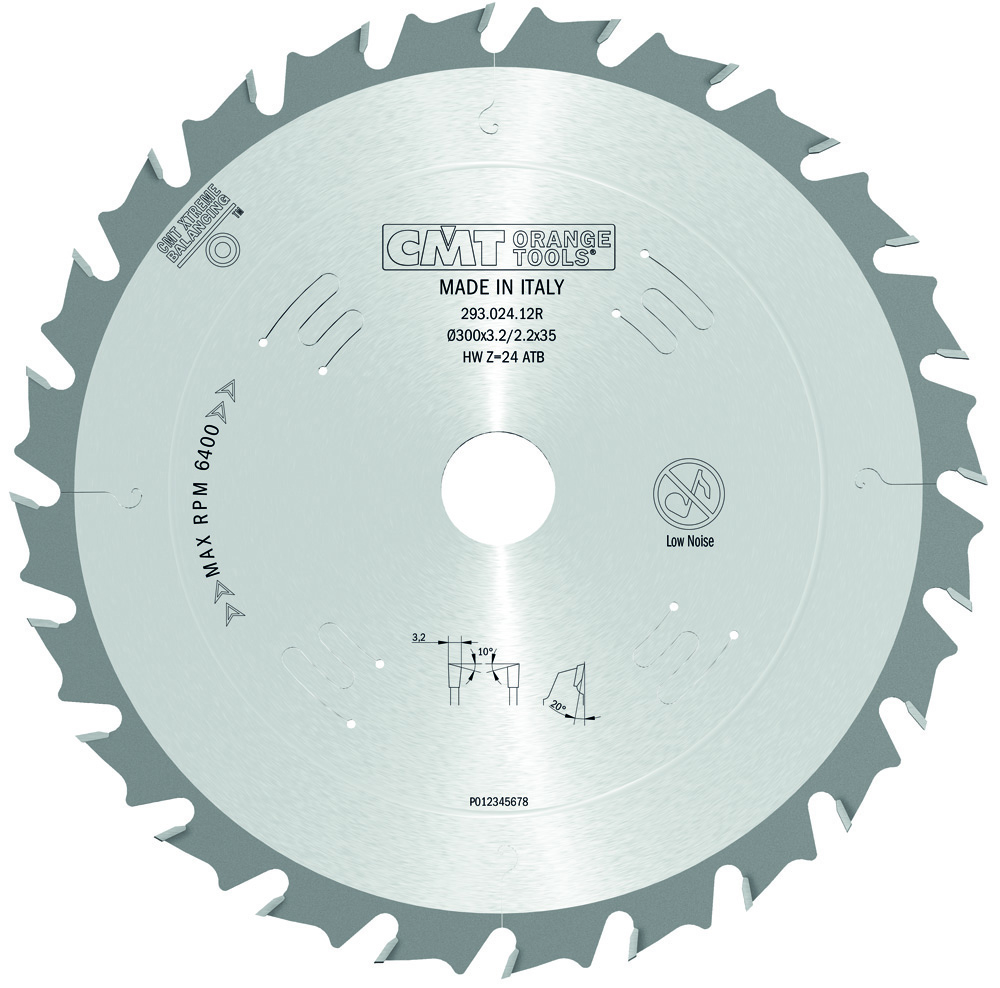

293.024.12R
293.024.12R 300 35 24 3.2 2.2 20 ATB 10
293.028.22M
293.028.22M 305 30 2/10/60 28 2.8 1.8 20 ATB 10

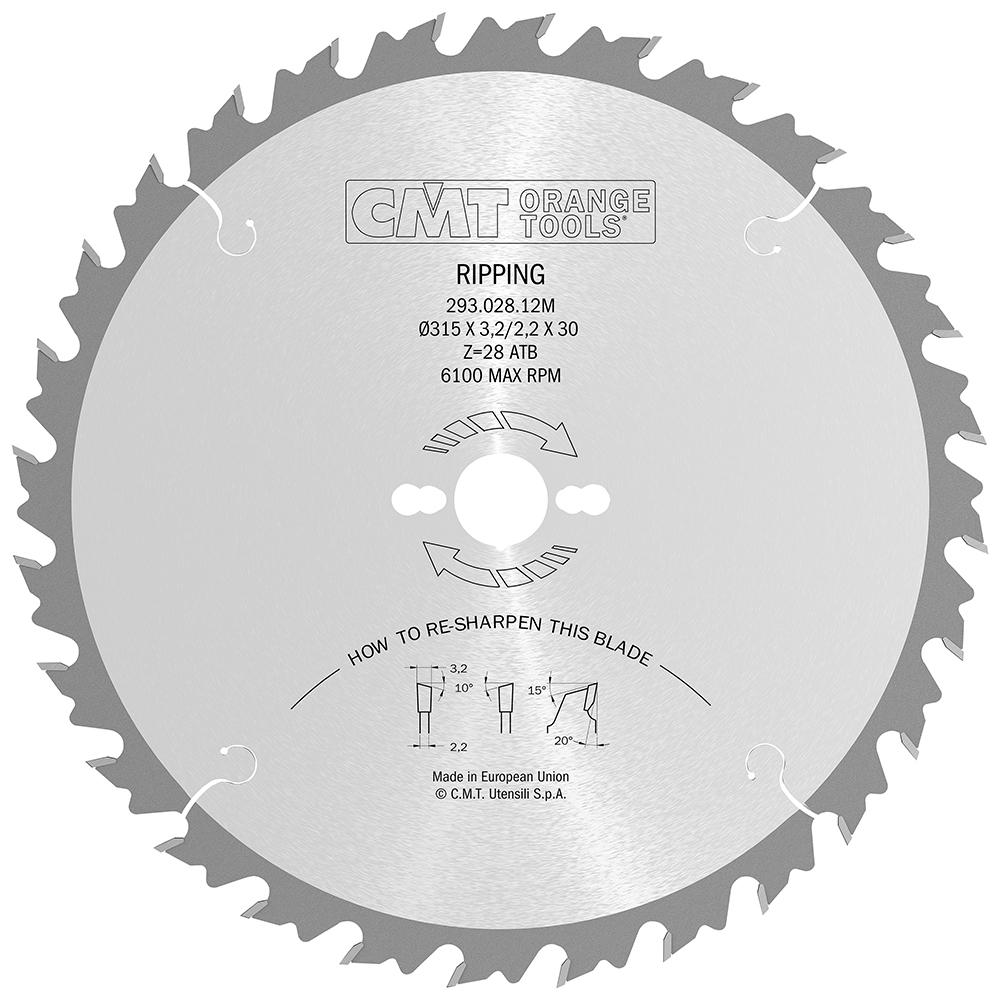

293.028.12M
293.028.12M 315 30 COMBI3 28 3.2 2.2 20 ATB 10

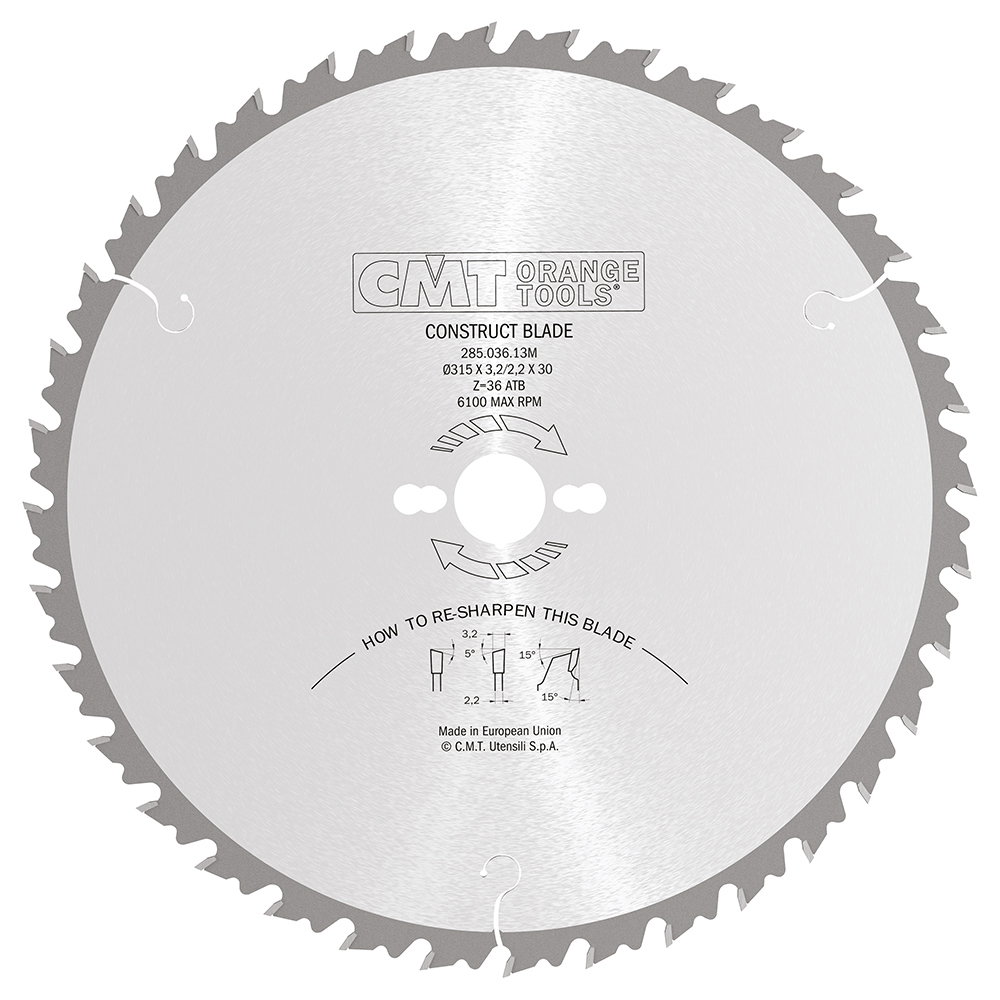

285.036.13M
285.036.13M 315 30 COMBI3 36 3.2 2.2 15 ATB 5

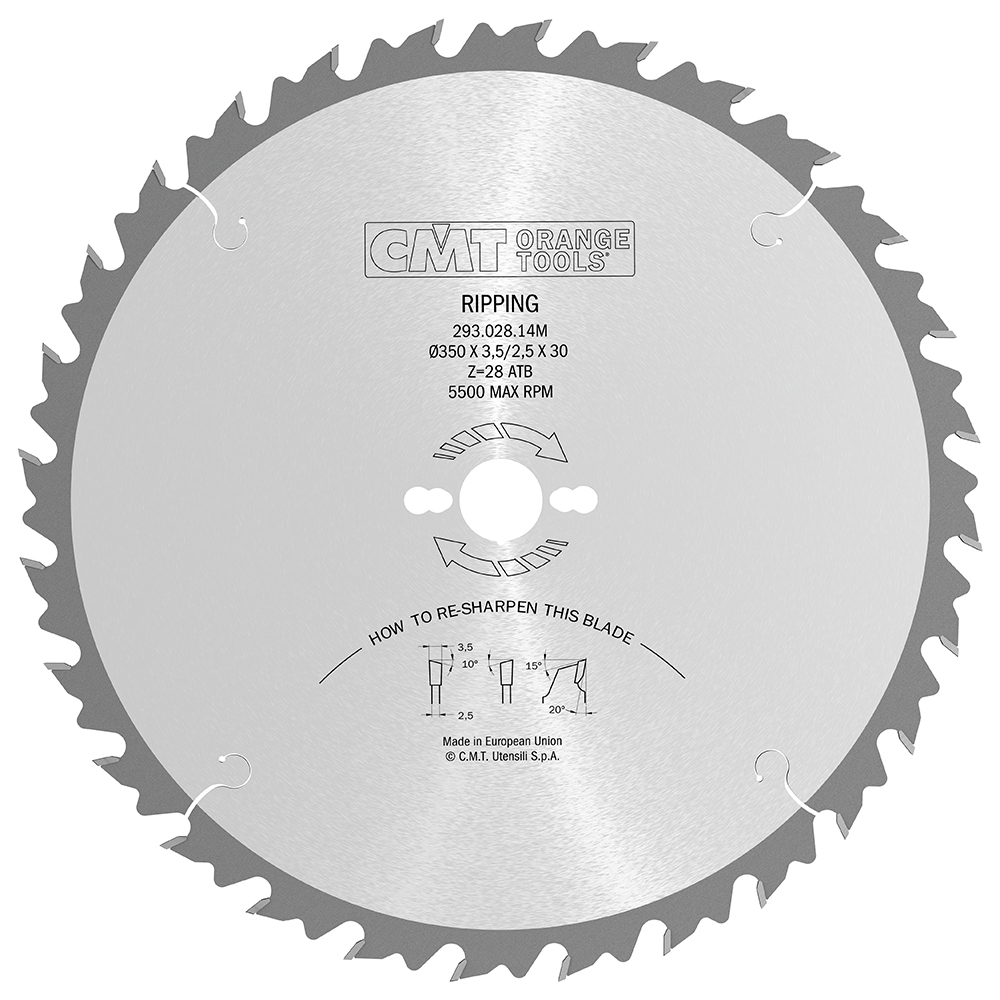

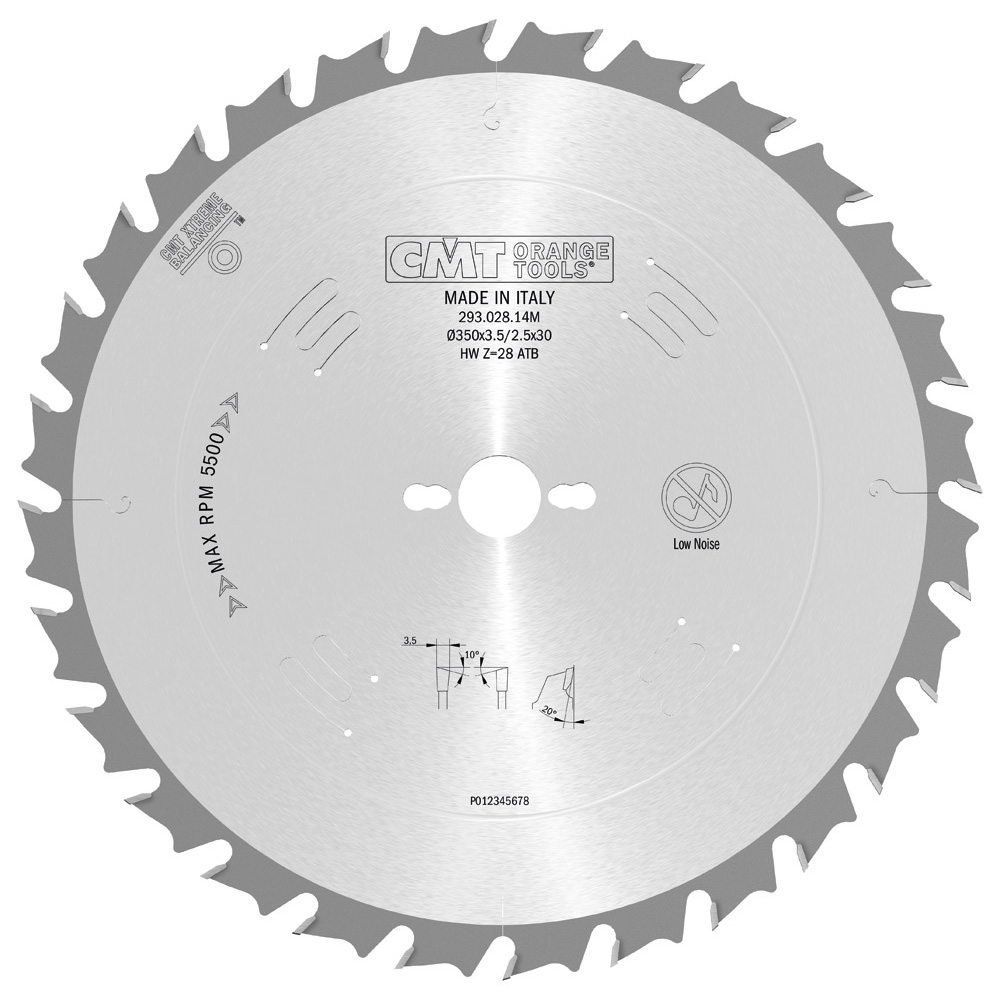

293.028.14M
293.028.14M 350 30 COMBI3 28 3.5 2.5 20 ATB 10
293.028.14R
293.028.14R 350 35 28 3.5 2.5 20 ATB 10

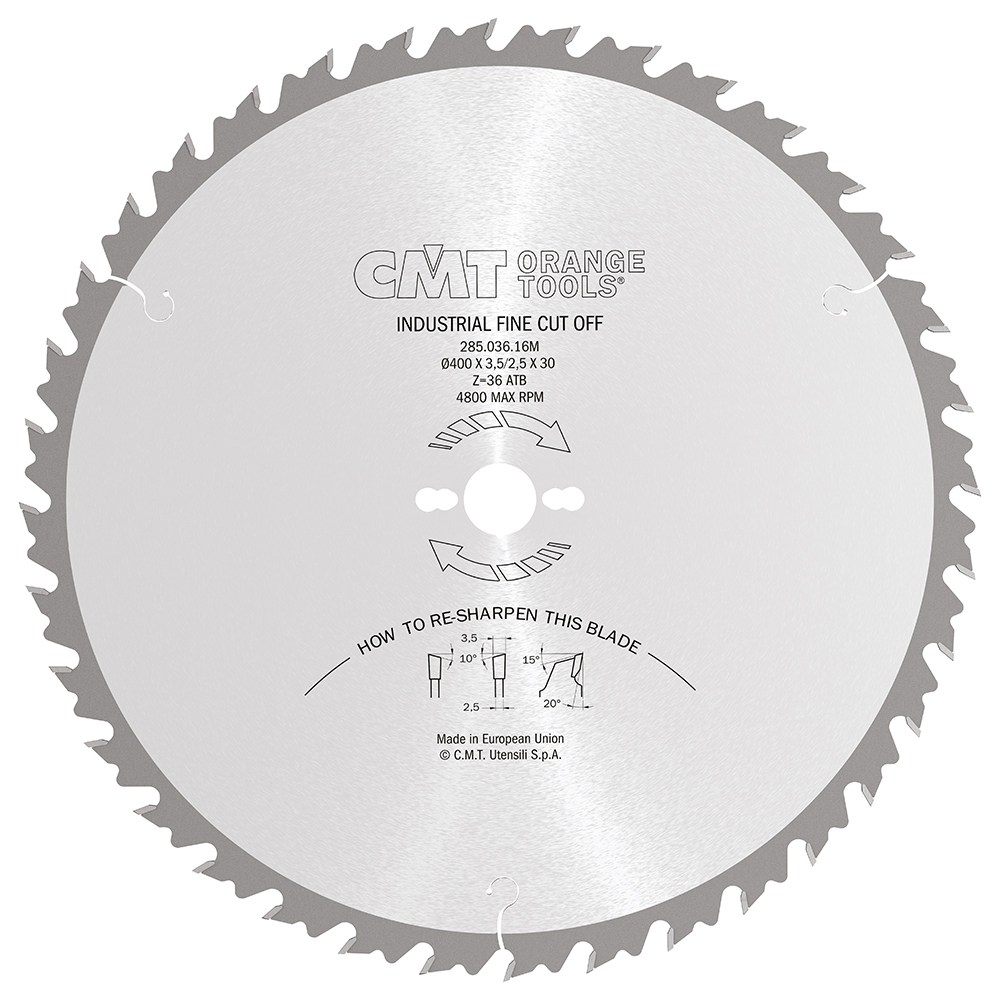

285.036.16M
285.036.16M 400 30 COMBI3 36 3.5 2.5 20 ATB 10
285.036.18M
285.036.18M 450 30 COMBI3 36 3.8 2.8 20 ATB 10
285.044.20M
285.044.20M 500 30 COMBI3 44 4 2.8 20 ATB 10
