LASER-CUT HIGH QUALITY STEEL PLATE BODY
Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting. |
|
LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it. This feature improves cut quality and extends blade life. In full compliance with National Noise Emission Standards and Regulations. |
|
TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application. |
|
SILVER BRAZING
Silver Alloy Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
|
INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F) and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages. |
PRECISION SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.35 μm Rmax in edge roughness. |
|
|
ORANGE SHIELD® NON-STICK PTFE COATING
• Protects against corrosion and rust. • Reduces resin and residue build-up. • Reduces overheating and blade drag. • Improves performance and cutting life. |

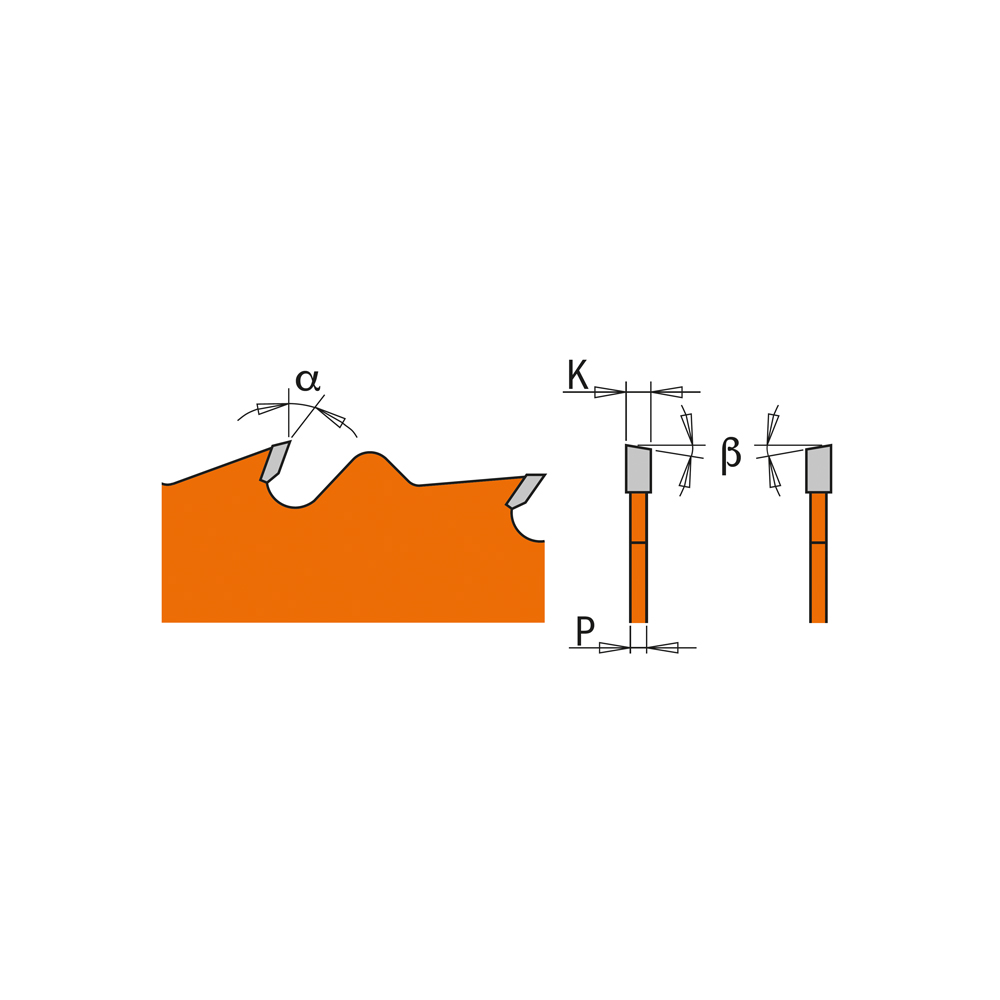

Item Code | Description | D | B | PH | Z | K | P | α | β |
---|---|---|---|---|---|---|---|---|---|
290.150.12H
|
Ripping | 150 | 20 | 12 | 2.4 | 1.4 | 20 | ATB 10 | |
290.160.12H
|
Ripping - For FESTOOL® machines | 160 | 20 (+16) | 2/6/32 | 12 | 2.2 | 1.6 | 20 | ATB 10 |
290.180.12M
|
Ripping | 180 | 30 | 2/7/42 | 12 | 2.6 | 1.6 | 20 | ATB 10 |

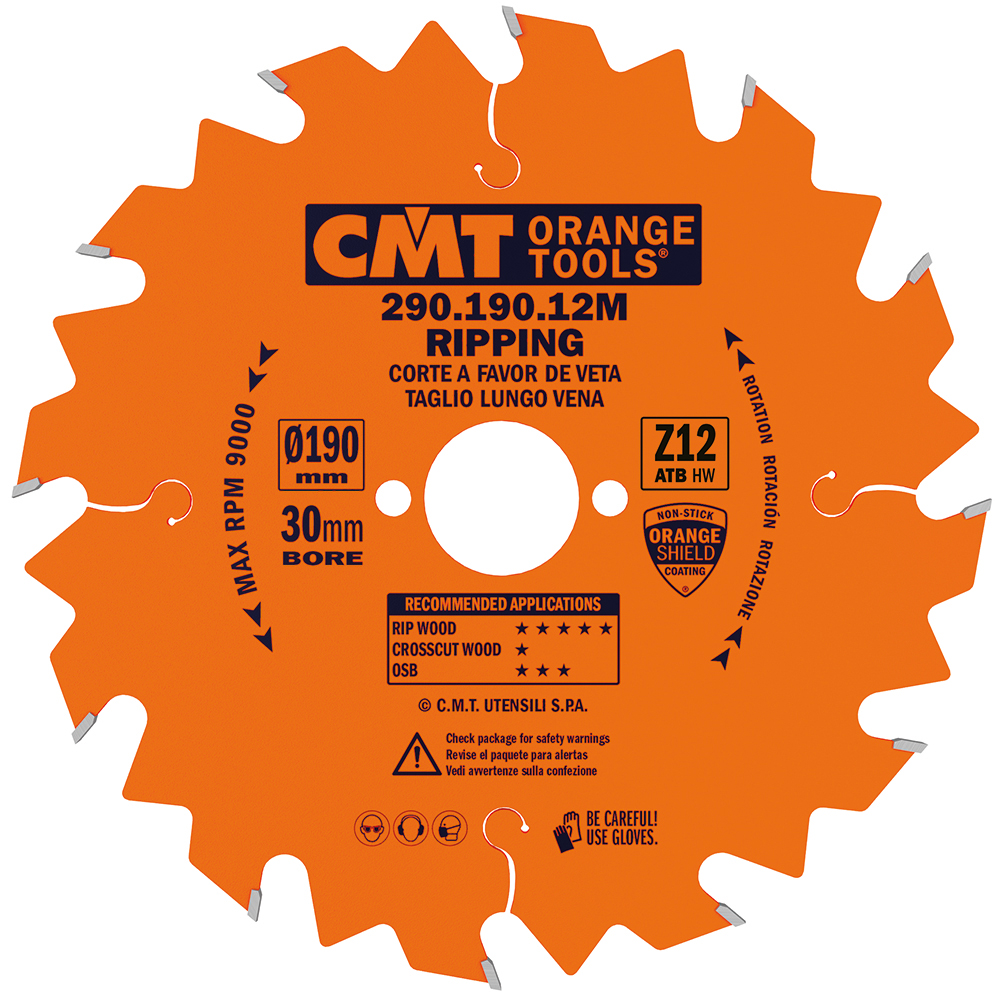

290.190.12M
|
Ripping | 190 | 30 (+20+16) | 2/7/42 | 12 | 2.6 | 1.6 | 20 | ATB 10 |
290.200.24M
|
Ripping | 200 | 30 | 2/7/42 | 24 | 2.8 | 1.8 | 20 | ATB 10 |
290.210.24M
|
Ripping - For FESTOOL® Machines | 210 | 30 | 2/7/42 | 24 | 2.8 | 1.8 | 20 | ATB 10 |

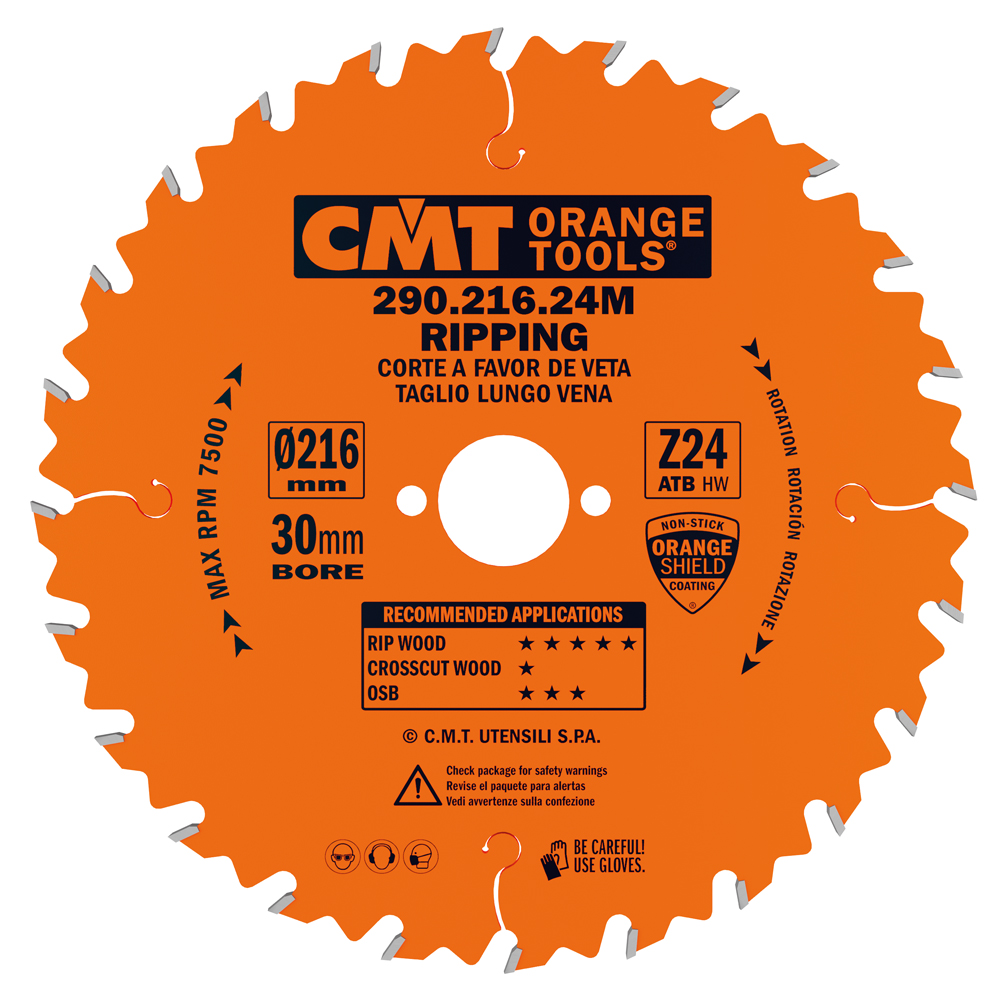

290.216.24M
|
Ripping - For FESTOOL® machines | 216 | 30 | 2/7/42 | 24 | 2.8 | 1.8 | -5 Neg. | ATB 15 |
290.220.24M
|
Ripping | 220 | 30 | 2/7/42 | 24 | 2.8 | 1.8 | 20 | ATB 10 |
290.230.24M
|
Ripping - For FESTOOL® machines | 230 | 30 | 2/7/42 | 24 | 2.8 | 1.8 | 20 | ATB 10 |

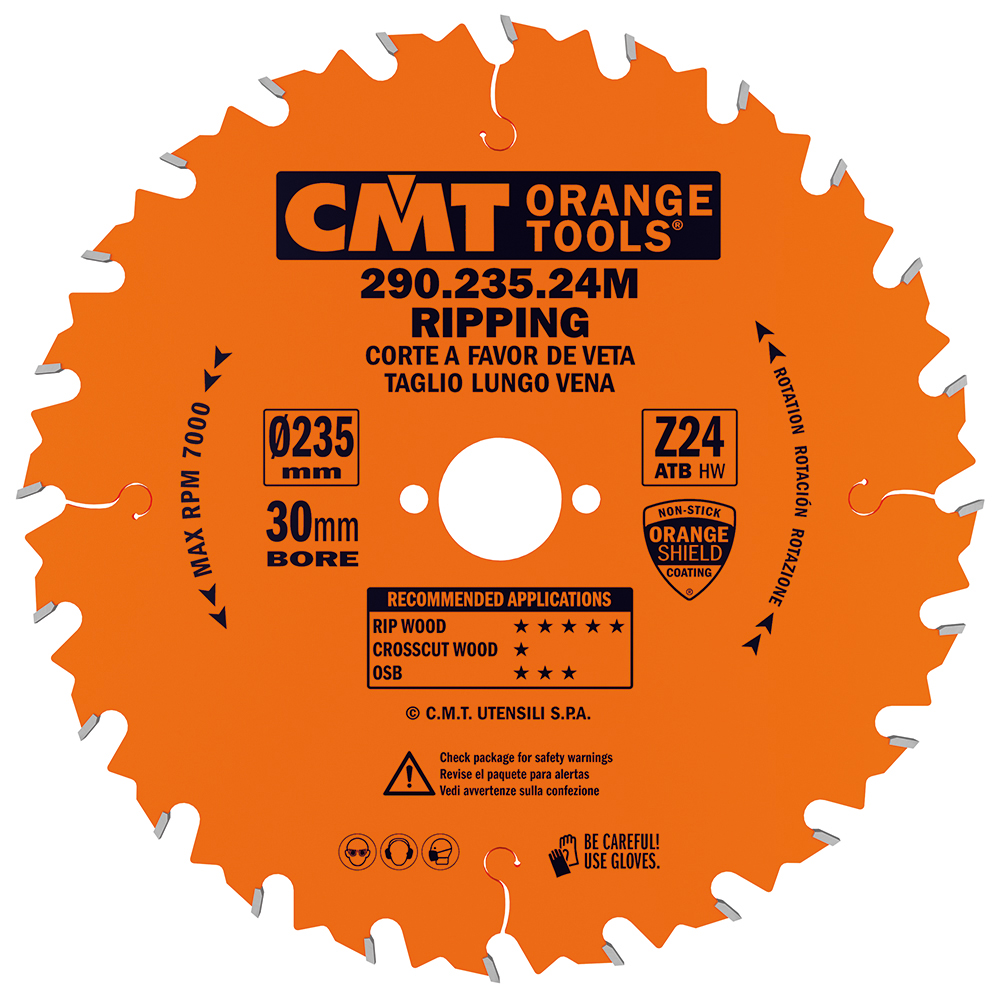

290.235.24M
|
Ripping | 235 | 30 (+25) | 2/7/42 | 24 | 2.8 | 1.8 | 20 | ATB 10 |
290.240.24M
|
Ripping | 240 | 30 | 2/7/42 | 24 | 2.8 | 1.8 | 20 | ATB 10 |

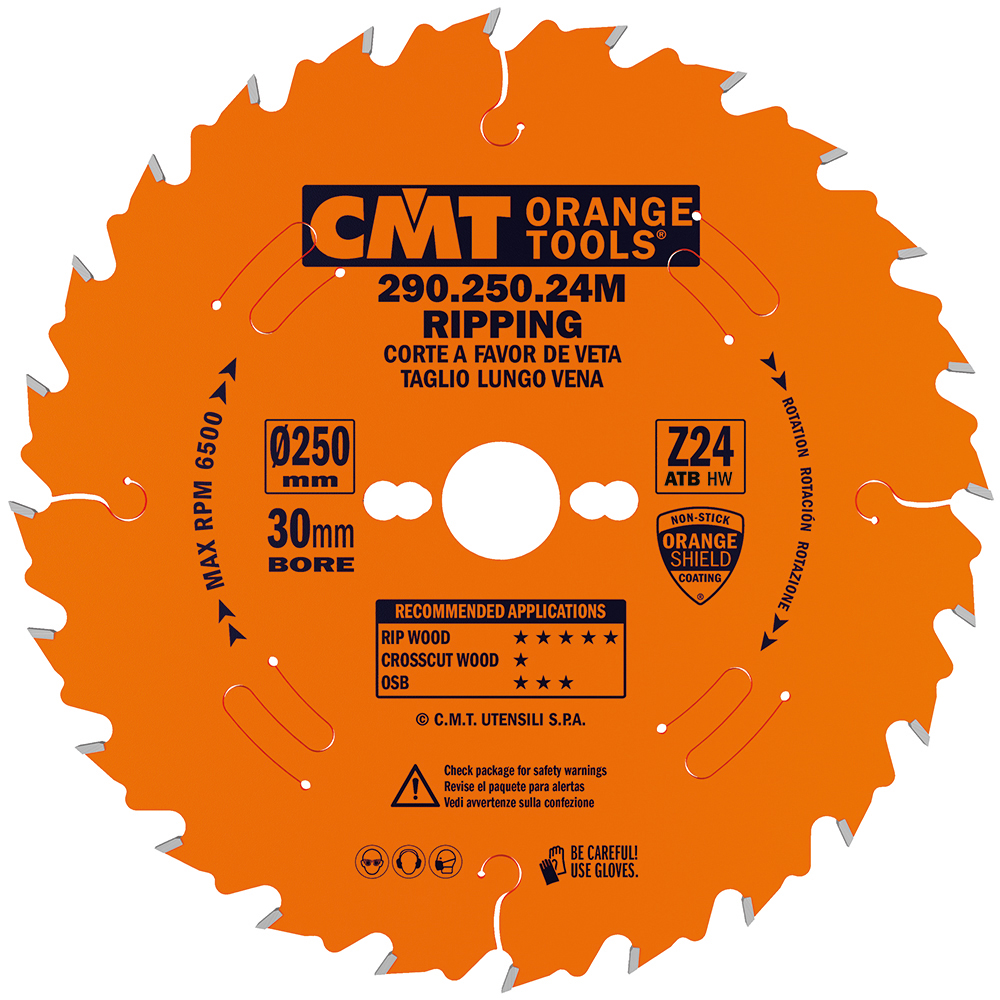

290.250.24M
|
Ripping - Saw Blade with Dampening Slots without Fill | 250 | 30 | COMBI3 | 24 | 2.8 | 1.8 | 20 | ATB 10 |
290.260.28M
|
Ripping - Saw Blade with Dampening Slots without Fill - For FESTOOL® machines | 260 | 30 | COMBI3 | 28 | 2.8 | 1.8 | 20 | ATB 10 |
290.270.28M
|
Ripping - Saw Blade with Dampening Slots without Fill | 270 | 30 | COMBI3 | 28 | 2.8 | 1.8 | 20 | ATB 10 |
