Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades
Industrial rip & crosscut circular saw blades

Industrial rip & crosscut circular saw blades

285-294-295



LASER-CUT PREMIUM QUALITY STEEL PLATE BODY
Made with 46-48 HRC premium quality harmonic steel from Germany
and laser-cut to perfection providing tighter tolerances translating
to longer life and accurate cutting ability.



LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it.
This feature improves cut quality and extends blade life.
In full compliance with National Noise Emission Standards and Regulations.



TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut
and perfect concentricity during rotation. For improved performance,
tensioning is fine-tuned according to machine/application.

TRI-METAL BRAZING
Silver-Copper-Silver Tri-Metal Brazing prevents carbide from breaking
during the cooling process and allows teeth to withstand high stress
and impact especially when cutting harder woods and composite materials.

INDUSTRIAL CHROME CARBIDE
Cutting teeth are made from a specially formulated chrome carbide
which stays sharper longer by reducing cutting edge abrasion, improving cut quality and tool life.

PRECISION MIRROR FINISH SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles
that provide extra-clean cutting performance and extended life.
Featuring less than 0.25 µm Rmax in edge roughness.



HARD LAQUERING
Protects against corrosion and rust.

CMT XTREME BALANCING*
This system allows for extremely accurate dynamic balancing of the blade,
several orders of magnitude above and beyond that which is currently available in the marketplace.
*TRADEMARK & INT. PAT. PEND.


Variations
Filter

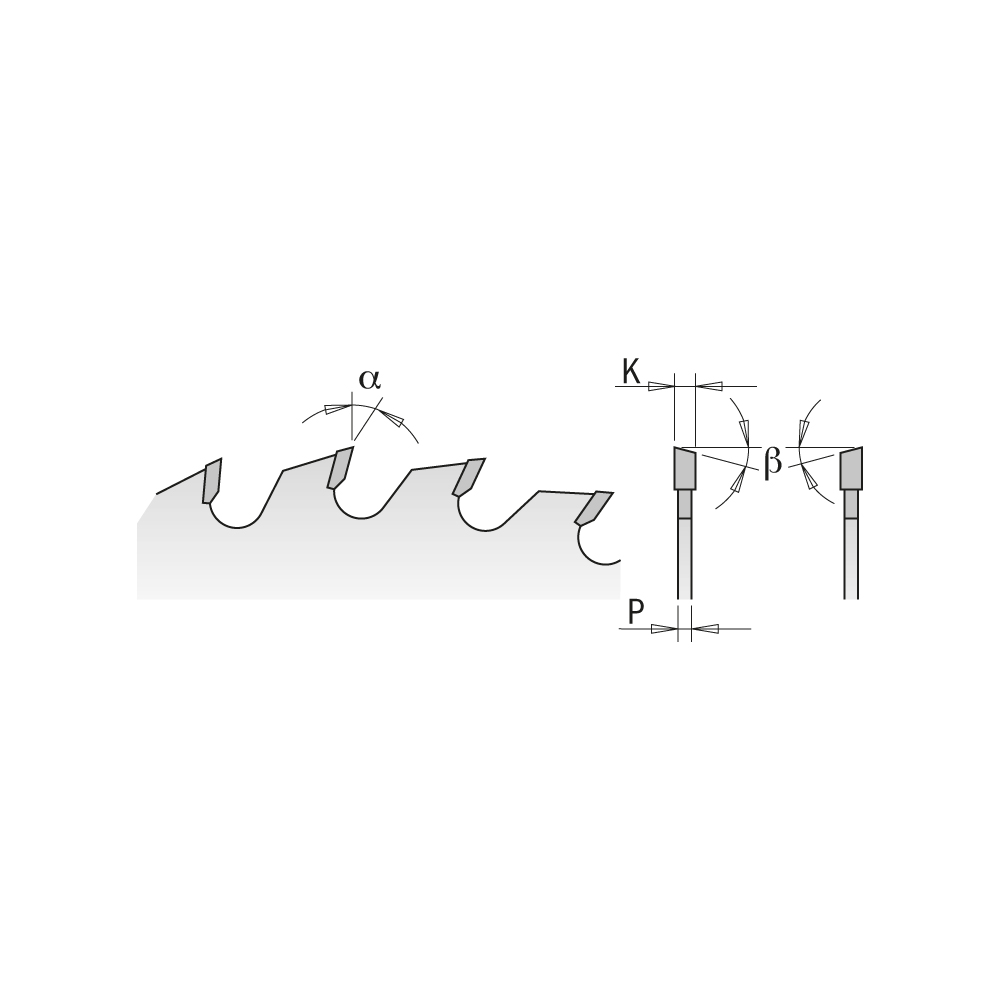

Item Code D B PH Z K P α β
285.060.10M
285.060.10M 250 30 COMBI3 60 3.2 2.2 10 ATB 15
285.060.10R
285.060.10R 250 35 60 3.2 2.2 10 ATB 15
294.060.10M
294.060.10M 254 30 60 2.4 1.8 -5 ATB 15

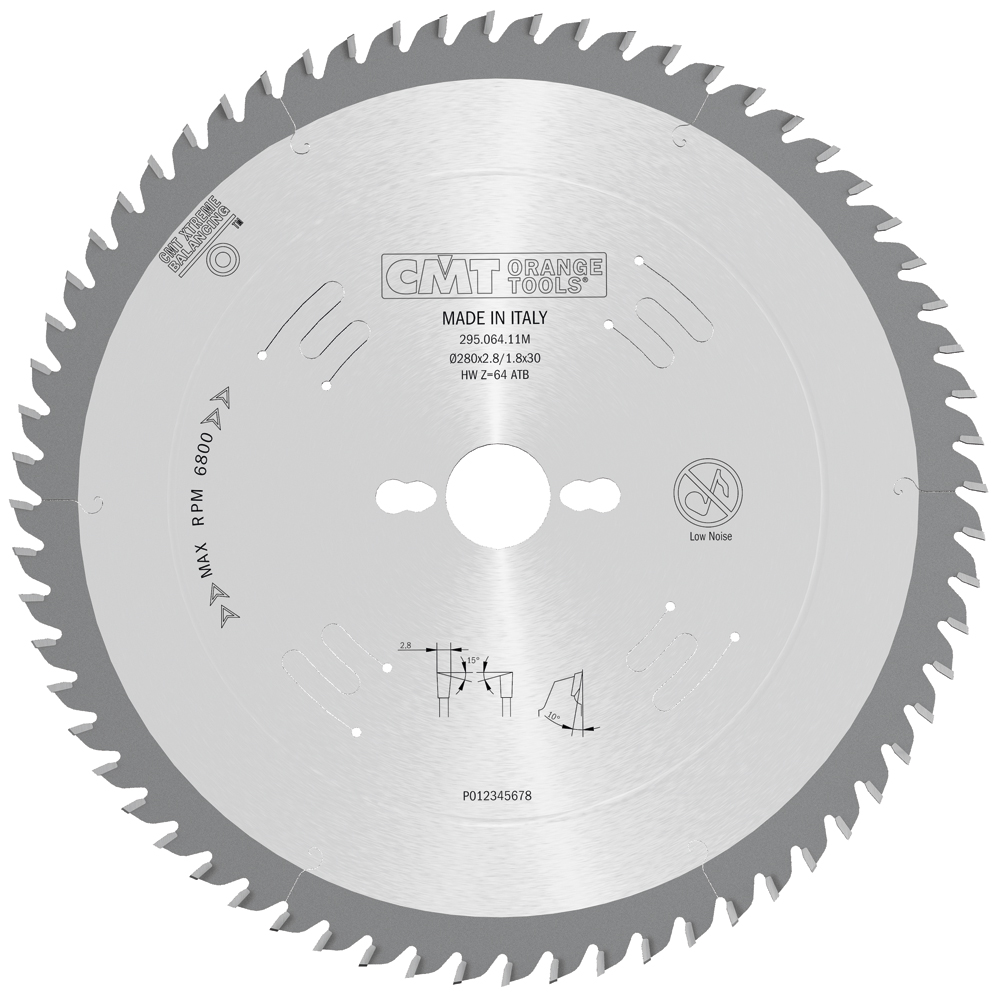

295.064.11M
295.064.11M 280 30 64 2.8 1.8 10 ATB 15
285.060.12M
285.060.12M 300 30 COMBI3 60 3.2 2.2 15 ATB 10

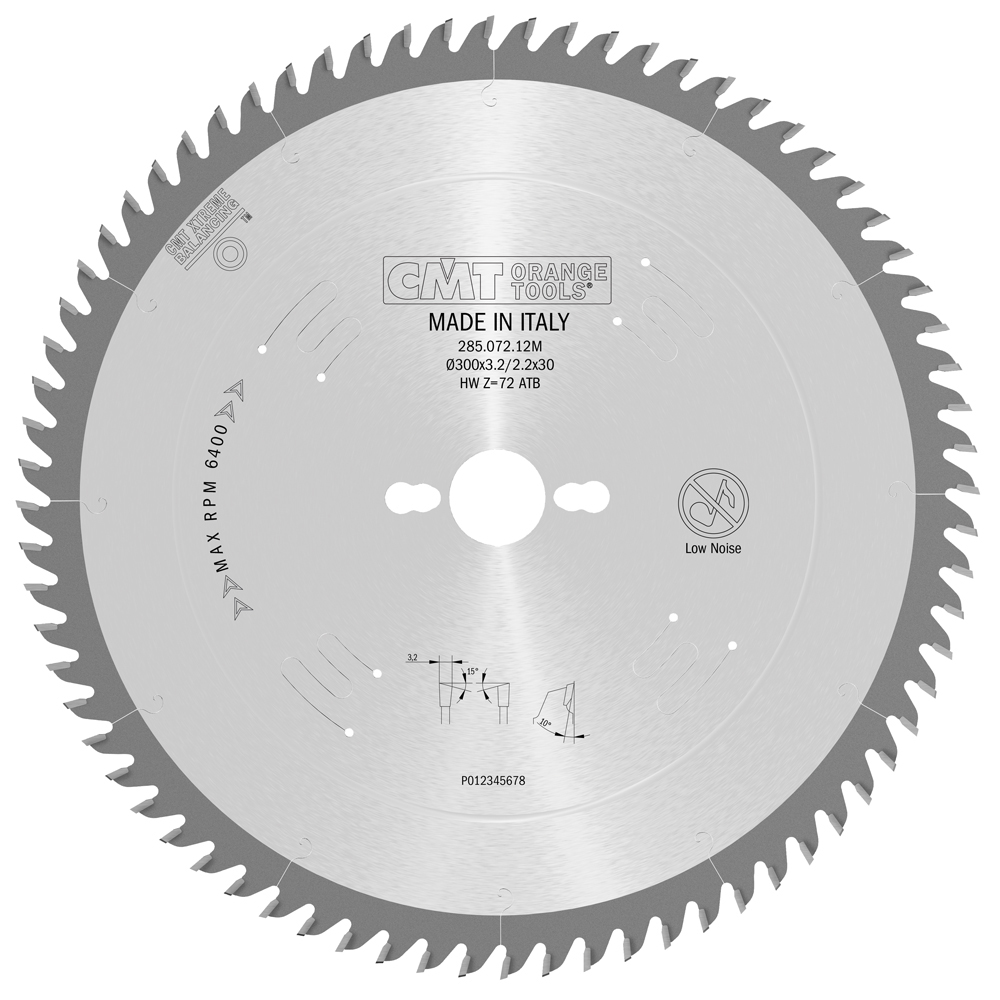

285.072.12M
285.072.12M 300 30 COMBI3 72 3.2 2.2 10 ATB 15
285.072.12R
285.072.12R 300 35 72 3.2 2.2 10 ATB 15
294.072.22M
294.072.22M 305 30 COMBI3 72 3.2 2.2 -5 ATB 15
285.072.22M
285.072.22M 305 30 COMBI3 72 3.2 2.2 10 ATB 15
285.072.13M
285.072.13M 315 30 COMBI3 72 3.2 2.2 15 ATB 10
285.072.14M
285.072.14M 350 30 COMBI3 72 3.5 2.5 15 ATB 10

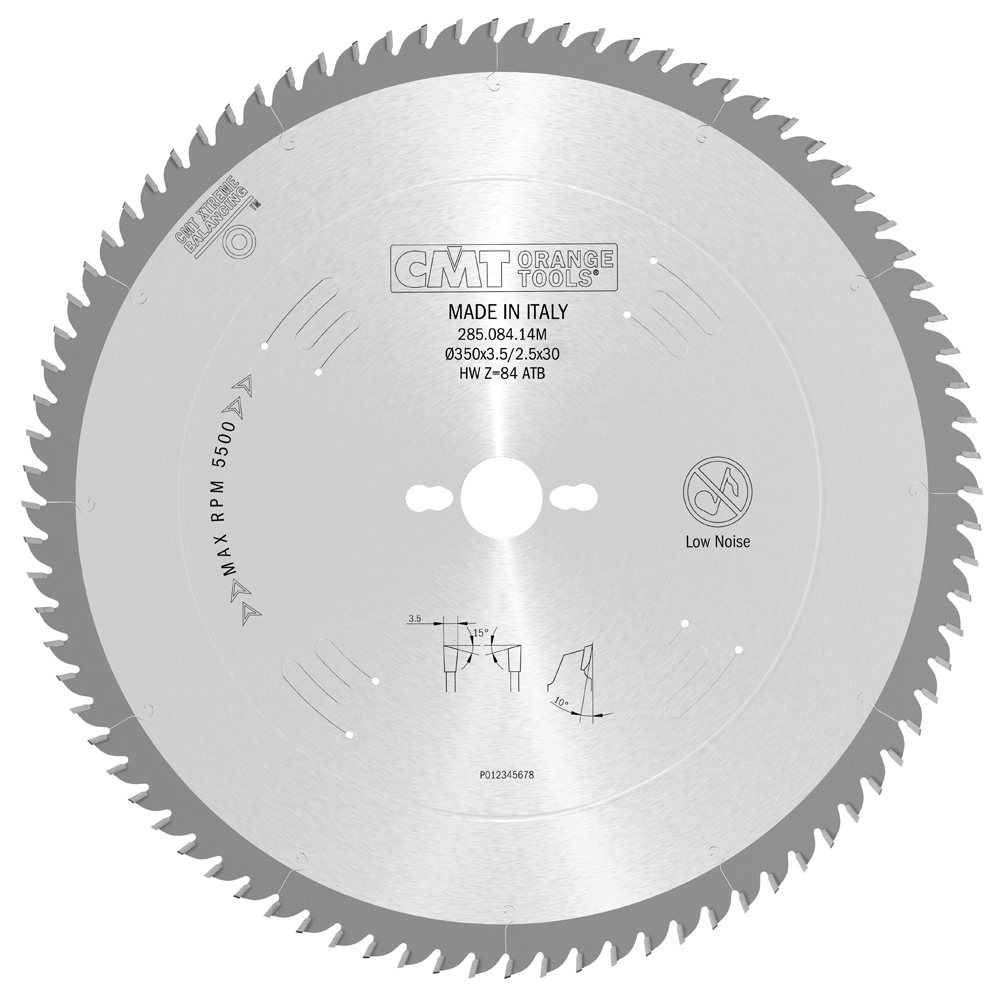

285.084.14M
285.084.14M 350 30 COMBI3 84 3.5 2.5 10 ATB 15
285.084.14R
285.084.14R 350 35 84 3.5 2.5 10 ATB 15
285.096.16M
285.096.16M 400 30 COMBI3 96 3.5 2.5 10 ATB 15
285.060.16M
285.060.16M 400 30 COMBI3 60 3.5 2.5 10 ATB 15
285.066.18M
285.066.18M 450 30 COMBI3 66 3.8 2.8 10 ATB 15
285.072.20M
285.072.20M 500 30 2/10/60 72 3.8 2.8 10 ATB 15
285.096.22M
285.096.22M 550 30 2/10/60 96 4.2 3.2 10 ATB 15
