Industrial panel sizing circular saw blades
Industrial panel sizing circular saw blades
Industrial panel sizing circular saw blades
Industrial panel sizing circular saw blades
Industrial panel sizing circular saw blades
Industrial panel sizing circular saw blades
Industrial panel sizing circular saw blades
Industrial panel sizing circular saw blades

Industrial panel sizing circular saw blades

282.DPX

NANO GRAIN CARBIDE
Cutting teeth are made from an exclusive high-pressure sintering and the use of nano
grain carbide powders make the material free of porosity, extremely hard and compact,
with excellent tenacity that ensures greater resistance to wear as compared to others
and exceptional durability.


LASER-CUT PREMIUM QUALITY STEEL PLATE BODY
Made with 46-48 HRC premium quality harmonic steel from Germany

and laser-cut to perfection providing tighter tolerances translating to longer life and accurate cutting ability.



LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it.
This feature improves cut quality and extends blade life.
In full compliance with National Noise Emission Standards and Regulations.



TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation.

For improved performance, tensioning is fine-tuned according to machine/application.

TRI-METAL BRAZING
Silver-Copper-Silver Tri-Metal Brazing prevents carbide from breaking during the cooling process
and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials.

INDUSTRIAL CHROME CARBIDE
Cutting teeth are made from a specially formulated chrome carbide which stays sharper longer
by reducing cutting edge abrasion, improving cut quality and tool life.

PRECISION MIRROR FINISH SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles
that provide extra-clean cutting performance and extended life.
Featuring less than 0.25 µm Rmax in edge roughness.



HARD LAQUERING
Protects against corrosion and rust.

CMT XTREME BALANCING*
This system allows for extremely accurate dynamic balancing of the blade,
several orders of magnitude above and beyond that which is currently available in the marketplace.
*TRADEMARK & INT. PAT. PEND.



Variations
Filter
Item Code D B FT Z β K P α
282.300.60M

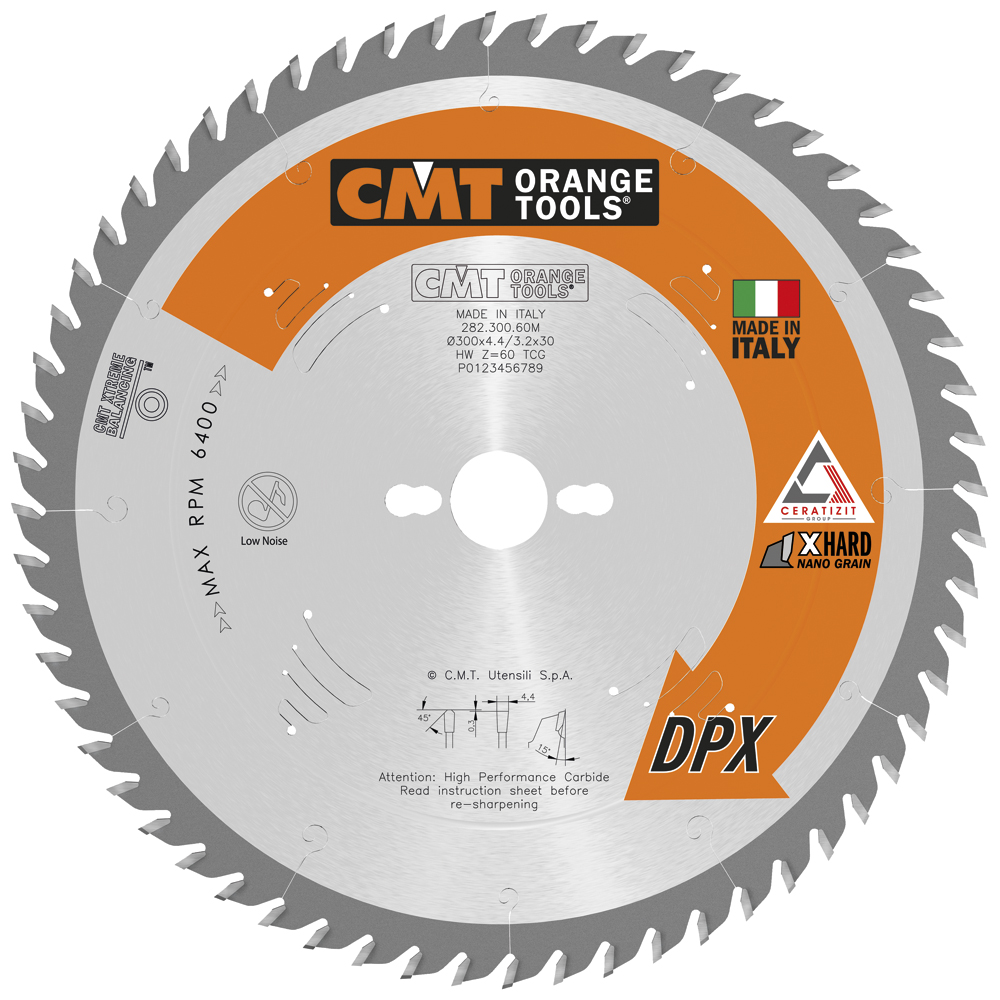

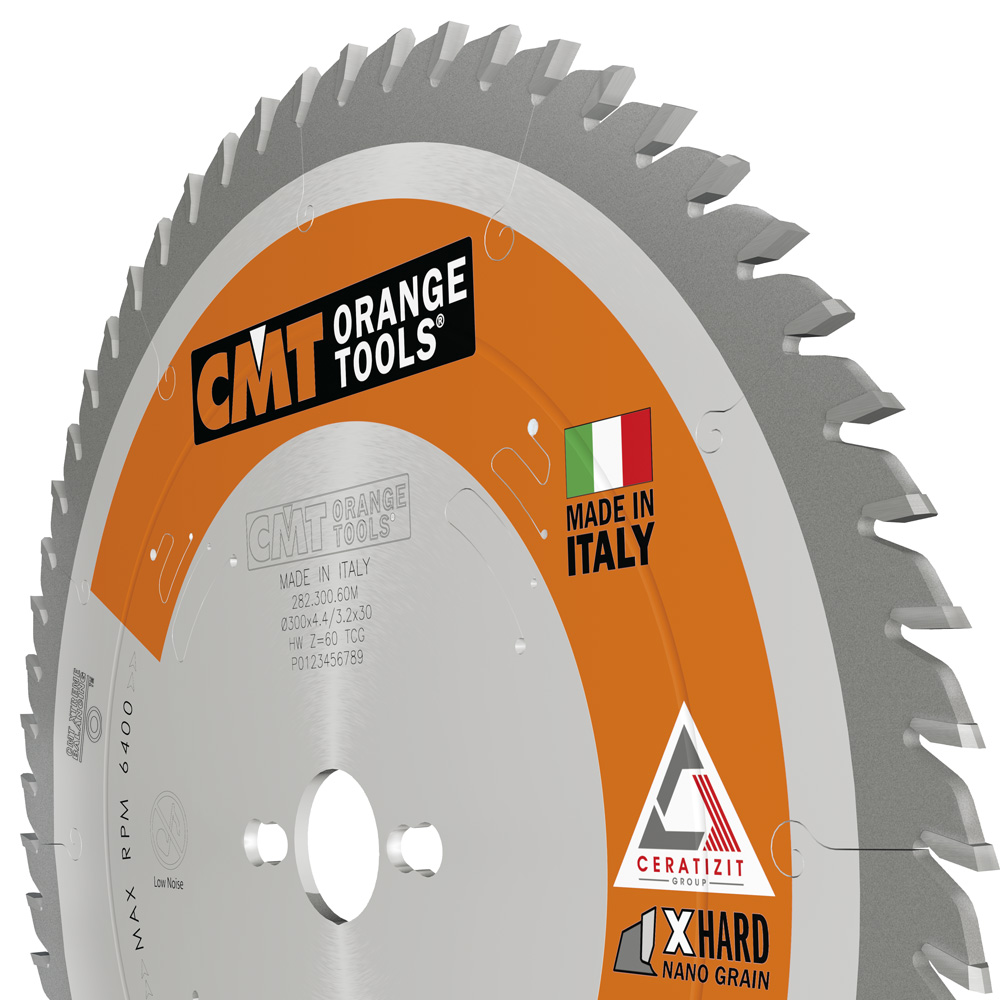

282.300.60M 300 30 COMBI3 60 TCG 4.4 3.2 15
282.300.60W
282.300.60W 300 80 COMBI5 60 TCG 4.4 3.2 15
282.320.60J
282.320.60J 320 65 2/9/100 + 2/14/110 60 TCG 4.4 3.2 15
282.320.72J
282.320.72J 320 65 2/9/100 + 2/14/110 72 TCG 4.4 3.2 15
282.350.72M
282.350.72M 350 30 COMBI3 72 TCG 4.4 3.2 15
282.350.72U
282.350.72U 350 60 2/9/100 + 2/14/110 72 TCG 4.4 3.2 15
282.350.72W
282.350.72W 350 80 COMBI5 72 TCG 4.4 3.2 15
282.350.72X
282.350.72X 350 75 3/7/100 + 4/15/105 72 TCG 4.4 3.2 15
282.355.72J
282.355.72J 355 65 2/9/100 + 2/14/110 72 TCG 4.4 3.2 15
282.380.72U
282.380.72U 380 60 COMBI7 72 TCG 4.8 3.5 15
282.380.72U2
282.380.72U2 380 60 2/14/100 72 TCG 4.4 3.2 15
282.380.72W
282.380.72W 380 80 COMBI5 72 TCG 4.4 3.2 15
282.400.72M
282.400.72M 400 30 COMBI3 72 TCG 4.4 3.2 15
282.400.72W
282.400.72W 400 80 COMBI5 72 TCG 4.4 3.2 15
282.400.72X
282.400.72X 400 75 4/15/105 + 2/7/110 + 2/14/100 72 TCG 4.4 3.2 15
282.430.72J
282.430.72J 430 65 2/9/100 + 2/14/110 72 TCG 4.4 3.2 15
282.450.72M
282.450.72M 450 30 2/10/60 + 2/14/95 72 TCG 4.4 3.2 15
282.450.72U
282.450.72U 450 60 COMBI7 72 TCG 4.8 3.5 15
282.520.60V
282.520.60V 520 70 4/11/130 60 TCG 4.8 3.5 15
