LASER-CUT HIGH QUALITY STEEL PLATE BODY
Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting. |
|
LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it. This feature improves cut quality and extends blade life. In full compliance with National Noise Emission Standards and Regulations. |
|
TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application. |
|
SILVER BRAZING
Silver Alloy Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
|
INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F) and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages. |
|
PRECISION SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.35 μm Rmax in edge roughness. |
|
ORANGE SHIELD® NON-STICK PTFE COATING
- Protects against corrosion and rust. - Reduces resin and residue build-up. - Reduces overheating and blade drag. - Improves performance and cutting life. |

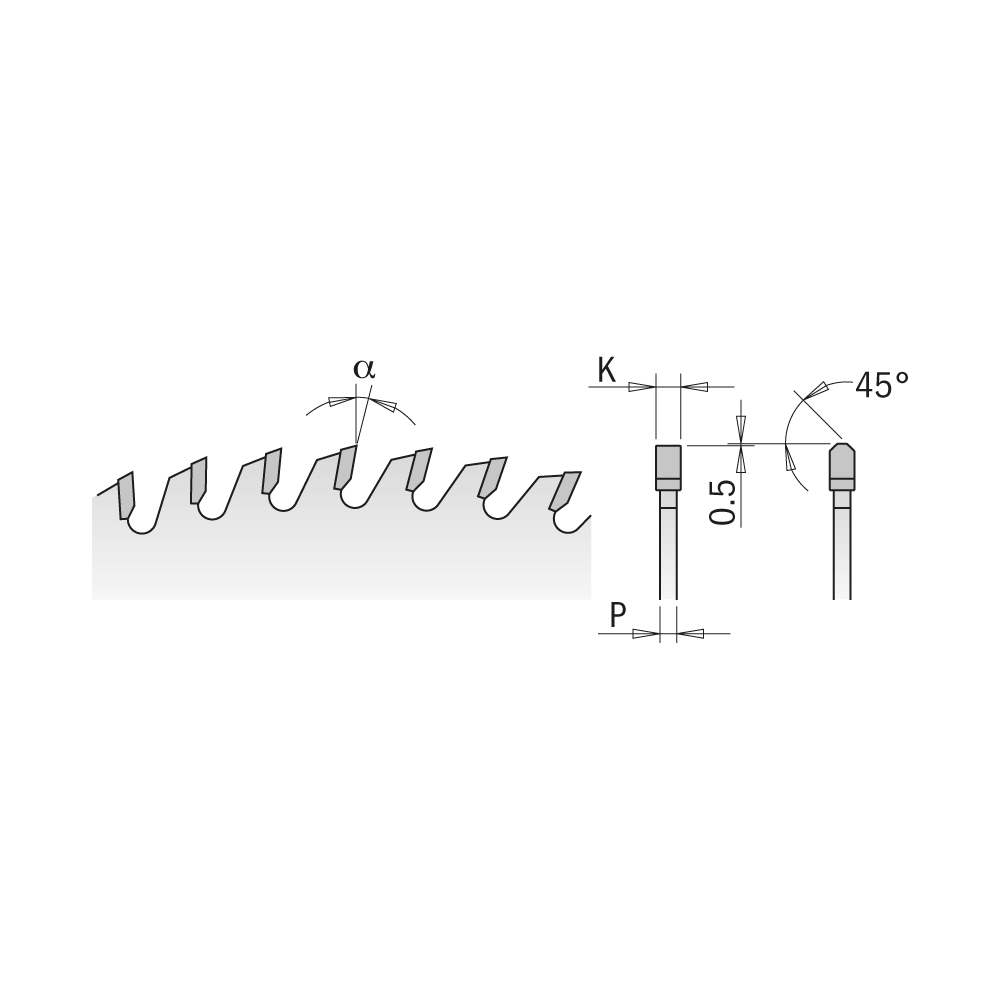

Item Code | Description | D | B | PH | Z | β | K | P | α |
---|---|---|---|---|---|---|---|---|---|

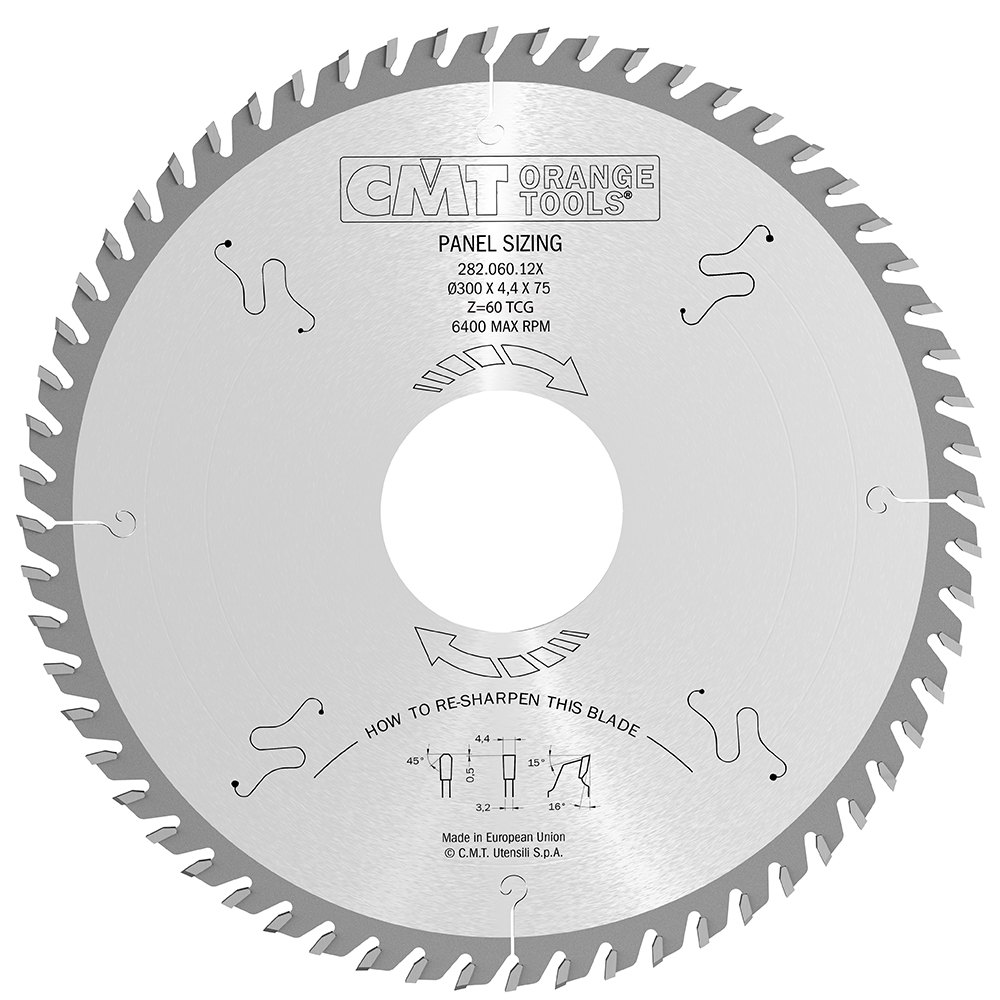

282.060.12X
|
Saw Blade with Dampening Slots without Fill | 300 | 75 | 60 | TCG | 4.4 | 3.2 | 16 | |
Y282.060.13J
|
Saw Blade with Dampening Slots without Fill | 320 | 65 | 2/9/100 + 2/9/110 | 60 | TCG | 4.4 | 3.2 | 16 |
282.054.14M
|
Saw Blade with Dampening Slots with Fill | 350 | 30 | COMBI3 | 54 | TCG | 4.4 | 3.2 | 16 |
282.054.14W
|
Saw Blade with Dampening Slots with Fill | 350 | 80 | COMBI5 | 54 | TCG | 4.4 | 3.2 | 16 |
282.054.14X
|
Saw Blade with Dampening Slots with Fill | 350 | 75 | 4/15/105 + 3/7/100 | 54 | TCG | 4.4 | 3.2 | 16 |
282.072.14T
|
Saw Blade with Dampening Slots with Fill | 350 | 50 | 3/12.5/80 | 72 | TCG | 4.4 | 3.2 | 16 |
282.072.14W2
|
Saw Blade with Dampening Slots without Fill | 355 | 80 | 4/9/100 + 2/9/110 + 2/14/110 | 72 | TCG | 4.4 | 3.2 | 10 |
S282.03556
|
Saw Blade with Dampening Slots with Fill | 355 | 30 | COMBI3 | 72 | TCG | 4.4 | 3.2 | 16 |
282.072.15U2
|
Saw Blade with Dampening Slots without Fill | 380 | 60 | 2/14/100 | 72 | TCG | 4.4 | 3.2 | 15 |
282.072.15W
|
Saw Blade with Dampening Slots without Fill | 380 | 80 | COMBI5 | 72 | TCG | 4.4 | 3.2 | 16 |
282.072.16U
|
Saw Blade with Dampening Slots without Fill | 400 | 60 | COMBI7 | 72 | TCG | 4.4 | 3.2 | 16 |
282.072.16W
|
Saw Blade with Dampening Slots without Fill | 400 | 80 | COMBI5 | 72 | TCG | 4.4 | 3.2 | 16 |
282.060.16M
|
Saw Blade with Dampening Slots without Fill | 400 | 30 | 2/10/60 | 60 | TCG | 4.4 | 3.2 | 16 |
282.060.16X
|
Saw Blade with Dampening Slots with Fill | 400 | 75 | 4/15/105 | 60 | TCG | 4.4 | 3.2 | 16 |
282.072.17W
|
Saw Blade with Dampening Slots without Fill | 420 | 80 | 4/9/100 + 2/9/110 + 2/14/110 | 72 | TCG | 4.4 | 3.2 | 15 |
282.072.17W2
|
Saw Blade with Dampening Slots without Fill | 430 | 80 | COMBI5 | 72 | TCG | 4.4 | 3.2 | 16 |
282.072.17X
|
Saw Blade with Dampening Slots without Fill | 430 | 75 | 4/15/105 | 72 | TCG | 4.4 | 3.2 | 16 |
Y282.072.17J
|
Saw Blade with Dampening Slots without Fill | 430 | 65 | 2/9/100+2/9/110 | 72 | TCG | 4.4 | 3.2 | 15 |
Y282.072.18M2
|
Saw Blade with Dampening Slots without Fill | 450 | 30 | 72 | TCG | 4.4 | 3.2 | 16 | |
282.072.18U
|
Saw Blade with Dampening Slots without Fill | 450 | 60 | COMBI7 | 72 | TCG | 4.8 | 3.5 | 16 |
282.072.18W2
|
Saw Blade with Dampening Slots without Fill | 450 | 80 | COMBI5 | 72 | TCG | 4.8 | 3.5 | 16 |
282.072.20U
|
Saw Blade with Dampening Slots without Fill | 500 | 60 | COMBI7 | 72 | TCG | 4.8 | 3.5 | 16 |
