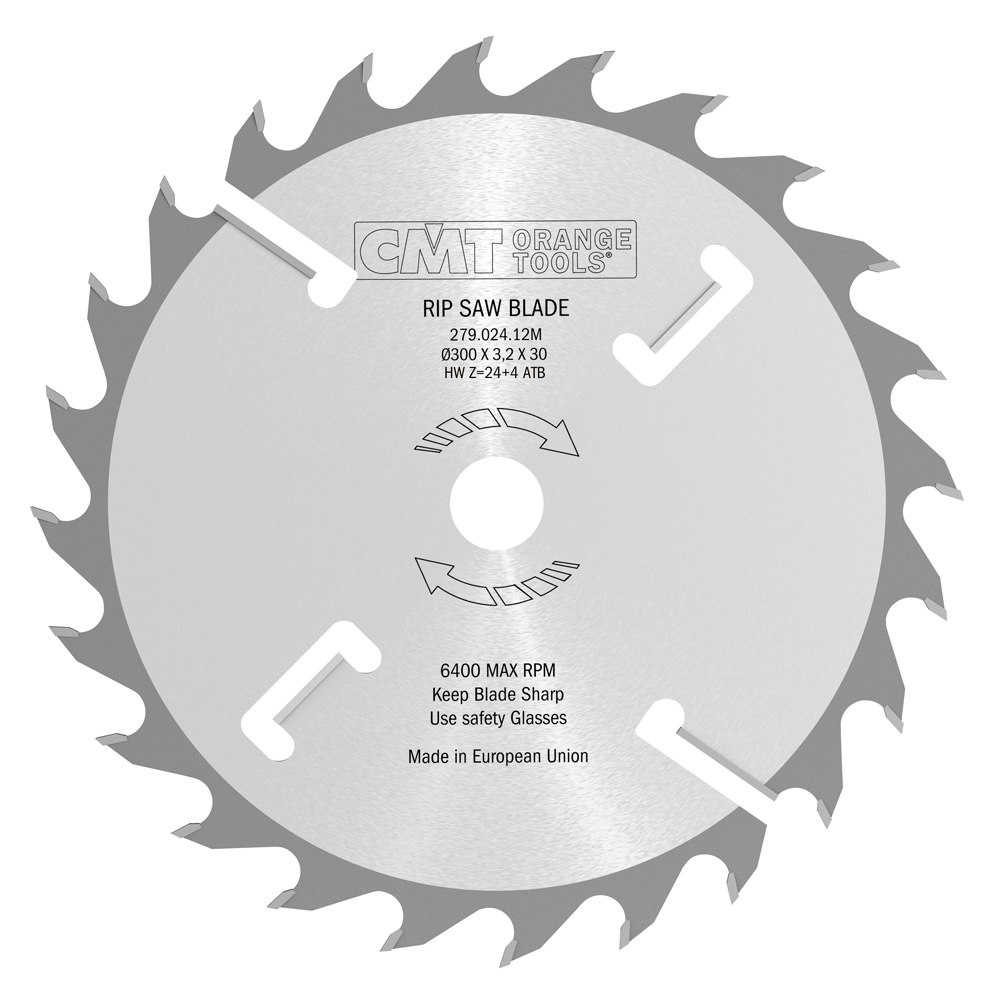

Multi-Rip with Rakers
279
|
|
LASER-CUT HIGH QUALITY STEEL PLATE BODY
Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting. |
|
|
LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it. This feature improves cut quality and extends blade life. In full compliance with National Noise Emission Standards and Regulations. |
|
|
TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application. |
|
|
SILVER BRAZING
Silver Alloy Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
|
|
INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F) and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages. |
 |
PRECISION SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.35 μm Rmax in edge roughness. |
 |
ORANGE SHIELD® NON-STICK PTFE COATING
- Protects against corrosion and rust. - Reduces resin and residue build-up. - Reduces overheating and blade drag. - Improves performance and cutting life. |
TECHNICAL DETAILS:
The rakers prevent contact between the steel plate body and the material in use.
Variations
Filter

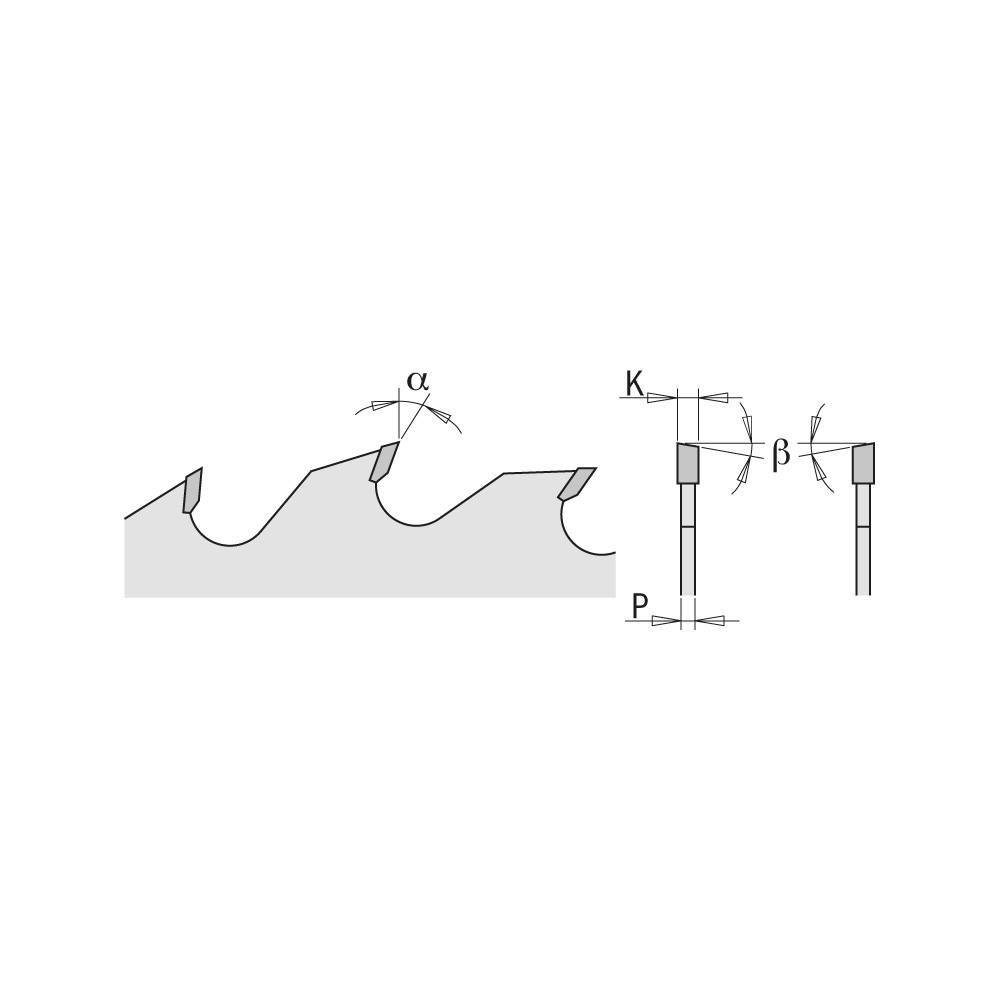

| Item Code | D | B | PH | Z | K | P | T | α | β |
|---|---|---|---|---|---|---|---|---|---|
|
279.020.10M
|
250 | 30 | COMBI3 | 20+4 | 3.2 | 2.2 | 65 | 18 | ATB 10 |
|
279.020.10V
|
250 | 70 | 21x5 | 20+4 | 3.2 | 2.2 | 65 | 18 | ATB 10 |
|
279.020.10W
|
250 | 80 | 13x5 | 20+4 | 3.2 | 2.2 | 65 | 18 | ATB 10 |
|
279.024.12M
|
300 | 30 | COMBI3 | 24+4 | 3.2 | 2.2 | 80 | 18 | ATB 10 |
|
279.024.12U
|
300 | 60 | 21x5 | 24+4 | 3.2 | 2.2 | 80 | 18 | ATB 10 |
|
279.024.12V
|
300 | 70 | 21x5 | 24+4 | 3.2 | 2.2 | 80 | 18 | ATB 10 |
|
279.024.12W
|
300 | 80 | 13x5 | 24+4 | 3.2 | 2.2 | 80 | 18 | ATB 10 |
|
279.028.14M
|
350 | 30 | COMBI3 | 28+4 | 3.5 | 2.5 | 105 | 18 | ATB 10 |
|
279.028.14U
|
350 | 60 | 21x5 | 28+4 | 3.5 | 2.5 | 105 | 18 | ATB 10 |
|
279.028.14V
|
350 | 70 | 21x5 | 28+4 | 3.5 | 2.5 | 105 | 18 | ATB 10 |
|
279.028.14W
|
350 | 80 | 14x5 | 28+4 | 3.5 | 2.5 | 105 | 18 | ATB 10 |
|
279.028.16M
|
400 | 30 | COMBI3 | 28+6 | 4.0 | 2.8 | 120 | 18 | ATB 10 |
|
279.028.16V
|
400 | 70 | 21X5 | 28+6 | 4.0 | 2.8 | 120 | 18 | ATB 10 |
