LASER-CUT SOUND DAMPENING SLOTS POLYMER-FILLED
Slots filled with sound-dampening polymer reduce vibrations
and noise by 25% compared to blades without it.*
*This feature improves cut quality and extends blade life.
*In full compliance with National Noise Emission Standards and Regulations.
|
![]() |
TRI-METAL BRAZING
Silver-Copper-Silver Tri-Metal Brazing prevents carbide from breaking
during the cooling process and allows teeth to withstand high stress
and impact especially when cutting harder woods and composite materials.
|
![]() |
INDUSTRIAL CHROME CARBIDE
Cutting teeth are made from a specially formulated chrome carbide
which stays sharper longer by reducing cutting edge abrasion,
improving cut quality and tool life.
|
![]() |
PRECISION MIRROR FINISH SHARPENING
Each tooth is precision ground on a multi-axis CNC machine
creating perfect edge angles that provide extra-clean cutting
performance and extended life.
Featuring less than 0.25 µm Rmax in edge roughness.
|
![]() |
ORANGE CHROME® COATING
- Protects the tool against corrosion, rust and accumulation of resin and residues.
- Guarantees longer tool life.
- Lower power absorption by motor.
- Smoother blade movement throughout cutting operation.
- Tool maintenance is fast and easy.
|
![]() |
CMT XTREME BALANCING*
This system allows for extremely accurate dynamic balancing of the blade,
several orders of magnitude above and beyond
that which is currently available in the marketplace.
*TRADEMARK & INT. PAT. PEND.
|

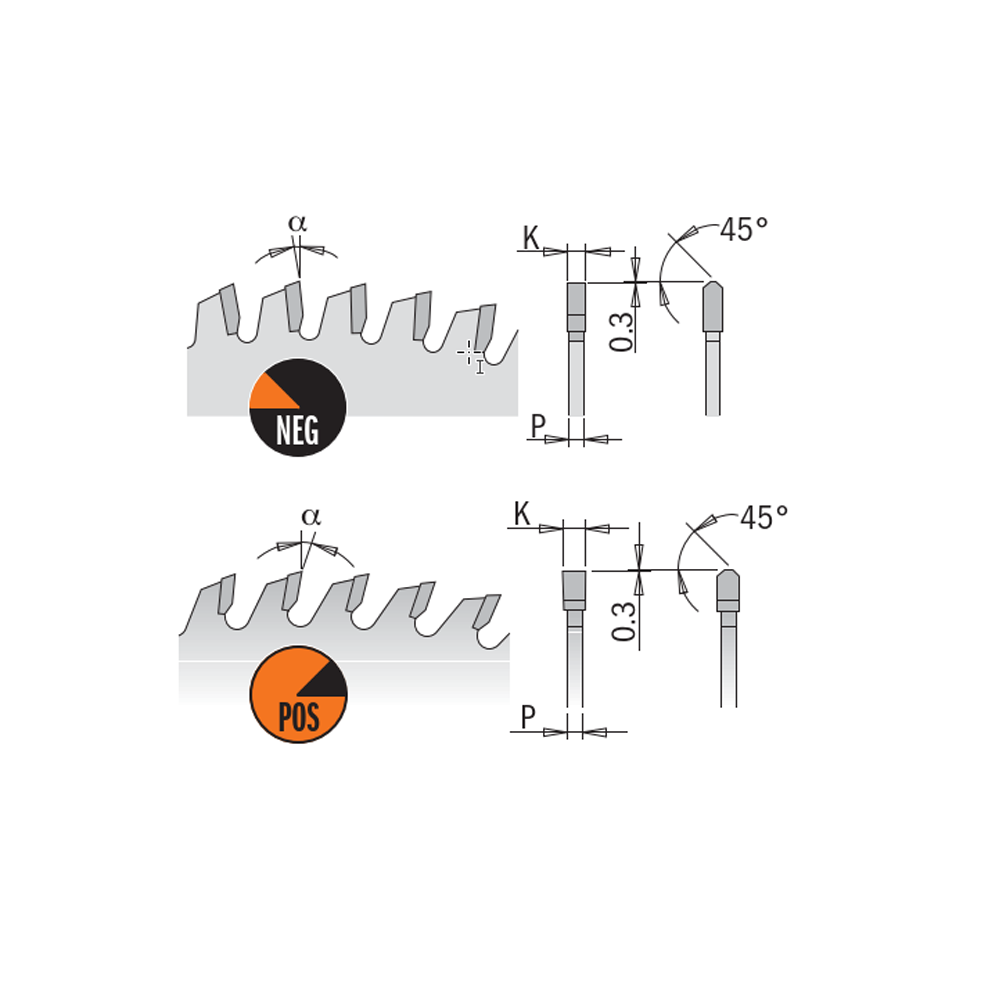

Item Code | D | B | FT | Z | K | P | α | β |
---|---|---|---|---|---|---|---|---|
281.761.52H
|
160 | 20 | 2/6/32 | 52 | 1.8 | 1.2 | -5 | TCG |
281.766.52H
|
165 | 20 | 2/6/32 | 52 | 1.8 | 1.2 | -5 | TCG |
281.768.52H
|
168 | 20 | 2/6/32 | 52 | 1.8 | 1.2 | -5 | TCG |
281.790.54M
|
190 | 30 | 2/7/42 | 54 | 2.6 | 1.8 | 4 | TCG |
281.810.60M
|
210 | 30 | 2/7/42 | 60 | 2.6 | 1.6 | -3 | TCG |
281.816.64M
|
216 | 30 | 2/7/42 | 64 | 2.6 | 1.6 | -3 | TCG |
