LASER-CUT HIGH QUALITY STEEL PLATE BODY
Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting. |
|
LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it. This feature improves cut quality and extends blade life. In full compliance with National Noise Emission Standards and Regulations. |
|
TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application. |
|
SILVER BRAZING
Silver Alloy Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
|
INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F) and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages. |
PRECISION SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.35 μm Rmax in edge roughness. |
|
|
ORANGE SHIELD® NON-STICK PTFE COATING
• Protects against corrosion and rust. • Reduces resin and residue build-up. • Reduces overheating and blade drag. • Improves performance and cutting life. |

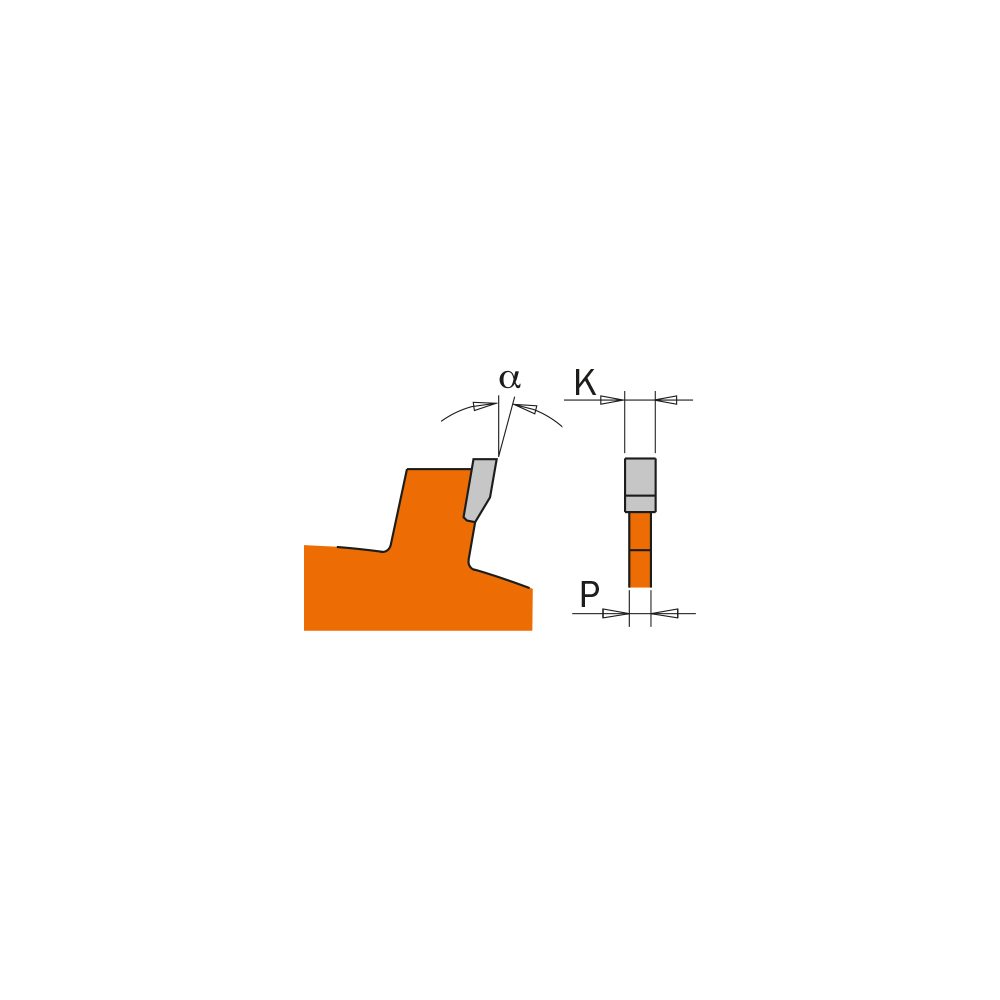

Item Code | D | B | Z | K | P | α | β |
---|---|---|---|---|---|---|---|
240.020.06M
|
150 | 30 | 12 | 2 | 1.4 | 15 | FLAT |
240.020.06R
|
150 | 35 | 12 | 2 | 1.4 | 15 | FLAT |
240.030.06M
|
150 | 30 | 12 | 3 | 2 | 15 | FLAT |
240.030.06R
|
150 | 35 | 12 | 3 | 2 | 15 | FLAT |
240.040.06M
|
150 | 30 | 12 | 4 | 3 | 15 | FLAT |
240.040.06R
|
150 | 35 | 12 | 4 | 3 | 15 | FLAT |
240.050.06M
|
150 | 30 | 12 | 5 | 3 | 15 | FLAT |
240.050.06R
|
150 | 35 | 12 | 5 | 3 | 15 | FLAT |
240.060.06M
|
150 | 30 | 12 | 6.0 | 3 | 15 | FLAT |
240.060.06R
|
150 | 35 | 12 | 6.0 | 3 | 15 | FLAT |
240.060.07M
|
180 | 30 | 18 | 6.0 | 3 | 15 | FLAT |
240.060.07R
|
180 | 35 | 18 | 6.0 | 3 | 15 | FLAT |
240.064.07M
|
180 | 30 | 18 | 6.35 | 3 | 15 | FLAT |
240.050.07M
|
180 | 30 | 18 | 5 | 3 | 15 | FLAT |
240.050.07R
|
180 | 35 | 18 | 5 | 3 | 15 | FLAT |
240.040.07M
|
180 | 30 | 18 | 4 | 3 | 15 | FLAT |
240.040.07R
|
180 | 35 | 18 | 4 | 3 | 15 | FLAT |
240.030.07M
|
180 | 30 | 18 | 3 | 2 | 15 | FLAT |
240.030.07R
|
180 | 35 | 18 | 3 | 2 | 15 | FLAT |
