LASER-CUT HIGH QUALITY STEEL PLATE BODY
Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting. |
|
LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it. This feature improves cut quality and extends blade life. In full compliance with National Noise Emission Standards and Regulations. |
|
TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application. |
|
SILVER BRAZING
Silver Alloy Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
|
INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F) and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages. |
PRECISION SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.35 μm Rmax in edge roughness. |
|
|
ORANGE SHIELD® NON-STICK PTFE COATING
• Protects against corrosion and rust. • Reduces resin and residue build-up. • Reduces overheating and blade drag. • Improves performance and cutting life. |

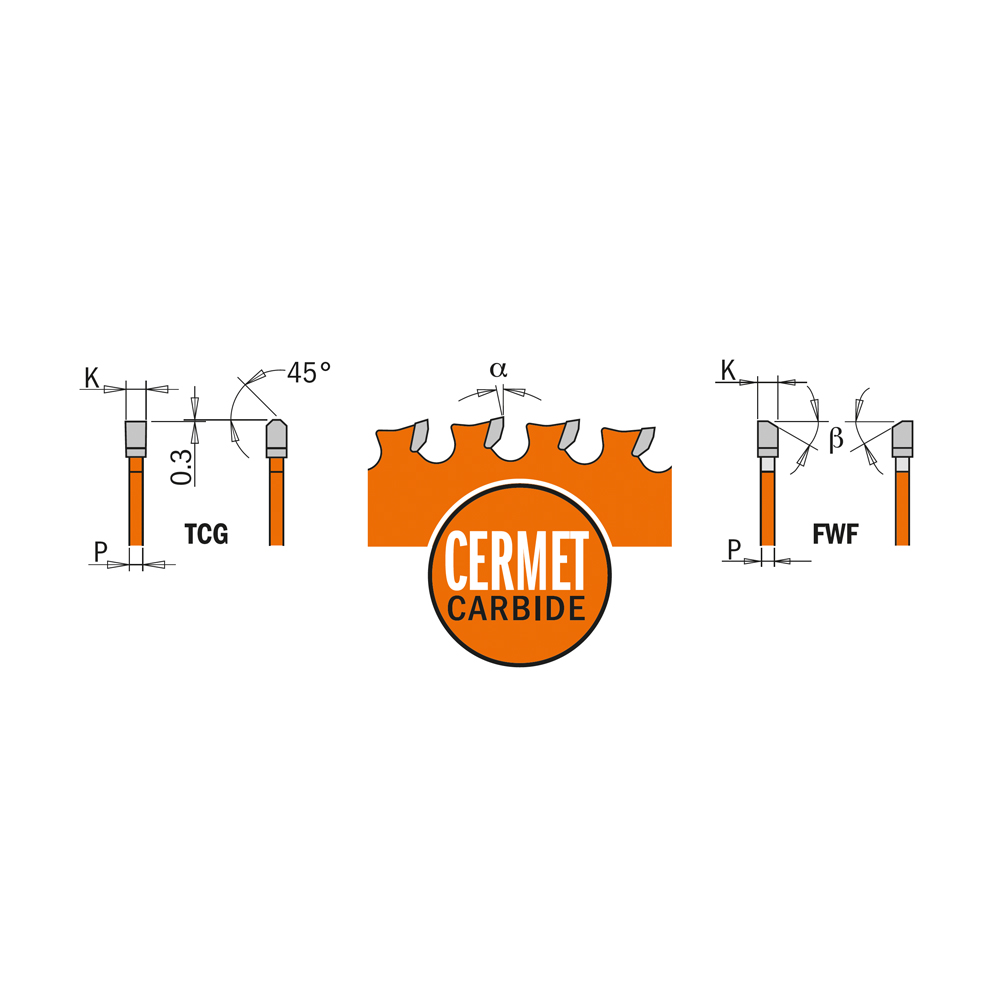

Item Code | D | B | Z | K | P | α | β | MAX RPM |
---|---|---|---|---|---|---|---|---|

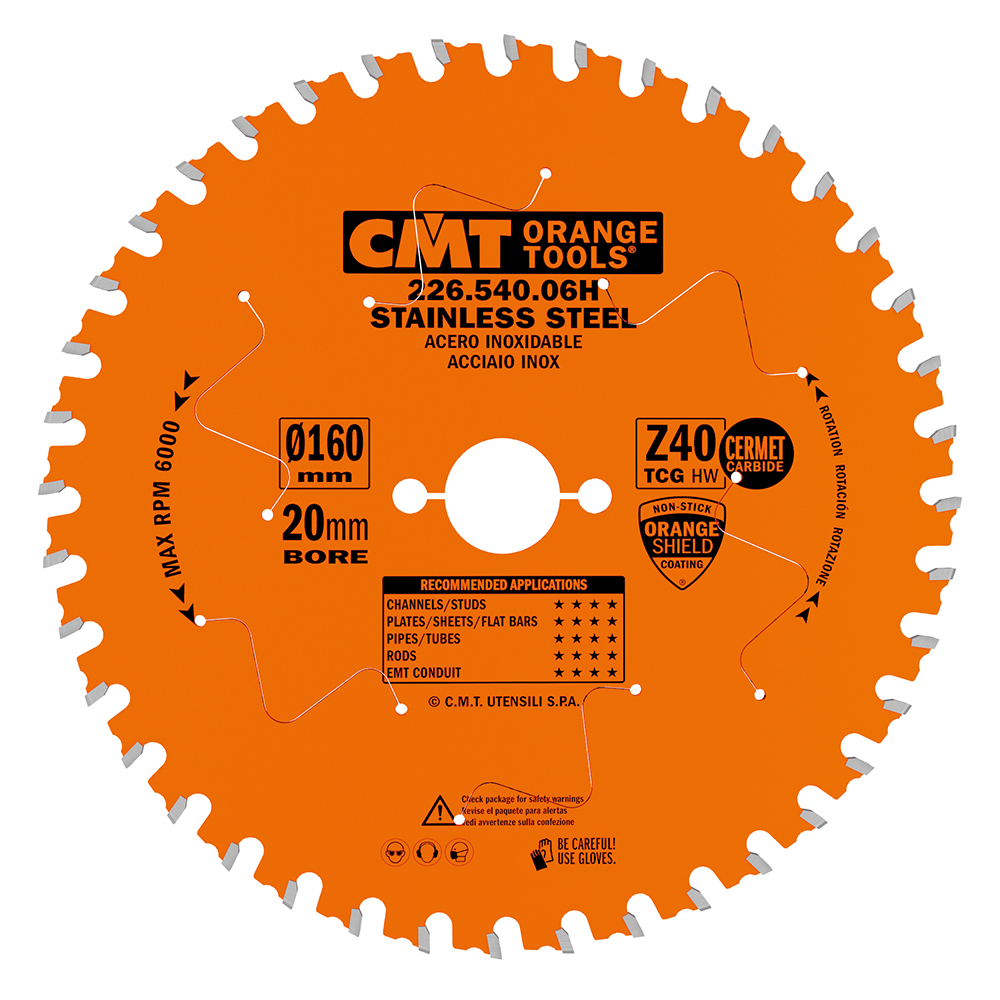

226.540.06H
|
160 | 20 | 40 | 1.8 | 1.4 | 0 | TCG | Max 6000 |
226.548.07
|
184 | 15.88 | 48 | 2 | 1.6 | 0 | FWF 8 | 6000 |

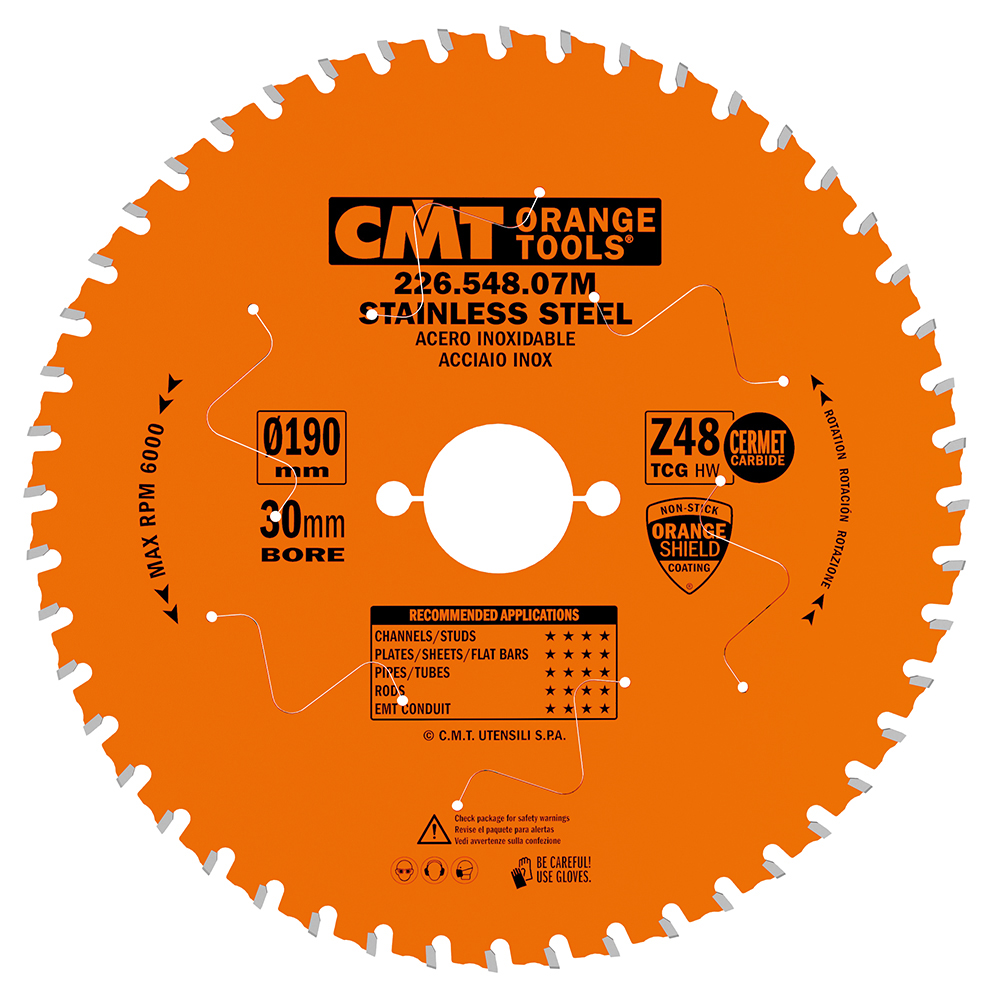

226.548.07M
|
190 | 30 | 48 | 1.8 | 1.4 | 0 | TCG | 6000 |
226.556.09M
|
216 | 30 | 56 | 1.8 | 1.4 | 0 | TCG | 3500 |

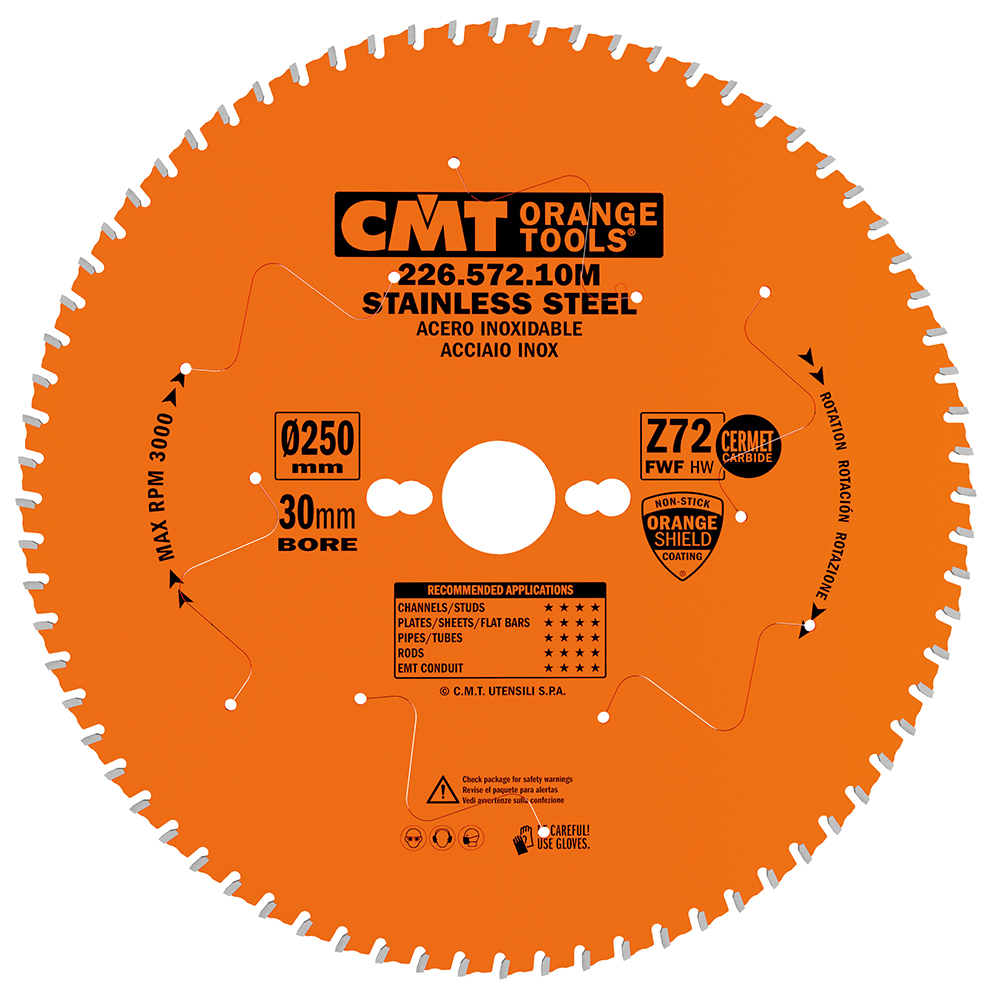

226.572.10M
|
250 | 30 | 72 | 2.2 | 1.8 | 0 | FWF 10 | 3000 |

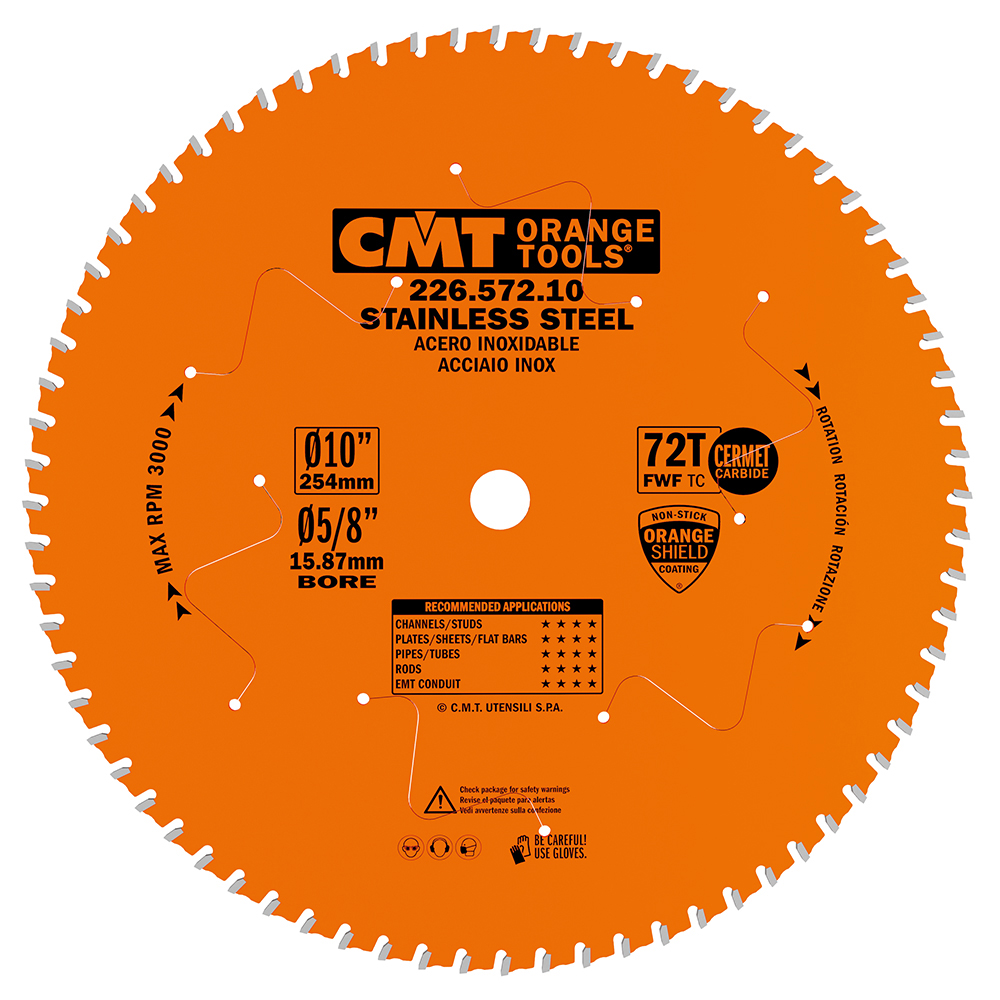

226.572.10
|
254 | 25.4 (+15.88) | 72 | 2.2 | 1.8 | 0 | FWF 8 | 3000 |

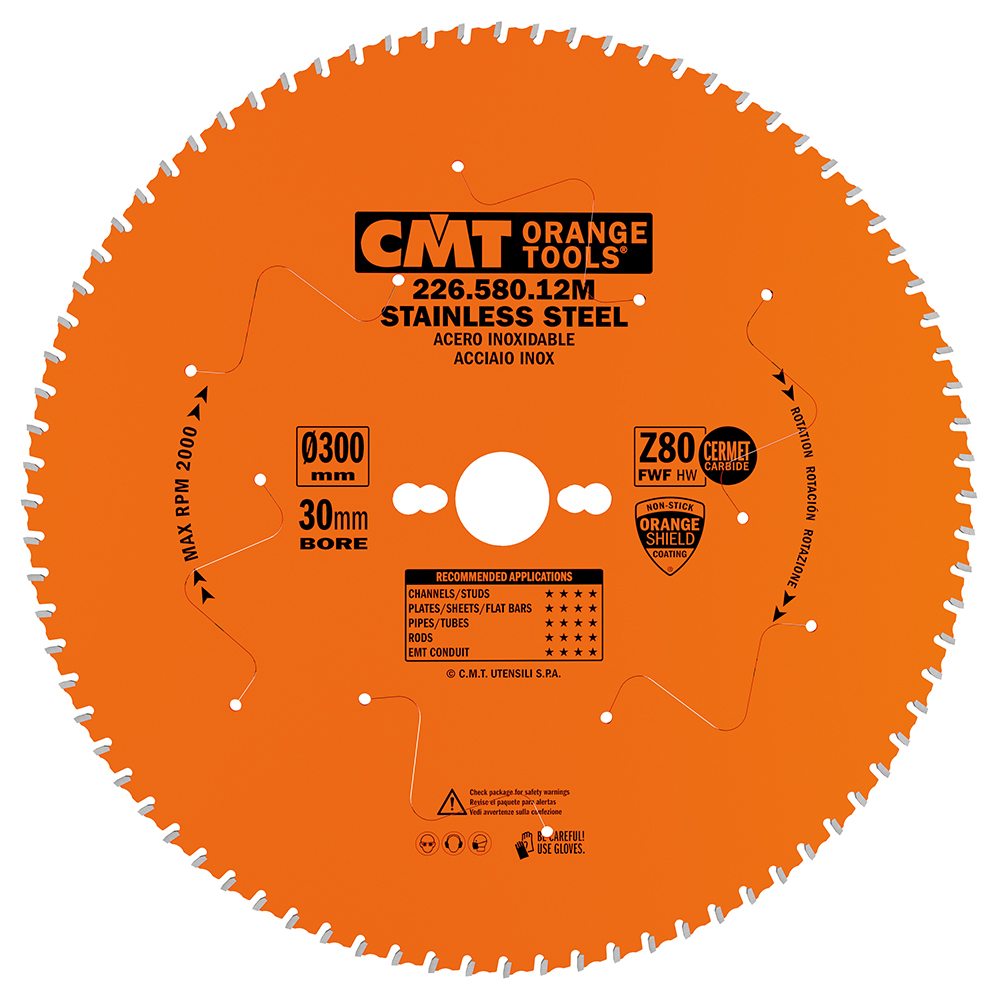

226.580.12M
|
300 | 30 | 80 | 2.2 | 1.8 | 0 | FWF 10 | 2000 |

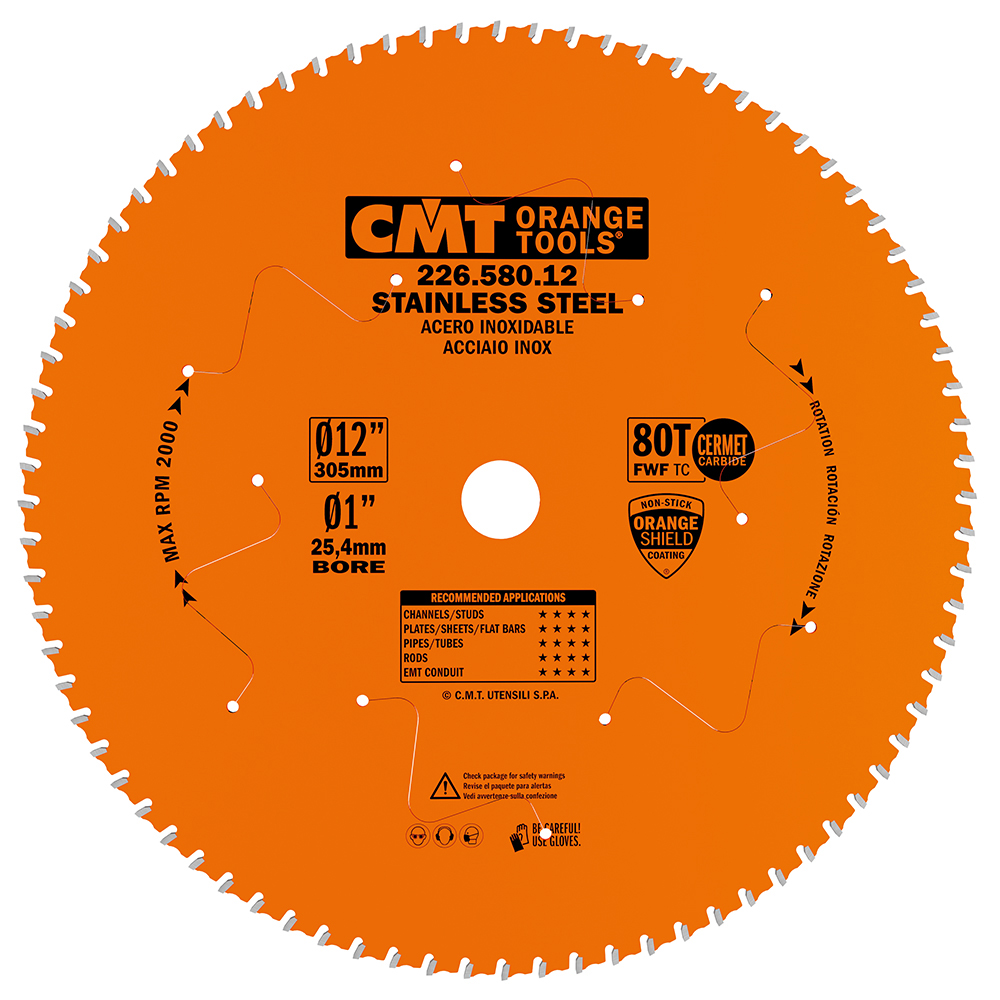

226.580.12
|
305 | 25.4 | 80 | 2.2 | 1.8 | 0 | FWF 8 | 2000 |

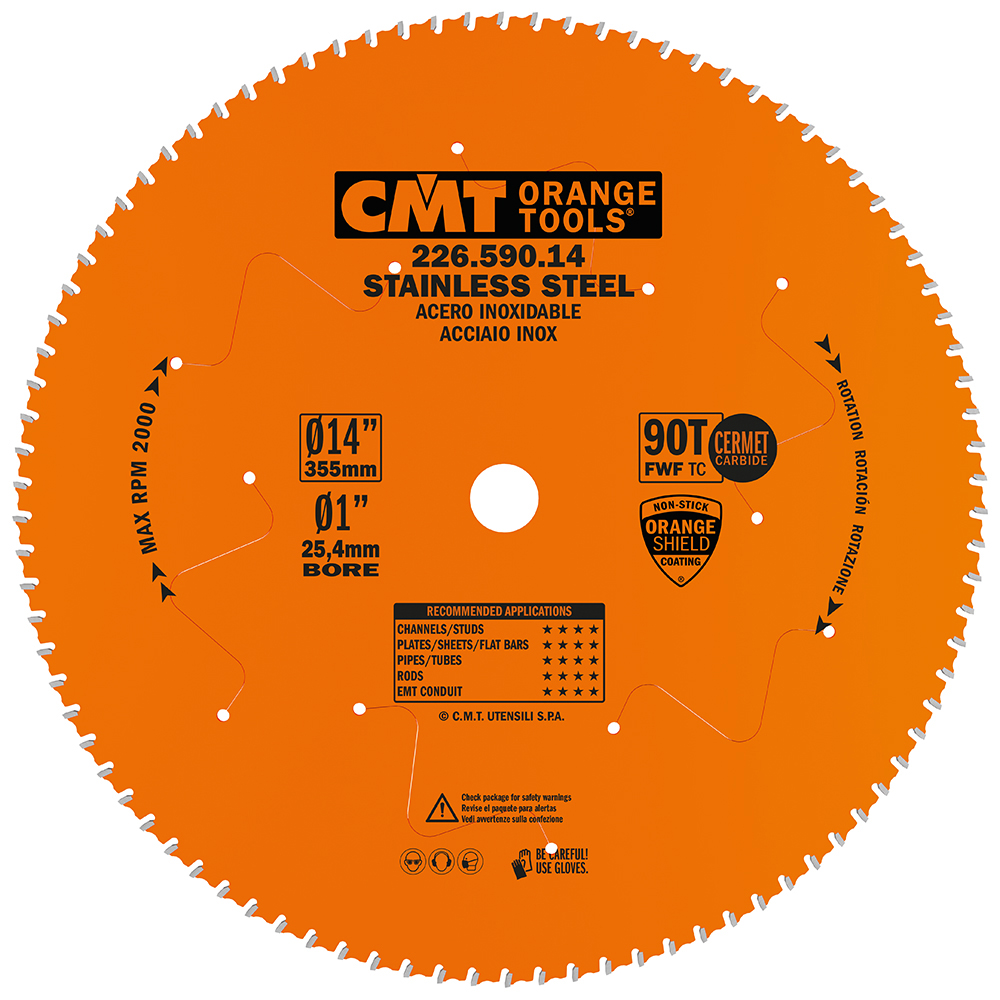

226.590.14
|
355 | 25.4 | 90 | 2.2 | 1.8 | 0 | FWF 8 | 2000 |

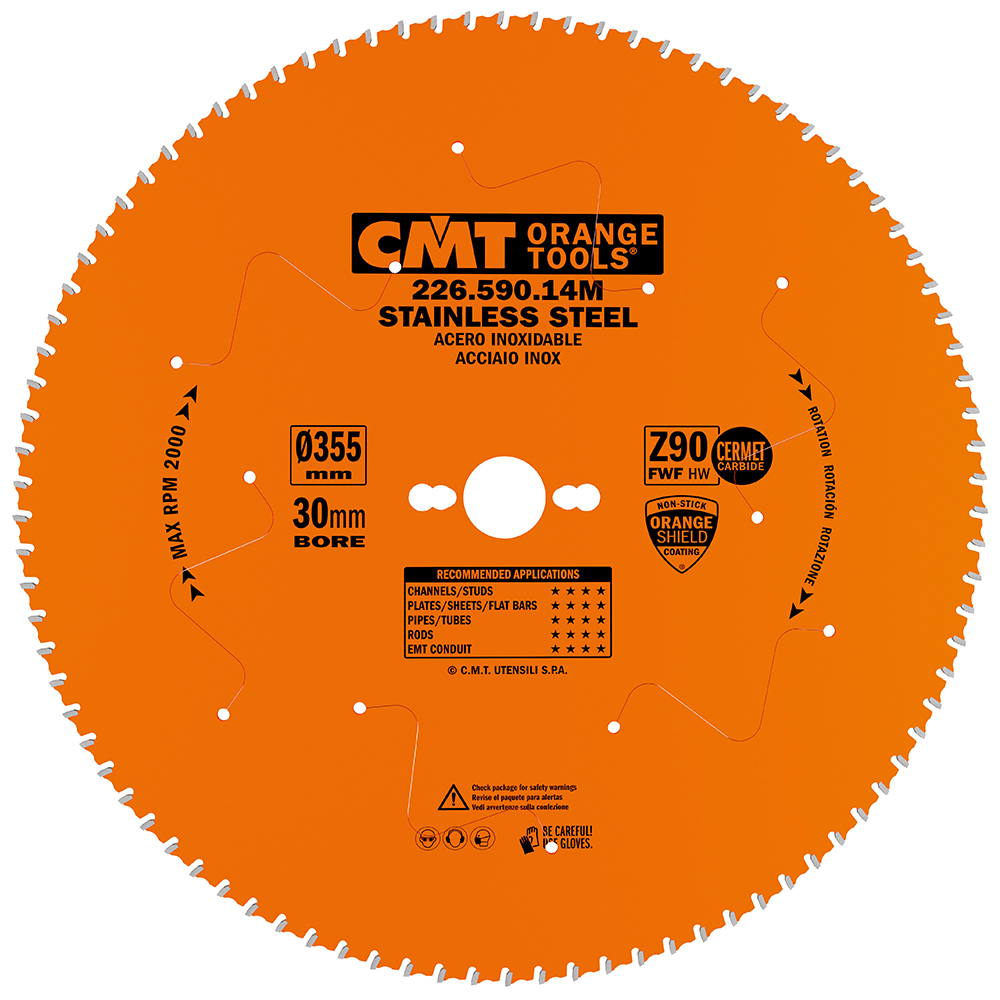

226.590.14M
|
355 | 30 | 90 | 2.2 | 1.8 | 0 | FWF 10 | 2000 |
