Industrial adjustable scoring blades
Industrial adjustable scoring blades
Industrial adjustable scoring blades
Industrial adjustable scoring blades
Industrial adjustable scoring blades
Industrial adjustable scoring blades

Industrial adjustable scoring blades

289



LASER-CUT PREMIUM QUALITY STEEL PLATE BODY
Made with 46-48 HRC premium quality harmonic steel from Germany

and laser-cut to perfection providing tighter tolerances translating to longer life and accurate cutting ability.



LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it.
This feature improves cut quality and extends blade life.
In full compliance with National Noise Emission Standards and Regulations.



TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut

and perfect concentricity during rotation. For improved performance,
tensioning is fine-tuned according to machine/application.

TRI-METAL BRAZING
Silver-Copper-Silver Tri-Metal Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials.

INDUSTRIAL CHROME CARBIDE
Cutting teeth are made from a specially formulated chrome carbide
which stays sharper longer by reducing cutting edge abrasion,
improving cut quality and tool life.

PRECISION MIRROR FINISH SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating
perfect edge angles that provide extra-clean cutting performance
and extended life. Featuring less than 0.25 µm Rmax in edge roughness.



HARD LAQUERING
Protects against corrosion and rust.

CMT XTREME BALANCING*
This system allows for extremely accurate dynamic balancing of the blade,
several orders of magnitude above and beyond that
which is currently available in the marketplace.
*TRADEMARK & INT. PAT. PEND.

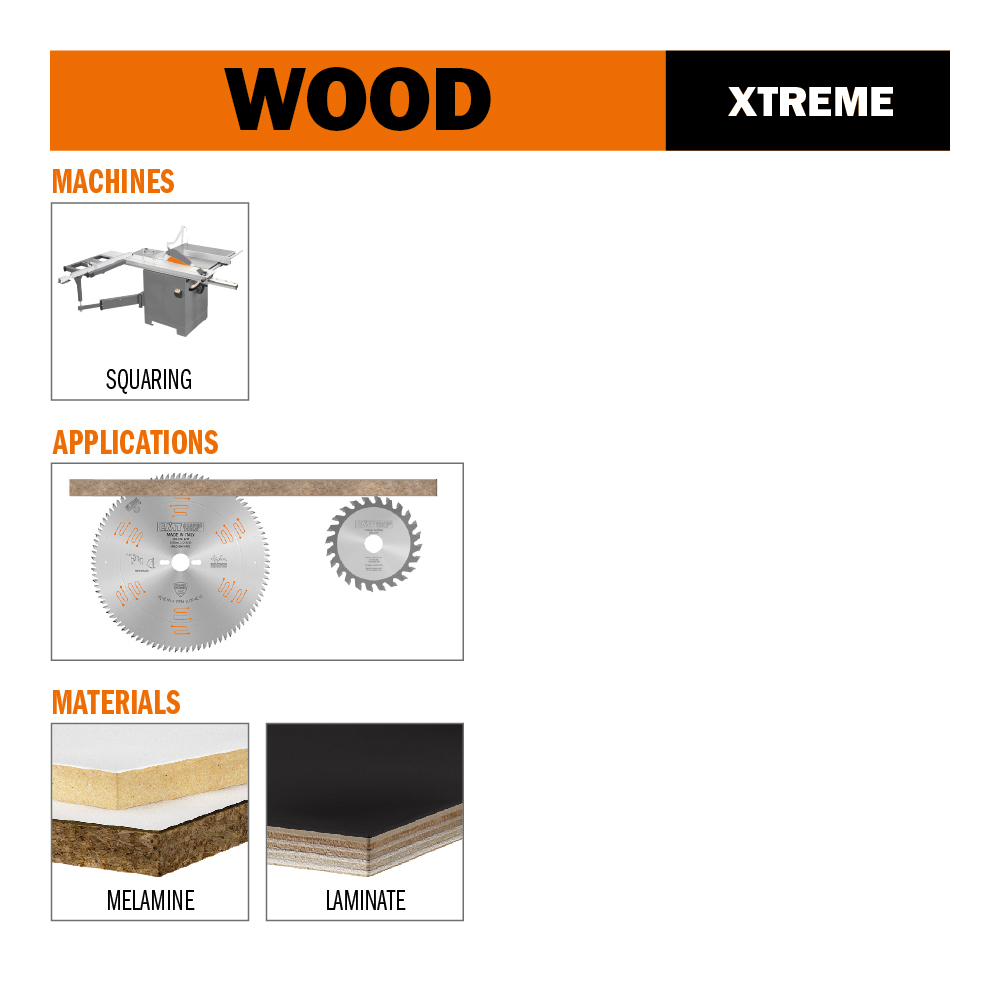

TIPS: suggested for machines without vertical regulation of scoring blade.
Variations
Filter
Item Code Description D Z B FT β α K Shim set Shim set
289.070.16H
289.070.16H 70 8 + 8 20 2/3.1 - 3.8/32 FLAT 12 2.8 - 3.6 299.000.05H
289.080.20H
289.080.20H 80 10 + 10 20 2/3.1 - 3.8/32 FLAT 12 2.8 - 3.6 299.000.05H
289.100.20H
289.100.20H 100 10 + 10 20 2/3.1 - 3.8/32 FLAT 12 2.8 - 3.6 299.000.02K
289.100.20K
289.100.20K 100 10 + 10 22 2/3.1 - 3.8/32 FLAT 12 2.8 - 3.6 299.000.02K
289.120.24H
289.120.24H 120 12 + 12 20 2/3.1 - 3.8/32 FLAT 12 2.8 - 3.6 299.000.02K
289.120.24K
289.120.24K 120 12 + 12 22 2/3.1 - 3.8/32 FLAT 12 2.8 - 3.6 299.000.02K
289.120.24T
289.120.24T Suitable for ALTENDORF® Rapido System 120 12 + 12 50 4/6.2 - 10/62 FLAT 12 2.8 - 3.6
289.125.24H
289.125.24H 125 12 + 12 20 2/3.1 - 3.8/42 FLAT 12 2.8 - 3.6 299.000.02K
289.125.24K
289.125.24K 125 12 + 12 22 2/3.1 - 3.8/42 FLAT 12 2.8 - 3.6 299.000.02K
