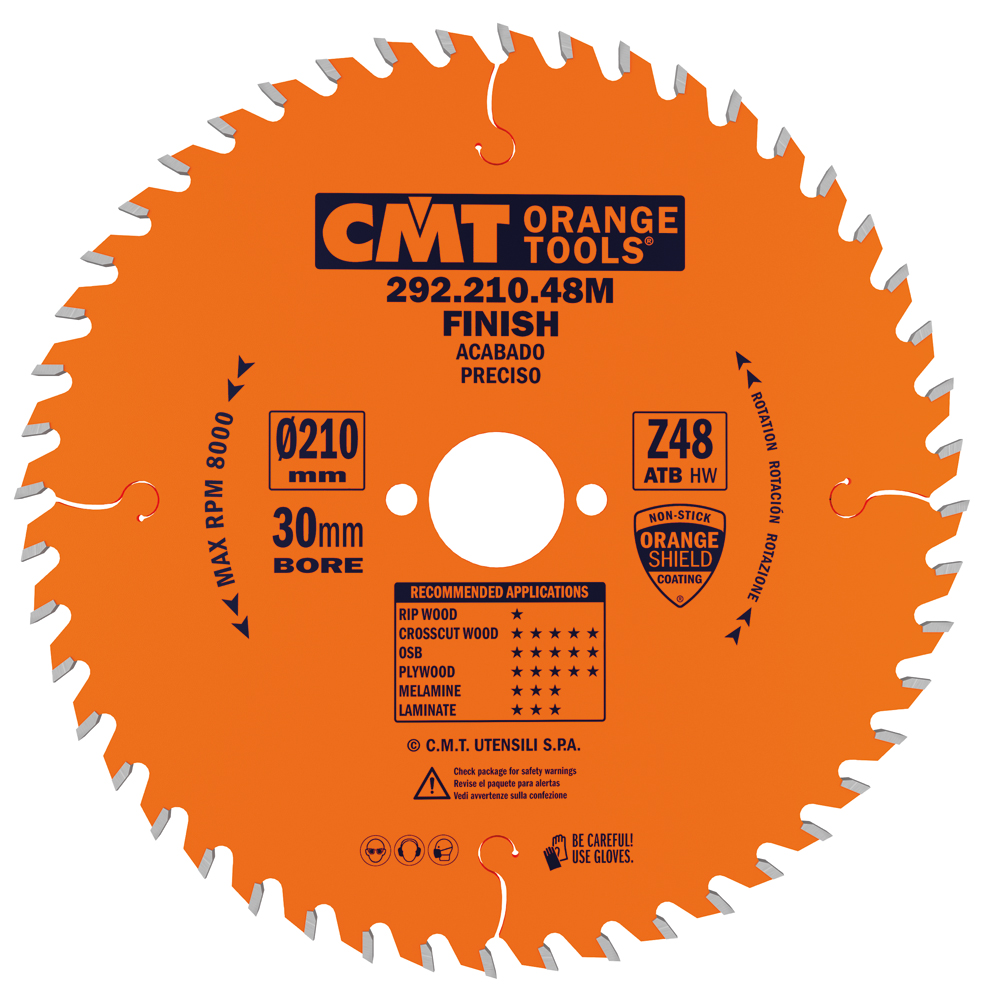

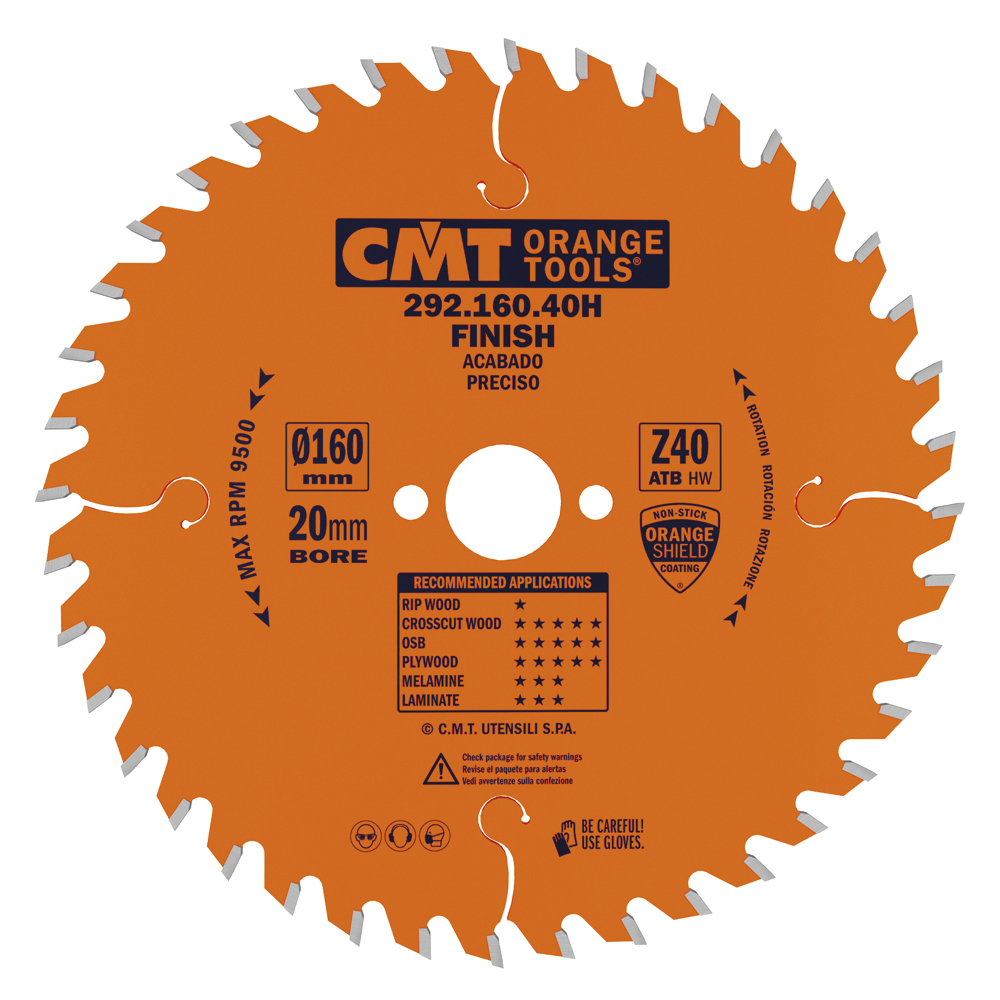

Fine cut-off circular saw blades Finishing
285-292-294
|
|
LASER-CUT HIGH QUALITY STEEL PLATE BODY
Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting. |
|
|
LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it. This feature improves cut quality and extends blade life. In full compliance with National Noise Emission Standards and Regulations. |
|
|
TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application. |
|
|
SILVER BRAZING
Silver Alloy Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
 |
INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F) and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages. |
|
PRECISION SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.35 μm Rmax in edge roughness. |
|
 |
ORANGE SHIELD® NON-STICK PTFE COATING
- Protects against corrosion and rust. - Reduces resin and residue build-up. - Reduces overheating and blade drag. - Improves performance and cutting life. |
Variations
Filter
| Item Code | Description | D | B | PH | Z | K | P | α | β |
|---|---|---|---|---|---|---|---|---|---|
|
292.120.40H
|
Fine Finish | 120 | 20 | 2/5.5/30 | 40 | 1.8 | 1.2 | 10 | ATB 15 |
|
292.125.36H
|
Fine Finis | 125 | 20 | 36 | 2.4 | 1.4 | 15 | ATB 15 | |
|
292.130.36H
|
Fine Finish | 130 | 20 | 36 | 2.4 | 1.4 | 15 | ATB 15 | |
|
292.140.36H
|
Fine Finish | 140 | 20 | 36 | 2.4 | 1.4 | 15 | ATB 15 | |
|
292.150.40H
|
Fine Finish | 150 | 20 | 40 | 2.4 | 1.4 | 15 | ATB 15 | |
|
285.048.06M
|
Fine Finish - Saw Blade with Dampening Slots without Fill | 150 | 30 | 2/7/42 | 48 | 3.2 | 2.2 | 5 | ATB 15 |
|
285.160.48H
|
Fine Finish - Saw Blade with Dampening Slots without Fill - For FESTOOL® machine | 160 | 20 | 2/6/32 | 48 | 2.2 | 1.6 | 5 | ATB 15 |
|
292.160.40M
|
Finish | 160 | 30 | 2/7/42 | 40 | 2.2 | 1.6 | 10 | ATB 15 |
|
292.165.40M
|
Finish | 165 | 30 | 2/7/42 | 40 | 2.6 | 1.6 | 10 | ATB 15 |
|
292.170.40M
|
Finish | 170 | 30 | 2/7/42 | 40 | 2.6 | 1.6 | 15 | ATB 15 |
|
292.180.40H
|
Finish | 180 | 20 | 2/6/32 | 40 | 2.6 | 1.6 | 15 | ATB 15 |
|
292.180.40M
|
Finish | 180 | 30 | 2/7/42 | 40 | 2.6 | 1.6 | 15 | ATB 15 |
|
285.056.07M
|
Fine Finish - Saw Blade with Dampening Slots without Fill | 180 | 30 | 2/7/42 | 56 | 3.2 | 2.2 | 5 | ATB 15 |
|
292.184.40E
|
Finish | 184 | 16 | 40 | 2.6 | 1.6 | 15 | ATB 15 | |
|
292.184.40M
|
Finish | 184 | 30 | 40 | 2.6 | 1.6 | 15 | ATB 15 | |
|
292.190.40H
|
Finish | 190 | 20(+16) | 2/6/32 | 40 | 2.6 | 1.6 | 15 | ATB 15 |
|
292.190.40M
|
Finish | 190 | 30 | 2/7/42 | 40 | 2.6 | 1.6 | 15 | ATB 15 |
|
292.190.48FF
|
Fine Finish - For FESTOOL® Machines | 190 | 20 (FESTOOL® FF) | Key 5/7/2.5 | 48 | 2.4 | 1.8 | 10 | ATB 15 |
|
292.200.48M
|
Finish | 200 | 30 | 2/7/42 | 48 | 2.8 | 1.8 | 15 | ATB 15 |
|
285.048.08M
|
Finish - Saw Blade with Dampening Slots without Fill | 200 | 30 | COMBI3 | 48 | 3.2 | 2.2 | 15 | ATB 15 |
|
292.216.64M
|
Fine Finish - For FESTOOL® machines | 216 | 30 | 2/7/42 | 64 | 2.8 | 1.8 | -5 Neg. | ATB 15 |
|
292.220.48M
|
Finish | 220 | 30 | 2/7/42 | 48 | 2.8 | 1.8 | 15 | ATB 15 |
|
292.225.48M
|
Finish - For FESTOOL® Machines | 225 | 30 | 2/7/42 | 48 | 2.8 | 1.8 | 10 | ATB 15 |
|
292.230.48M
|
Finish - For FESTOOL® machines | 230 | 30 | 2/7/42 | 48 | 2.8 | 1.8 | 15 | ATB 15 |
|
292.235.48M
|
Finish | 235 | 30 | 2/7/42 | 48 | 2.8 | 1.8 | 15 | ATB 15 |
|
292.240.48M
|
Finish | 240 | 30 | 2/7/42 | 48 | 2.8 | 1.8 | 15 | ATB 15 |
|
285.060.11M
|
Finish - Saw Blade with Dampening Slots without Fill - For FESTOOL® machines | 260 | 30 | COMBI3 | 60 | 2.8 | 1.8 | 10 | ATB 15 |
