Edge-Fluting Bits
Edge-Fluting Bits
Edge-Fluting Bits
Edge-Fluting Bits
Edge-Fluting Bits
Edge-Fluting Bits
Edge-Fluting Bits
Edge-Fluting Bits

Edge-Fluting Bits

7/862

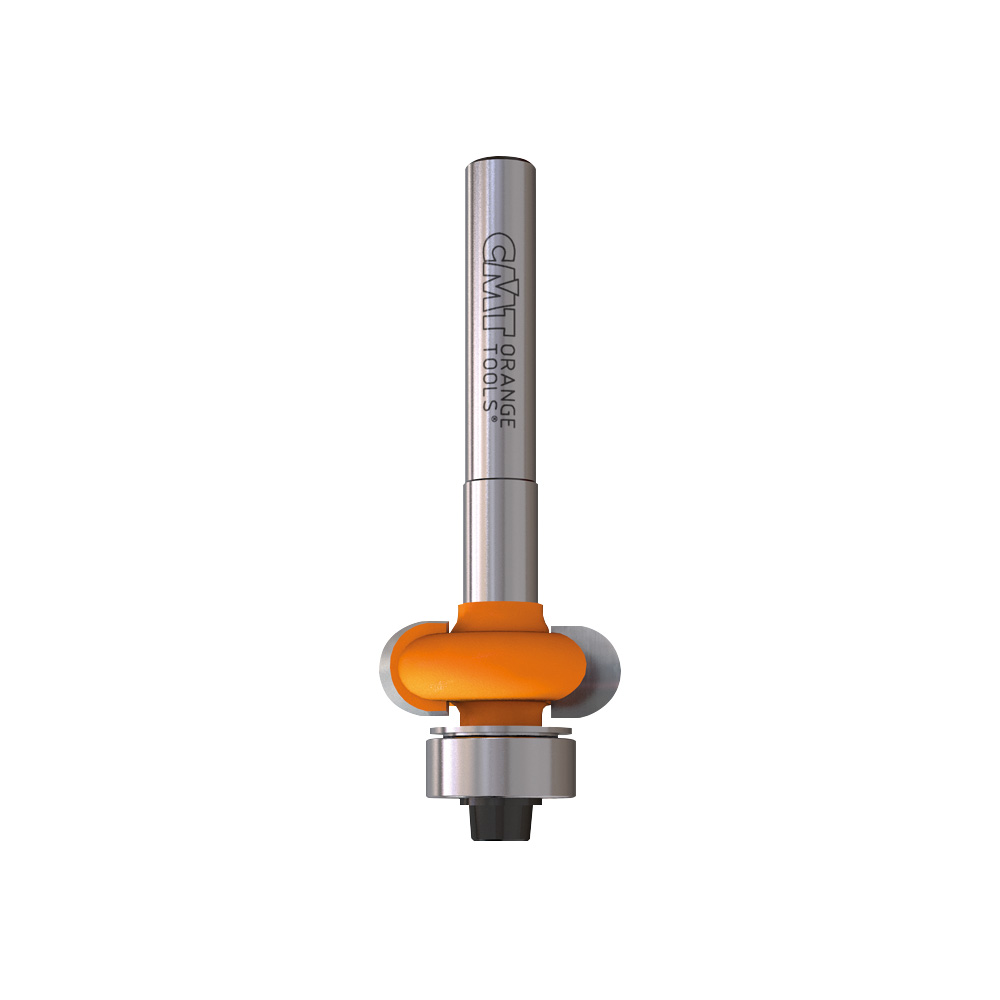

The edge-fluting bearing guided bits are quick to set up and can be used for curved screens, small radius grooves, doors etc.
No side fence is required.
Use in a handheld or table-mounted router.

Variations
Filter

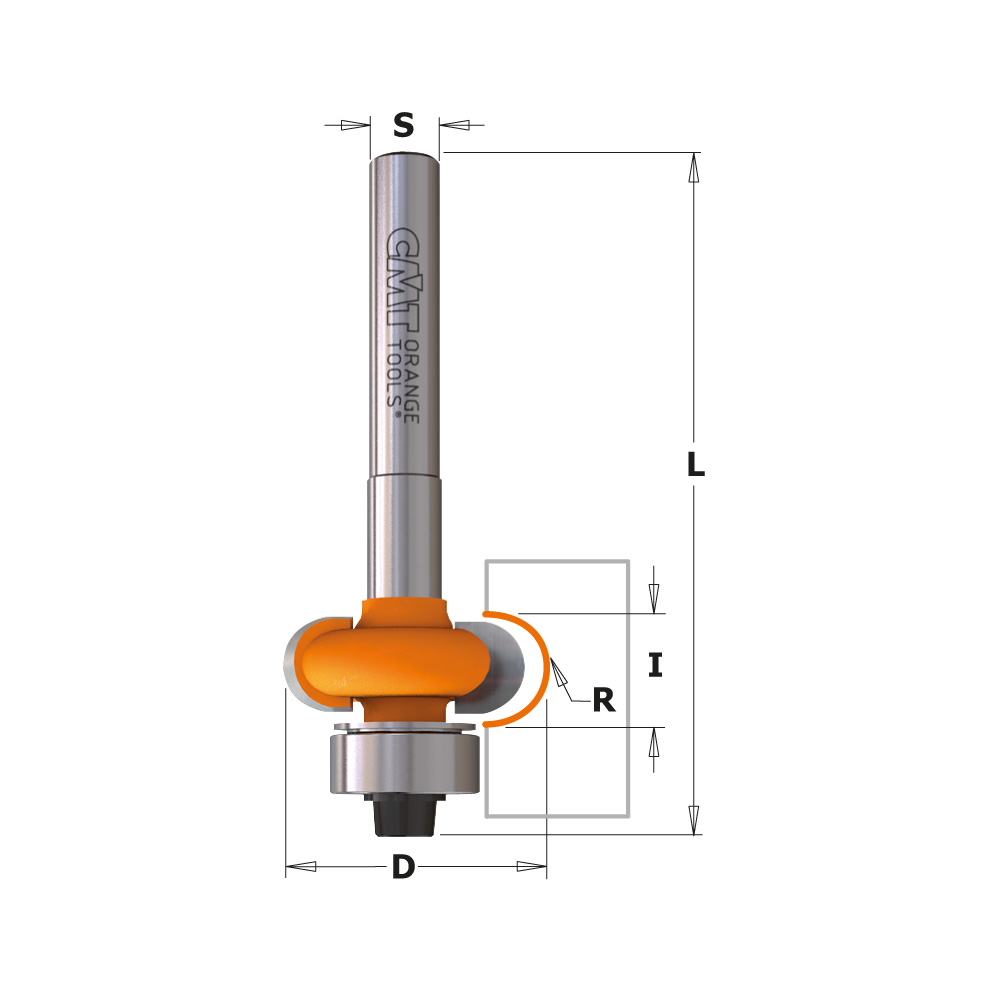

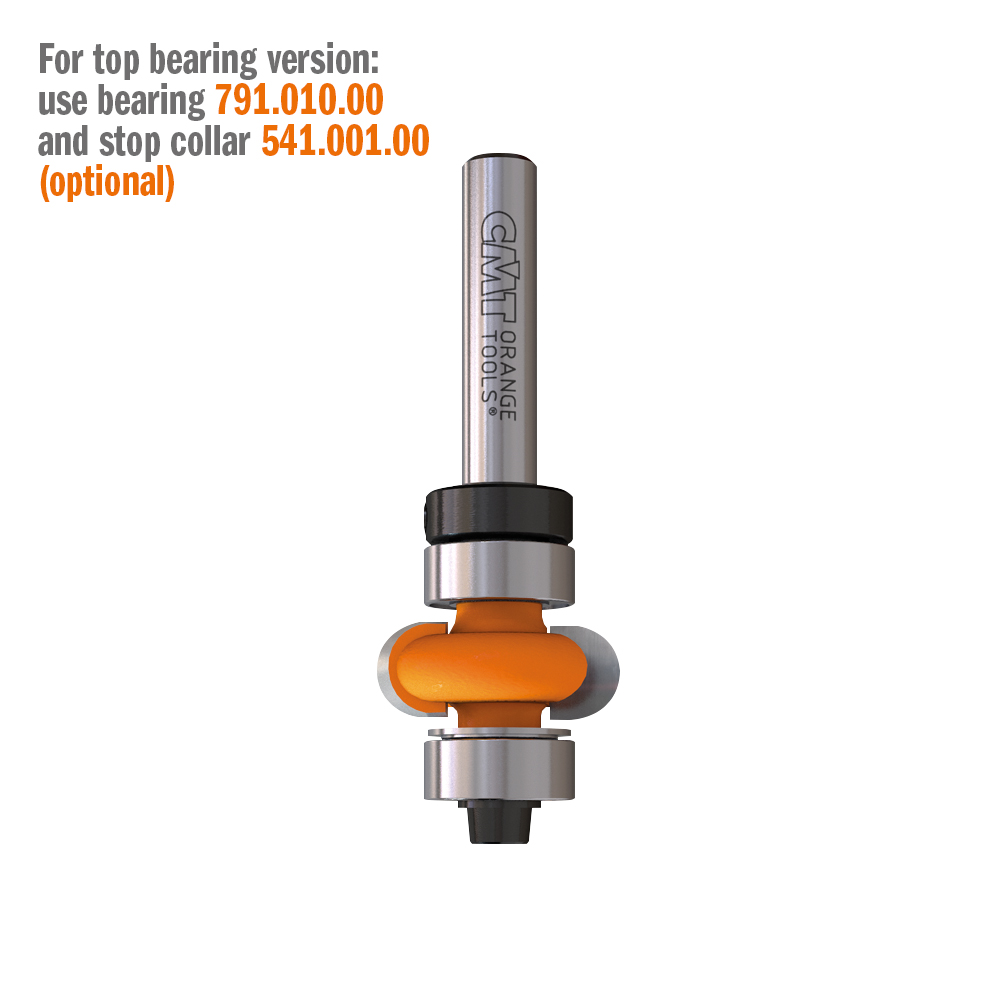

Item Code R D I L S Z MAT RH-LH 791.010.00 Shield for bearing anello di serraggio 791.003.00 Screw Hex key
862.032.11
3,2 19 6,35 57 6,35 2 HW RH 791.010.00 990.423.00 541.001.00 791.003.00 990.058.00 991.057.00
762.032.11
3,2 19,05 6,4 57 6 2 HW RH 791.010.00 990.423.00 541.001.00 791.003.00 990.058.00 991.057.00
862.040.11
4 20,6 8 57 6,35 2 HW RH 791.010.00 990.423.00 541.001.00 791.003.00 990.058.00 991.057.00
762.040.11
4 20,7 8 57 6 2 HW RH 791.010.00 990.423.00 541.001.00 791.003.00 990.058.00 991.057.00
762.050.11
5 22,7 10 57 6 2 HW RH 791.010.00 990.423.00 541.001.00 791.003.00 990.058.00 991.057.00
862.050.11
5 22,75 10 57 6,35 2 HW RH 791.010.00 990.423.00 541.001.00 791.003.00 990.058.00 991.057.00
