7/8/936

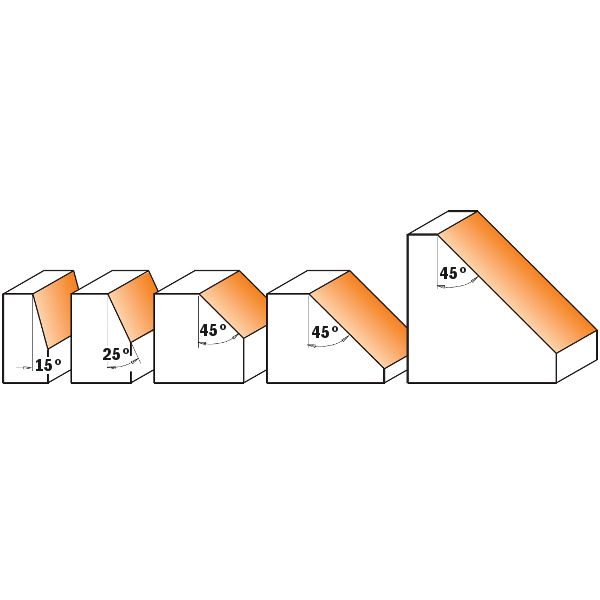

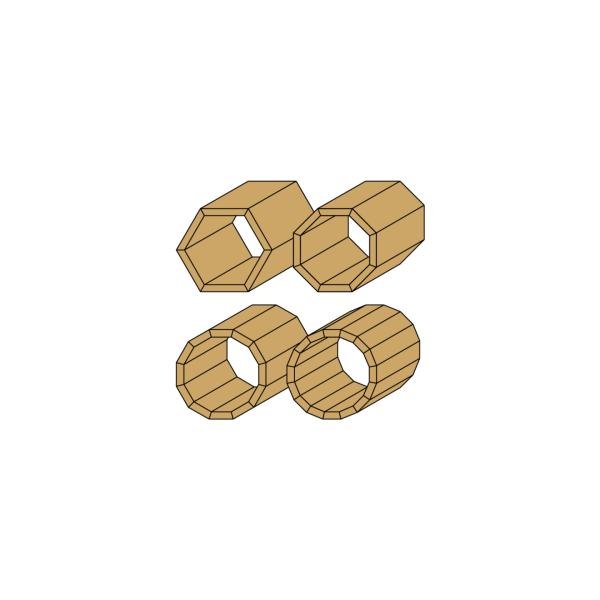

CMT chamfer bits can cut clean, accurate bevels and chamfers and are great for edge work or for making perfectly aligned multi-sided containers, boxes and other decorative projects. See illustration below for examples. Can be used for working larger scale projects such as beams and columns with excellent results.
Variations
Filter

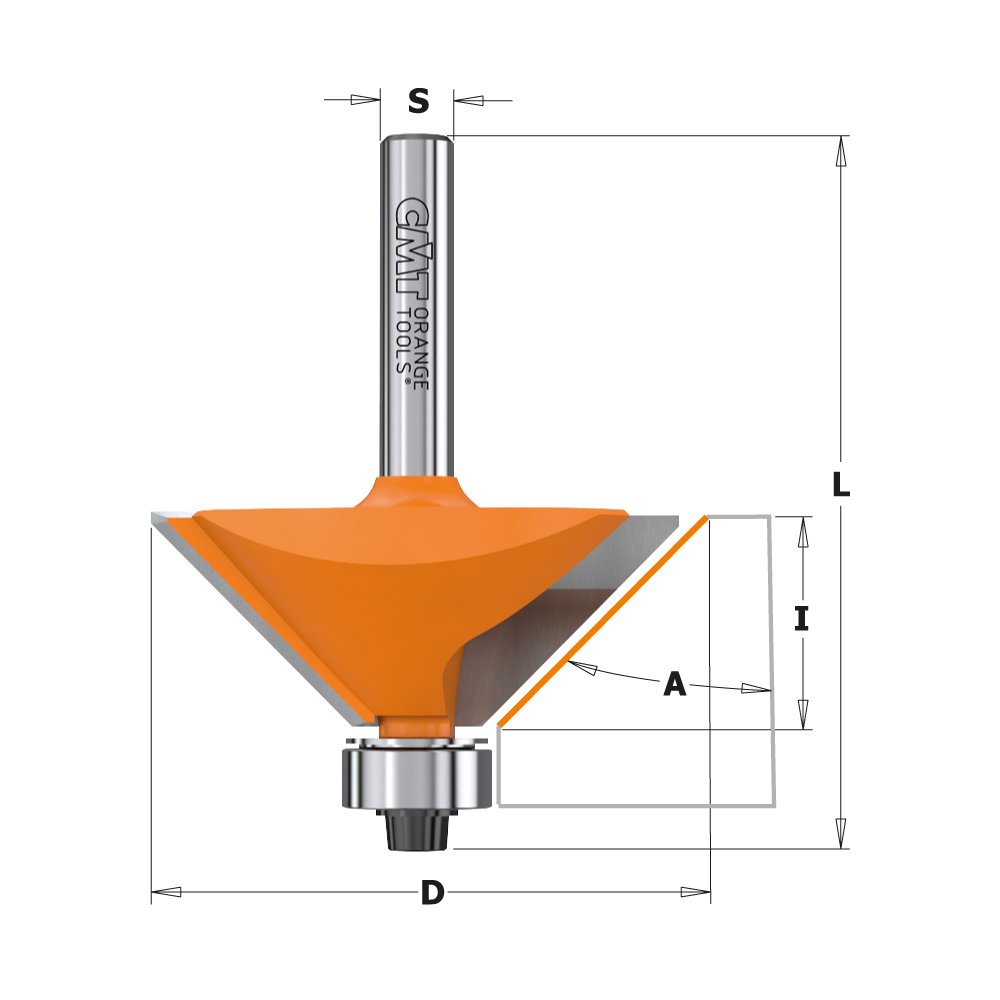

Item Code A D I L S Shield for bearing 791.003.00 Screw Hex key
736.130.11
736.130.11 15° 19 11,5 54,9 6 990.423.00 791.003.00 990.058.00 991.057.00
836.130.11
836.130.11 15° 19 11,5 54,9 6,35 990.423.00 791.003.00 990.058.00 991.057.00
936.130.11
936.130.11 15° 19 11,5 54,9 8 990.423.00 791.003.00 990.058.00 991.057.00
936.190.11
936.190.11 25° 22,2 10 54,9 8 990.423.00 791.003.00 990.058.00 991.057.00
836.190.11
836.190.11 25° 22,2 10 54,9 6,35 990.423.00 791.003.00 990.058.00 991.057.00
736.190.11
736.190.11 25° 22,2 10 54,9 6 990.423.00 791.003.00 990.058.00 991.057.00
736.280.11
736.280.11 45° 31,7 9,5 53 6 990.423.00 791.003.00 990.058.00 991.057.00
936.280.11
936.280.11 45° 31,7 9,5 53 8 990.423.00 791.003.00 990.058.00 991.057.00
836.280.11
836.280.11 45° 31,75 9,5 53 6,35 990.423.00 791.003.00 990.058.00 991.057.00
836.420.11
836.420.11 45° 45 18 60,2 6,35 990.423.00 791.003.00 990.058.00 991.057.00
836.920.11
836.920.11 45° 45 18 66,5 12,7 990.423.00 791.003.00 990.058.00 991.057.00
736.420.11
736.420.11 45° 45 18 60,2 6 990.423.00 791.003.00 990.058.00 991.057.00
936.420.11
936.420.11 45° 45 18 60,2 8 990.423.00 791.003.00 990.058.00 991.057.00
936.920.11
936.920.11 45° 45 18 66,5 12 990.423.00 791.003.00 990.058.00 991.057.00
936.950.11
936.950.11 45° 65 26 76,7 12 990.423.00 791.003.00 990.058.00 991.057.00
836.950.11
836.950.11 45° 65 26 76,7 12,7 990.423.00 791.003.00 990.058.00 991.057.00
