317X-TREME

TECHNICAL DETAILS:
• Super-strength steel.
• Cutter portion coated with orange or black P.T.F.E.
• HW head with precision balanced centre point.
• 2 HW precision ground cutting edges [Z2].
• 2 negatively ground spurs [V2].
• Parallel shank with driving flat and length adjusting screw.

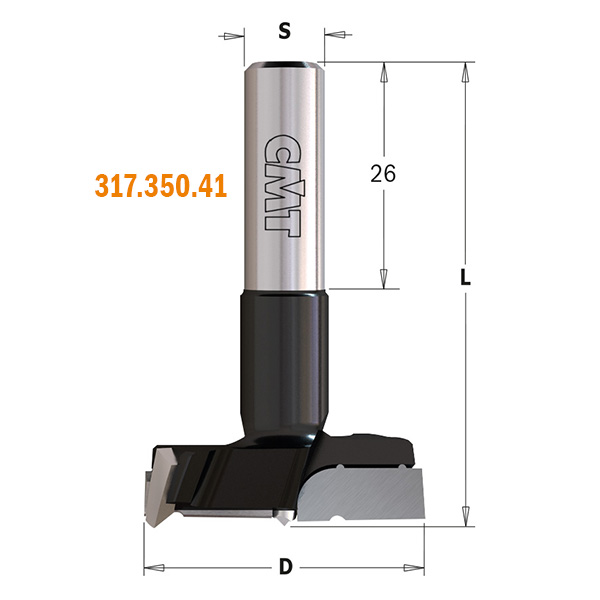

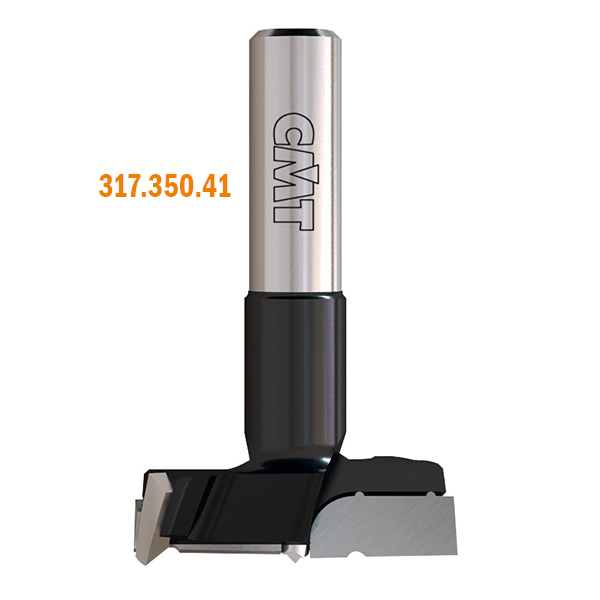

317.350.41/42 - with chipbreaker.

Details
Ideal for hinges.
Use on boring machines equipped with adapters or chucks.
Use for drilling accurate and clean-cut blind holes in solid wood, wood composites, plastic and laminated materials.

New construction with 0,8mm centre point.

Variations
Filter

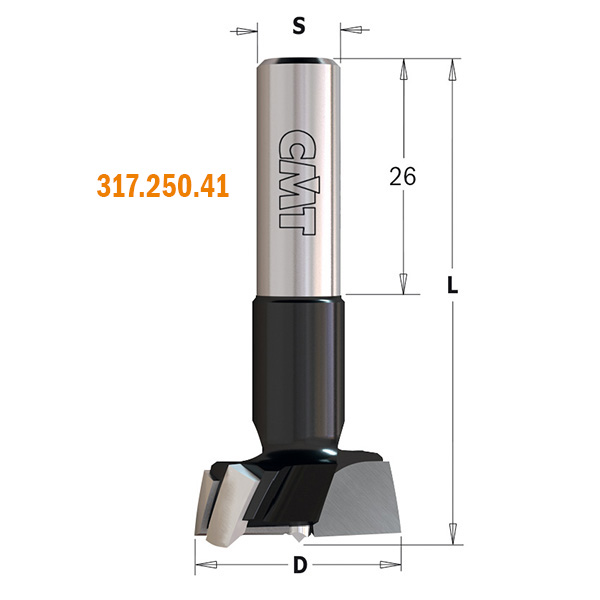

Item Code D L S RH-LH STIC screw Optional retaining screw for Weeke machines
317.150.41
317.150.41 15 57,5 10x26 RH 990.003.00 990.088.00
317.150.42
317.150.42 15 57,5 10x26 LH 990.003.00 990.088.00
317.180.41
317.180.41 18 57,5 10x26 RH 990.003.00 990.088.00
317.180.42
317.180.42 18 57,5 10x26 LH 990.003.00 990.088.00
317.200.41
317.200.41 20 57,5 10x26 RH 990.003.00 990.088.00
317.200.42
317.200.42 20 57,5 10x26 LH 990.003.00 990.088.00
317.250.41
317.250.41 25 57,5 10x26 RH 990.003.00 990.088.00
317.250.42
317.250.42 25 57,5 10x26 LH 990.003.00 990.088.00
317.260.41
317.260.41 26 57,5 10x26 RH 990.003.00 990.088.00
317.260.42
317.260.42 26 57,5 10x26 LH 990.003.00 990.088.00
317.350.41
317.350.41 35 57,5 10x26 RH 990.003.00 990.088.00
317.350.42
317.350.42 35 57,5 10x26 LH 990.003.00 990.088.00
