311.71/72 HWM

Technical details:
  • Premium quality super strength steel shank for improved resistance and durability
  • Flute length in premium quality HWM

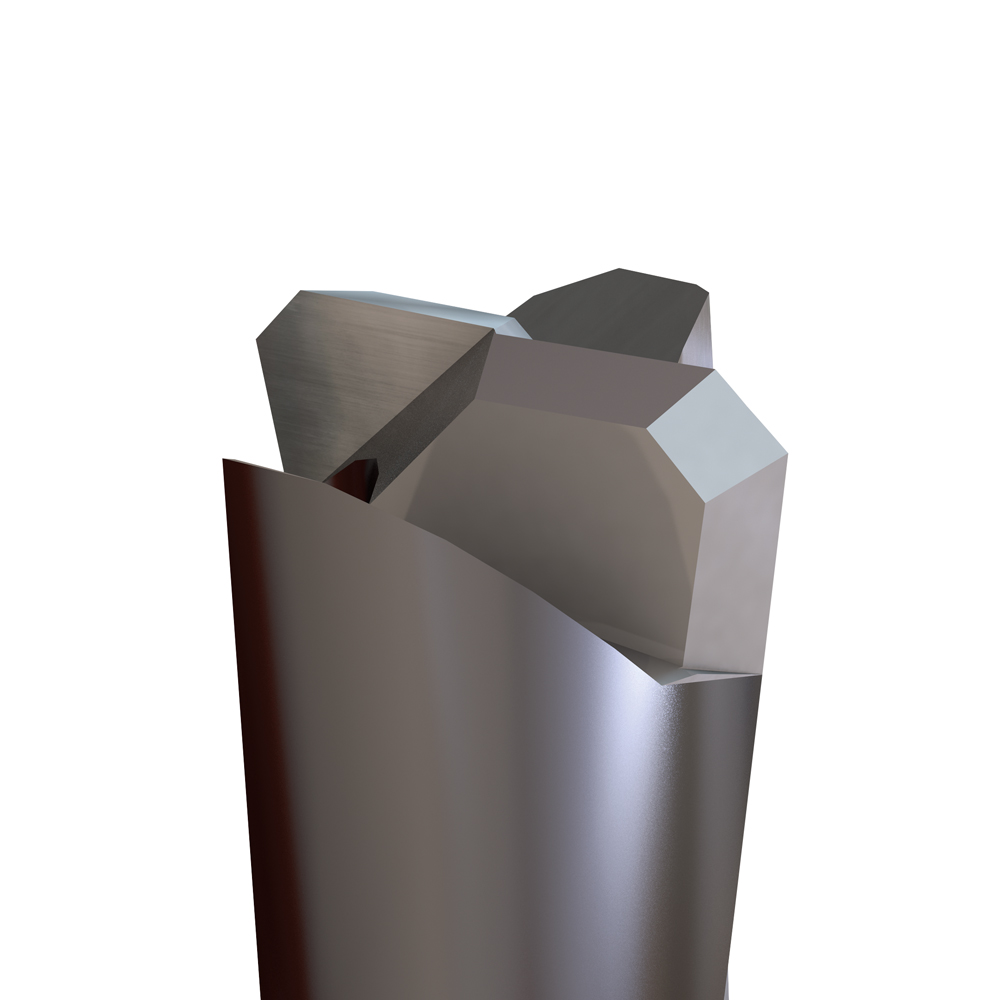

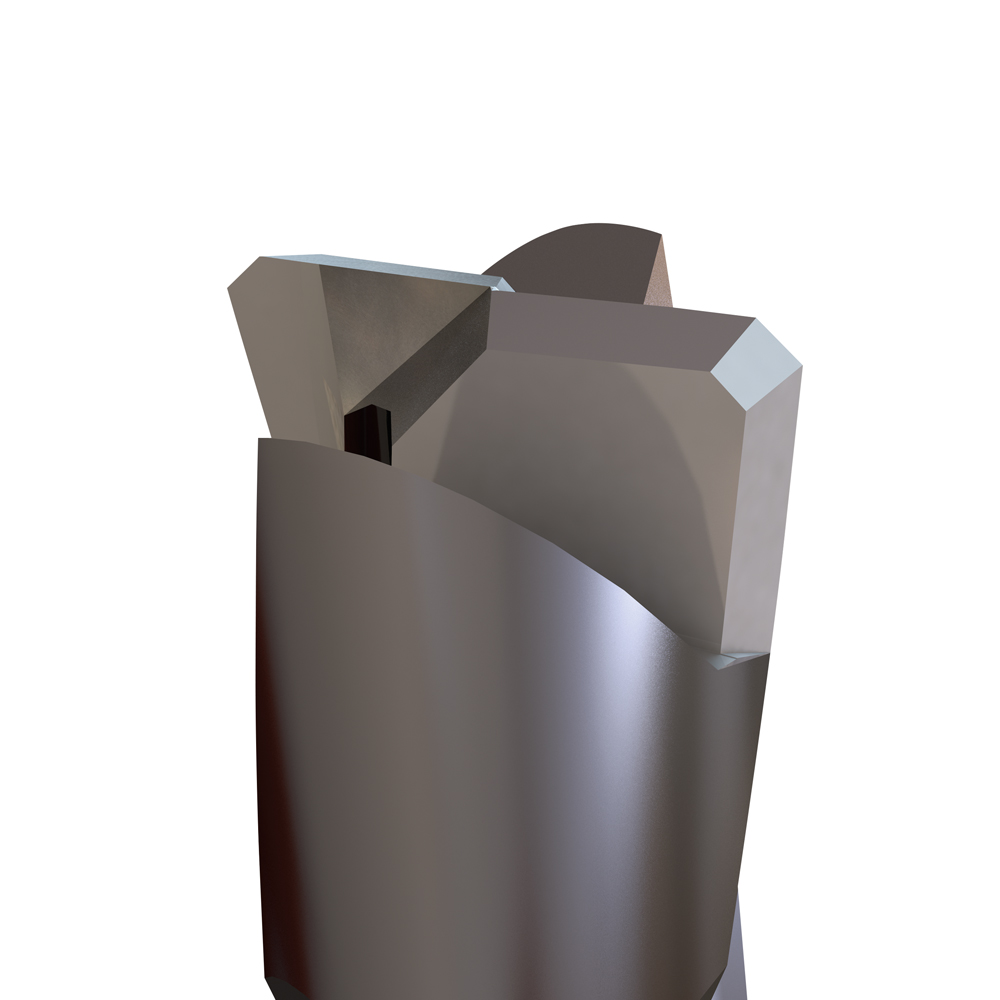

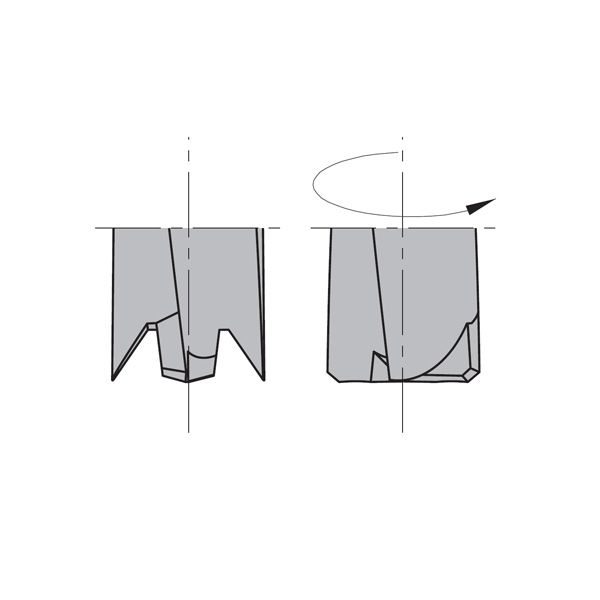

  • 2 cutting edges [Z2] + 2 curved ground spurs [V2]
  • 2 spiral flutes
  • Parallel shank with driving flat and adjustable screw length
  • Recommended feed speed 1÷ 4m/minute – RPM 6000.

CMT’s new high quality dowel drills guarantee excellent performance and extra-long life!
Details
Ideal for chipboard, MDF, HDF and laminates.

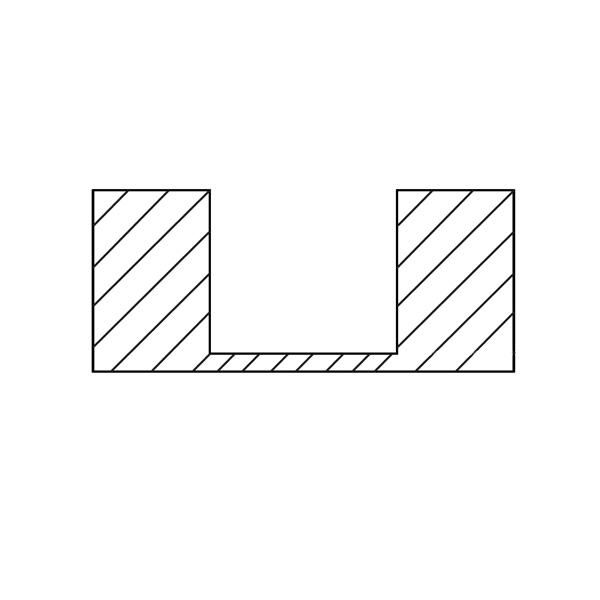

No center-point or spurs means perfect bores in low-thickness panels.
For use on boring machines equipped with adapters/chucks.

Variations
Filter

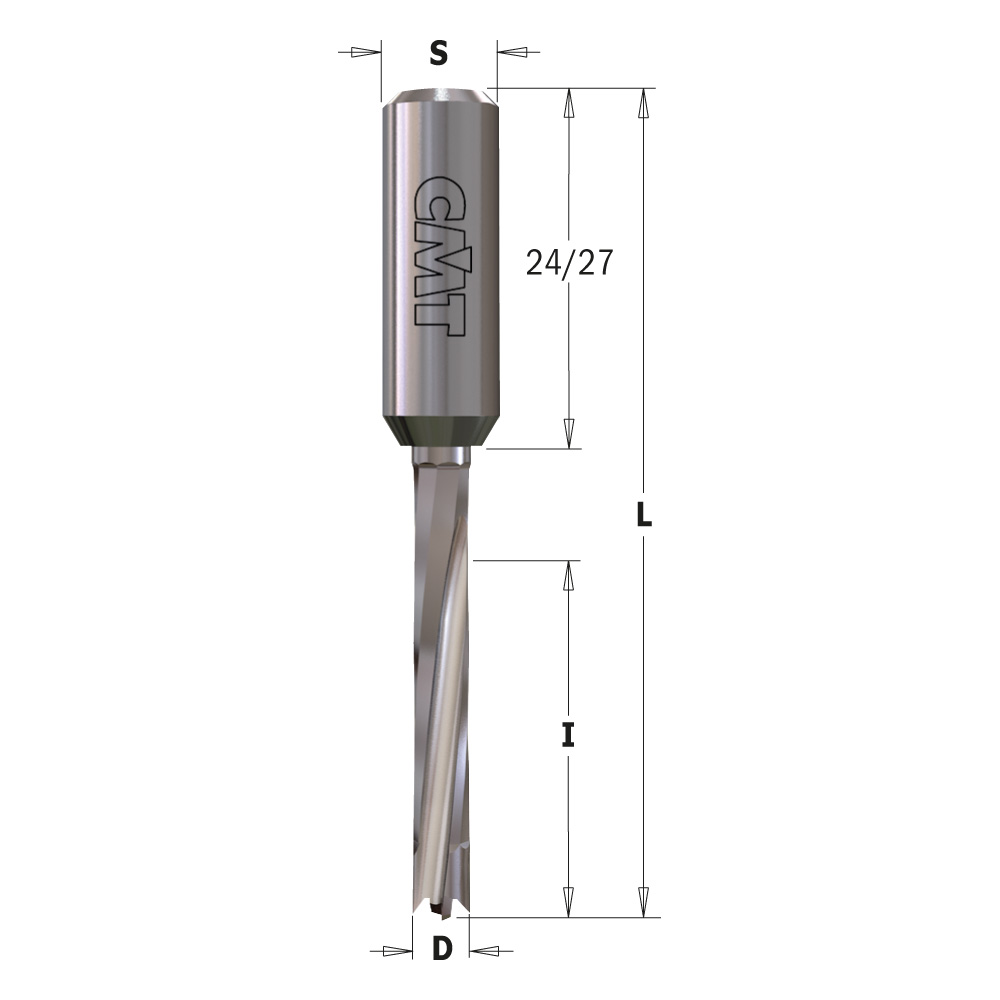

Item Code D I L S RH-LH STIC screw Optional retaining screw for Weeke machines

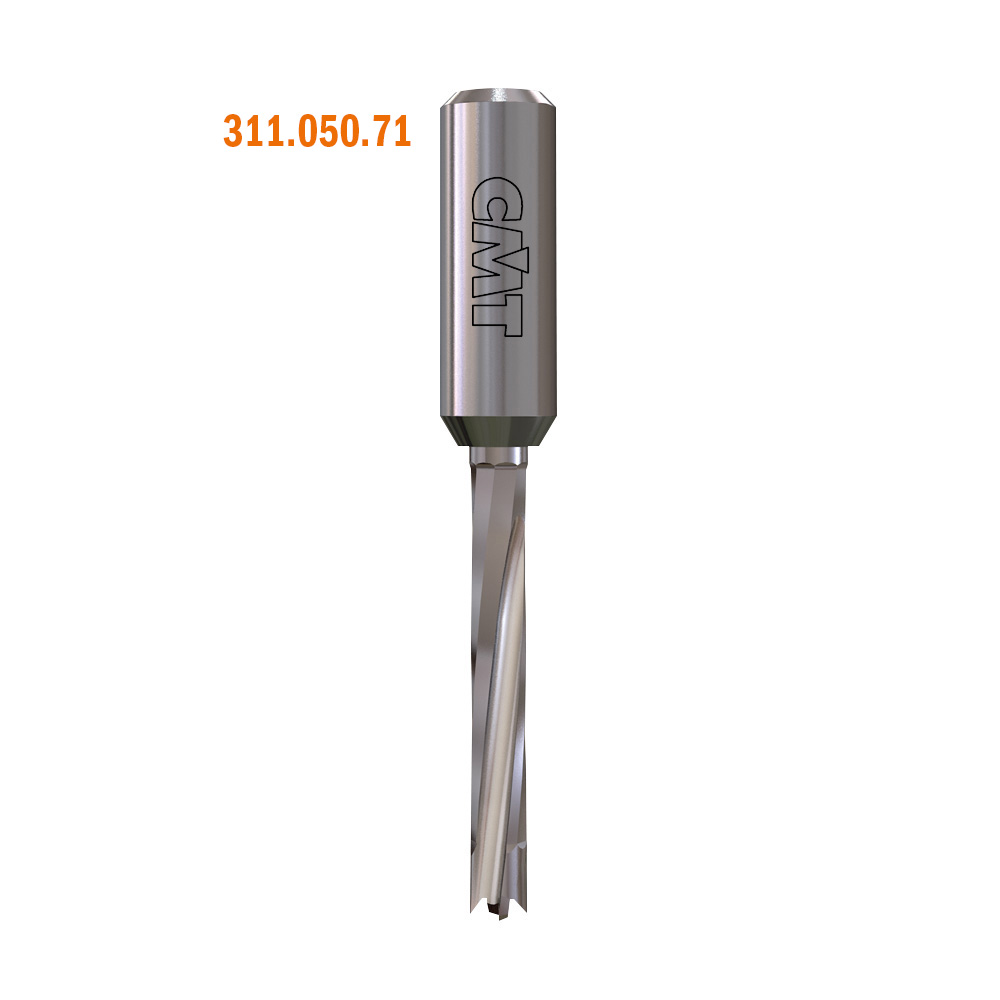

311.050.71
311.050.71 5 30 70 10x27 RH 990.003.00 990.088.00

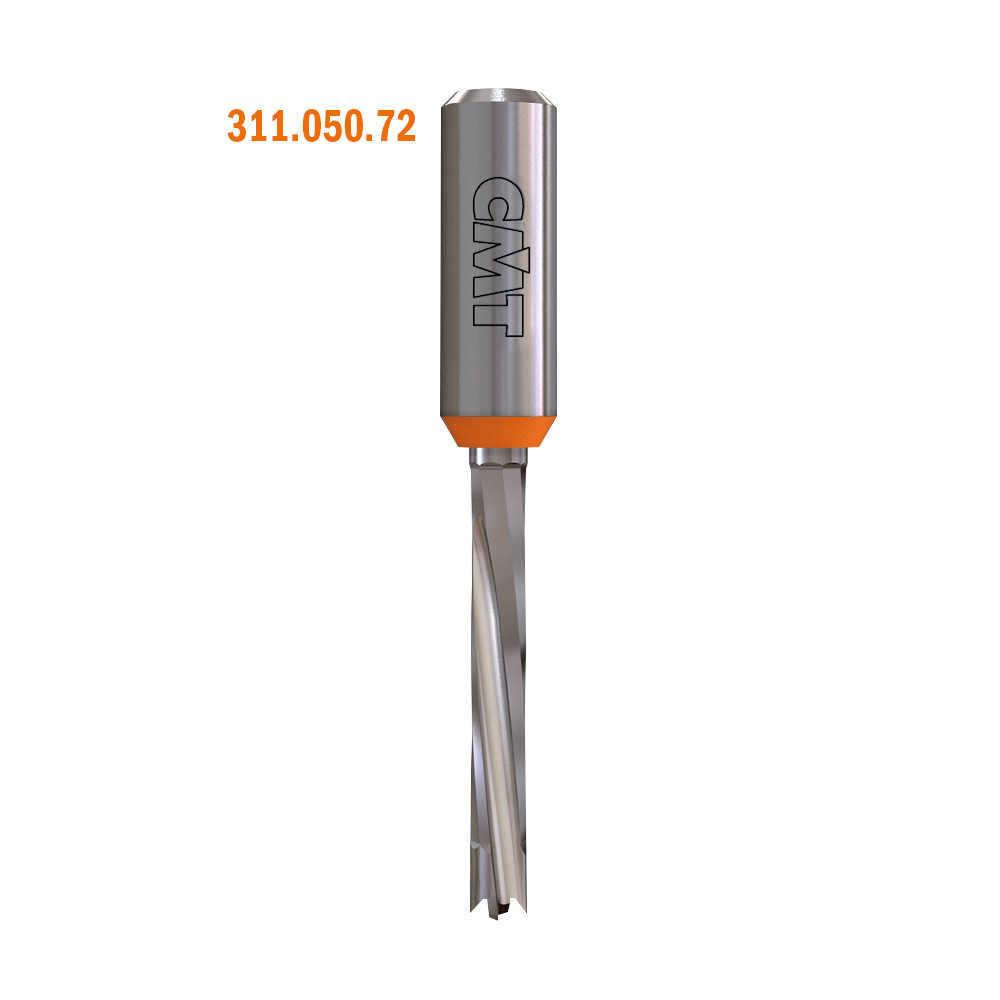

311.050.72
311.050.72 5 30 70 10x27 LH 990.003.00 990.088.00

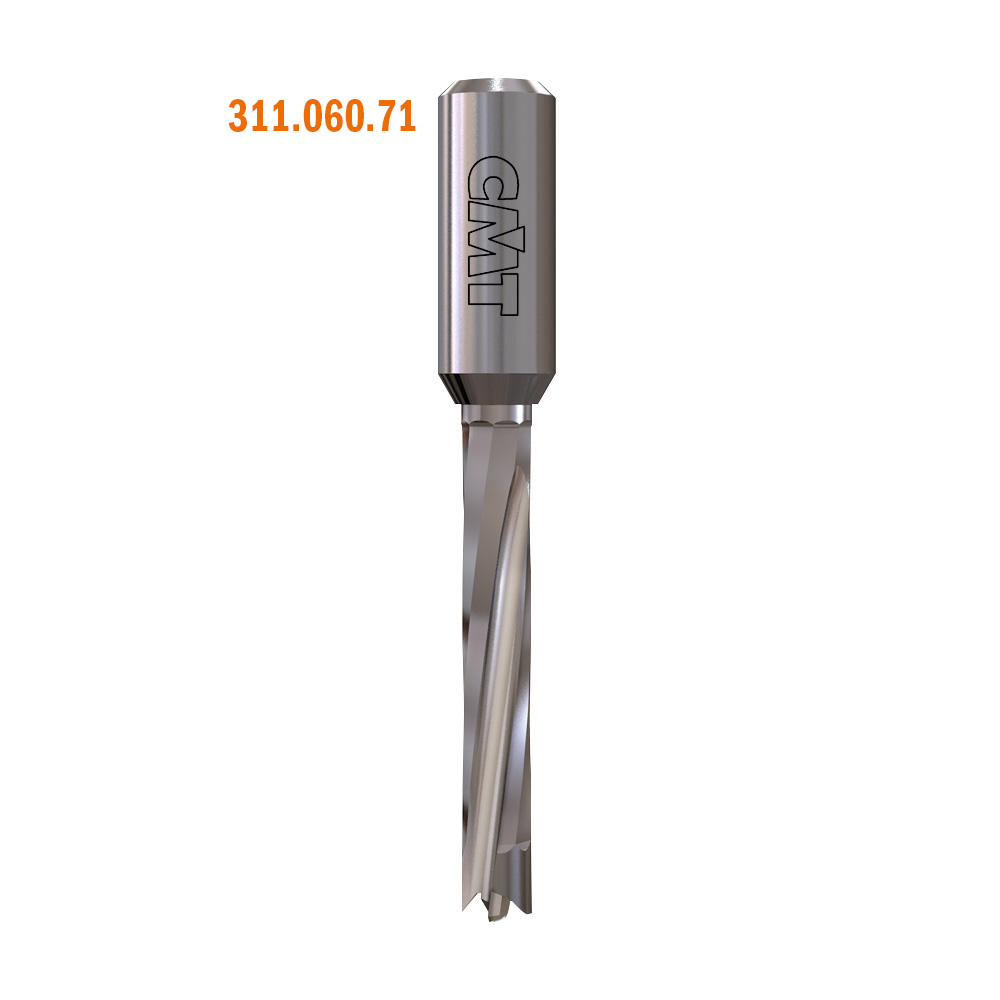

311.060.71
311.060.71 6 30 70 10x27 RH 990.003.00 990.088.00

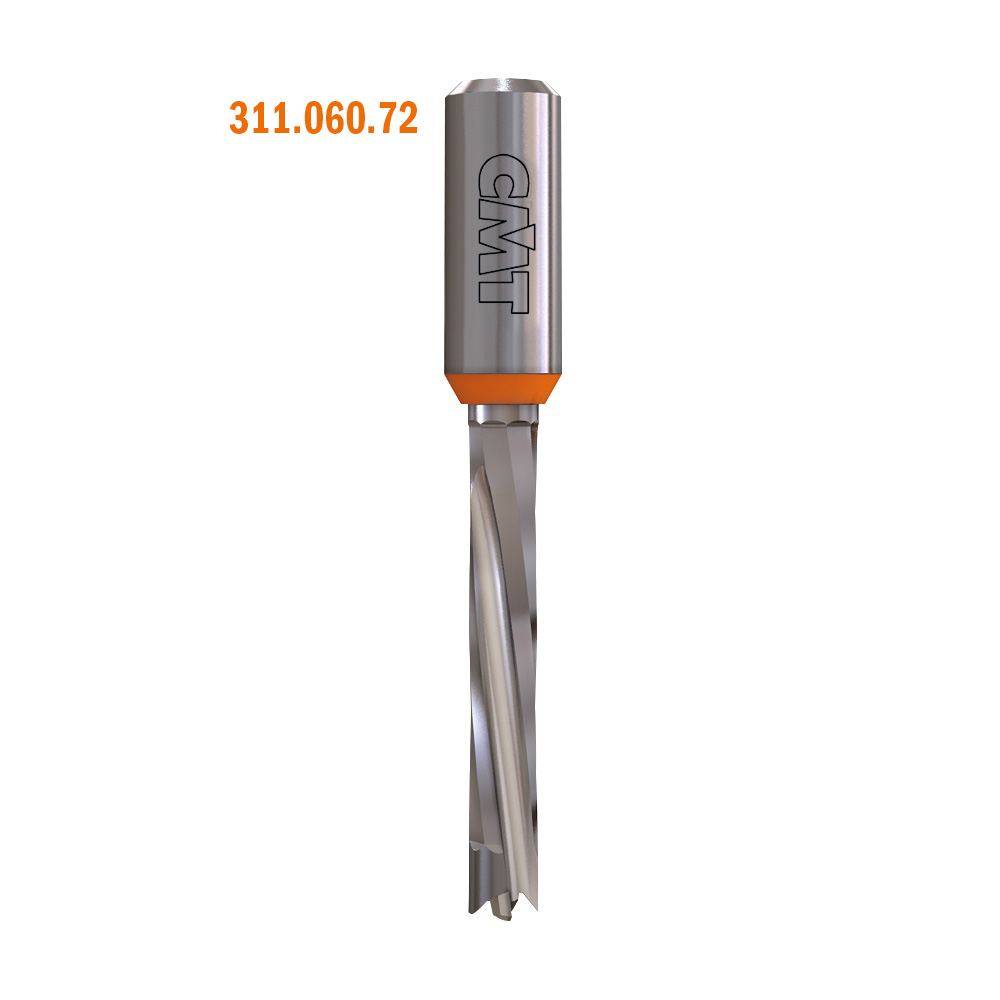

311.060.72
311.060.72 6 30 70 10x27 LH 990.003.00 990.088.00

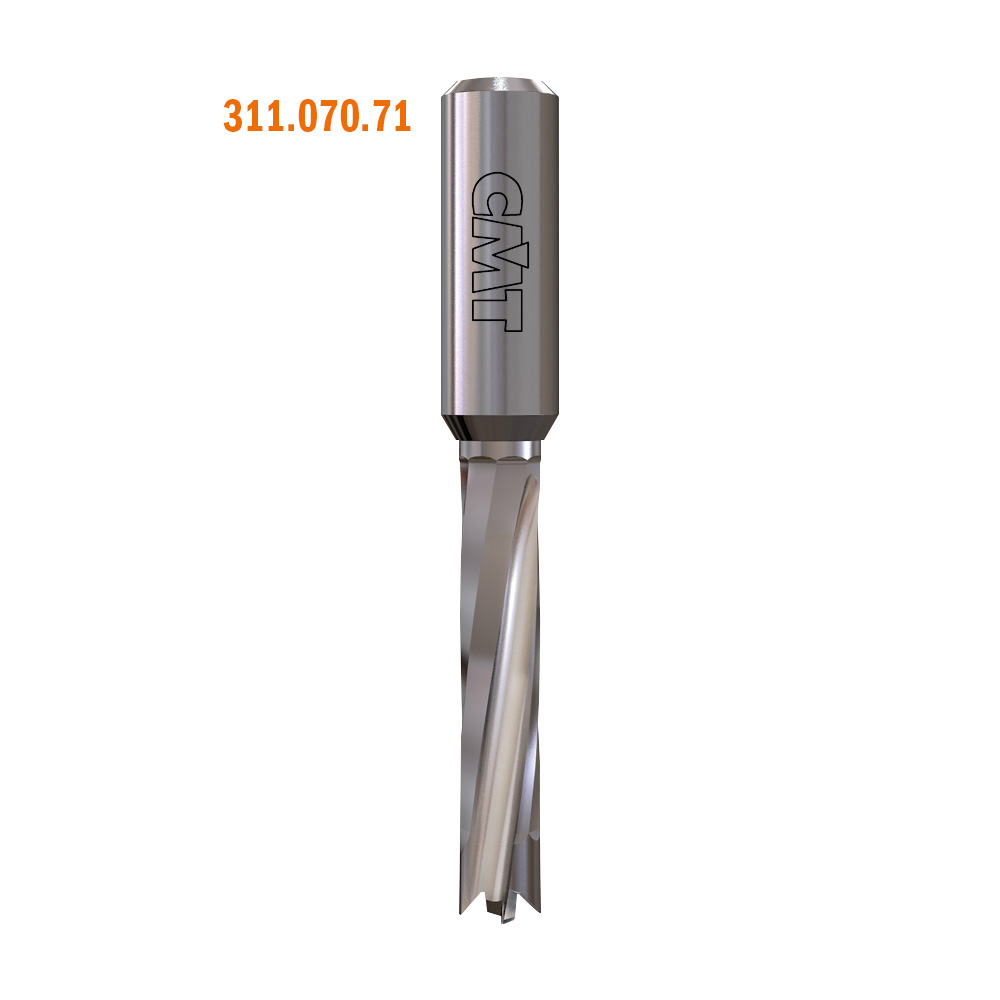

311.070.71
311.070.71 7 30 70 10x27 RH 990.003.00 990.088.00

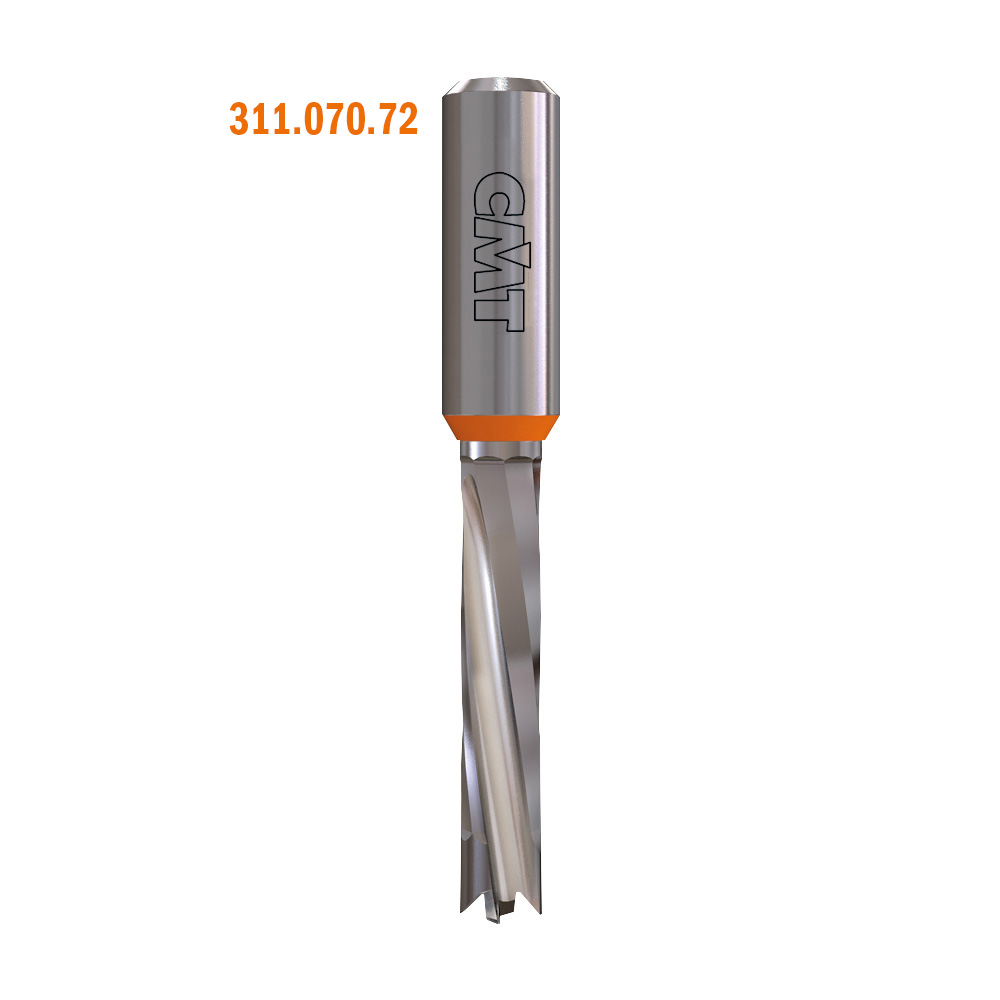

311.070.72
311.070.72 7 30 70 10x27 LH 990.003.00 990.088.00

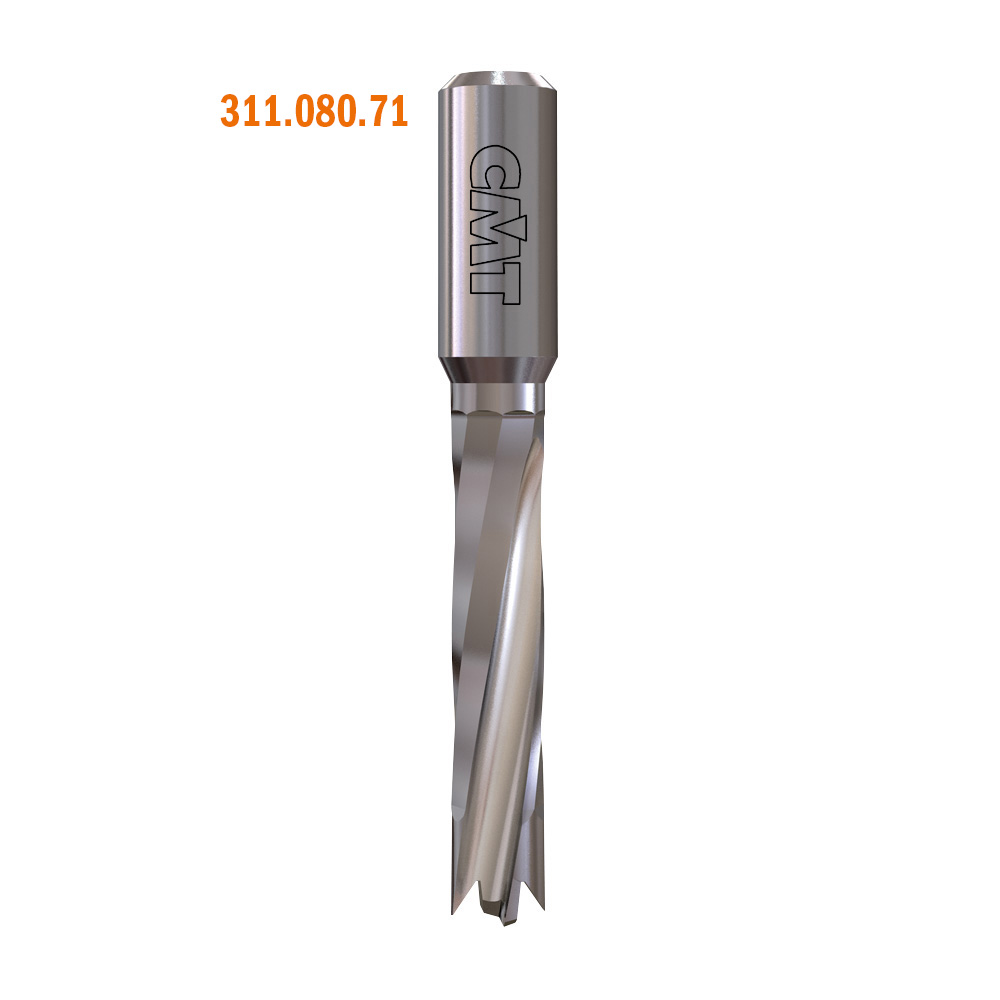

311.080.71
311.080.71 8 30 70 10x24 RH 990.003.00 990.088.00

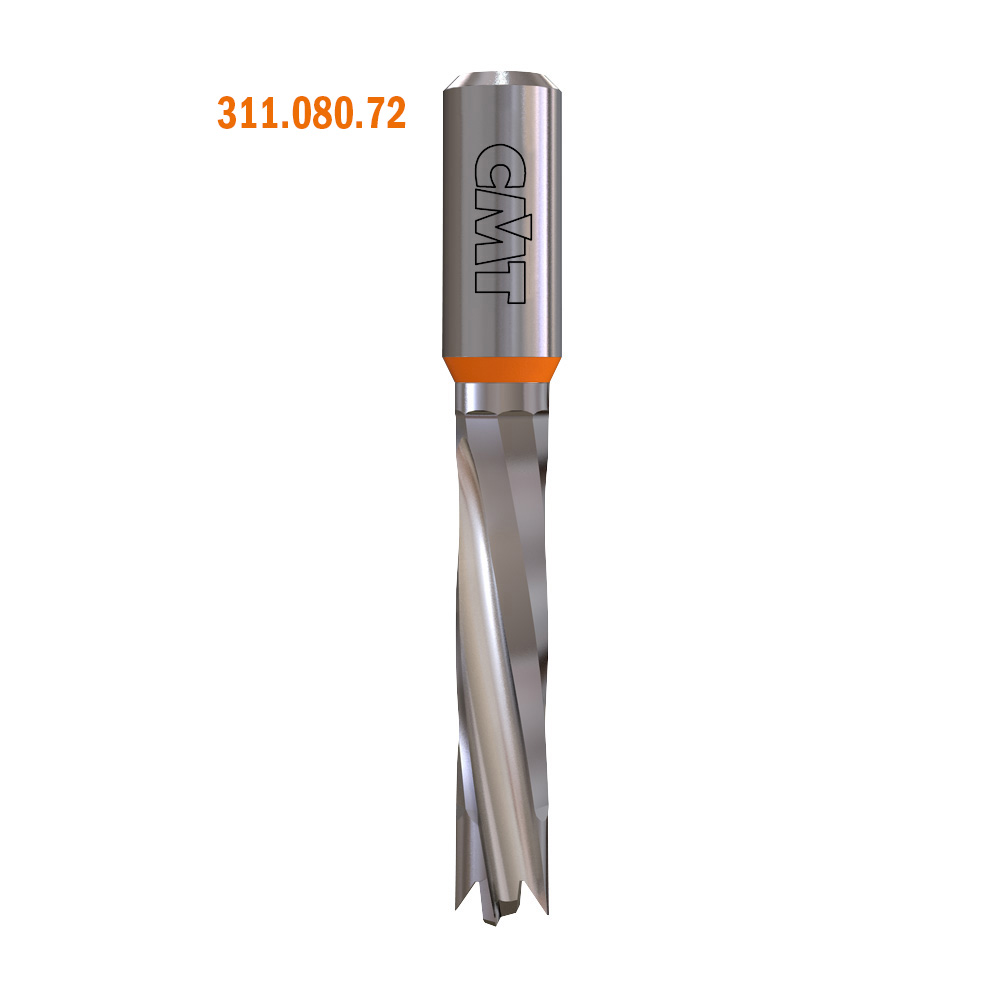

311.080.72
311.080.72 8 30 70 10x24 LH 990.003.00 990.088.00
311.100.71
311.100.71 10 30 70 10x24 RH 990.003.00 990.088.00
311.100.72
311.100.72 10 30 70 10x24 RH 990.003.00 990.088.00
