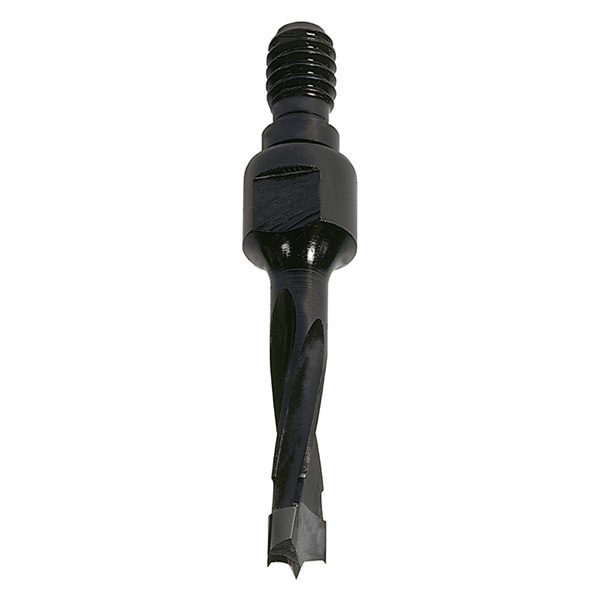

Dowel Drills with Threaded Shank, M8/9
352-353 HW
TECHNICAL DETAILS:
- Premium quality strength steel body.
- High quality HW tip.
- 2 cutting edges [Z2] + 2 negatively ground spurs [V2].
- 4 spiral flutes.
- Balanced centre point.
- Orange or black P.T.F.E. coating.
FOR USE ON THE FOLLOWING MACHINES:
MASTERWOOD® (Zangheri & Boschetti), MORBIDELLI®, NOTTMEYER® (new design).
Details
Used on boring machines equipped with chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.
Variations
Filter

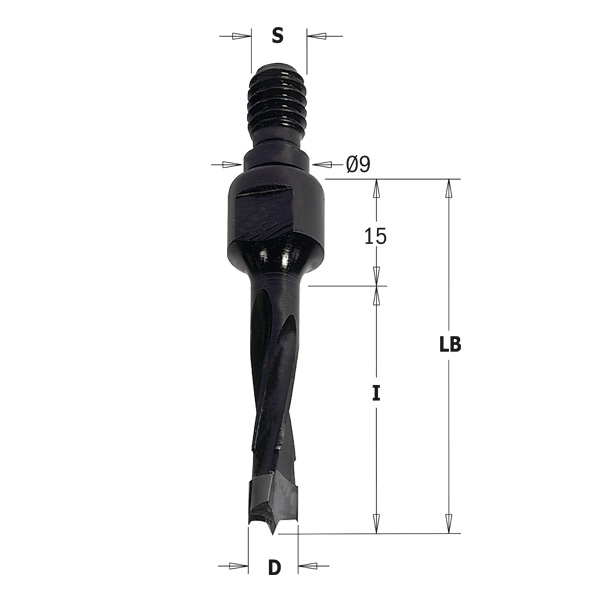

| Item Code | D | I | LB | S | RH-LH |
|---|---|---|---|---|---|
|
352.050.11
|
5 | 30 | 45 | M8/9 | RH |
|
352.050.12
|
5 | 30 | 45 | M8/9 | LH |
|
353.050.11
|
5 | 40 | 55 | M8/9 | RH |
|
353.050.12
|
5 | 40 | 55 | M8/9 | LH |
|
353.060.11
|
6 | 40 | 55 | M8/9 | RH |
|
353.060.12
|
6 | 40 | 55 | M8/9 | LH |
|
352.060.11
|
6 | 30 | 45 | M8/9 | RH |
|
352.060.12
|
6 | 30 | 45 | M8/9 | LH |
|
352.080.11
|
8 | 30 | 45 | M8/9 | RH |
|
352.080.12
|
8 | 30 | 45 | M8/9 | LH |
|
353.080.11
|
8 | 40 | 55 | M8/9 | RH |
|
353.080.12
|
8 | 40 | 55 | M8/9 | LH |
|
353.100.11
|
10 | 40 | 55 | M8/9 | RH |
|
353.100.12
|
10 | 40 | 55 | M8/9 | LH |
|
352.100.11
|
10 | 30 | 45 | M8/9 | RH |
|
352.100.12
|
10 | 30 | 45 | M8/9 | LH |
|
352.120.11
|
12 | 30 | 45 | M8/9 | RH |
|
352.120.12
|
12 | 30 | 45 | M8/9 | LH |
|
353.120.11
|
12 | 40 | 55 | M8/9 | RH |
|
353.120.12
|
12 | 40 | 55 | M8/9 | LH |
