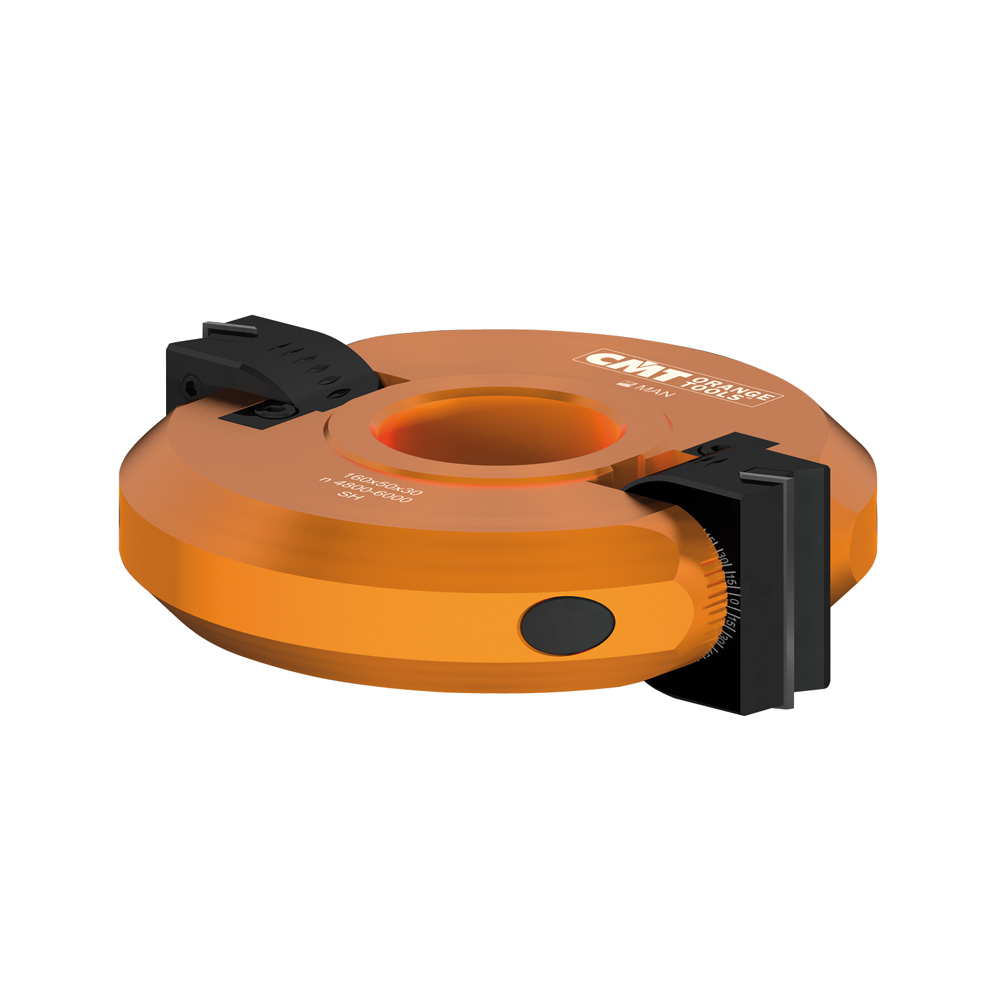

Professional adjustable chamfer cutter heads with gear box
Professional adjustable chamfer cutter heads with gear box
Professional adjustable chamfer cutter heads with gear box
Professional adjustable chamfer cutter heads with gear box
Professional adjustable chamfer cutter heads with gear box
Professional adjustable chamfer cutter heads with gear box

Professional adjustable chamfer cutter heads with gear box

694.017

These new professional adjustable chamfer cutter heads carry out precise cuts, accurate bevels and joints on wooden boards and solid timber. For use on spindle moulder machines, double-end tenoner and shaper machines.

Technical details
  • Tool body made from high strength aluminum alloy extremely resistant to tensile and yield stress
  • Manual feed tool (MAN)
  • 2 HWM knives 50x12x1,5mm [Z2]

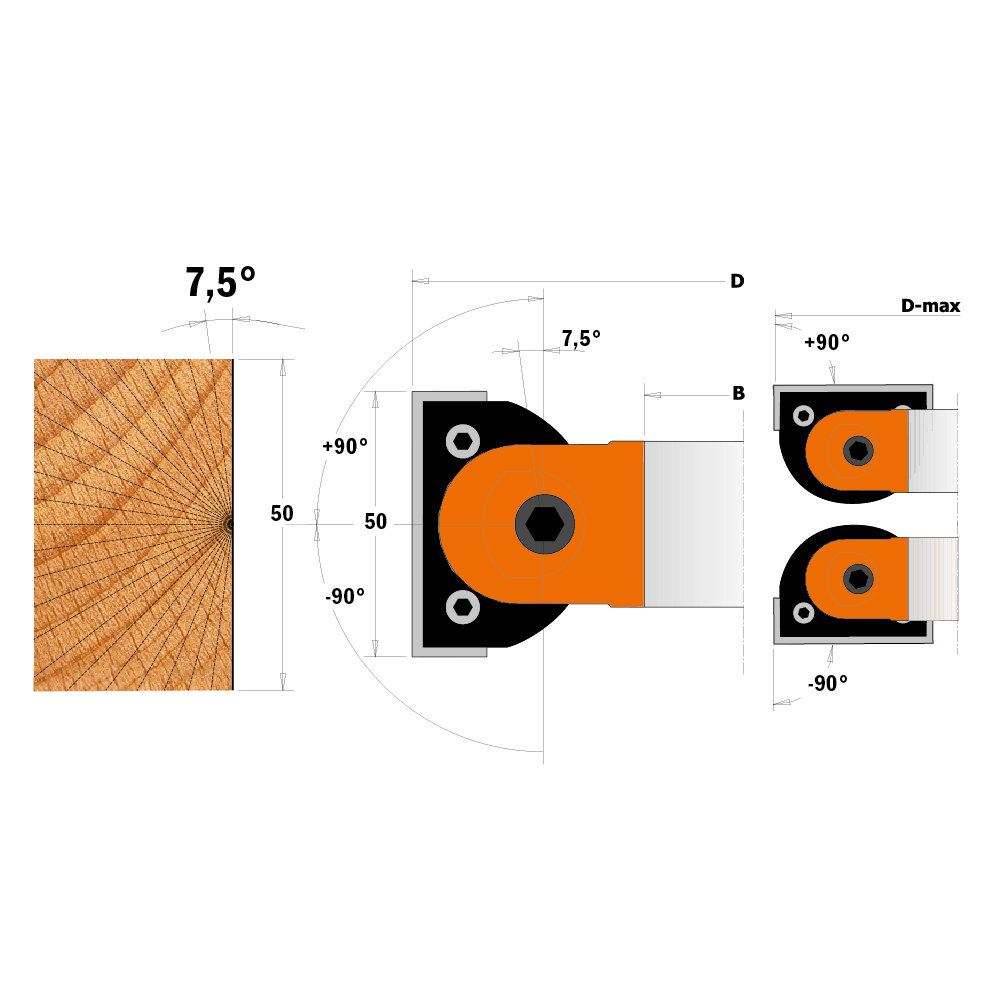

  • Adjustable swivelling blades
  • Range ± 90° (Rotates at 7,5° intervals; Precision = 7,5°).


Supplied in a solid plastic box.
Details
Spare parts
991.081.00 4mm hex key.

790.500.00
are supplied in 10-piece pack or multiple.


Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.



Variations
Filter
Item Code D I B Z D2 RPM MAT 695.017.01 695.999.48 790.500.00 990.106.00 Allen key 3mm
694.017.30
694.017.30 160 50 30 2 Max(45°) 183mm 4800~6000 HW 695.017.01 695.999.48 790.500.00 990.106.00 991.067.00
694.017.35
694.017.35 160 50 35 2 Max(45°) 183mm 4800~6000 HW 695.017.01 695.999.48 790.500.00 990.106.00 991.067.00
694.017.50
694.017.50 160 50 50 2 Max(45°) 183mm 4800~6000 HW 695.017.01 695.999.48 790.500.00 990.106.00 991.067.00
