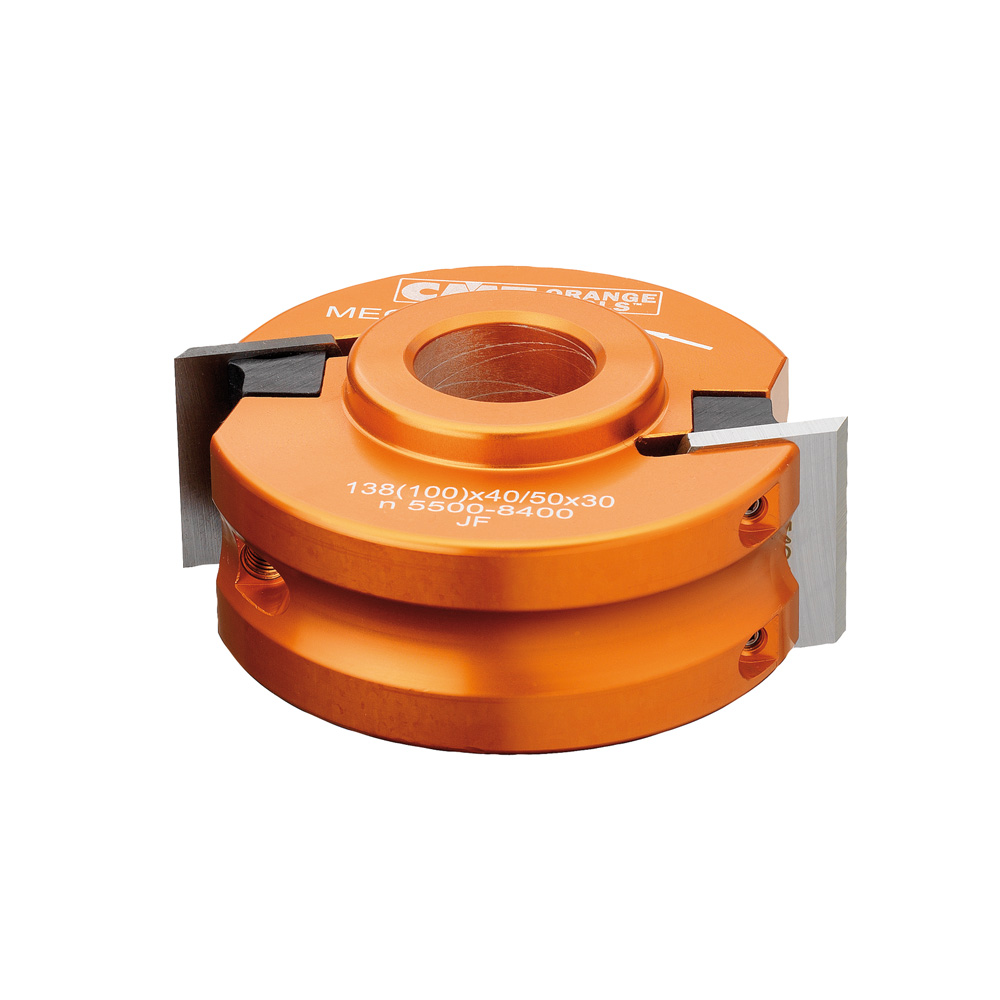

CMT cutter heads guarantee excellent performance for all your projects.
For use on all types of moulder and spindle moulder machines.

Technical details:
  • Hard aluminium or steel alloy cutter head without limiters, highly resistant to tensile and yield stress.
  • Pair of universal straight knives included.
  • Tools for mechanical feed (MEC).

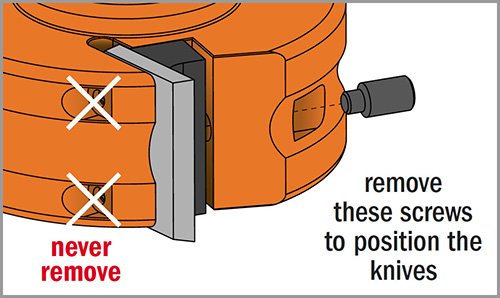

  • Pins for the automatic positioning of the knives.
  • Possibility to use knives with a height of 40mm or 50mm (order no. 690).

Supplied in a solid plastic box to contain up to 12 couples of knives.



Details
ATTENTION:
For safety reasons we recommend using knives with a height of 40mm (1-37/64") on cutter heads 692.078.19 and 692.078.30.

CMT cutter heads guarantee excellent performance for all your projects.

For use on all types of moulder and spindle moulder machines.


Safety Tips:

The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.

Variations
Filter

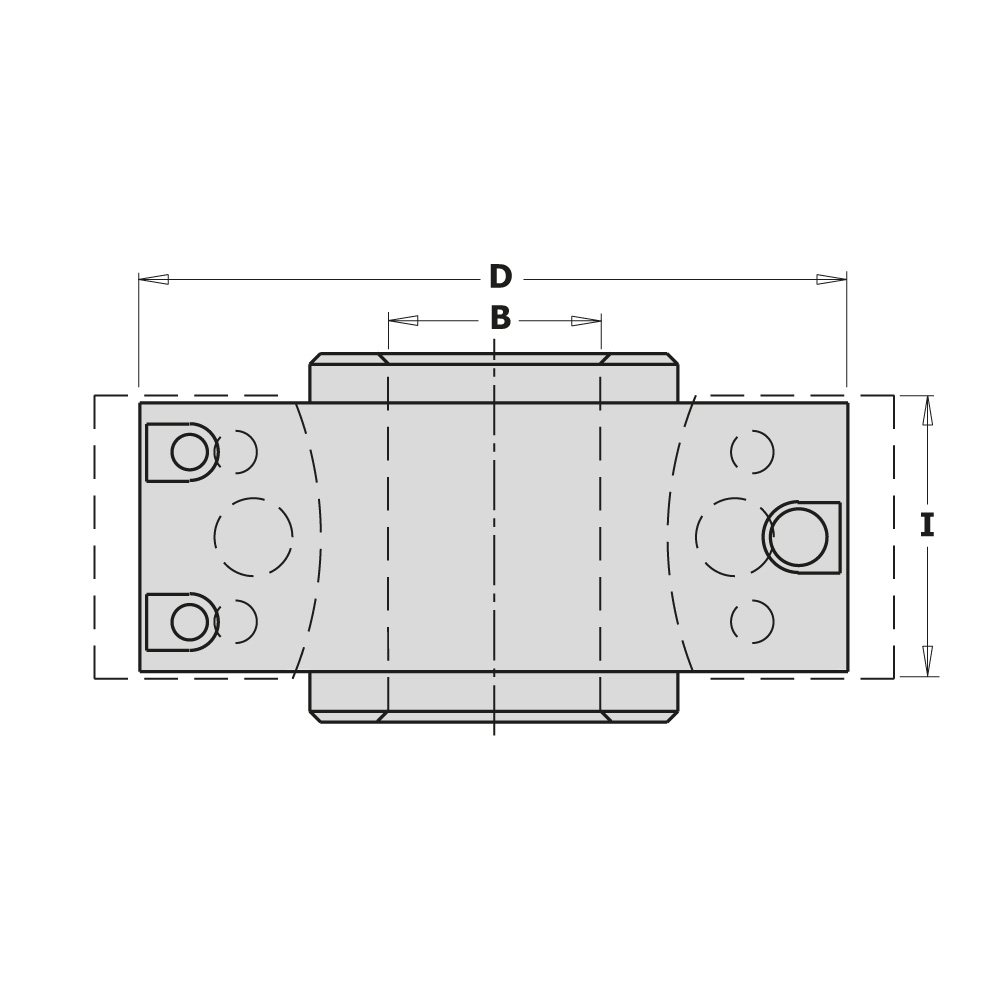

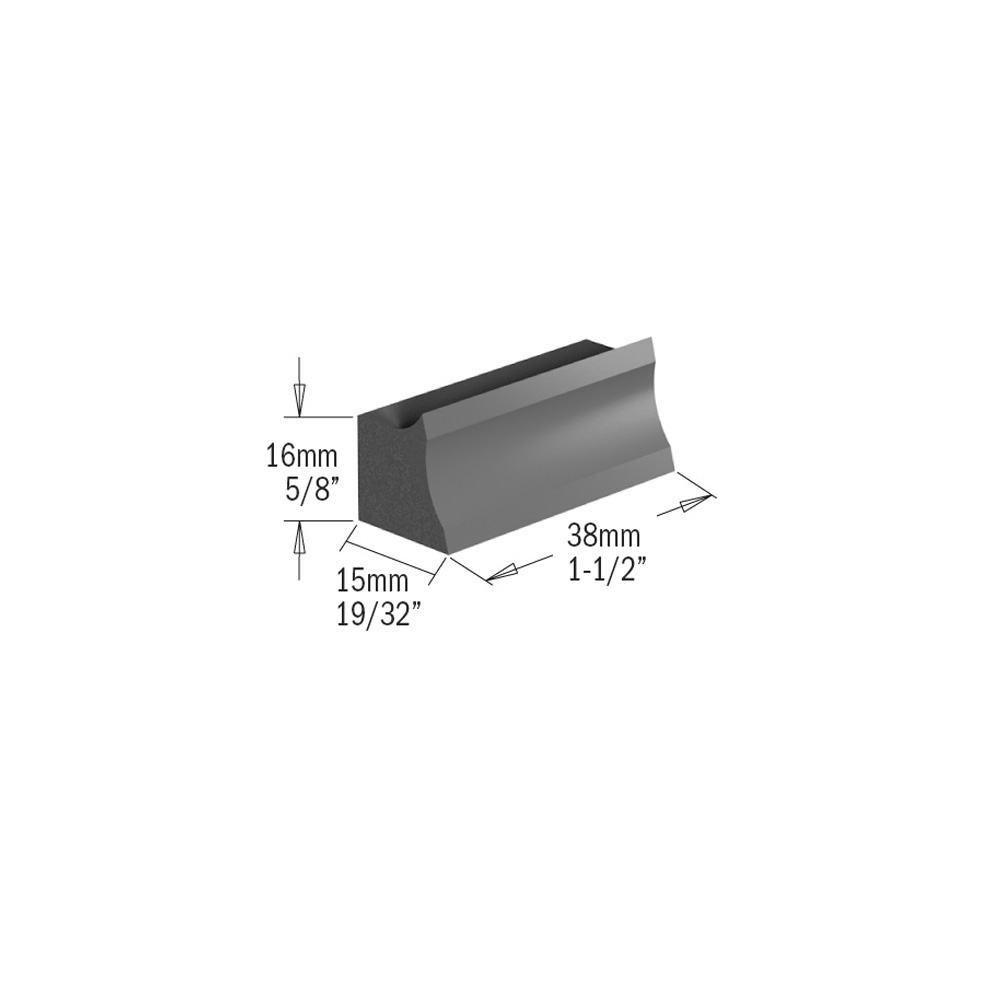

Item Code Description D I B Z MAX RPM MAT 990.064.00 Allen key 4mm 38x15x16mm wedge for cutter
692.078.19
692.078.19 Aluminum body 78 40 19,05 2 7000 ~ 9000 SP 990.064.00 991.064.00 692.999.01
692.078.30
692.078.30 Aluminum body 78 40 30 2 7000 ~ 9000 SP 990.064.00 991.064.00 692.999.01
692.100.26
692.100.26 Aluminum body 100 40 - 50 25,4 2 5500 ~ 8400 SP 990.064.00 991.064.00 692.999.01
692.100.30
692.100.30 Aluminum body 100 40 - 50 30 2 5500 ~ 8400 SP 990.064.00 991.064.00 692.999.01
692.100.31
692.100.31 Aluminum body 100 40 - 50 31,75 2 5500 ~ 8400 SP 990.064.00 991.064.00 692.999.01
692.100.35
692.100.35 Aluminum body 100 40 - 50 35 2 5500 ~ 8400 SP 990.064.00 991.064.00 692.999.01
692.101.30
692.101.30 Steel body 100 40 - 50 30 2 5500 ~ 8400 SP 990.064.00 991.064.00 692.999.01
692.101.35
692.101.35 Steel body 100 40 - 50 35 2 5500 ~ 8400 SP 990.064.00 991.064.00 692.999.01
692.120.50
692.120.50 Aluminum body 120 40 - 50 50 2 4800 ~ 7400 SP 990.064.00 991.064.00 692.999.01
692.121.50
692.121.50 Steel body 120 40 - 50 50 2 4800 ~ 7400 SP 990.064.00 991.064.00 692.999.01
