3 piece adjustable grooving sets
3 piece adjustable grooving sets
3 piece adjustable grooving sets
3 piece adjustable grooving sets
3 piece adjustable grooving sets
3 piece adjustable grooving sets
3 piece adjustable grooving sets
3 piece adjustable grooving sets

3 piece adjustable grooving sets

694.001

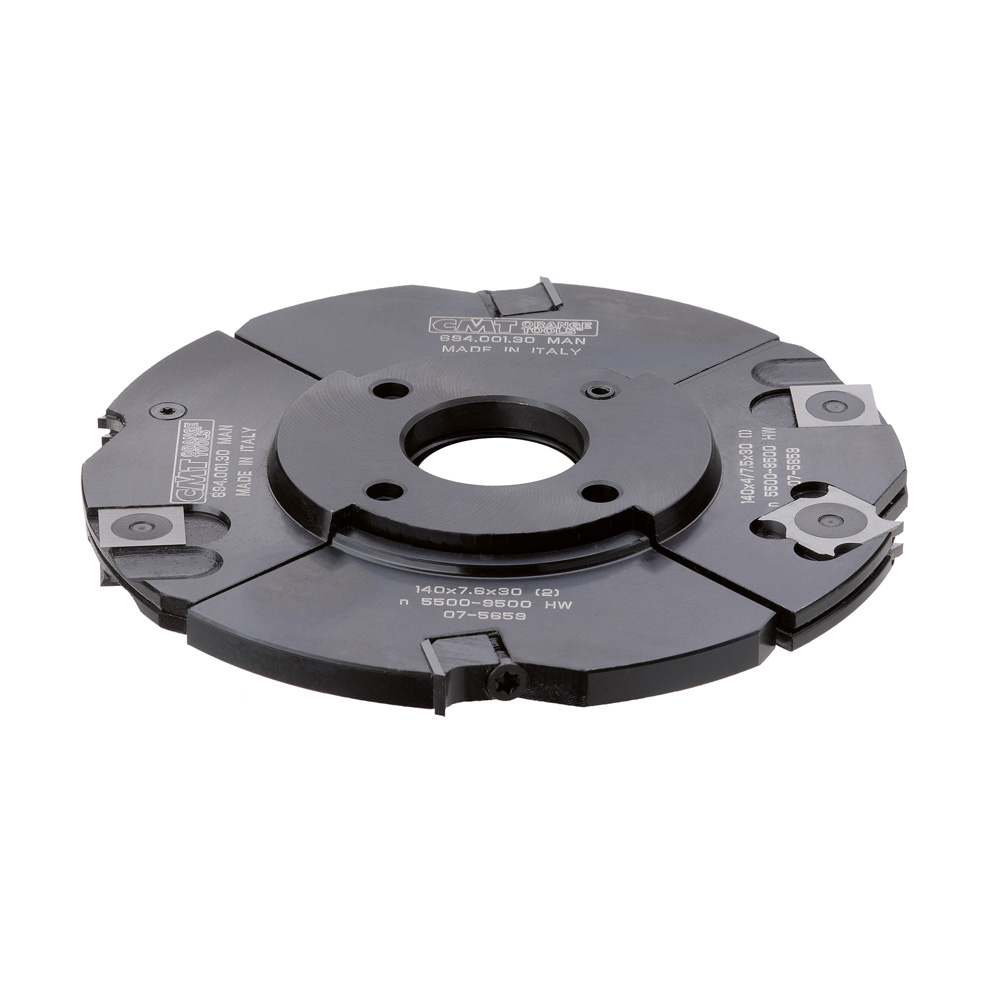

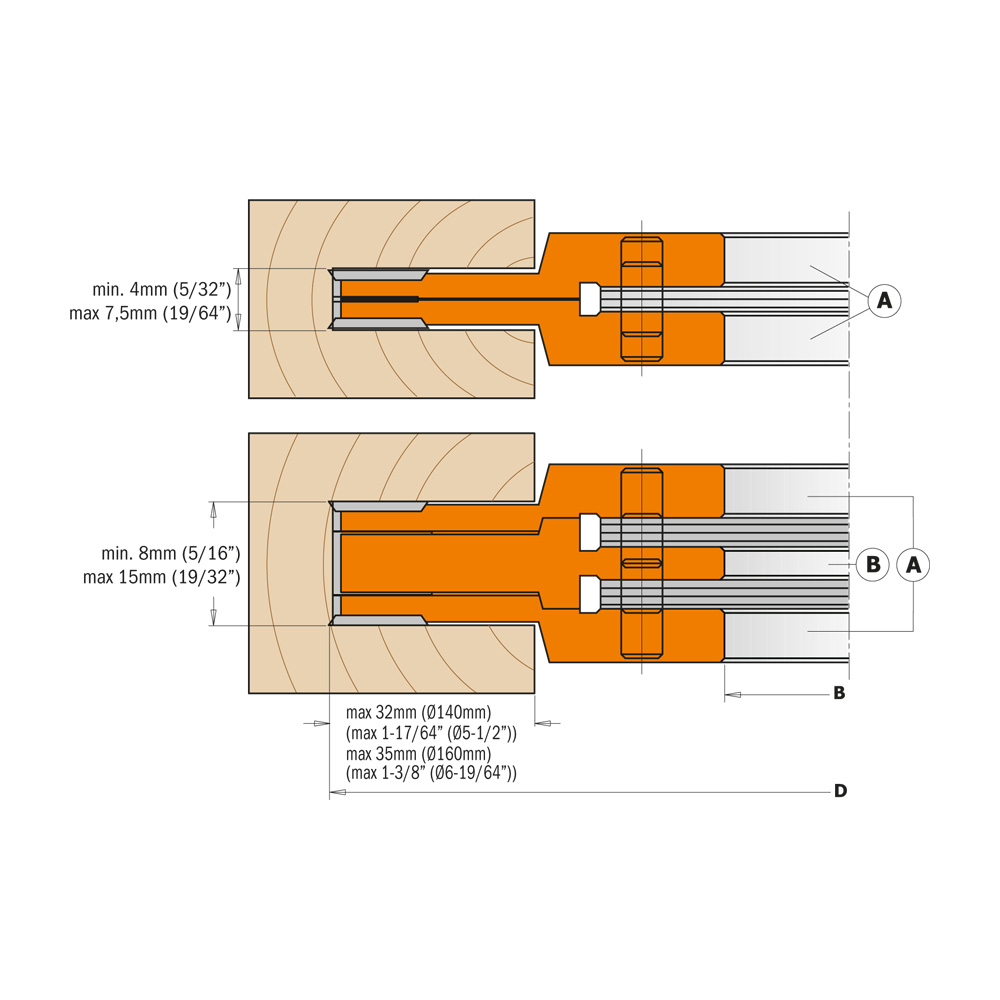

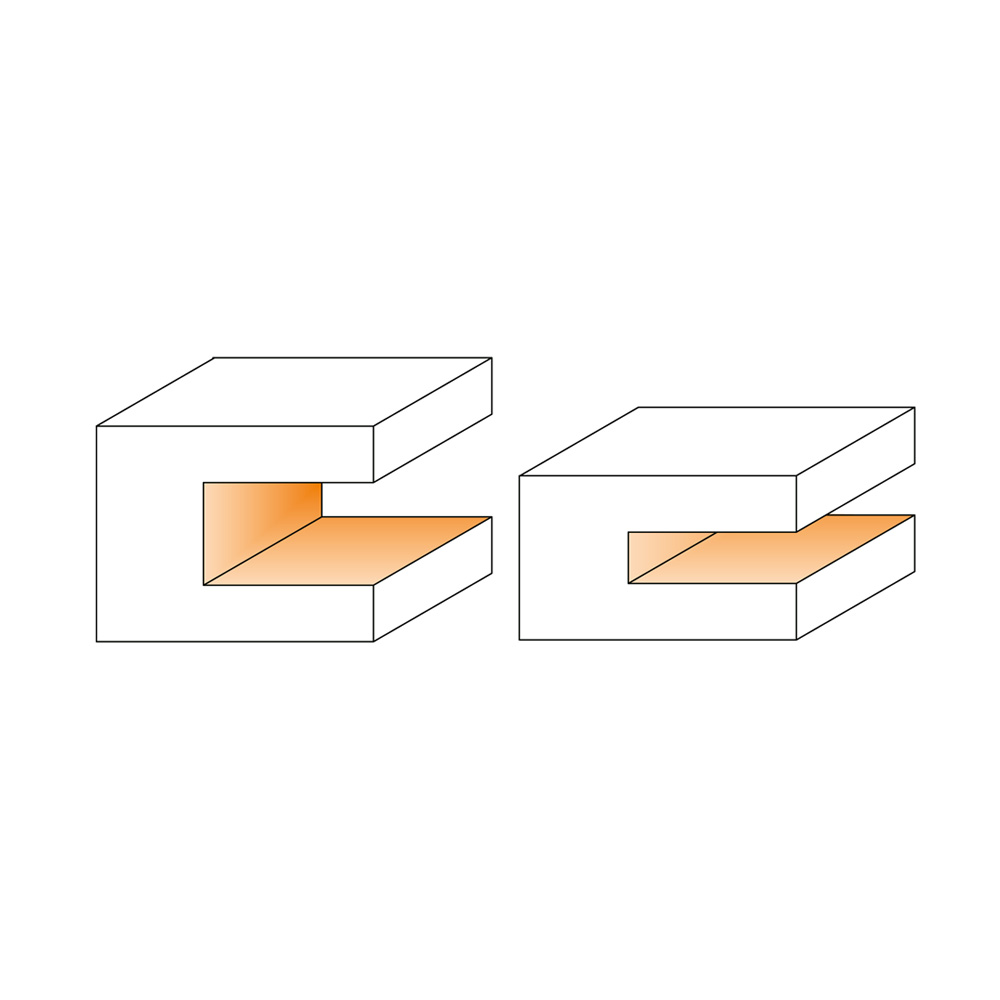

These cutter heads are the ideal tools to create precision slots and grooves on material 4 to 15mm deep.

These sets include:
  • 2 cutter heads type (A) [Z4 + V4]
  • 1 cutter head type (B) [Z2]
  • 12 spacer rings from 0,1 to 2mm.

For use on your spindle moulder machines, double-end tenoner and shaper machines.
Perfect grooving on all materials, but ideal on solid wood, plywood and laminated panels.

Technical details:
  • Super-strength steel body.
  • 2 HWM Knives 7,65x12x1,5mm [Z2].
  • 4 HWM Knives 18x18x1,95mm [Z4].
  • 4 HWM Knives 14x14x1,2mm [V4].
  • Tools for manual feed (MAN).
  • Pins for automatic positioning of the knives.

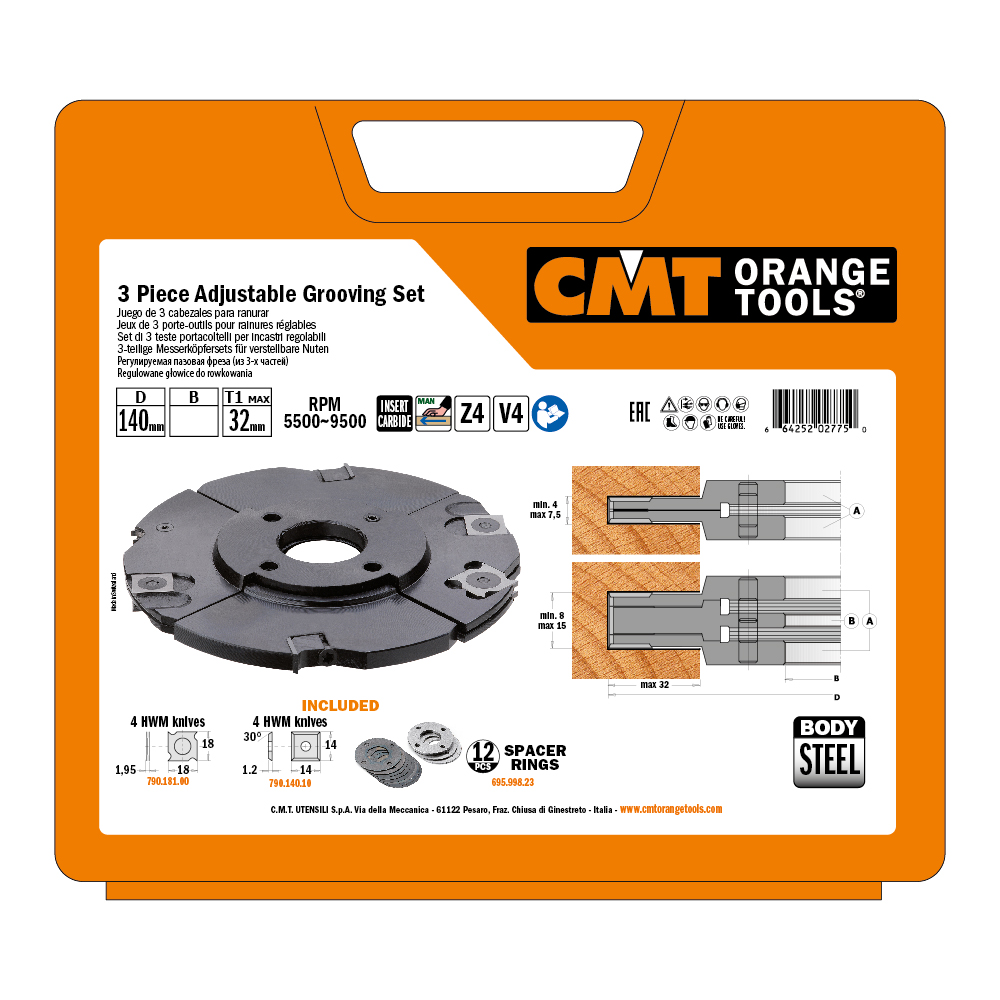

Supplied in a solid plastic box.

790.181.00, 790.140.10 and 790.076.00 are supplied in 10-piece pack or multiple.



Application





Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.



Variations
Filter
Item Code D B Z Spurs RPM MAT Indexable knife 790.140.10 Indexable knife Spacer kit Spacer kit Spacer kit Spacer kit Spacer kit
694.001.30
140 30 4 4 5500~9500 HW 790.181.00 790.140.10 790.076.00 695.998.21
694.001.31
140 31,75 4 4 5500~9500 HW 790.181.00 790.140.10 790.076.00 695.998.22
694.001.35
140 35 4 4 5500~9500 HW 790.181.00 790.140.10 790.076.00 695.998.23
694.001.40
160 40 4 4 4800~8300 HW 790.181.00 790.140.10 790.076.00 695.998.24
694.001.50
160 50 4 4 4800~8300 HW 790.181.00 790.140.10 790.076.00 695.998.25
