ITK PLUS® DP SAW BLADES - ULTRA-HARD MATERIALS- LONG LIFE
236.1-2-3
|
|
LASER-CUT HIGH QUALITY STEEL PLATE BODY
Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting. |
|
|
LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it. *This feature improves cut quality and extends blade life. *In full compliance with National Noise Emission Standards and Regulations. |
|
|
SILVER BRAZING
Silver Alloy Brazing prevents carbide from breaking during the cooling process
and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
 |
INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F) and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages. |
|
|
SHEAR ANGLE SHARPENING
The shear angle grinding, on the front face of the teeth, reduces the required cutting force thereby allowing for smoother cutting. |
 |
ORANGE SHIELD® NON-STICK PTFE COATING
• Protects against corrosion and rust. • Reduces resin and residue build-up. • Reduces overheating and blade drag. • Improves performance and cutting life. |
Variations
Filter

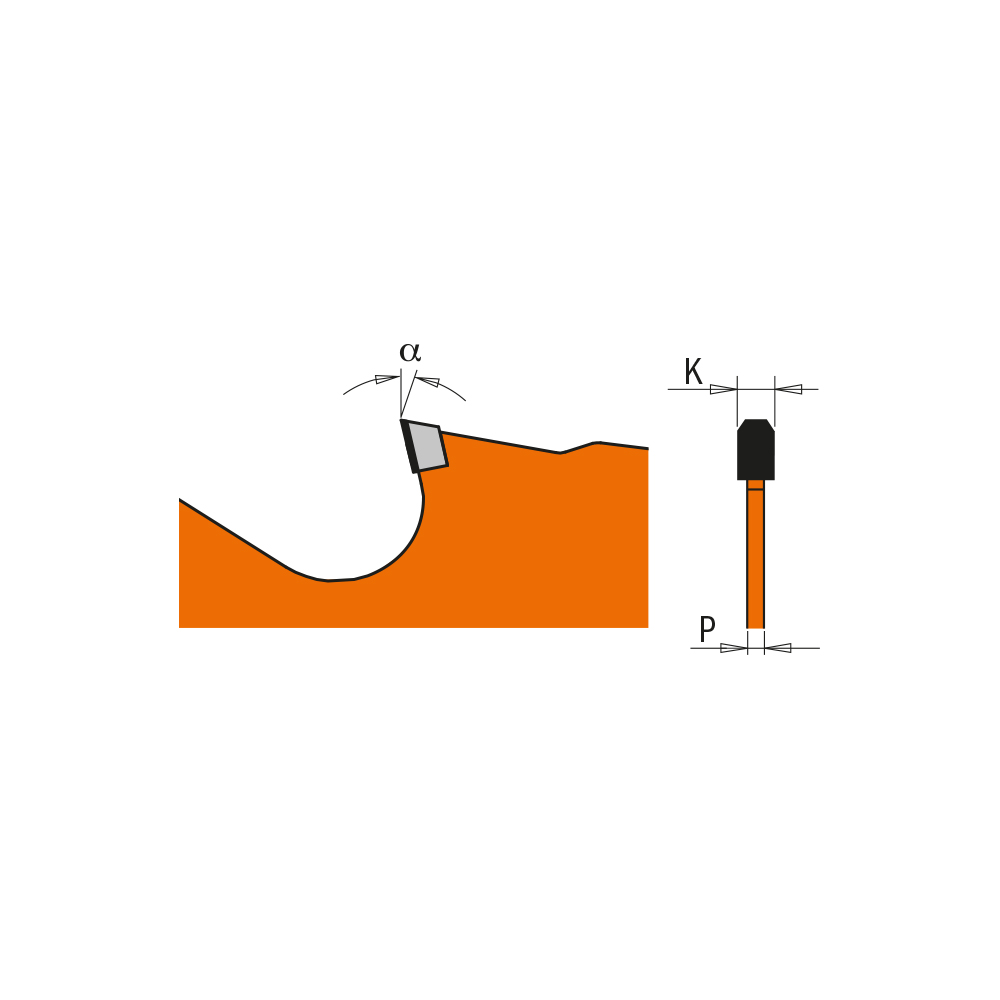

| Item Code | Description | D | B | PH | Z | K | P | α | β |
|---|---|---|---|---|---|---|---|---|---|
|
236.085.06G
|
Non-Silent Blade | 85 | 15 | 6 | 1.8 | 1.4 | 12 | TCG | |
|
236.125.07
|
Non-Silent Blade | 125 | 22.2 | 7 | 2.0 | 1.4 | 5 | TCG | |
|

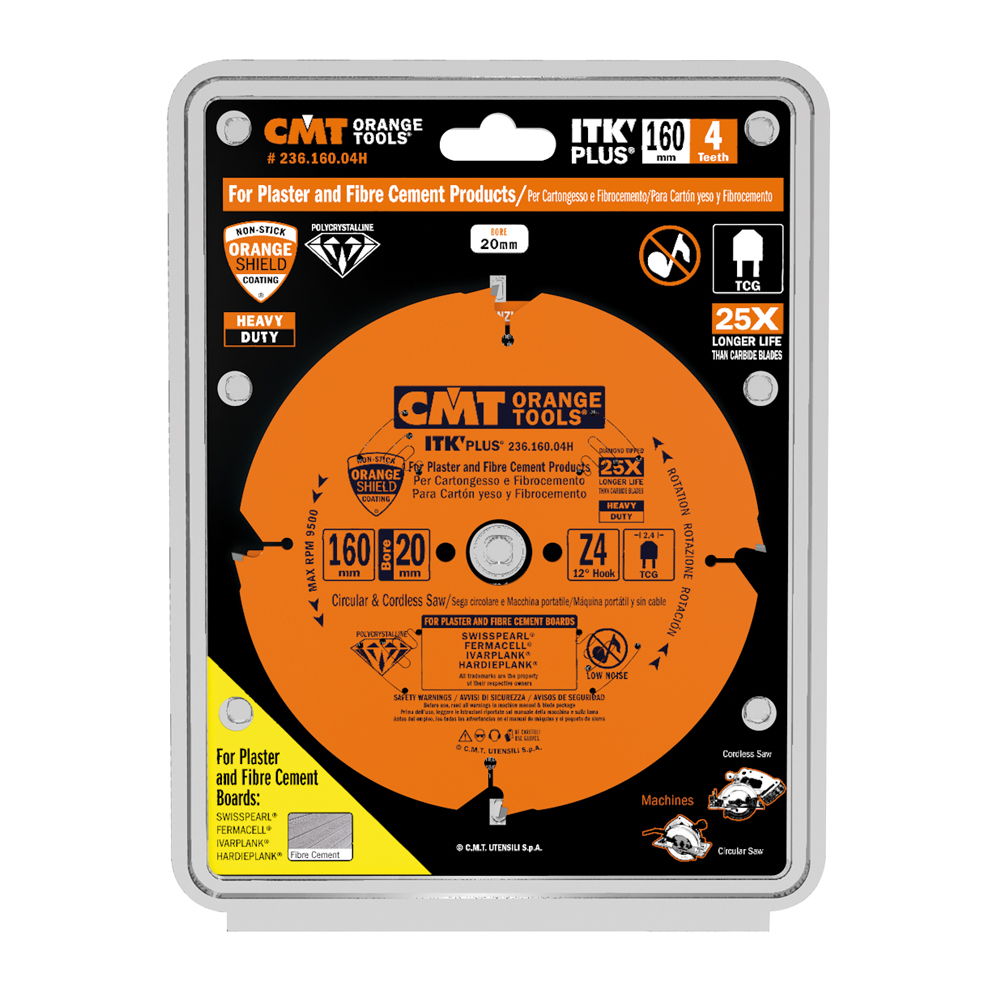

236.160.04H
|
For FESTOOL® Machines. | 160 | 20 | 2/6/32 | 4 | 2.4 | 1.8 | 12 | TCG |
|
236.160.10H
|
160 | 20 | 2/6/32 | 10 | 2.4 | 1.8 | 5 | TCG | |
|

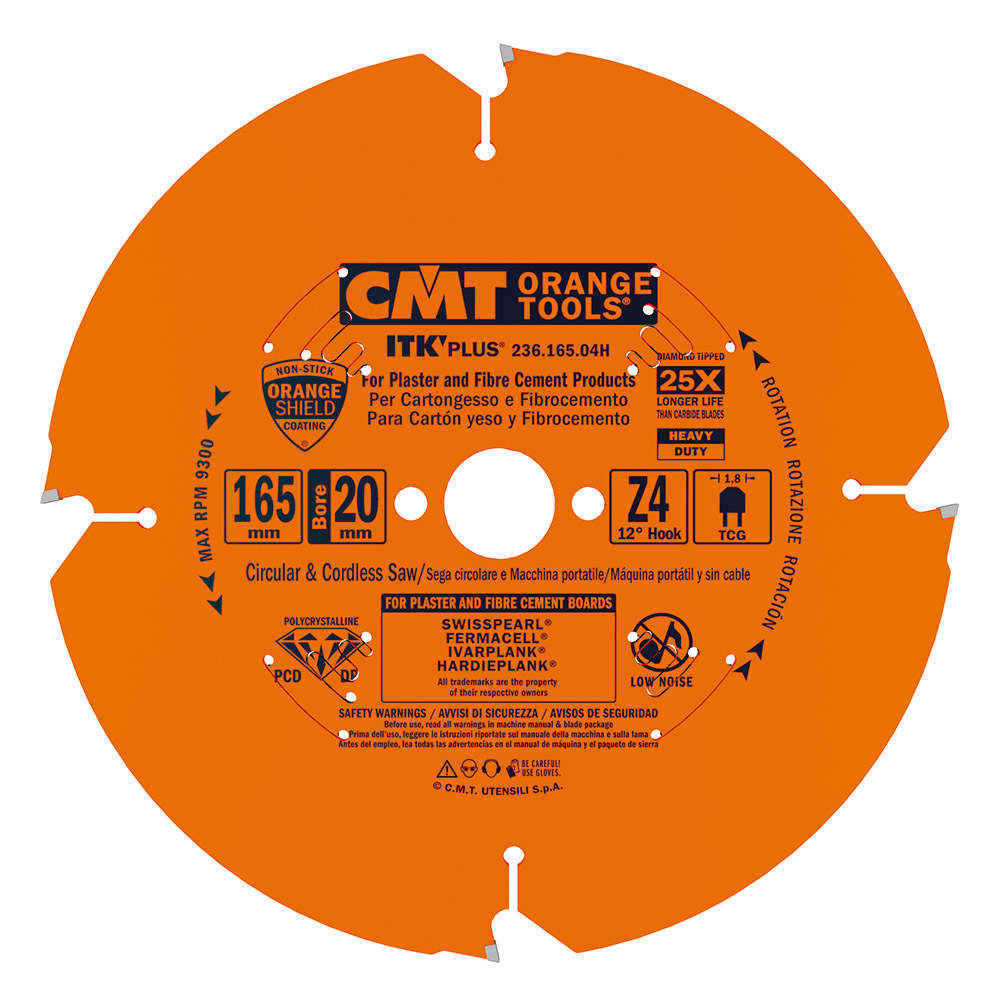

236.165.04H
|
165 | 20 (+15.87) | 2/6/32 | 4 | 1.8 | 1.4 | 12 | TCG | |
|
236.165.10H
|
165 | 20 (+15.87) | 2/6/32 | 10 | 1.8 | 1.4 | 5 | TCG | |
|
236.168.10H
|
168 | 20 | 2/6/32 | 10 | 1.8 | 1.2 | 5 | TCG | |
|
236.180.04H
|
180 | 20 | 2/6/32 | 4 | 2.4 | 1.8 | 12 | TCG | |
|
236.190.04M
|
For FESTOOL® Machines. | 190 | 30 | 2/7/42 | 4 | 2.4 | 1.8 | 12 | TCG |
|

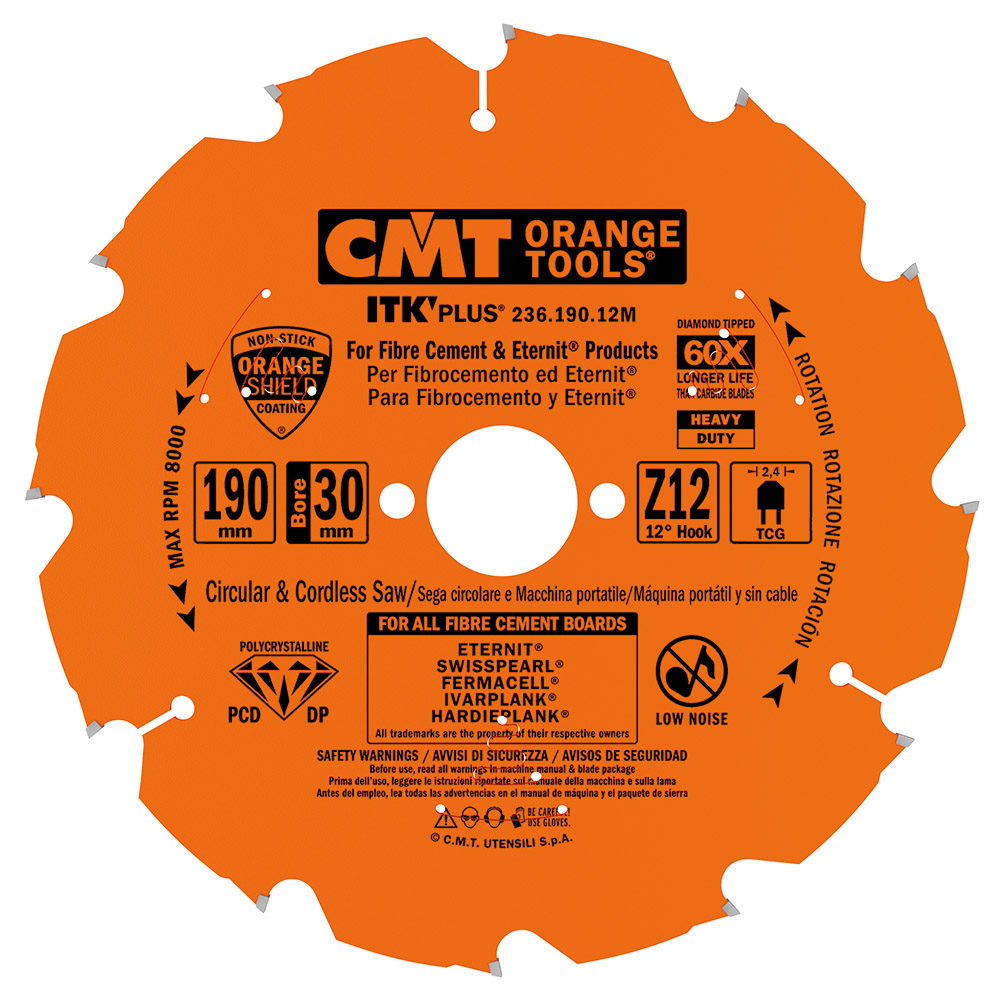

236.190.12M
|
190 | 30 | 2/7/42 | 12 | 2.4 | 1.8 | 12 | TCG | |
|

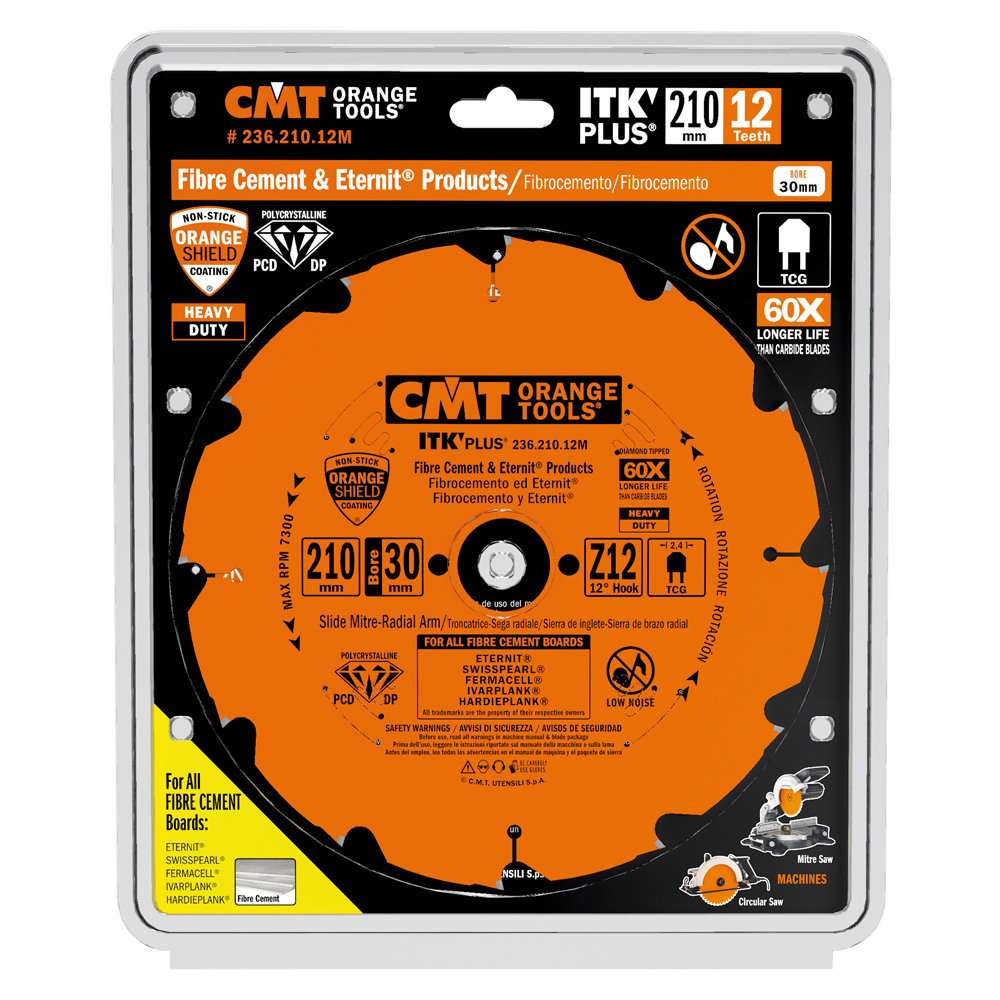

236.210.12M
|
For FESTOOL® Machines. | 210 | 30 | 2/7/42 | 12 | 2.4 | 1.8 | 12 | TCG |
|
236.216.14M
|
216 | 30 | 2/7/42 | 14 | 2.4 | 1.8 | 12 | TCG | |
|
236.230.04M
|
230 | 30 | 2/7/42 | 4 | 2.4 | 1.8 | 12 | TCG | |
|
236.250.16M
|
250 | 30 | COMBI3 | 16 | 2.4 | 1.8 | 12 | TCG | |
|
236.300.20M
|
300 | 30 | COMBI3 | 20 | 2.4 | 1.8 | 12 | TCG |
