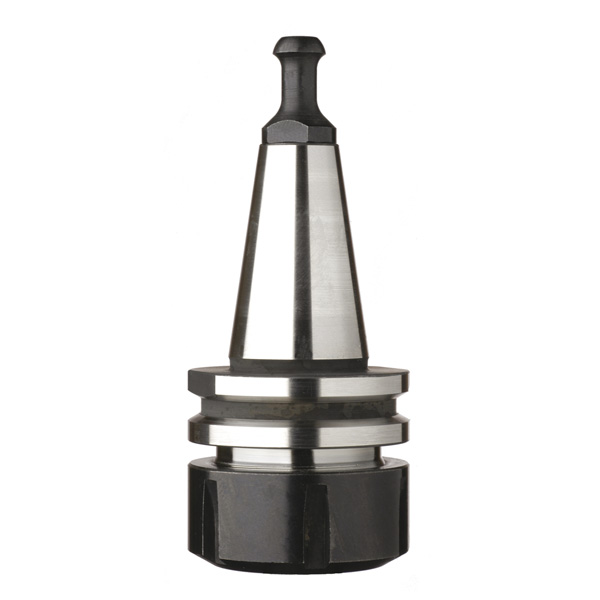

ISO30 chucks for “ER32” precision collets
ISO30 chucks for “ER32” precision collets
ISO30 chucks for “ER32” precision collets
ISO30 chucks for “ER32” precision collets

ISO30 chucks for “ER32” precision collets

183.200/210/220

The ideal accessories for machining centres, point-to-point machines and CNC routers.

-Extreme precision and reliability.
-Perfect tool centering.
-Defect-free rotation.
-Made from extremely high resistant steel.
-Precision grinding on all jointed parts.
-Extreme high rotation performance >= 15 HP – 20.000 RPM.
-For very efficient sizing on extreme unprecedented high feed speed.
-Excellent finishing quality on the workpiece and longer tool life.
-Sturdy design with reduced height to increase the work space between the machine and the piece.
-Safe and fast tool setup.
-Interchangeable collet clamps with radial grooves for secure parallel tool clamping.
-Wide clamping tolerance (-0.7mm).
-Right or left-hand rotation chucks with self clamping threads.
-Clamping nut with Woodruff radial grooves for c-spanners.
-Practical withdrawal sleeves with double differential threads for the chuck spindle.
-Central hexagonal low profile for easy tool clamping through a c-spanner.
-Designed and tested in collaboration with the most renowned machining and CNC router construction centres.
-Delivered in smart professional packaging.
Application

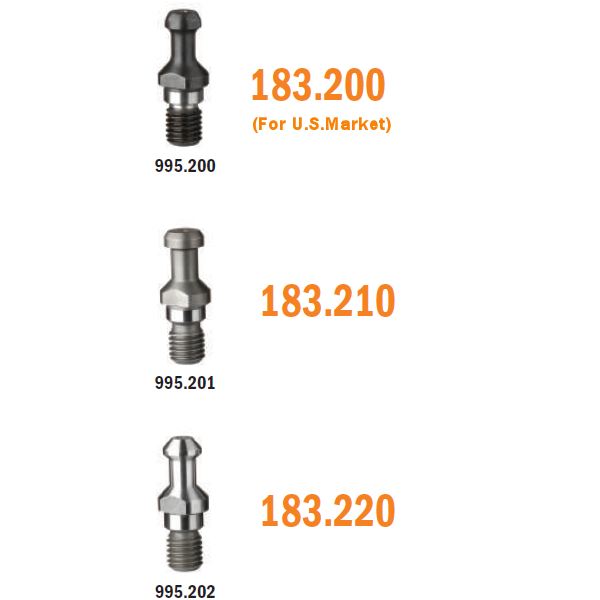

Chucks 183.200 for Biesse machines.

Chucks 183.210 for Biesse machines with Omlat engine, Bulleri, Busellato, CMS and IMA machines.

Chucks 183.220 for Alberti and Masterwood machines.
Variations
Filter

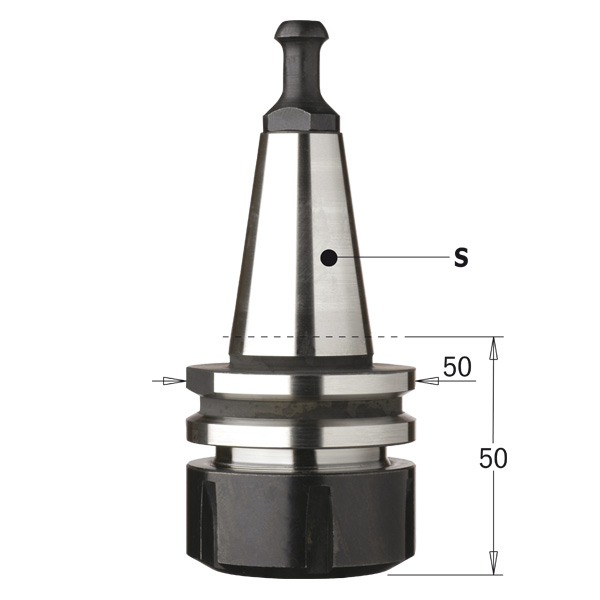

Codice Description S RH-LH D1 D Tirante per mandrini ISO30
183.200.01
Per Biesse machines ISO30 RH 12mm 995.200.00
183.200.02
For Biesse machines ISO30 LH 12mm 995.200.00
