Industrial XTreme demolition & rescue saw blades

286.024

12" and 14" saw blades include 20mm and 7/8" bore reduction rings.
INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The new process SinterHIP (high temperature 3500°F and high pressure 1500 psi)
creates a porosity-free and Hi-Density carbide which provides a longer cutting life than tradition carbide.
TRI-METAL BRAZING
The Silver-Copper-Silver tri-metal brazing process lets the teeth
with stand the severe impact caused by cutting harder woods and composite material.
NON-STICK ORANGE SHIELD® COATING
Keeps the blade running cool, reduces pitch build up and protects against corrosion.
Ideal for all types of wood including wet lumber.

LASER-CUT HEAT EXPANSION SLOTS
Engineered to allow the blade to expand when heat build-up occurs from use,
preventing blade warping.
Unique patented dynamic balancing several orders of magnitude above
and beyond that which is currently available in the marketplace.

TENSIONING RING (10” and above)
A visible tensioning ring on the blade provides stability while cutting
and perfect concentricity during rotation.
PRECISION MIRROR FINISH SHARPENING
Each tooth is ground to razor sharp precision on a multi-axis CNC machine
which creates perfect edge angles, guaranteeing extra-clean cuts and extended life.
Featuring less than 0.25 μm Rmax in edge roughness.



Warning:
this blade is not to be used on multipurpose cut-off saws, unless saw has a guard
that covers both the upper half and the lower half of the blade completely.
The guard must extend to the lowest point of the cutting teeth on the bottom of the blade.
Consult owner's manual of the saw & follow all instructions
and safety procedures - including wearing safety goggles at all time while working with this blade.


DUE TO THE ROUGH APPLICATIONS FOR WHICH THESE BLADES MAY BE USED, THEY ARE NOT GUARANTEED.
Variations
Filter

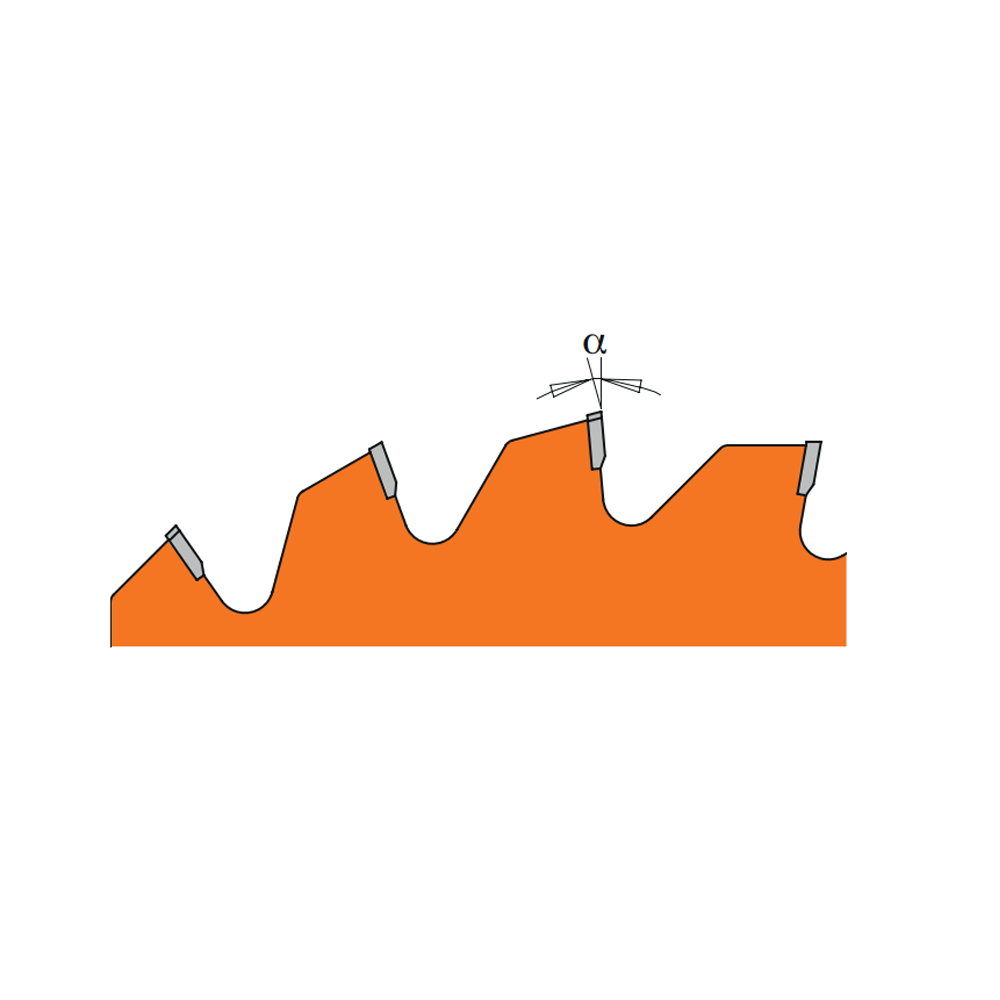

Item Code D Z B β K P α MAX RPM Reduction ring for circular saw blade bores

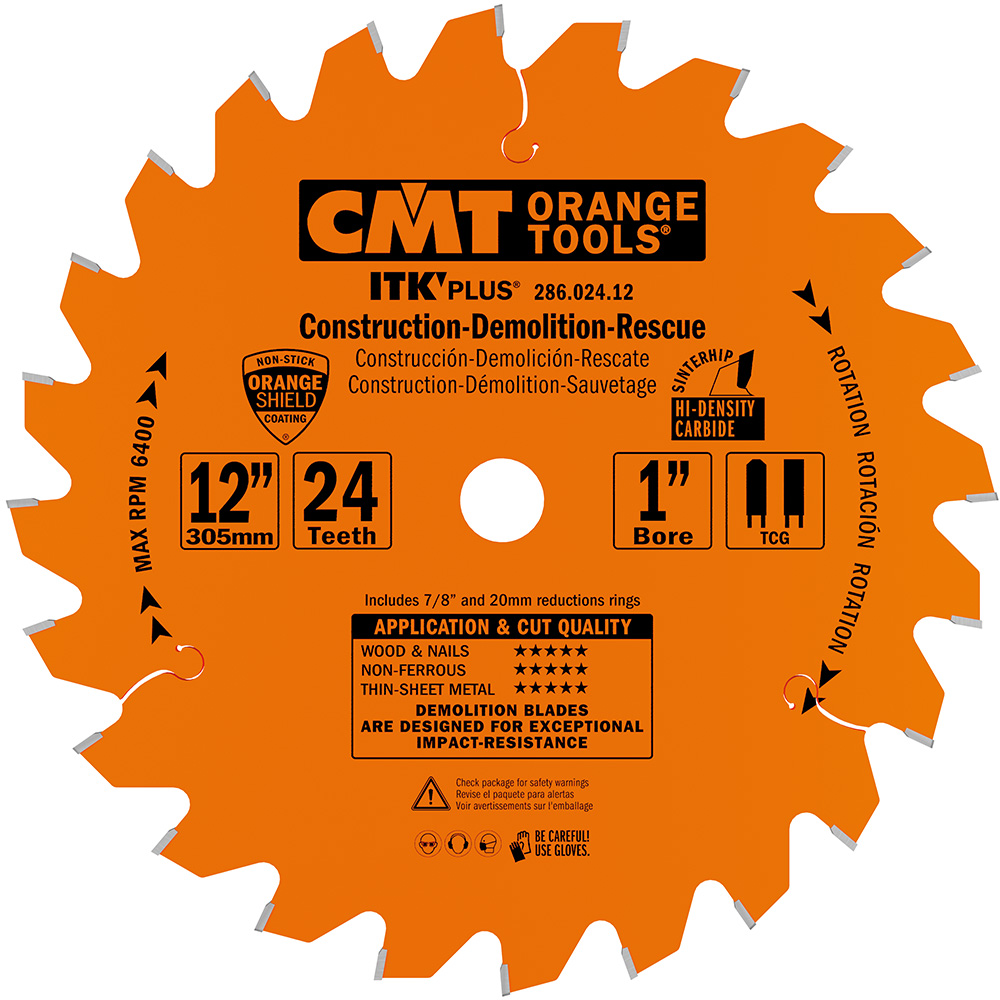

286.024.12
286.024.12 12 24 1 TCG 0.126 0.098 -5 6.400 299.219.00

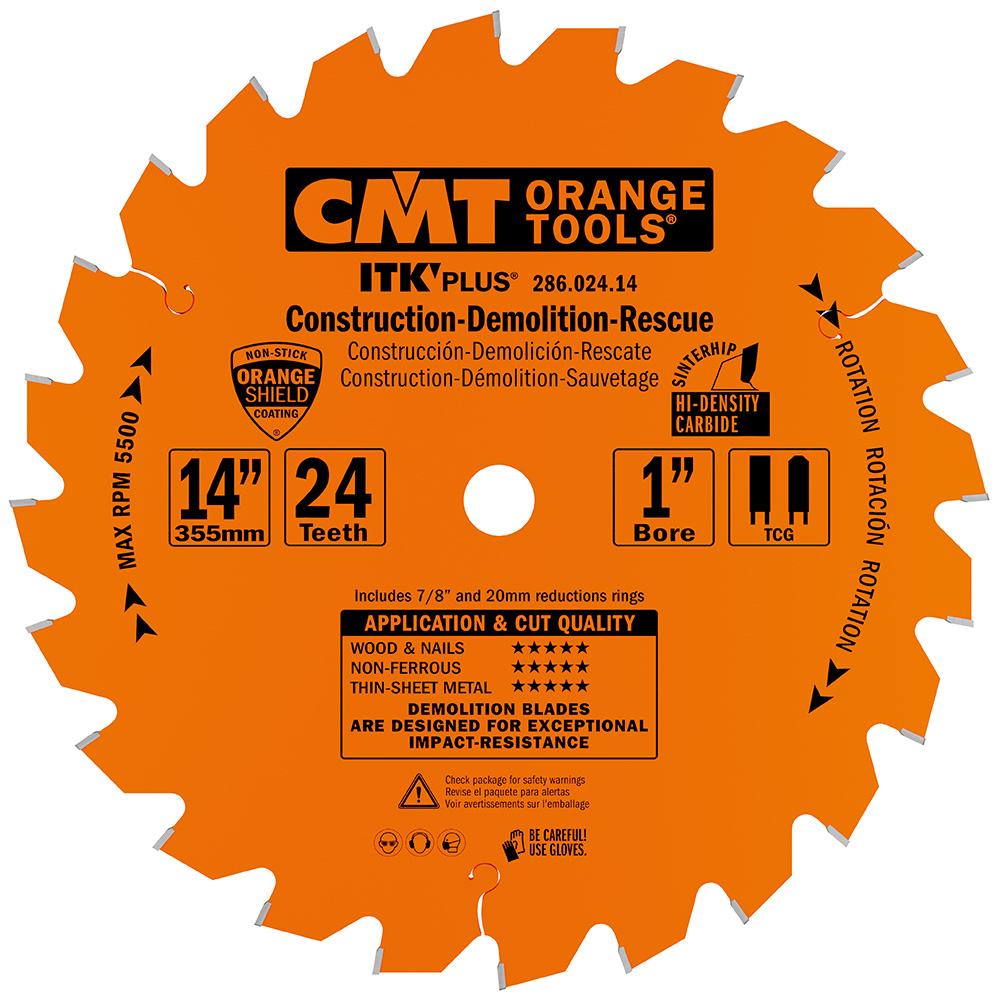

286.024.14
286.024.14 14 24 1 TCG 0.137 0.110 -5 5500 299.219.00
