Industrial conical scoring blades
288
TECHNICAL DETAILS OF CARBIDE TEETH:
| Teeth height mm | 6~10 |
| CHROMIUM ISO grade | KCR05 |
| Hardness (HV10) | 2.150 |
| Transverse rupture strength (N/mm2) | 2.500 |

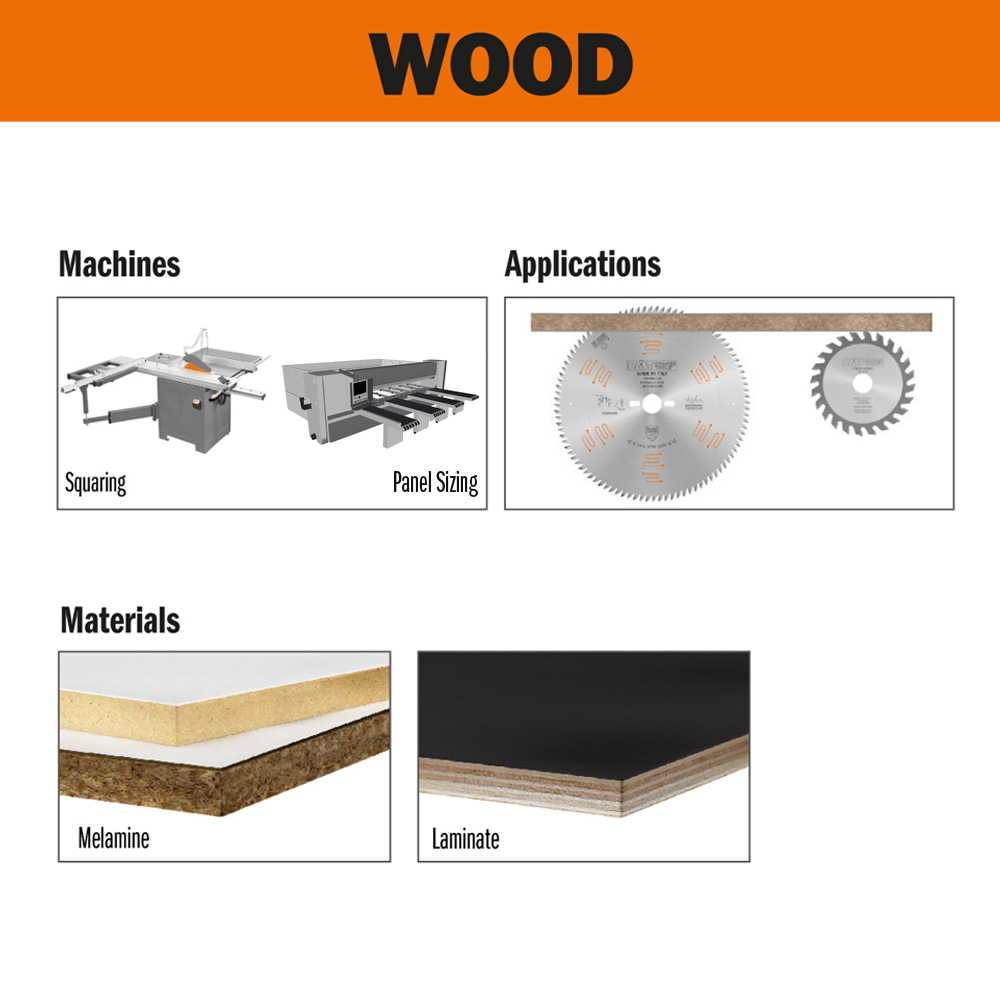

Application
Application: for chip-free scoring on plastic-laminated panels.
Machines: horizontal and vertical sizing machines equipped with scoring device for vertical adjustment.
Material: single or double-sided plastic-laminated panels, MDF.
Variations
Filter
| Item Code | D | B | FT | Z | K | P | α | β | |
|---|---|---|---|---|---|---|---|---|---|
|
288.100.20H
|
100mm | 20mm | 20 | 3.1-4.0mm | 2.5mm | 5° | CO+5°ATB | ||
|
288.100.20K
|
100mm | 22mm | 20 | 3.1-4.0mm | 2.5mm | 5° | CO+5°ATB | ||
|
288.120.24H
|
120mm | 20mm | 24 | 3.1-4.0mm | 2.5mm | 5° | CO+5°ATB | ||
|
288.120.24K
|
120mm | 22mm | 24 | 3.1-4.0mm | 2.5mm | 5° | CO+5°ATB | ||
|
288.125.24H
|
125mm | 20mm | 24 | 3.1-4.0mm | 2.5mm | 5° | CO+5°ATB | ||
|
288.125.24H2
|
125mm | 20mm | 24 | 4.3-5.5mm | 3.2mm | 10° | CO+FTG | ||
|
288.125.24K
|
125mm | 22mm | 24 | 3.1-4.0mm | 2.5mm | 5° | CO+5°ATB | ||
|
288.125.24Q
|
125mm | 45mm | 24 | 4.3-5.5mm | 3.2mm | 10° | CO+FTG | ||
|
Y288.140.24E
|
140mm | 16mm | 1/6/33 | 24 | 3.1-4.0mm | 2.2mm | 10° | CO+FTG | |
|
288.150.36Q
|
150mm | 45mm | 3/11/70 | 36 | 4.3-5.5mm | 3.2mm | 10° | CO+FTG | |
|
288.160.36O
|
160mm | 55mm | 3/7/66+3/6/84 | 36 | 4.3-5.5mm | 3.2mm | 10° | CO+FTG | |
|
288.160.36Q
|
160mm | 45mm | 3/11/70 | 36 | 4.3-5.5mm | 3.2mm | 10° | CO+FTG | |
|
Y288.160.36O2
|
160mm | 55mm | 3/7/66 + 3/6/84 | 36 | 4.7-6.0mm | 3.5mm | 10° | CO+FTG | |
|
Y288.180.36H
|
180mm | 20mm | 36 | 4.3-5.5mm | 3.2mm | 10° | CO+FTG | ||
|
288.180.36M
|
180mm | 30mm | 36 | 4.45-5.3mm | 3.2mm | 10° | CO+FTG | ||
|
288.180.36O
|
180mm | 55mm | 36 | 5.0-6.2mm | 3.5mm | 10° | CO+FTG | ||
|
288.180.36Q
|
180mm | 45mm | 36 | 4,8-5,6mm | 0.138 | 10° | CO+FTG | ||
|
288.180.36Q2
|
180mm | 45mm | 36 | 4,3-5,5mm | 0.126 | 8° | CO+ATB | ||
|
288.180.44T
|
180mm | 50mm | 3/12.5/80 | 44 | 4.3-5.5mm | 3.2mm | 10° | CO+FTG | |
|
288.200.36H
|
200mm | 20mm | 36 | 4.4-5.3mm | 3.2mm | 10° | CO+FTG | ||
|
288.200.36J
|
200mm | 65mm | 2/9/100 + 2/9/110 | 36 | 4.45-5.3mm | 3.2mm | 10° | CO+FTG | |
|
288.200.36Q
|
200mm | 45mm | 36 | 4.7-6.0mm | 3.5mm | 10° | CO+FTG | ||
|
288.215.42T
|
215mm | 50mm | 3/15/80 | 42 | 4.3-5.5mm | 3.2mm | 8° | CO+FTG | |
|
288.300.48T
|
300mm | 50mm | 3/15/80 | 48 | 4.3-5.5mm | 3.2mm | 10° | CO+FTG | |
|
288.300.72J
|
300mm | 65mm | 2/9/100 + 2/9/110 | 72 | 4.3-5.5mm | 3.2mm | 10° | CO+FTG |
