LASER-CUT PREMIUM QUALITY STEEL PLATE BODY
Made with 46-48 HRC premium quality harmonic steel from Germany and laser-cut to perfection providing tighter tolerances translating to longer life and accurate cutting ability. |
![]() |
LASER-CUT SOUND DAMPENING SLOTS POLYMER-FILLED
Slots filled with sound-dampening polymer reduce vibrations and noise by 25% compared to blades without it.* *This feature improves cut quality and extends blade life. *In full compliance with National Noise Emission Standards and Regulations. |
|
TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application. |
![]() |
TRI-METAL BRAZING
Silver-Copper-Silver Tri-Metal Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
![]() |
INDUSTRIAL CHROME CARBIDE
Cutting teeth are made from a specially formulated chrome carbide which stays sharper longer by reducing cutting edge abrasion, improving cut quality and tool life. |
![]() |
PRECISION MIRROR FINISH SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.25 µm Rmax in edge roughness. |
![]() |
ORANGE CHROME® COATING
- Protects the tool against corrosion, rust and accumulation of resin and residues. - Guarantees longer tool life. - Lower power absorption by motor. - Smoother blade movement throughout cutting operation. - Tool maintenance is fast and easy. |
![]() |
CMT XTREME BALANCING*
This system allows for extremely accurate dynamic balancing of the blade, several orders of magnitude above and beyond that which is currently available in the marketplace. *TRADEMARK & INT. PAT. PEND. |
Item Code | D | B | FT | Z | K | P | α | β | |
---|---|---|---|---|---|---|---|---|---|
285.640.10M
|
250mm | 30mm | COMBI3 | 40 | 3.2mm | 2.2mm | 5 | ATB 10 | |

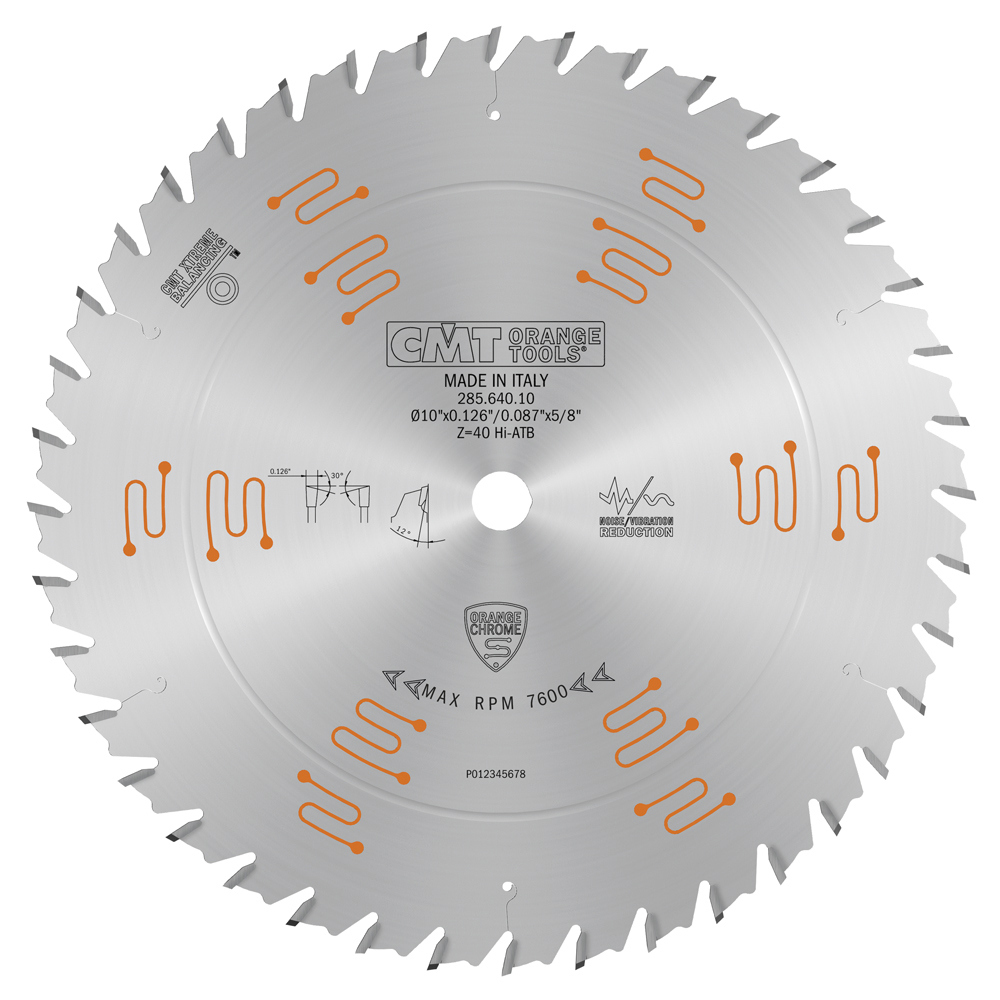

285.640.10
|
10 | 5/8 | 40 | 0.126 | 0.087 | 12 | Hi-ATB 30 | ||
285.648.12M
|
300mm | 30mm | COMBI3 | 48 | 3.2mm | 2.2mm | 5 | ATB 10 | |
285.654.14M
|
300mm | 30mm | COMBI3 | 54 | 3.5mm | 5 | ATB 10 | ||
285.660.16M
|
400mm | 30mm | COMBI3 | 60 | 3.5mm | 10 | ATB 15 |
