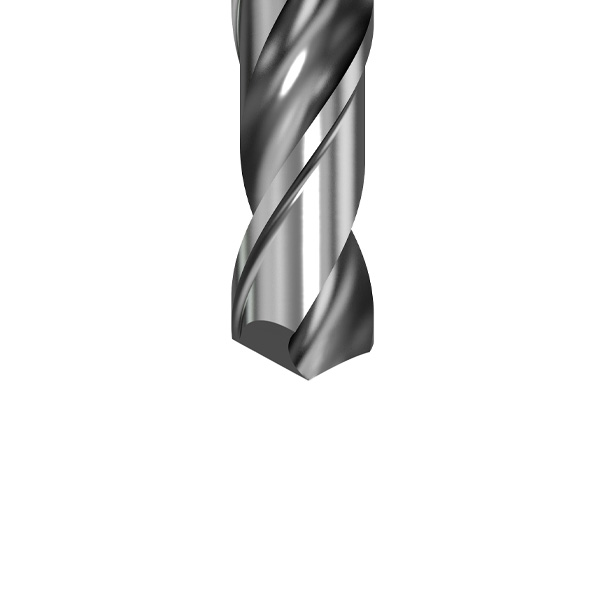

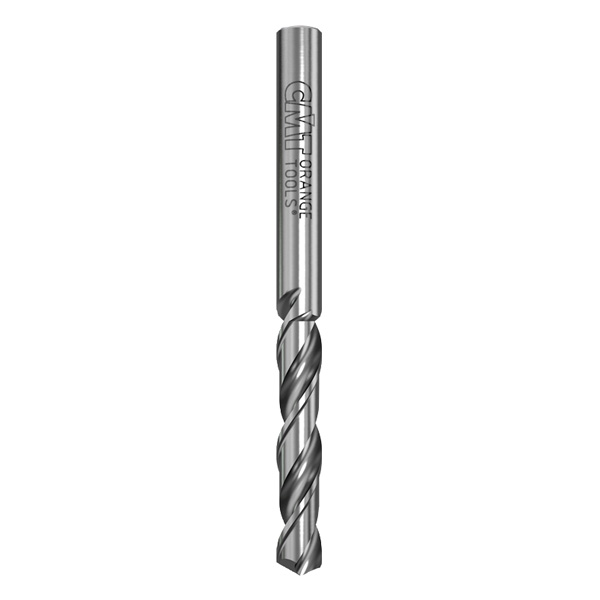

Solid carbide twist drills “V” point 120° sharpening
363.11 HWM
For use with the following items: 364-365.
TECHNICAL DETAILS:
• Premium quality HWM.
• 2 precision ground cutting edges (Z2).
• 2 spiral flutes.
• Common shank and drilling diametre (S=D).
Application
Used in Adapter bushings.
Variations
Filter

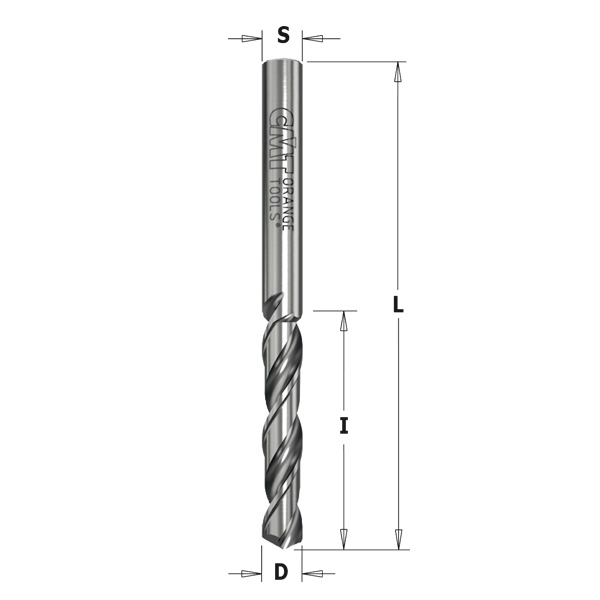

| Item Code | D | I | L | S | Z | MAT | RH-LH | |
|---|---|---|---|---|---|---|---|---|
|
363.020.11
|
3/32'' | 63/64'' | 1'' + 31/32'' | 2mm | 2 | HWM | RH | |
|
363.020.12
|
3/32'' | 63/64'' | 1'' + 31/32'' | 2mm | 2 | HWM | LH | |
|
363.025.11
|
7/64'' | 1'' + 1/16'' | 2'' + 11/64'' | 2.5mm | 2 | HWM | RH | |
|
363.025.12
|
7/64'' | 1'' + 1/16'' | 2'' + 11/64'' | 2.5mm | 2 | HWM | LH | |
|
363.030.11
|
1/8'' | 1'' + 1/16'' | 2'' + 11/64'' | 3mm | 2 | HWM | RH | |
|
363.030.12
|
1/8'' | 1'' + 1/16'' | 2'' + 11/64'' | 3mm | 2 | HWM | LH | |
|
363.032.11
|
1/8'' | 1'' + 1/16'' | 2'' + 11/64'' | 3.2mm | 2 | HWM | RH | |
|
363.032.12
|
1/8'' | 1'' + 1/16'' | 2'' + 11/64'' | 3.2mm | 2 | HWM | LH | |
|
363.035.11
|
9/64'' | 1'' + 1/16'' | 2'' + 11/64'' | 3.5mm | 2 | HWM | RH | |
|
363.035.12
|
9/64'' | 1'' + 1/16'' | 2'' + 11/64'' | 3.5mm | 2 | HWM | LH | |
|
363.040.11
|
5/32'' | 1'' + 1/16'' | 2'' + 11/64'' | 4mm | 2 | HWM | RH | |
|
363.040.12
|
5/32'' | 1'' + 1/16'' | 2'' + 11/64'' | 4mm | 2 | HWM | LH | |
|
363.045.11
|
11/64'' | 1'' + 7/64'' | 2'' + 23/64'' | 4.5mm | 2 | HWM | RH | |
|
363.045.12
|
11/64'' | 1'' + 7/64'' | 2'' + 23/64'' | 4.5mm | 2 | HWM | LH | |
|
363.050.11
|
13/64'' | 1'' + 7/64'' | 2'' + 23/64'' | 5mm | 2 | HWM | RH | |
|
363.050.12
|
13/64'' | 1'' + 7/64'' | 2'' + 23/64'' | 5mm | 2 | HWM | LH |
