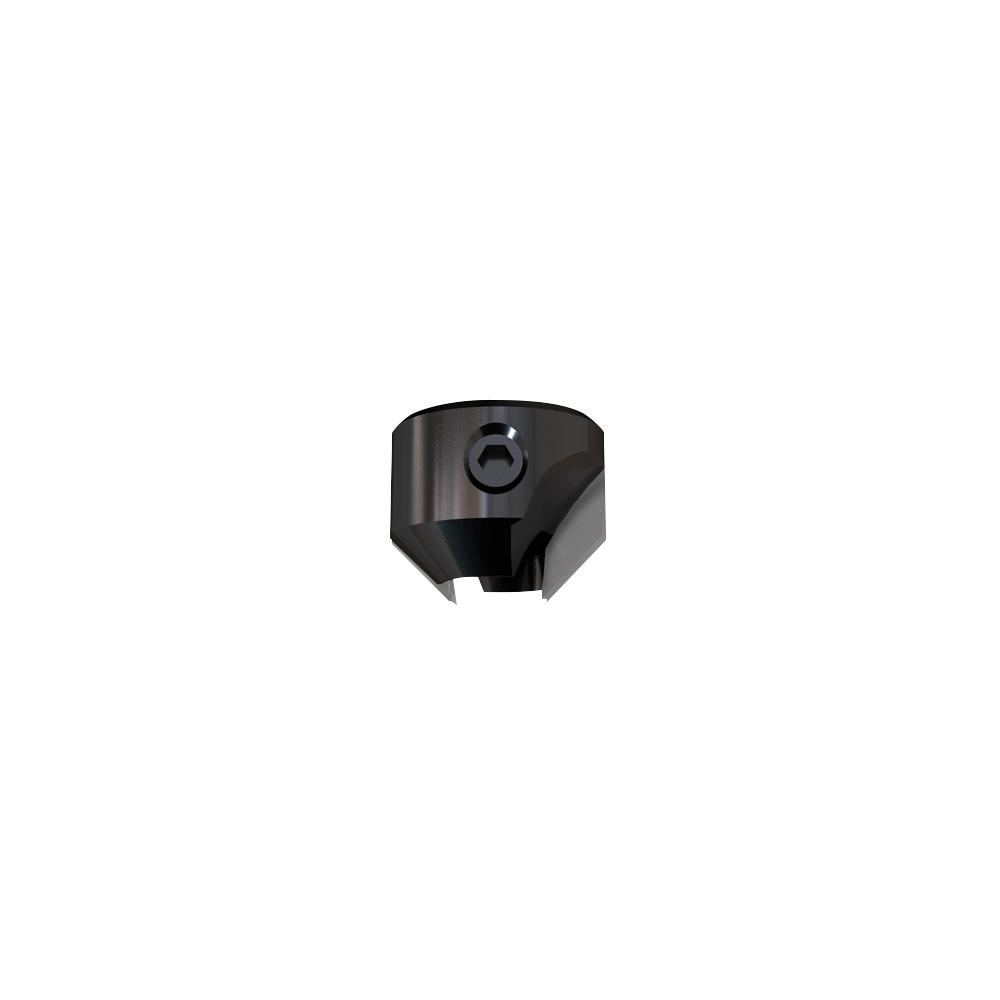

Countersinks for 4 flutes dowel drills
316 HW
For assembly on the shank of the drill.
Adjustable depth.

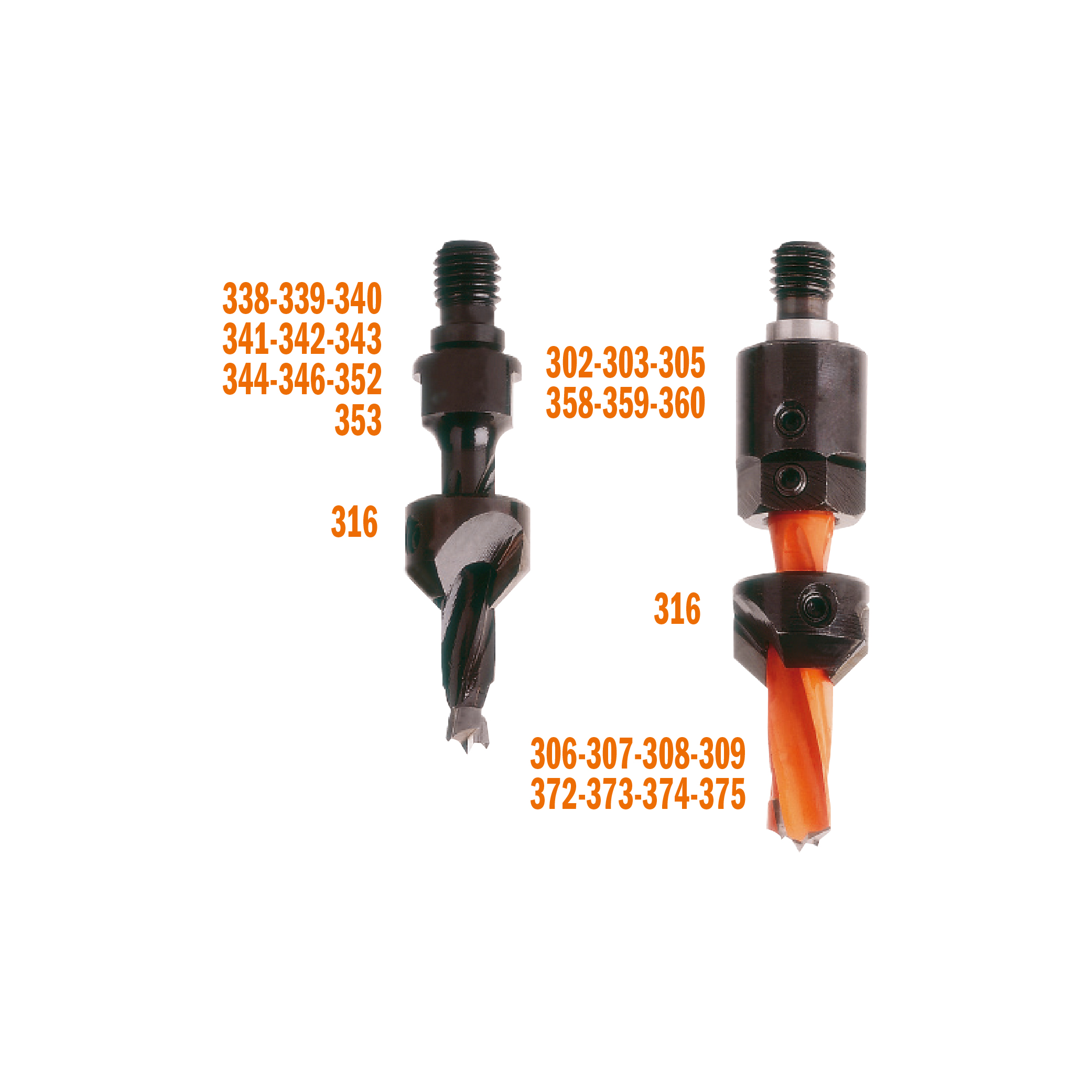

For use with the following parts:
- Adapters:
302-303-305-358-359-360.
302-303-305-358-359-360.
- Dowel Drills:
306-307-308-309-373-374-375-338-339-340-341-342-343-344-346-352-353 HW.
306-307-308-309-373-374-375-338-339-340-341-342-343-344-346-352-353 HW.
TECHNICAL DETAILS:
• Super-strength steel.
• 2 HW precision ground cutting edges [Z2].
• Direct clamp on the shank of the drills.
Application
Used for drilling and chamfering in solid wood, wood composites, plastic and laminated materials.
Variations
Filter

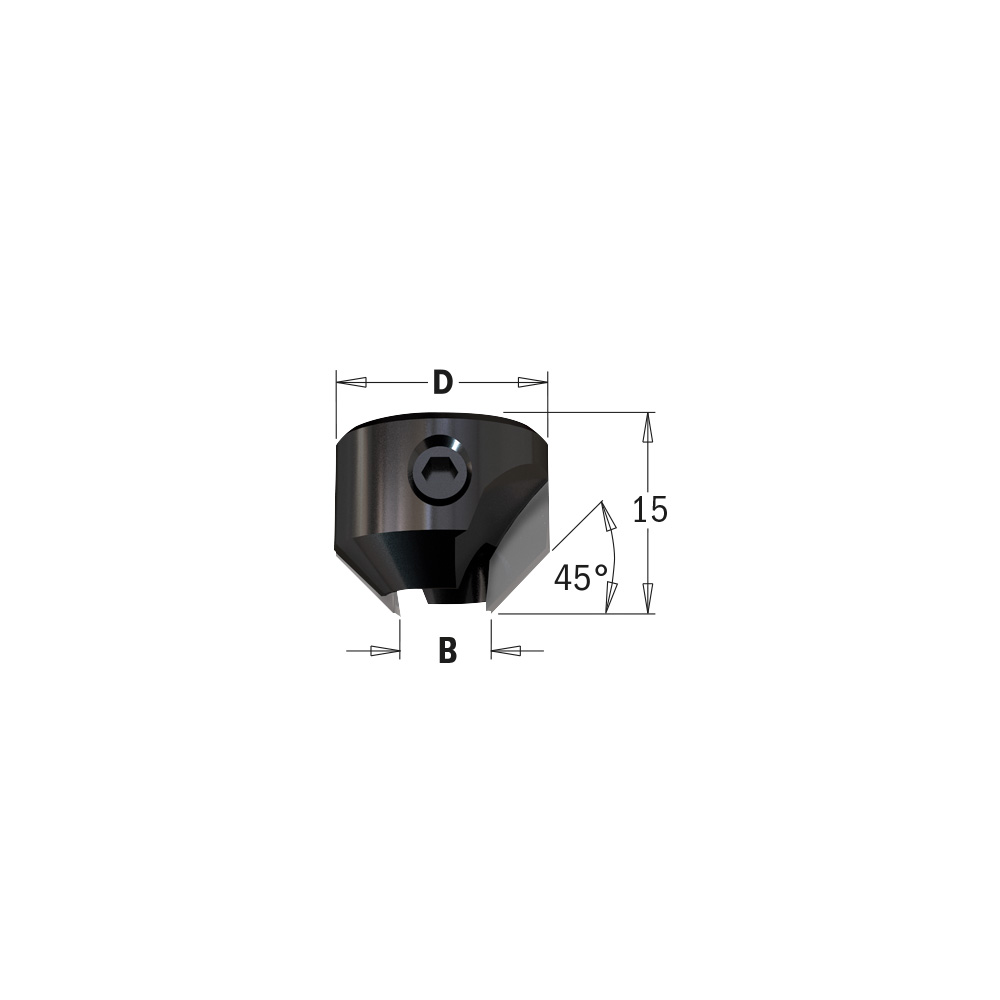

| Item Code | D2 | D | Z | MAT | RH-LH |
|
|
|
|---|---|---|---|---|---|---|---|---|
|
316.040.11
|
5/32'' | 5/8'' | 2 | HW | RH | 991.062.00 | 990.002.00 | |
|
316.040.12
|
5/32'' | 5/8'' | 2 | HW | LH | 991.062.00 | 990.002.00 | |
|
316.050.11
|
13/64'' | 5/8'' | 2 | HW | RH | 991.062.00 | 990.002.00 | |
|
316.050.12
|
13/64'' | 5/8'' | 2 | HW | LH | 991.062.00 | 990.002.00 | |
|
316.060.11
|
15/64'' | 5/8'' | 2 | HW | RH | 991.062.00 | 990.002.00 | |
|
316.060.12
|
15/64'' | 5/8'' | 2 | HW | LH | 991.062.00 | 990.002.00 | |
|
316.070.11
|
9/32'' | 5/8'' | 2 | HW | RH | 991.062.00 | 990.002.00 | |
|
316.070.12
|
9/32'' | 5/8'' | 2 | HW | LH | 991.062.00 | 990.002.00 | |
|
316.080.11
|
5/16'' | 45/64'' | 2 | HW | RH | 991.062.00 | 990.002.00 | |
|
316.080.12
|
5/16'' | 45/64'' | 2 | HW | LH | 991.062.00 | 990.002.00 | |
|
316.090.11
|
23/64'' | 45/64'' | 2 | HW | RH | 991.062.00 | 990.002.00 | |
|
316.090.12
|
23/64'' | 45/64'' | 2 | HW | LH | 991.062.00 | 990.002.00 | |
|
316.100.11
|
25/64'' | 25/32'' | 2 | HW | RH | 991.062.00 | 990.002.00 | |
|
316.100.12
|
25/64'' | 25/32'' | 2 | HW | LH | 991.062.00 | 990.002.00 | |
|
316.120.11
|
15/32'' | 25/32'' | 2 | HW | RH | 991.062.00 | 990.002.00 | |
|
316.120.12
|
15/32'' | 25/32'' | 2 | HW | LH | 991.062.00 | 990.002.00 |
