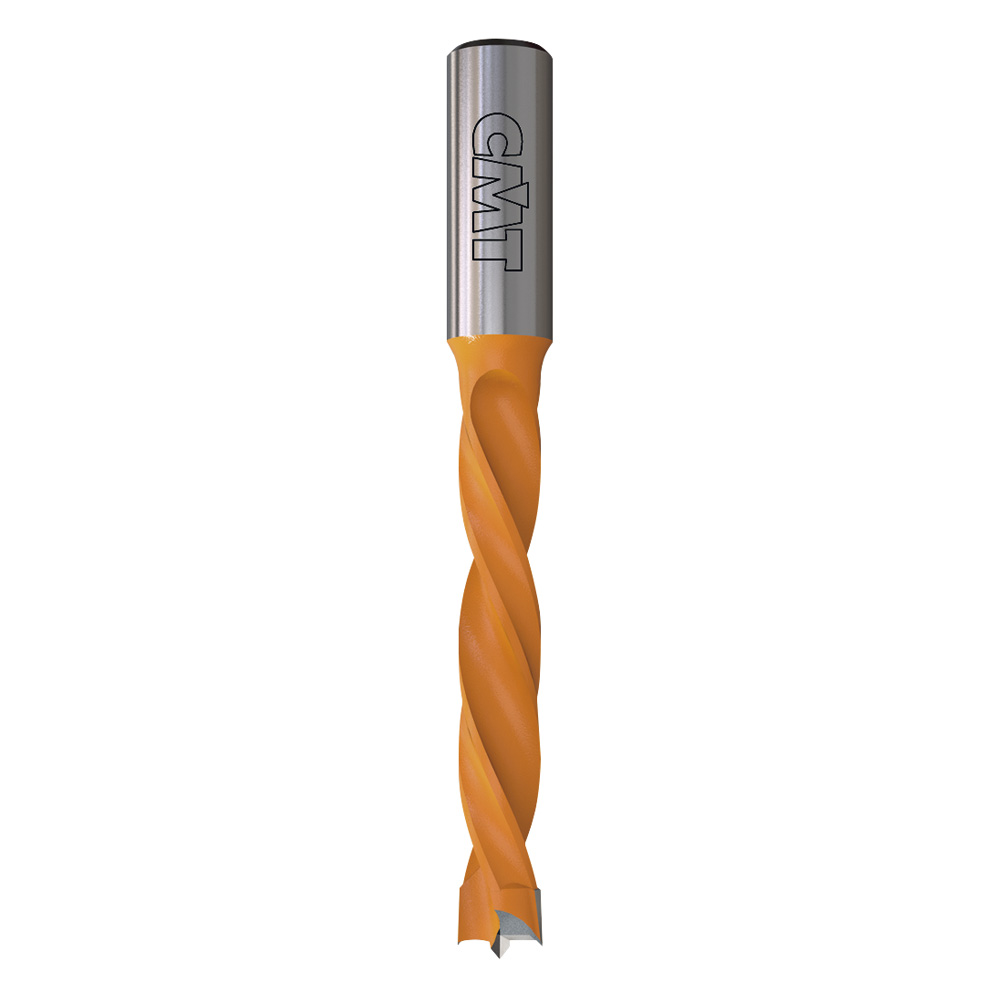

4 flute dowel drills

373 HW

TECHNICAL DETAILS:
Super-strength steel.
Cutter portion coated with black or orange P.T.F.E.

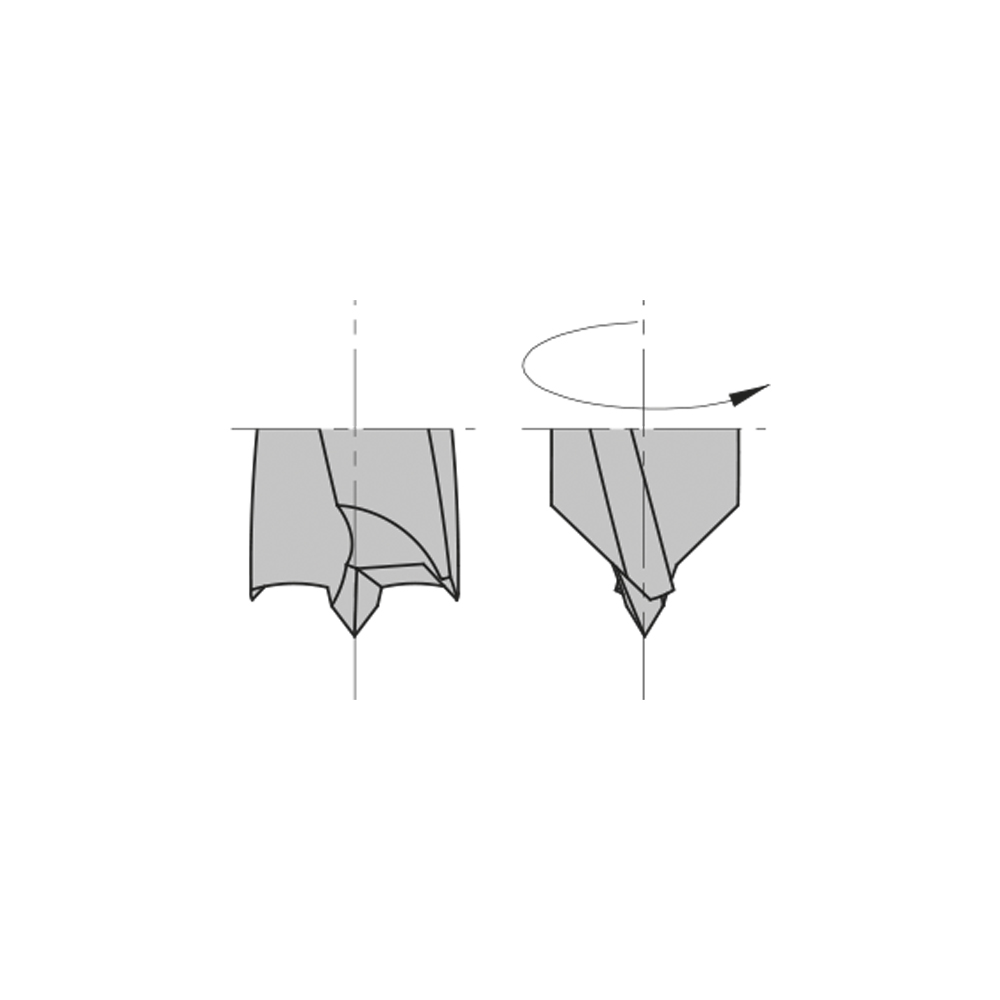

HW head with precision balanced centre point.
2 HW precision ground cutting edges (Z2).
2 negatively ground spurs (V2).
4 spiral flutes.
Parallel shank with driving flat and length adjusting screw.
Details
Used on boring machines equipped with adaptors or chucks.
Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.
Variations
Filter

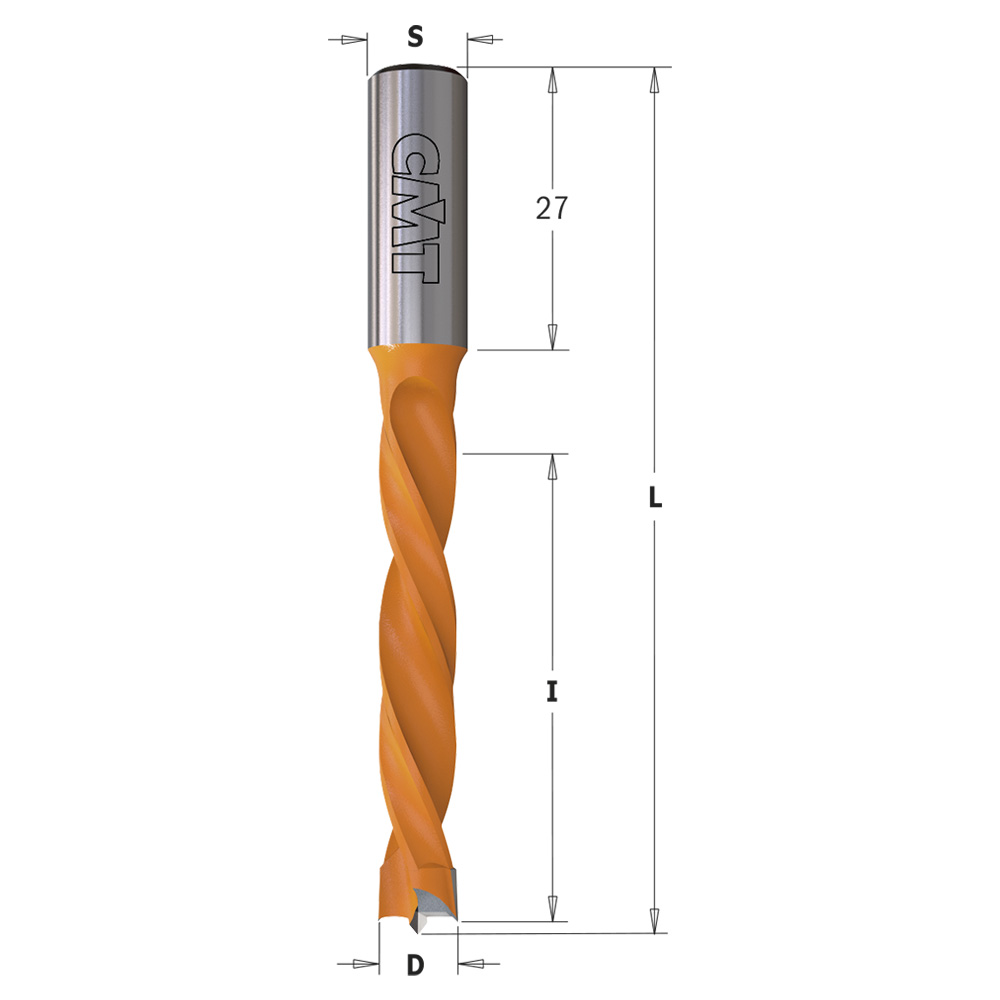

Item Code D I L S RH-LH STIC screw Optional retaining screw for Weeke machines
373.050.11
373.050.11 5mm 50mm 85mm 10x27mm RH 990.003.00 990.088.00
373.050.12
373.050.12 5mm 50mm 85mm 10x27mm LH 990.003.00 990.088.00
373.060.11
373.060.11 6mm 50mm 85mm 10x27mm RH 990.003.00 990.088.00
373.060.12
373.060.12 6mm 50mm 85mm 10x27mm LH 990.003.00 990.088.00
373.080.11
373.080.11 5/16'' 50mm 85mm 10x27mm RH 990.003.00 990.088.00
373.080.12
373.080.12 5/16'' 50mm 85mm 10x27mm LH 990.003.00 990.088.00
373.100.11
373.100.11 10mm 50mm 85mm 10x27mm RH 990.003.00 990.088.00
373.100.12
373.100.12 10mm 50mm 85mm 10x27mm LH 990.003.00 990.088.00
373.120.11
373.120.11 12mm 50mm 85mm 10x27mm RH 990.003.00 990.088.00
373.120.12
373.120.12 12mm 50mm 85mm 10x27mm LH 990.003.00 990.088.00
