552-0 Diamond dry hole saws for drill

552-0

Suggestions for use:









Turn on the drilling machine to start rotation and bring the bit up to speed. Begin drilling at a 30° angle – this is the angle measured between the hole saw and the working surface. Cutting at an angle will prevent tool slippage, allow for perfect centering and increase cutting precision. To gain improved stability through the drilling process, it is advised to rest the drilling machine on the working surface.





Continue the cut vertically, accompanying the tool in an orbital motion. This will favor better cooling and chip evacuation.  (If you are using a guide, begin the cut vertically, then lift the guide and continue cutting in an orbital motion).





Remember that the tool you are using is not a drill bit. This means that attempting to bore holes perpendicular to the work surface on a frequent basis will drastically reduce the life of your hole saw.

Using water as a cooling agent may help extend the life of the hole saw.

Ensure to deactivate the percussion/hammer mode.

Details
SUGGERIMENTI DI UTILIZZO:

Iniziate la foratura (con l’utensile già in rotazione) con un angolo di circa 30° tra la sega a tazza e il piano, in questo modo eviterete lo slittamento dell’utensile e otterrete un centraggio più preciso (in questa fase appoggiate la macchina al piano, in modo d’avere più stabilità).


Continuate la foratura verticalmente ma accompagnando l’utensile con un movimento orbitale che favorisca il raffreddamento e l’evacuazione del materiale lavorato (se utilizzate la guida iniziate la foratura verticalmente, poi toglietela e continuate in maniera orbitale).

Ricordate che non si tratta di una punta, ma di una fresa, quindi una foratura perfettamente perpendicolare ridurrà notevolmente la vita dell’utensile.



Il raffreddamento ad acqua può aumentare la vita dell’utensile.

Disattivare il meccanismo a percussione.
Variations
Filter

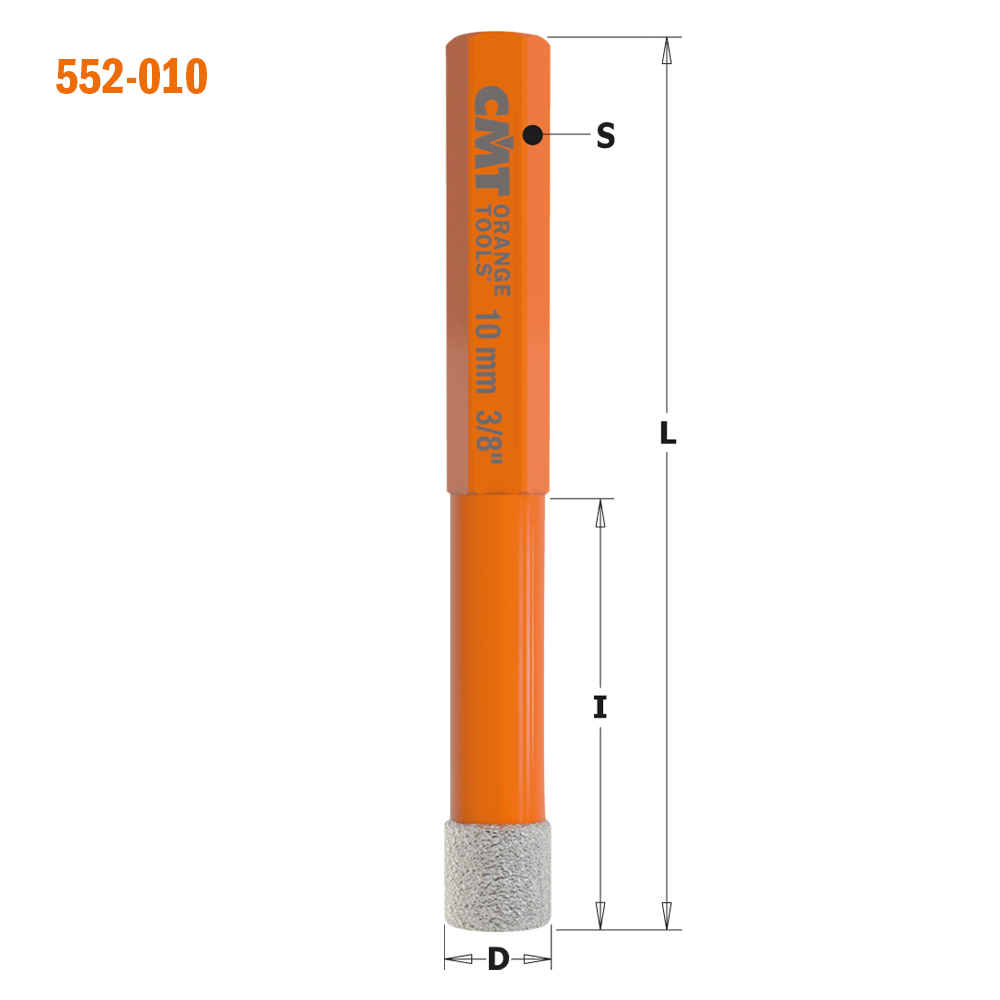

Item Code D I L RPM S QTY
552-005

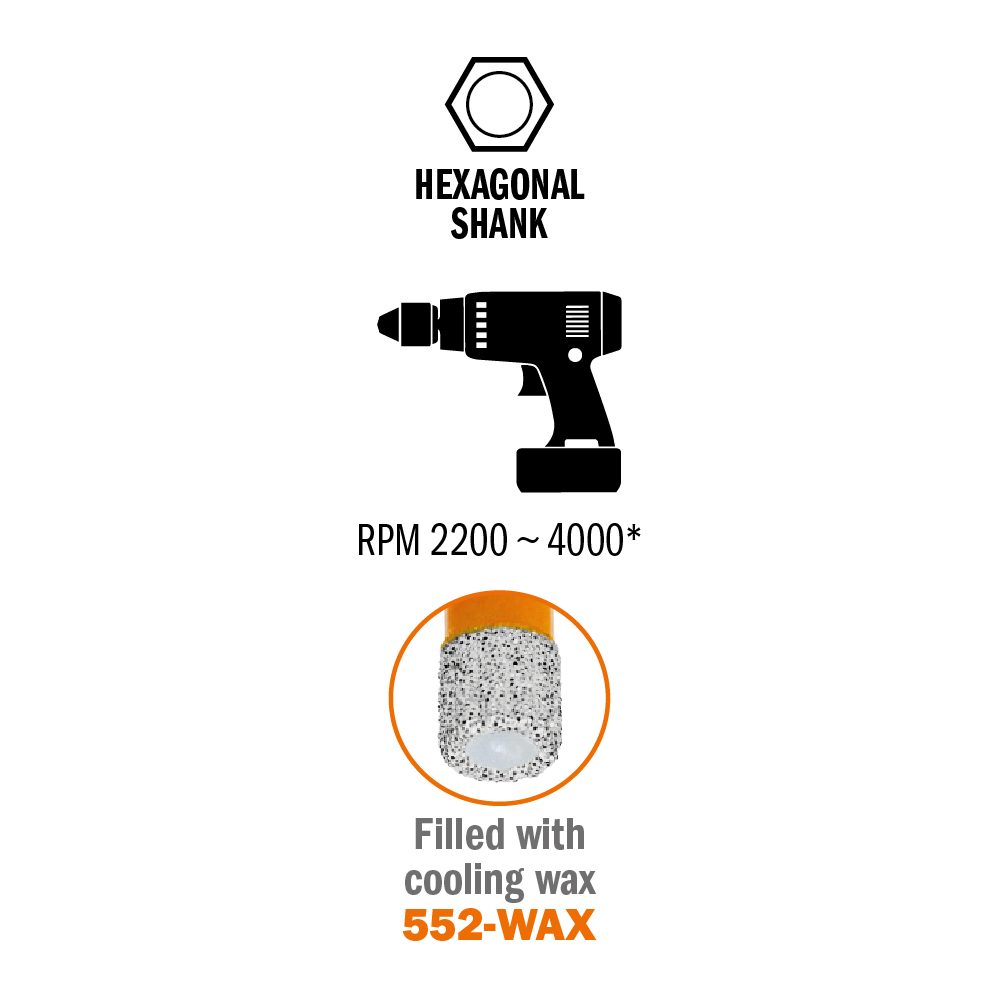

552-005 3/16'' 1-3/8'' 2-11/16'' 2200 - 4000 HEXAGONAL 10
552-006
552-006 1/4'' 1-3/8'' 2-11/16'' 2200 - 4000 HEXAGONAL 10
552-008
552-008 5/16'' 1-3/8'' 3-1/8'' 2200 - 4000 HEXAGONAL 10

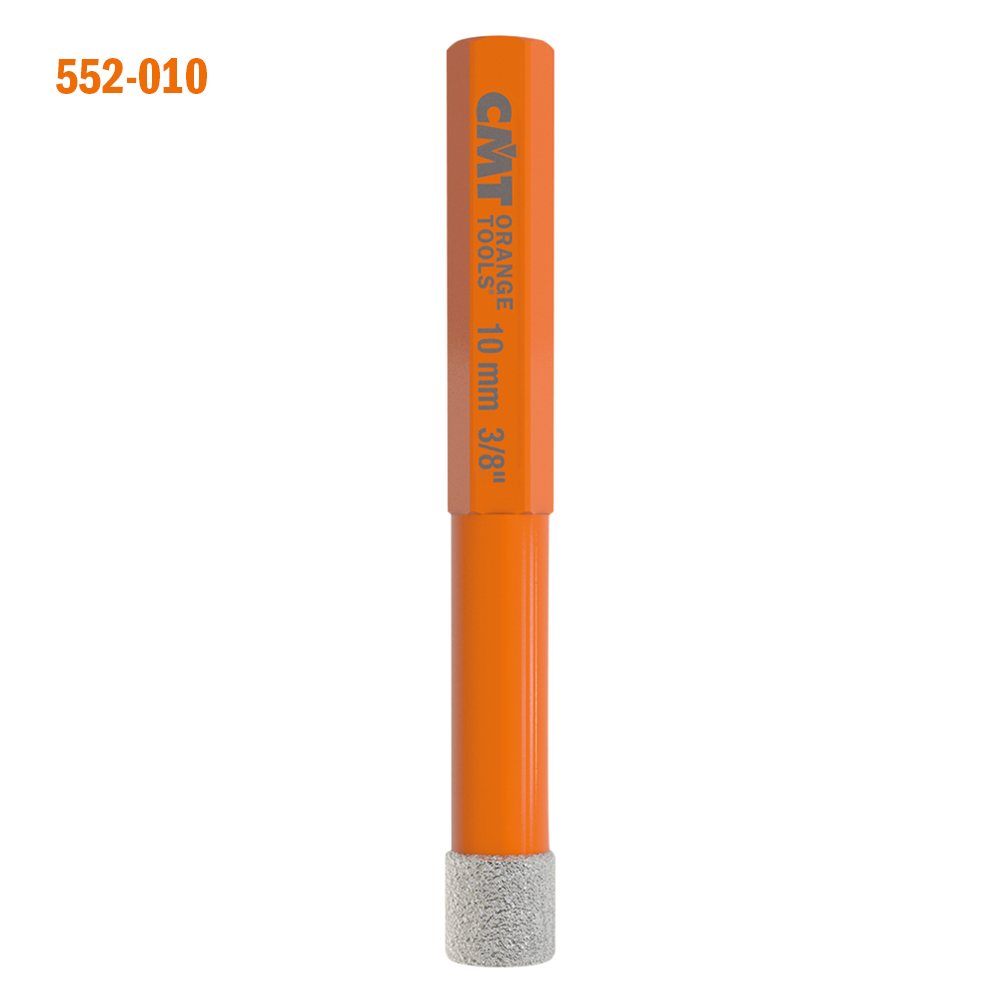

552-010
552-010 3/8'' 1-3/8'' 3-1/8'' 2200 - 4000 HEXAGONAL 10
552-012
552-012 1/2'' 1-3/8'' 3-1/8'' 2200 - 4000 HEXAGONAL 10
552-014
552-014 9/16'' 1-3/8'' 3-1/8'' 2200 - 4000 HEXAGONAL 10
552-016
552-016 5/8'' 1-3/8'' 3-1/8'' 2200 - 4000 HEXAGONAL 10

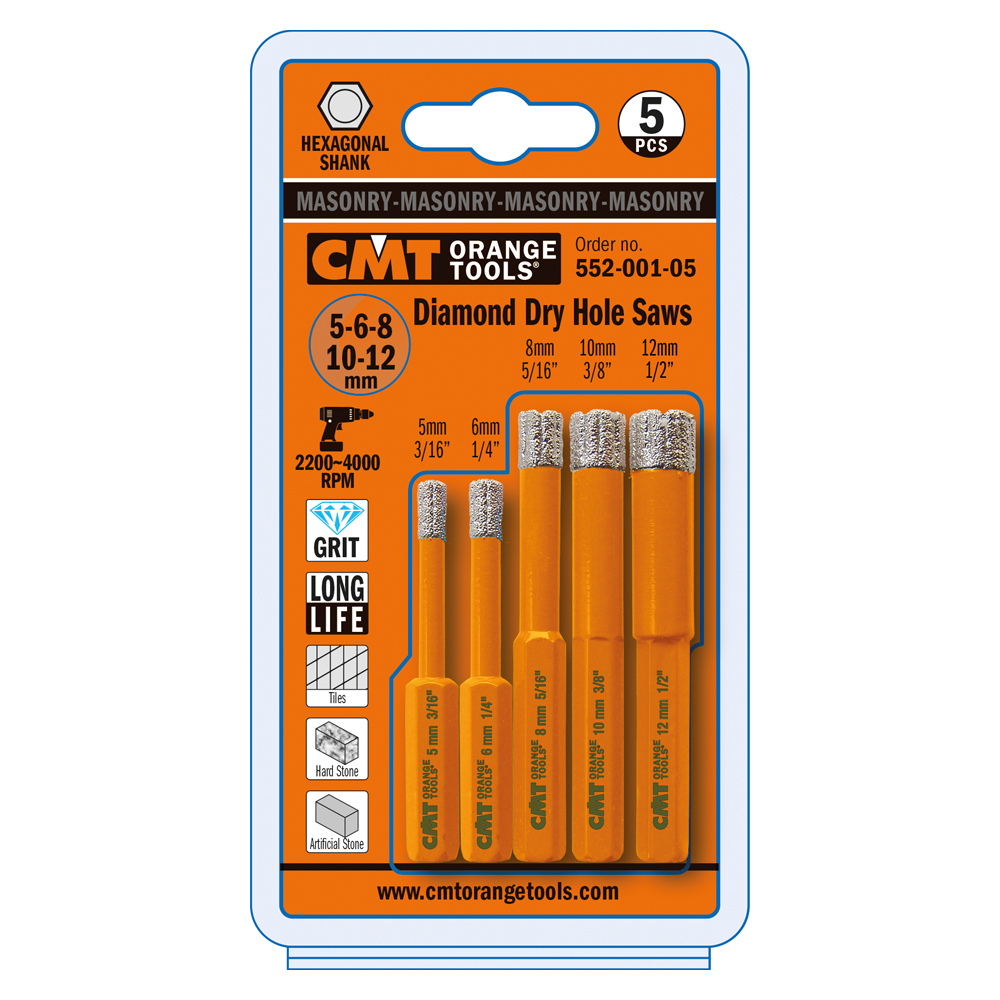

552-001-05
552-001-05 1500 - 4000 10
