FINE FINISH

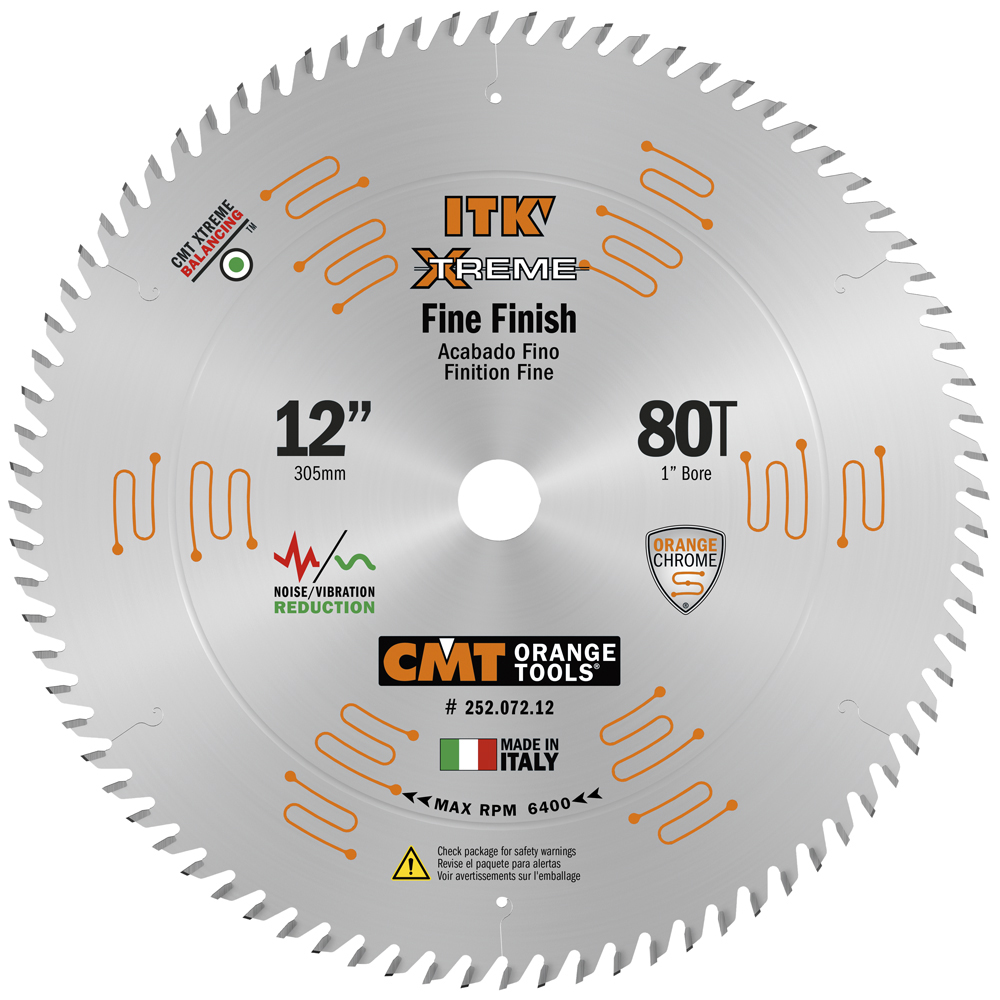

252.072.12
.png) |
INDUSTRIAL CHROMIUM MICROGRAIN CARBIDE
Cutting teeth are made from a specially formulated chromium micrograin carbide which stays sharper longer by reducing cutting edge abrasion, improving cut quality and tool life. |
 |
TRI-METAL BRAZING
The Silver-Copper-Silver tri-metal brazing process lets the teeth with stand severe impact caused by cutting harder wood and composite material. |
 |
CHROME® COATING
Blade plate is covered with a chrome layer to protect your tool against corrosion and rust, guaranteeing longer tool life. |
.png) |
LASER-CUT HEAT EXPANSION SLOTS
Engineered to allow the blade to expand when heat build-up occurs from use, preventing blade warping. |
.png) |
Unique patented dynamic balancing several orders of magnitude above
and beyond that which is currently available in the marketplace. |
|
|
TENSIONING RING (10” and above)
A visible tensioning ring on the blade provides stability while cutting and perfect concentricity during rotation. |
 |
PRECISION MIRROR FINISH SHARPENING
Each tooth is ground to razor sharp precision on a multi-axis CNC machine which creates perfect edge angle, guaranteeing extra-clean cuts and extended life. Featuring less than 0.25 μm Rmax in edge roughness. |
Variations
Filter

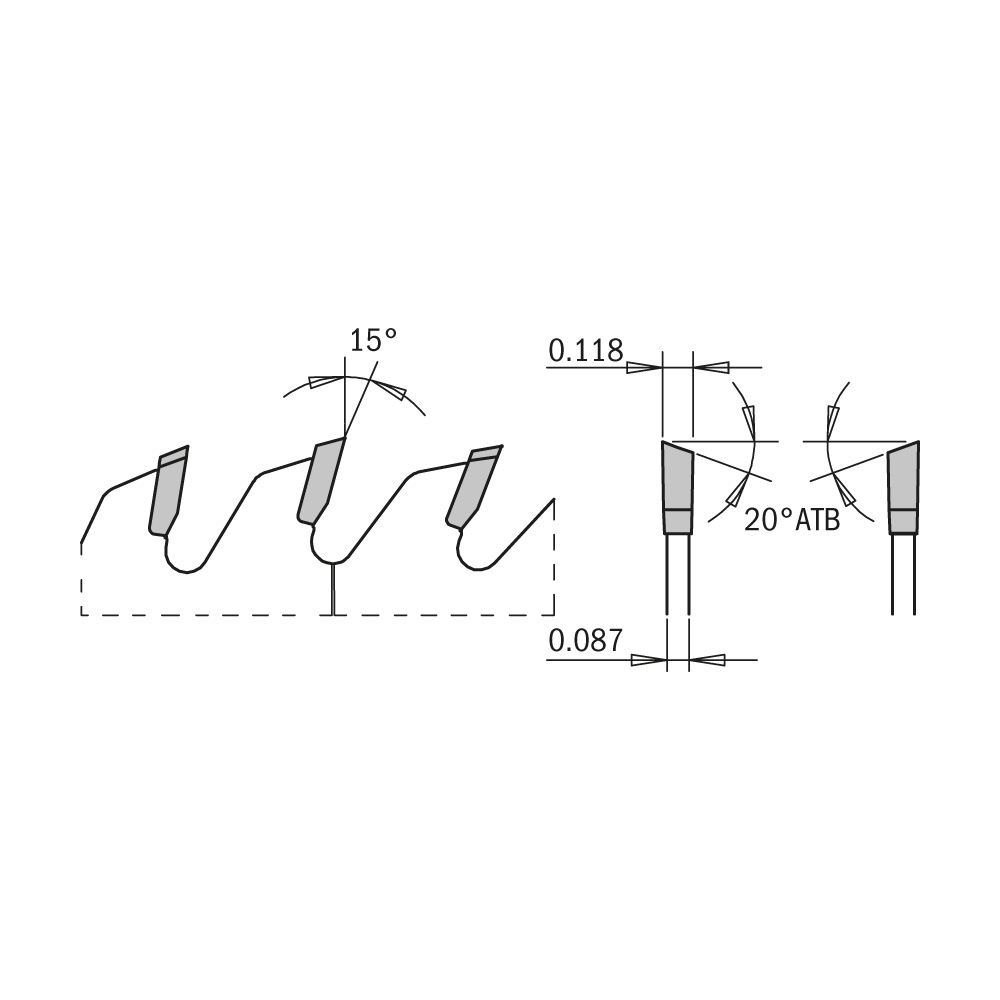

| Item Code | D | B | Z | K | P | β | α | MAX RPM | |
|---|---|---|---|---|---|---|---|---|---|
|
252.072.12
|
12 | 1 | 80 | 0.118 | 0.087 | ATB 20 | 15 | 6400 |
