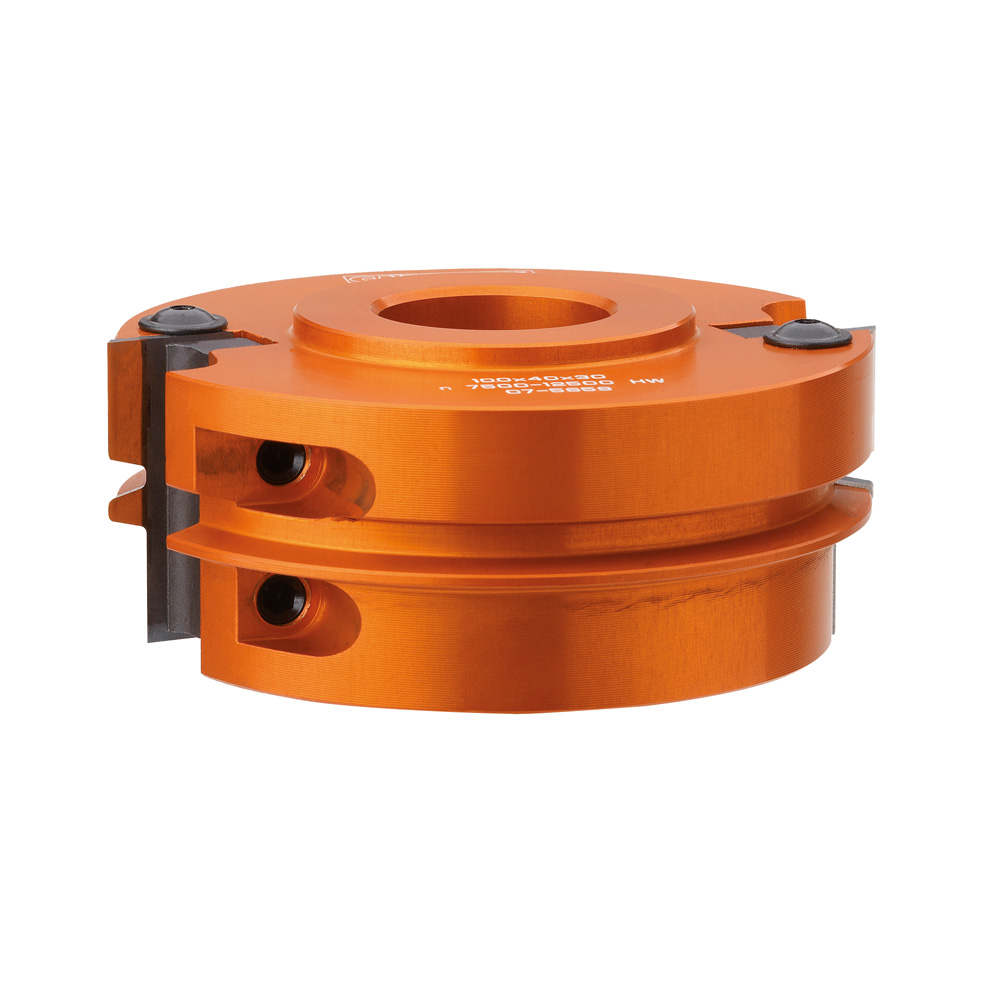

Reverse glue joint cutter heads

694.009

One of the unique characteristics of this particular CMT cutter head is its capacity to craft indestructible glue joints both quickly and accurately. Ideal for shaping panels, doors and furniture pieces of wide proportion.

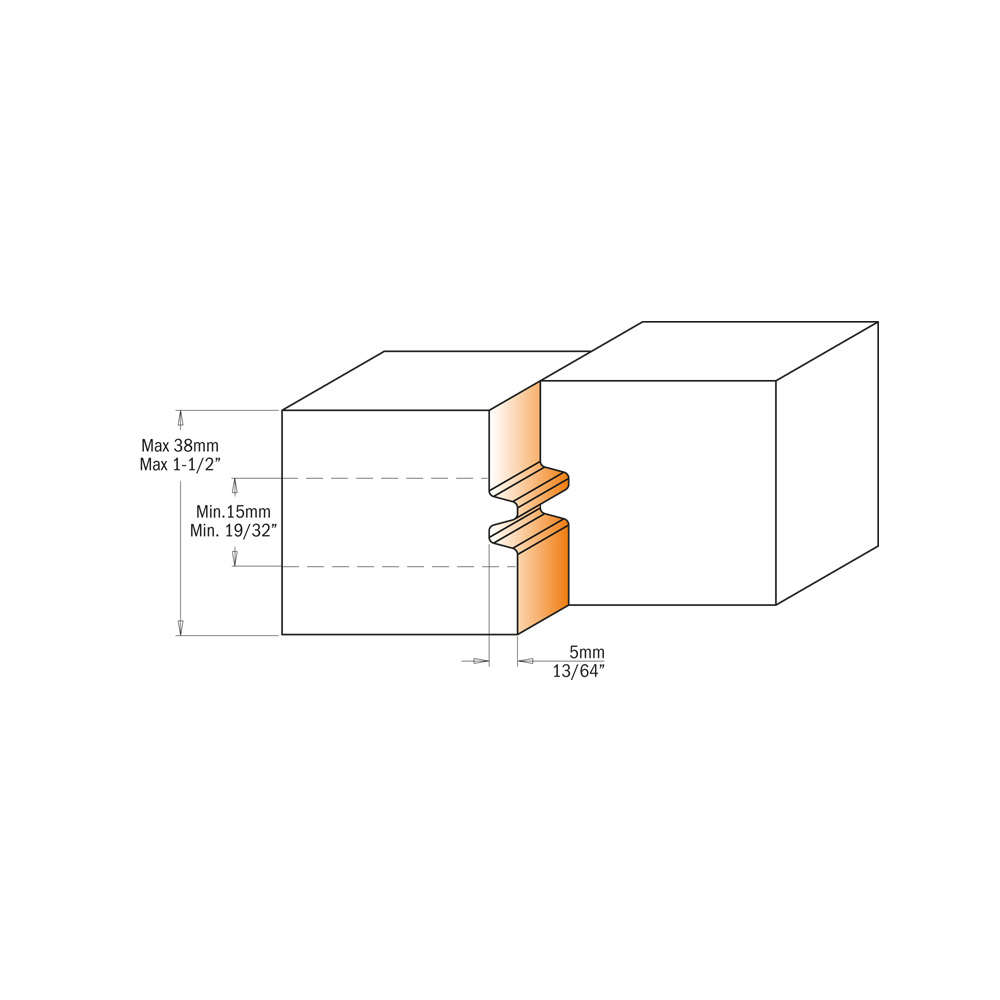

Simply run one side of the panel, turn the panel over, and then run the opposite side. The result? Perfectly harmonized reverse cuts which match up to produce a flawless joint. Excellent for most materials, but ideal on solid wood, coated and uncoated man-made materials.


Technical details
  • Hard aluminium alloy body with high resistance to tensile and yield stress.
  • 2 HWM knives 40x18x2mm [Z2].
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.

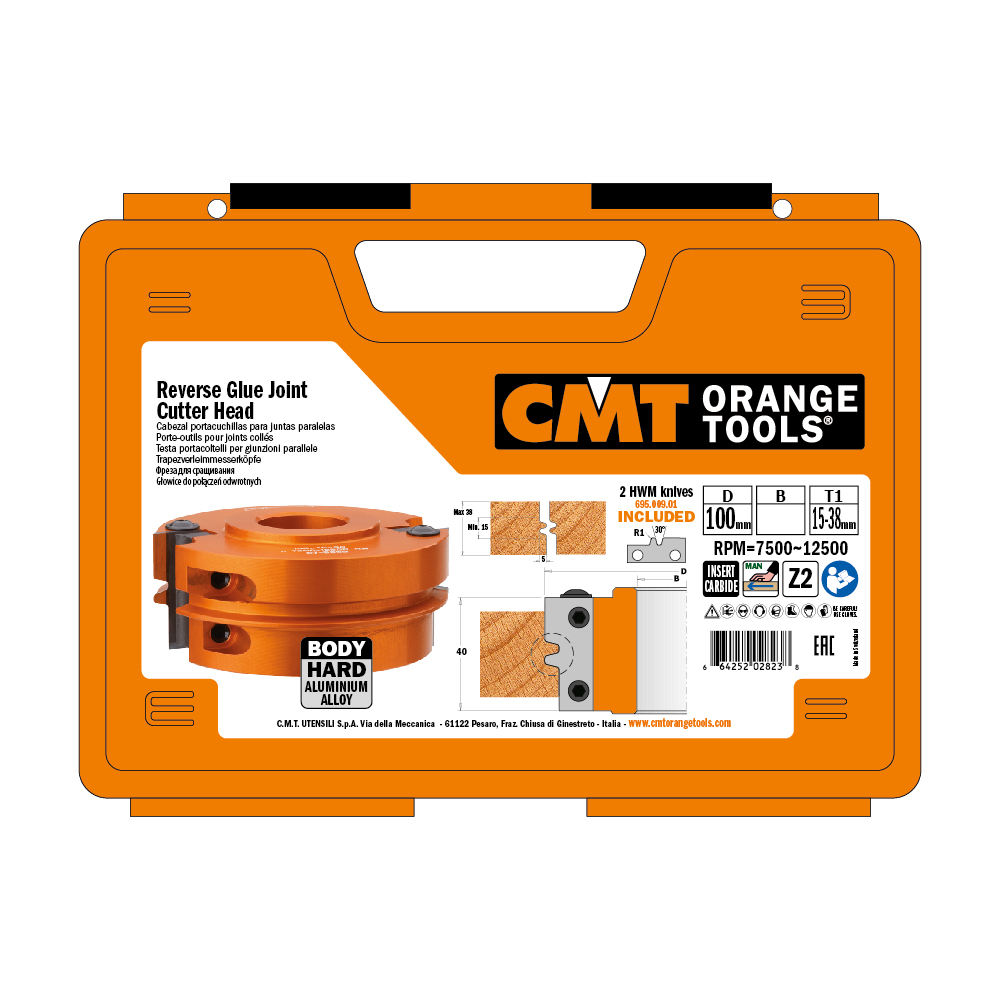

Supplied in a solid plastic box.
Details

Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.



Variations
Filter
Item Code D B Z RPM MAT Pair of profiled knives 695.999.38 990.064.00 Allen key 4mm
694.009.31
694.009.31 4'' 1-1/4'' 2 7500~12500 HW 695.009.01 695.999.38 990.064.00 991.064.00
