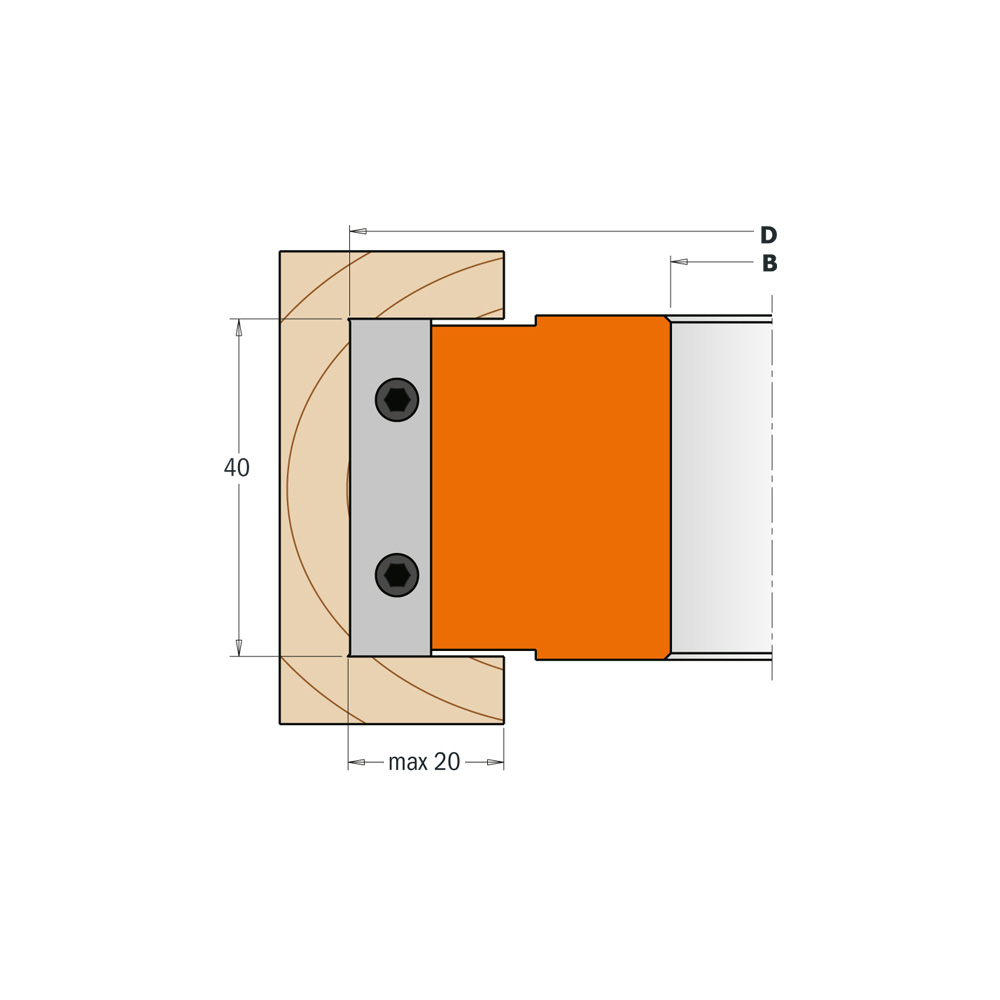

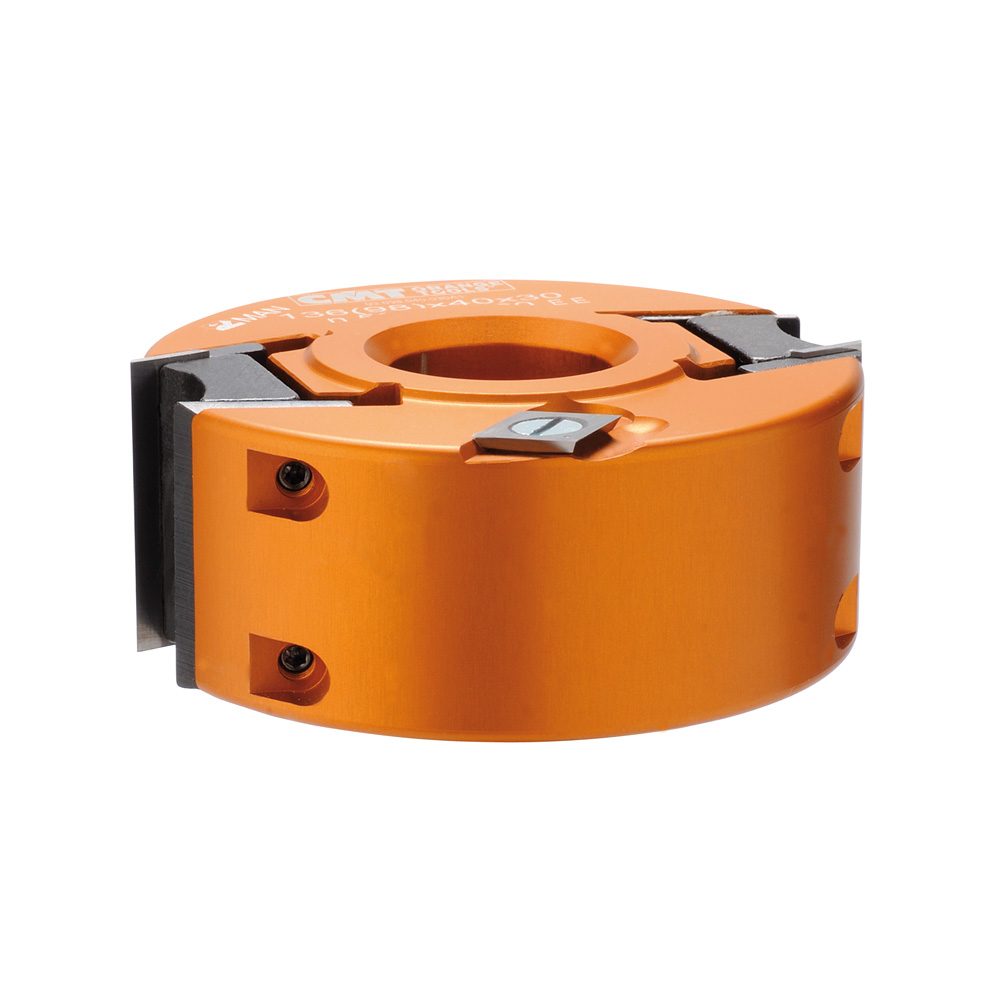

Cutter heads for rabbeting and 40mm (1-37/64") profile knives
Cutter heads for rabbeting and 40mm (1-37/64") profile knives
Cutter heads for rabbeting and 40mm (1-37/64") profile knives
Cutter heads for rabbeting and 40mm (1-37/64") profile knives
Cutter heads for rabbeting and 40mm (1-37/64") profile knives
Cutter heads for rabbeting and 40mm (1-37/64") profile knives
Cutter heads for rabbeting and 40mm (1-37/64") profile knives
Cutter heads for rabbeting and 40mm (1-37/64") profile knives

Cutter heads for rabbeting and 40mm (1-37/64") profile knives

694.020

These cutter heads have been designed for:
  • rabbeting from either top or bottom;
  • jointing
  • grooving

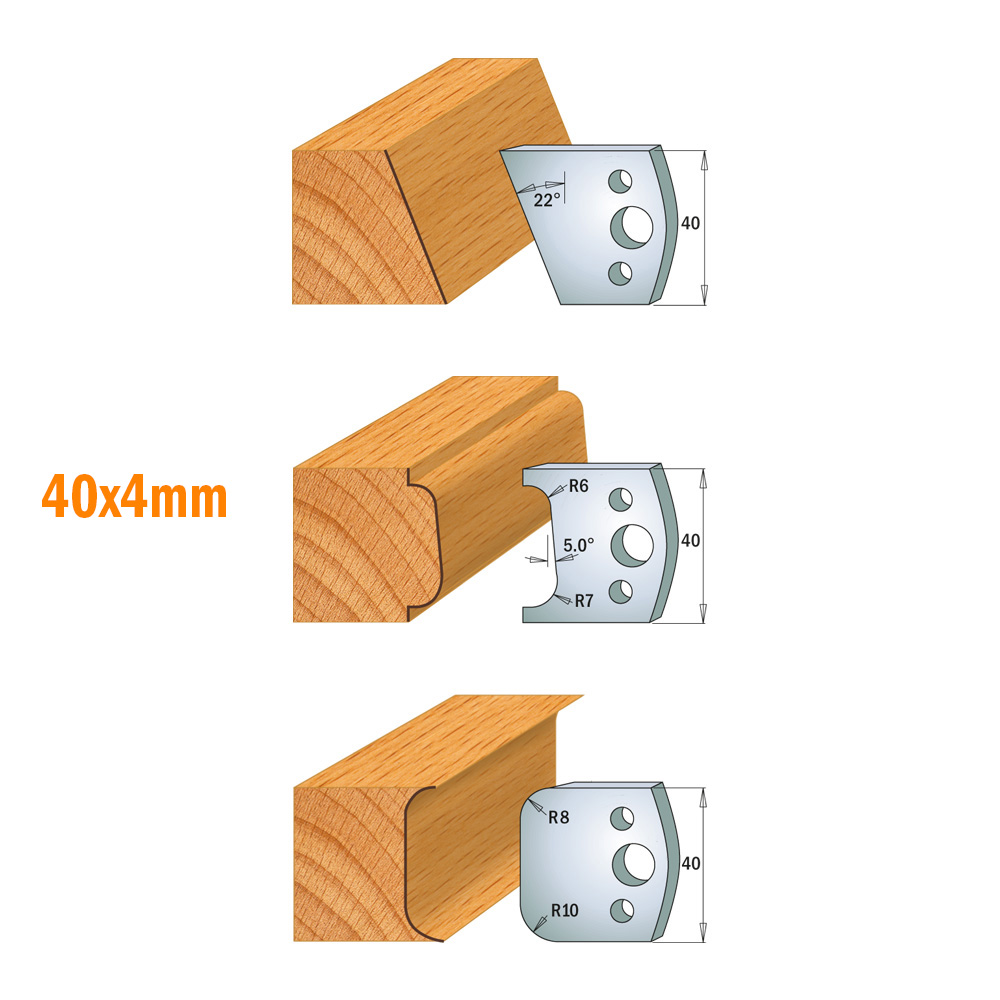

  • 40mm SP profile knives.

For use on spindle moulder machines, double-end tenoners and edging machines.
Suitable for all materials, but best on chipboard, MDF, wood composites, plastic materials and
laminates.

Technical details:
  • Hard aluminium alloy body with high resistance to tensile and yield stress.

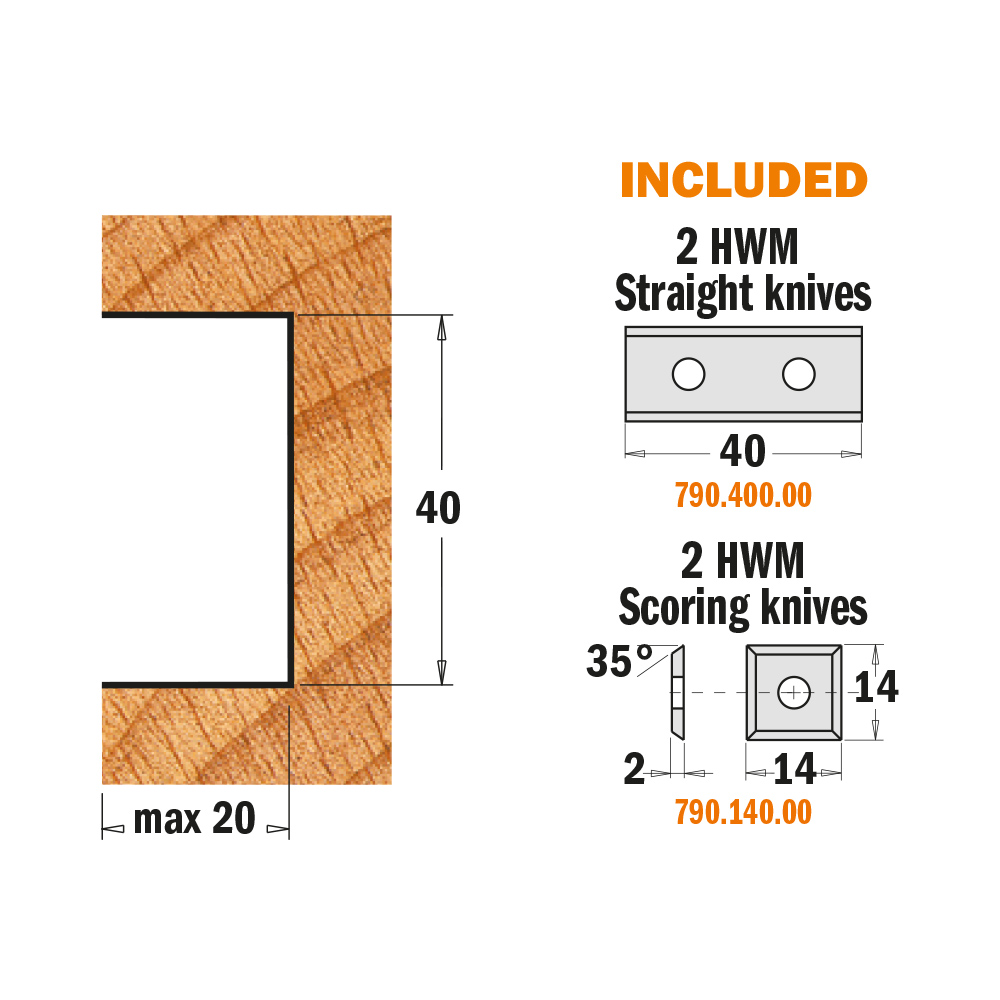

  • 2 universal HWM straight knives 40x12x1,5mm [Z2].
  • 2 universal HWM scoring knives 14x14x2mm [V2].
  • Tools for manual feed (MAN).

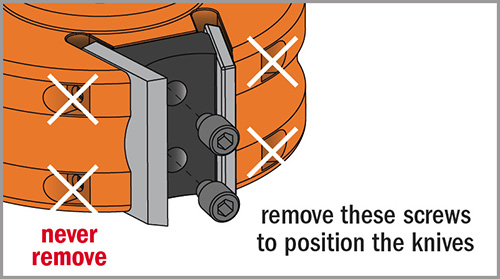

  • Pins for the automatic positioning of the knives.

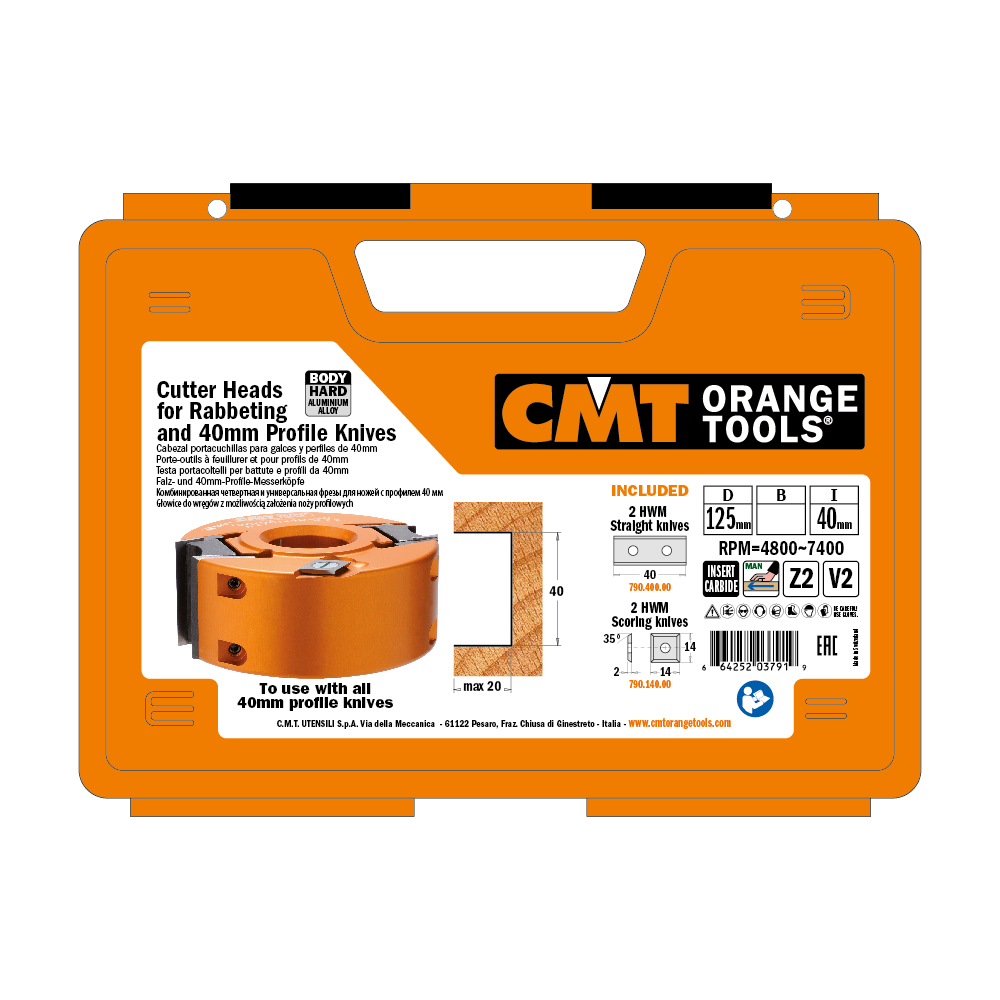

Supplied in a solid plastic box.
Application



790.140.00 and 790.400.00
are supplied in 10-piece pack or multiple.


Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.



Variations
Filter
Item Code D B I Z Spurs RPM MAT Indexable knife Vite TCPTI 991.073.00 790.400.00 Wedge STEI screw Allen key 4mm
694.020.31
790.140.00 990.093.00 991.073.00 790.400.00 693.999.01 990.065.00 991.064.00
