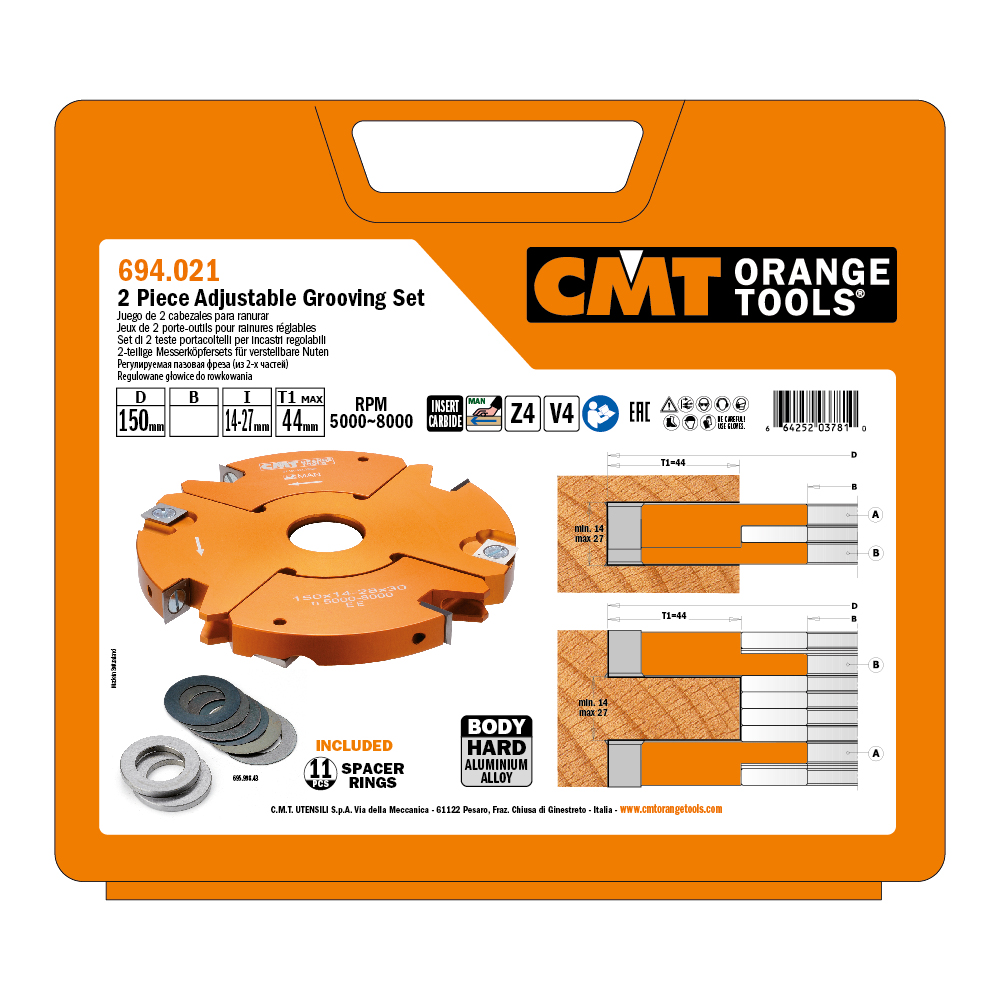

Adjustable Grooving Cutter Head Set (2 pcs.)

694.021-022

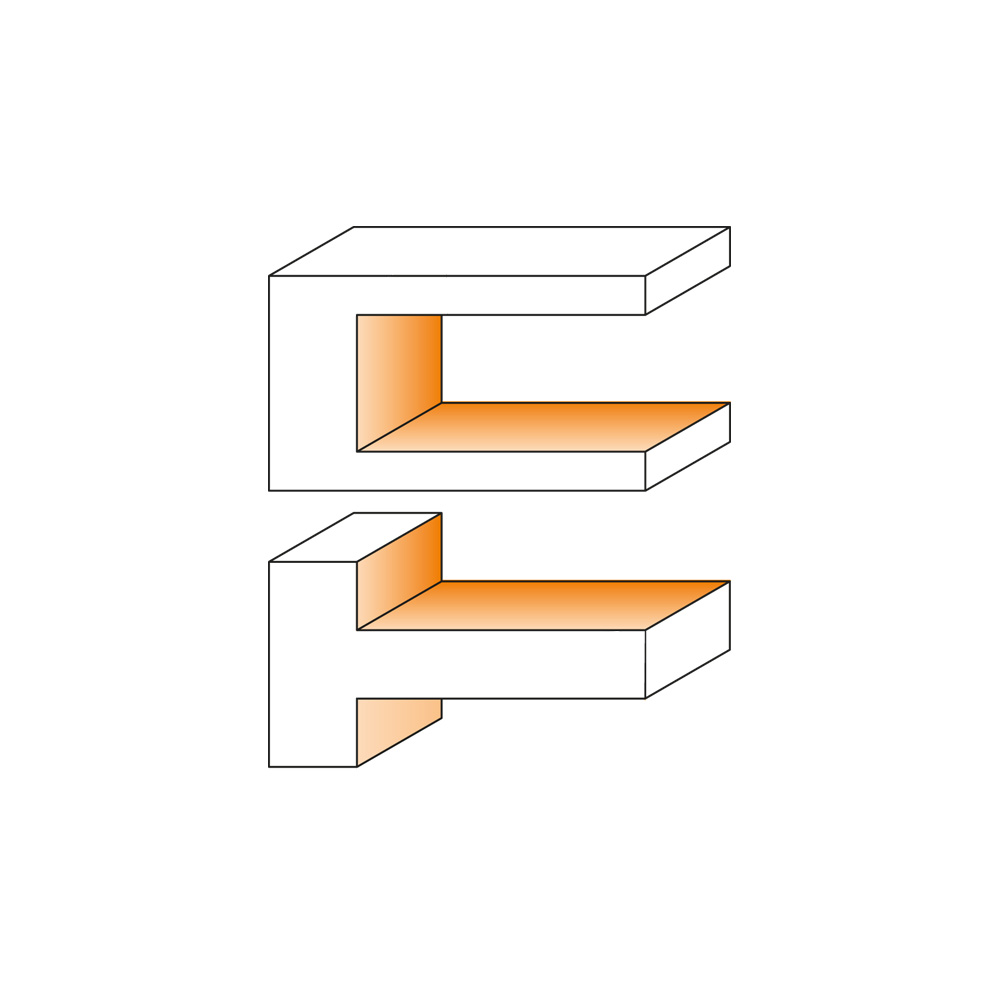

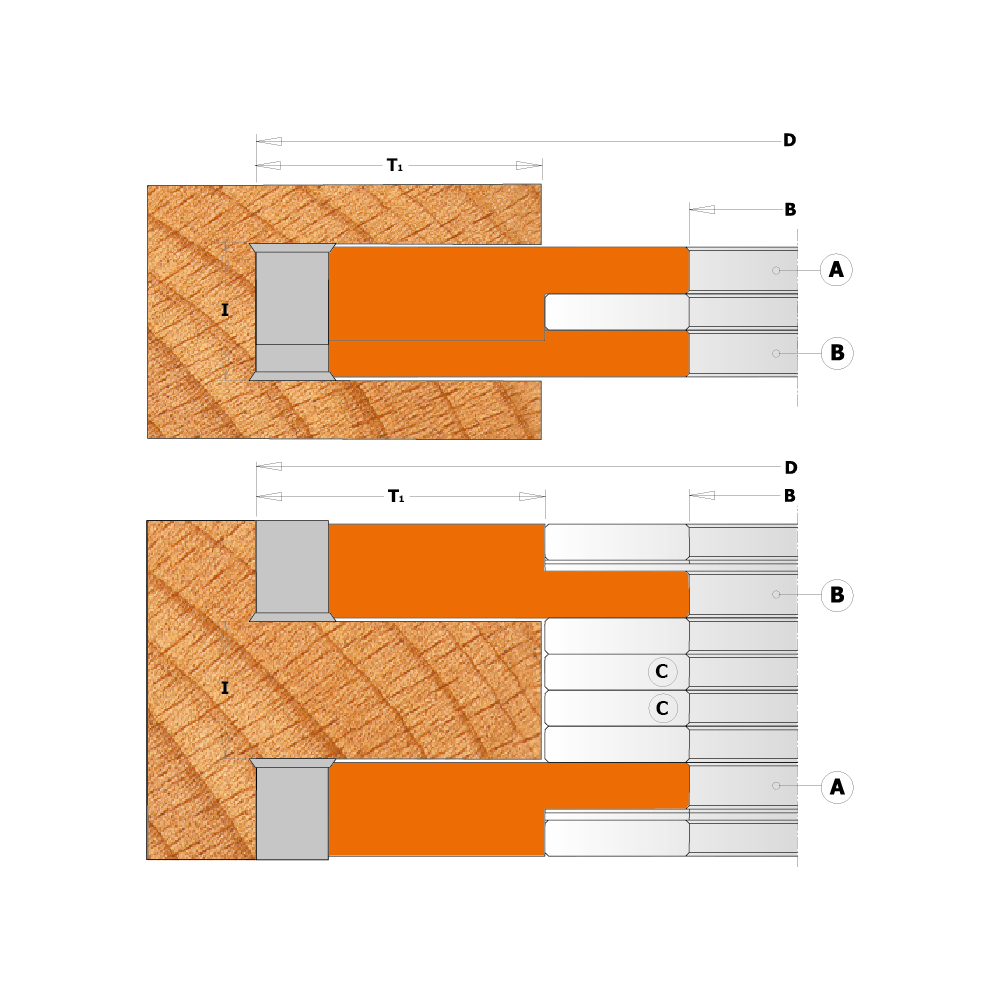

These cutter heads are the ideal tools to create precision slots and grooves on material from 14 to 39mm deep.

The
694.021-022 set includes:
  • 1 cutter head type (A) [Z2 + V2];
  • 1 cutter head type (B) [Z2 + V2];
  • Spacer rings set.

For use on spindle moulder machines, double-end tenoners and shaper machines.
Perfect grooving on
all materials, but ideal on solid wood, plywood and laminated panels.


Technical details:
  • Super-strength hard aluminium alloy body.
  • 694.021: 8 HWM knives 13,6x13,6x2mm.
  • 694.022: 4 HWM knives 19,5x12x1,5mm; 4 HWM knives 14x14x2mm.
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.


Supplied in a solid plastic box.

Details
Spacers Set:
790.136.00, 790.140.00 and 790.195.12
are supplied in 10-piece pack or multiple.


Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.






Variations
Filter
Item Code D I B T Z Spurs MAX RPM MAT Indexable knife Indexable knife Vite TCPTI 790.195.12 TCPTI screw
694.021.31
694.021.31 5-29/32'' 9/16'' - 1-1/16'' 1-1/4'' 44mm 4 4 5000~8000 HW 790.136.00 990.093.00
694.022.31
694.022.31 6-45/64'' 25/32'' - 1-35/64'' 1-1/4'' 54mm 4 4 4400~7400 HW 790.140.00 990.093.00 790.195.12 990.094.00
