LASER-CUT HIGH QUALITY STEEL PLATE BODY
Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting. |
|
LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it. *This feature improves cut quality and extends blade life. *In full compliance with National Noise Emission Standards and Regulations. |
|
SILVER BRAZING
Silver Alloy Brazing prevents carbide from breaking during the cooling process
and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
![]() |
INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F) and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages. |
|
SHEAR ANGLE SHARPENING
The shear angle grinding, on the front face of the teeth, reduces the required cutting force thereby allowing for smoother cutting. |
![]() |
ORANGE SHIELD® NON-STICK PTFE COATING
• Protects against corrosion and rust. • Reduces resin and residue build-up. • Reduces overheating and blade drag. • Improves performance and cutting life. |

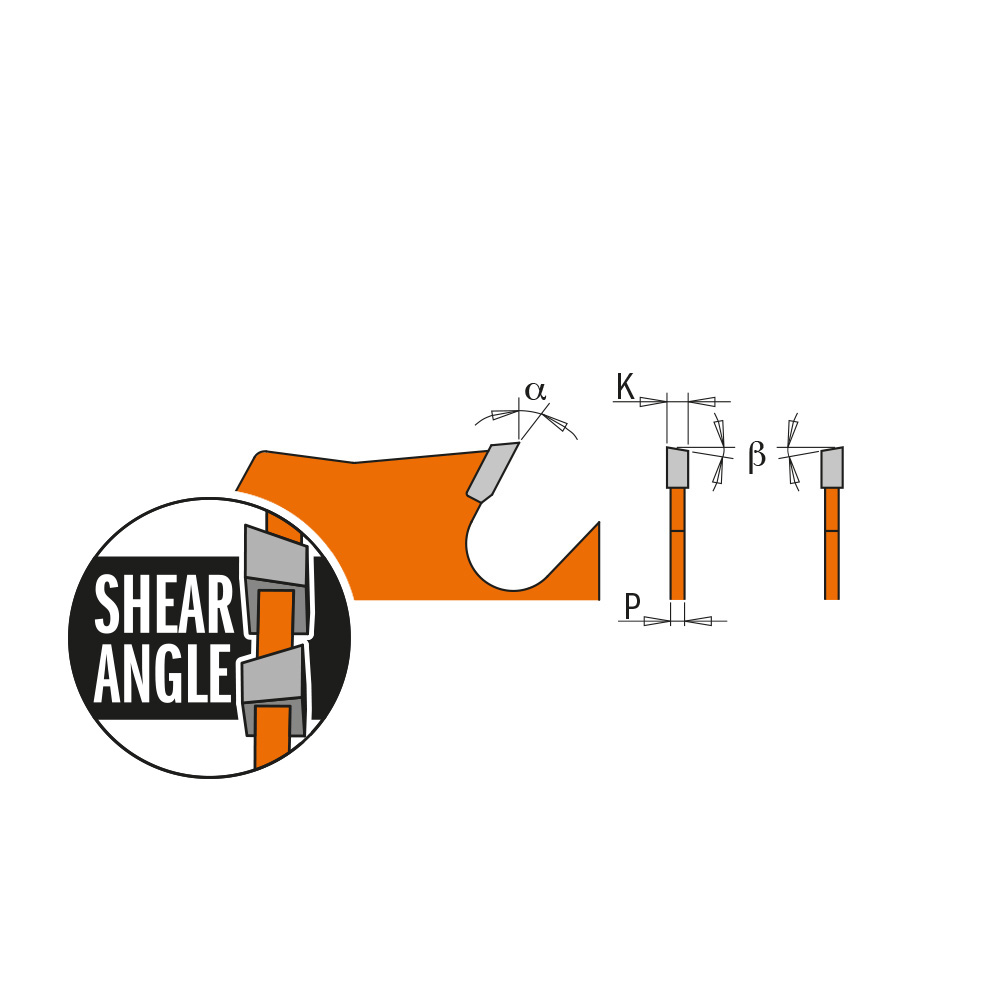

Item Code | D | B | PH | Z | K | P | α | β |
---|---|---|---|---|---|---|---|---|

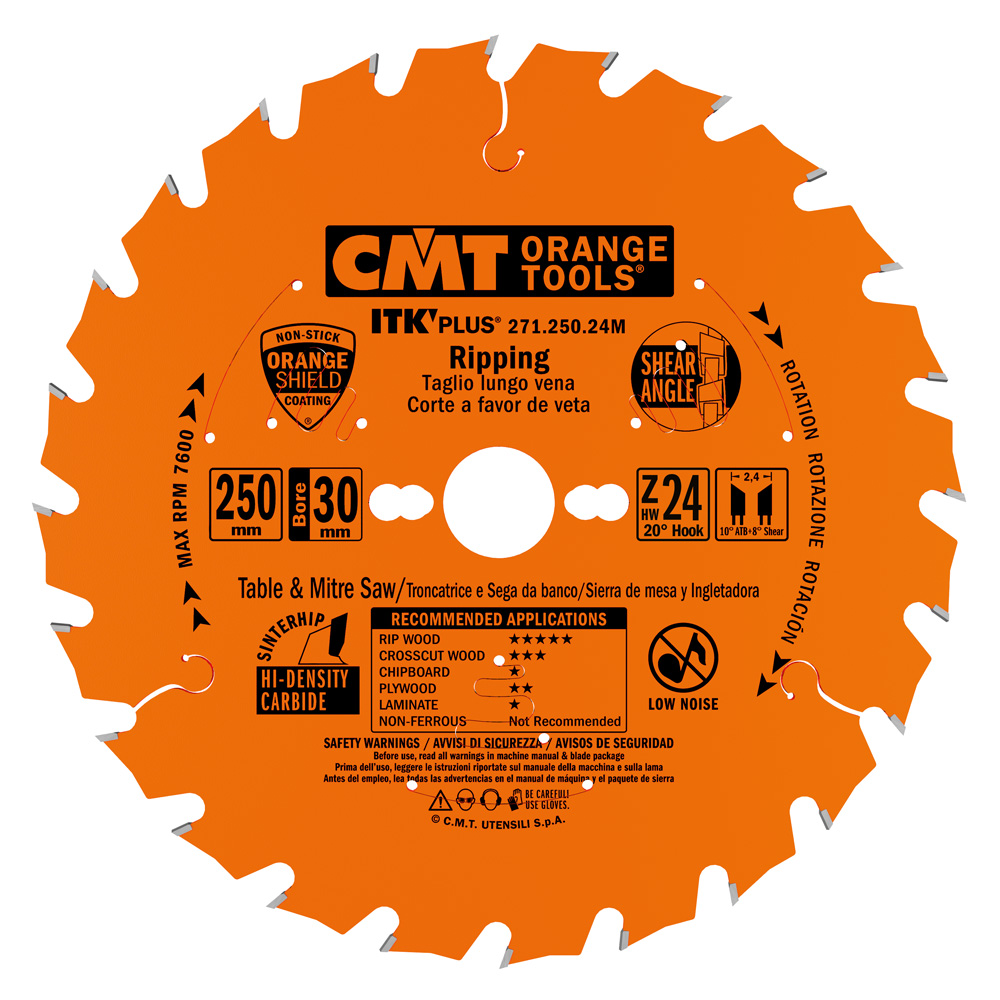

271.250.24M
|
250 | 30 | COMBI3 | 24 | 2.4 | 1.6 | 20 | ATB 10 + SHEAR 8 |
271.300.24M
|
300 | 30 | COMBI3 | 24 | 2.6 | 1.8 | 22 | ATB 10 + SHEAR 8 |
