Industrial low noise and chromed saw blades
285.chromefine
|
|
LASER-CUT PREMIUM QUALITY STEEL PLATE BODY
Made with 46-48 HRC premium quality harmonic steel from Germany and laser-cut to perfection providing tighter tolerances translating to longer life and accurate cutting ability. |
 |
LASER-CUT SOUND DAMPENING SLOTS POLYMER-FILLED
Slots filled with sound-dampening polymer reduce vibrations and noise by 25% compared to blades without it.* *This feature improves cut quality and extends blade life. *In full compliance with National Noise Emission Standards and Regulations. |
|
|
TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application. |
 |
TRI-METAL BRAZING
Silver-Copper-Silver Tri-Metal Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials. |
 |
INDUSTRIAL CHROME CARBIDE
Cutting teeth are made from a specially formulated chrome carbide which stays sharper longer by reducing cutting edge abrasion, improving cut quality and tool life. |
 |
PRECISION MIRROR FINISH SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.25 µm Rmax in edge roughness. |
 |
ORANGE CHROME® COATING
- Protects the tool against corrosion, rust and accumulation of resin and residues. - Guarantees longer tool life. - Lower power absorption by motor. - Smoother blade movement throughout cutting operation. - Tool maintenance is fast and easy. |
.png) |
CMT XTREME BALANCING*
This system allows for extremely accurate dynamic balancing of the blade, several orders of magnitude above and beyond that which is currently available in the marketplace. *TRADEMARK & INT. PAT. PEND. |
Variations
Filter

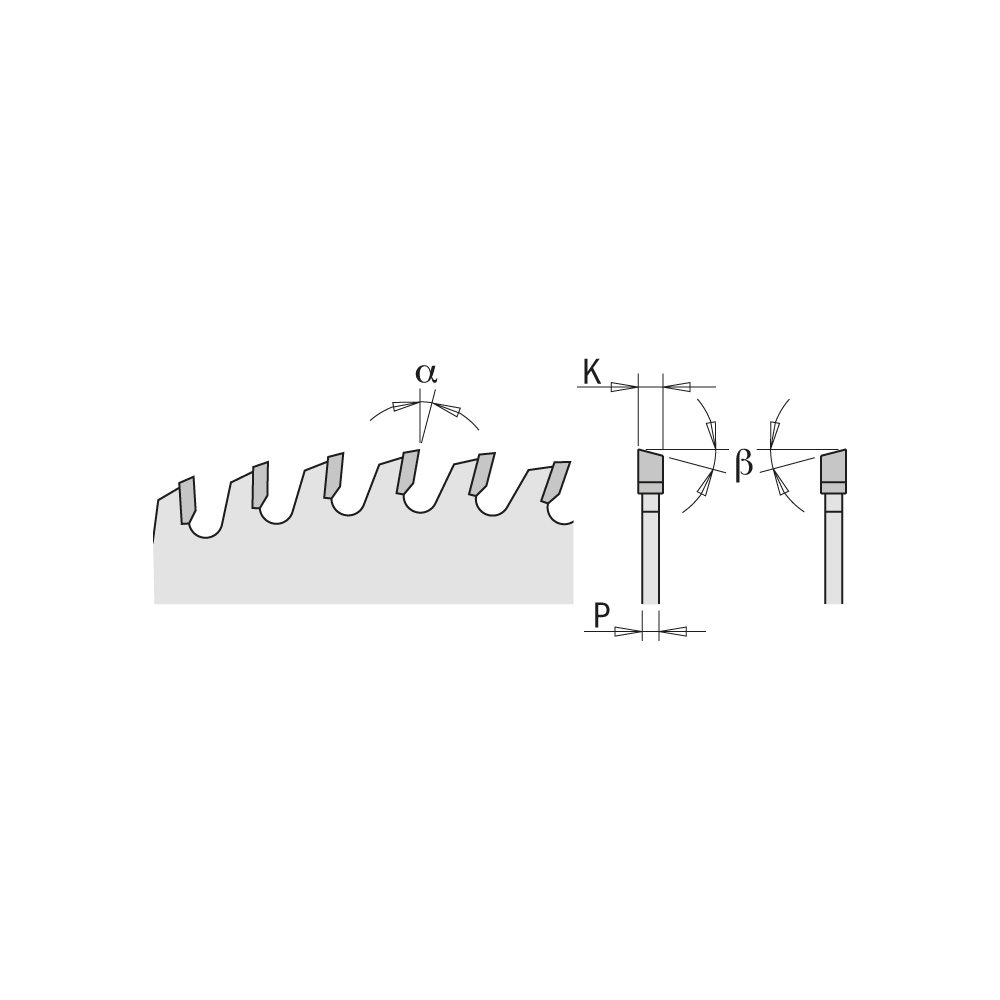

| Item Code | D | B | Z | K | P | α | β | |
|---|---|---|---|---|---|---|---|---|
|

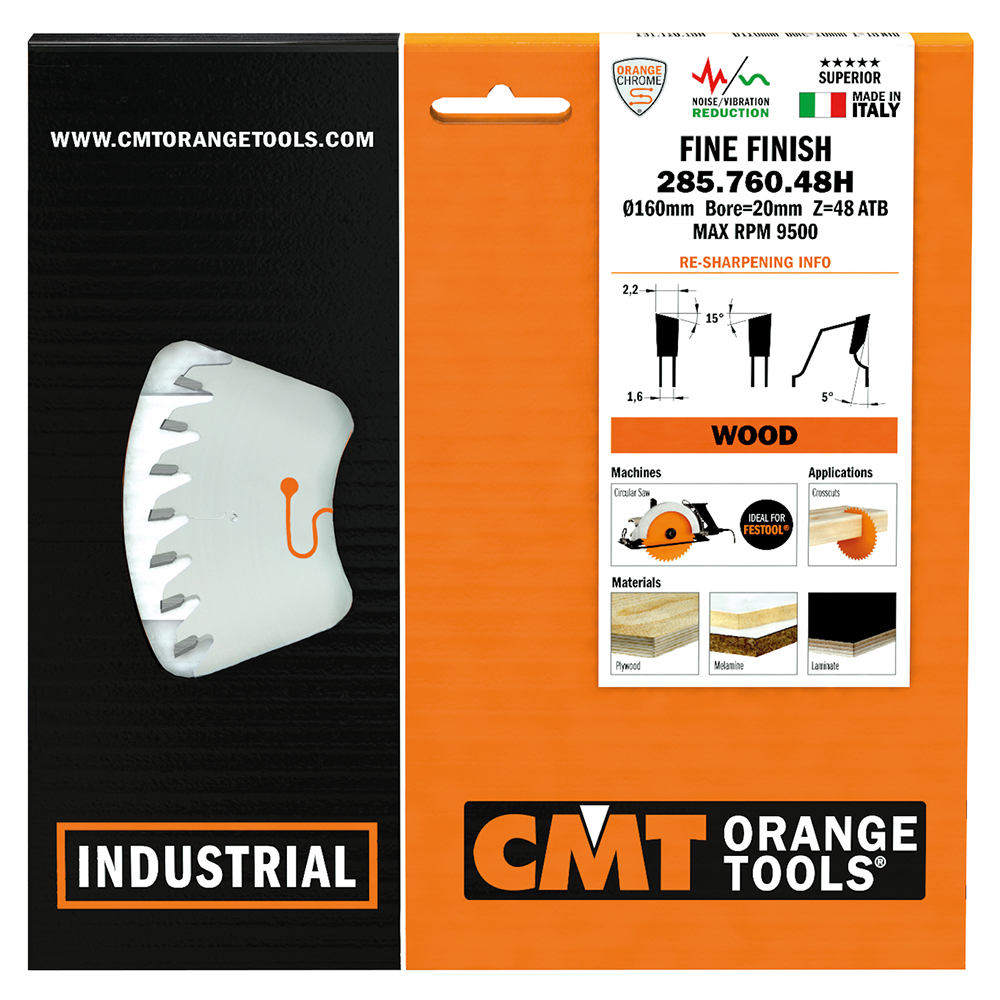

285.760.48H
|
48 | 0.087 | 0.064 | 5 | ATB 12 | |||
|

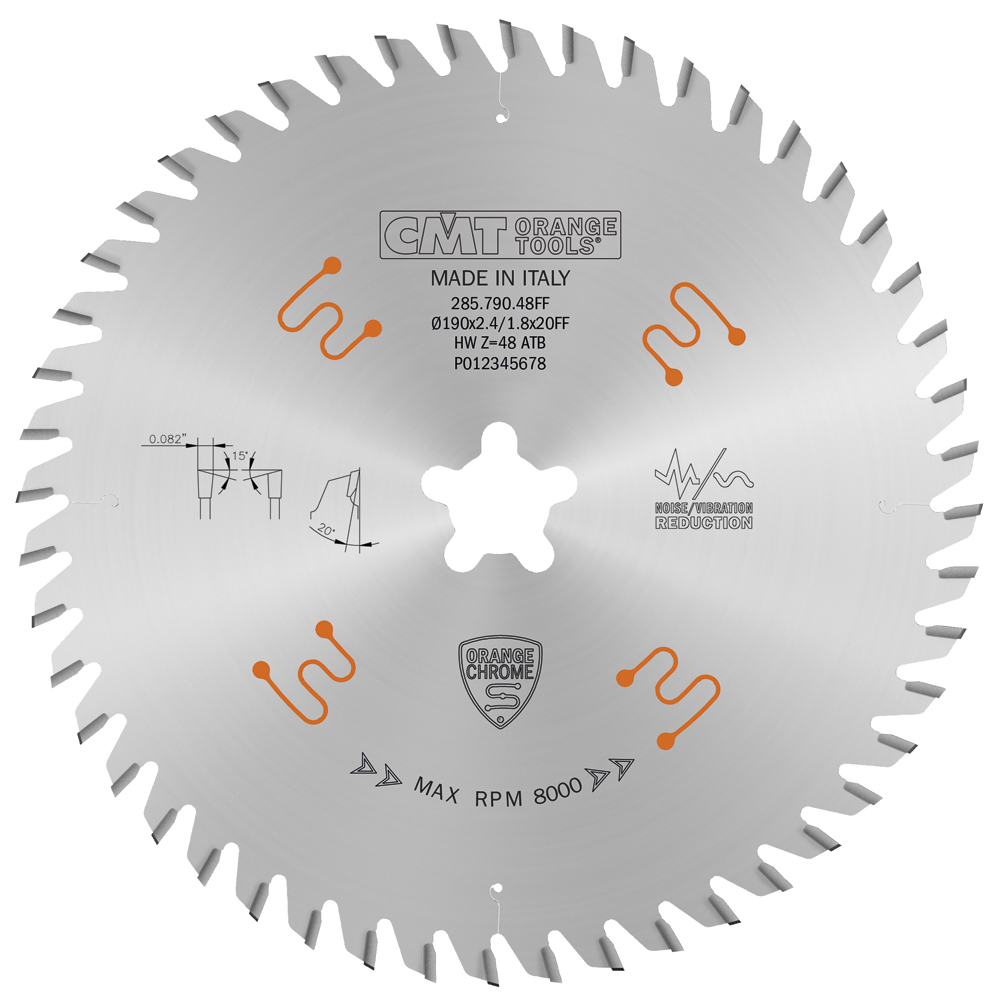

285.790.48FF
|
48 | 0.095 | 0.071 | 8 | ATB 15 | |||
|
285.660.10
|
10 | 5/8 | 60 | 0.126 | 0.087 | 10 | ATB 20 | |
|
285.672.12
|
12 | 1 | 72 | 0.126 | 0.087 | 10 | ATB 20 | |
|
285.684.14
|
14 | 1 | 84 | 0.137 | 0.098 | 10 | ATB 15 | |
|
285.696.16
|
16 | 1 | 96 | 0.138 | 0.098 | 10 | ATB 15 | |
|
285.708.18
|
18 | 1 | 108 | 0.150 | 0.110 | 10 | 15 ATB |
